Cabinet Material: Super thin and strong flexibility, it can be installed at any angle of bending and swing. It is suitable for any concase, convex surface and artistic modeling.
Application: It is widely applied in different situations. This type of soft LED module can be used for irregular buildings, stage performances, fashion shows, night bars and all types of creative applications.

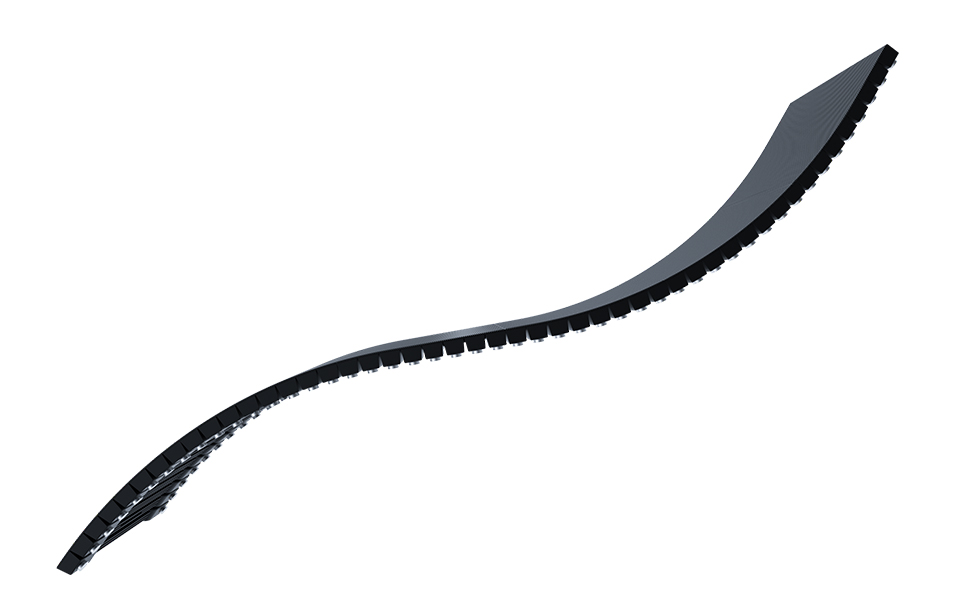

![1642751554262210.jpg P2 Bendable Module 1.jpg](/upload/image/20220121/1642751554262210.jpg)
Easy to Maintain
Front maintenance design of magnetic module, it can be assembled and dismantled independently. It is easy and convenient to operate.

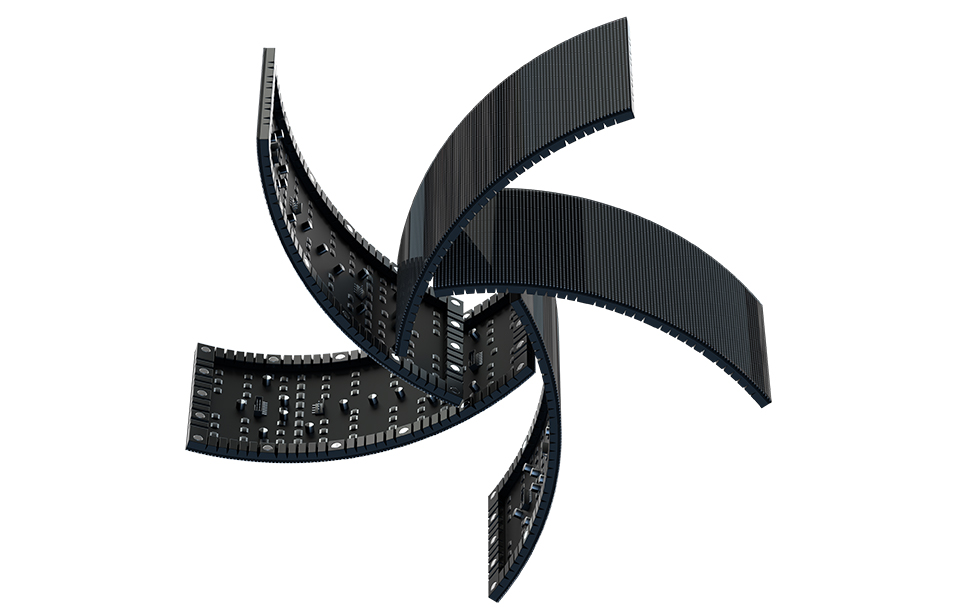

![1642751607990085.jpg P2 Bendable Module 2.jpg](/upload/image/20220121/1642751607990085.jpg)
High Grayscale and High Refresh Rate
This type of module has ultra high greyscale and high refresh rate. Its refresh rate is over 3,840Hz.

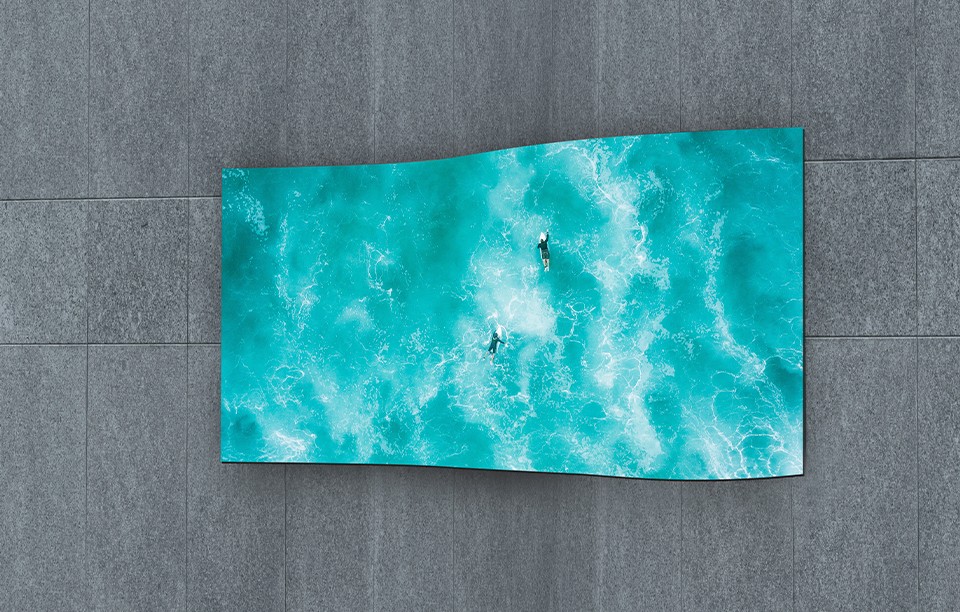

![1642751656471903.jpg P2 Bendable Module 3.jpg](/upload/image/20220121/1642751656471903.jpg)
Support Different Pixel Pitches
This flexible LED module has P1.56, P1.667, P1.86, P2, P2.5, P2.6, P3, P4 and P5 available in our company.

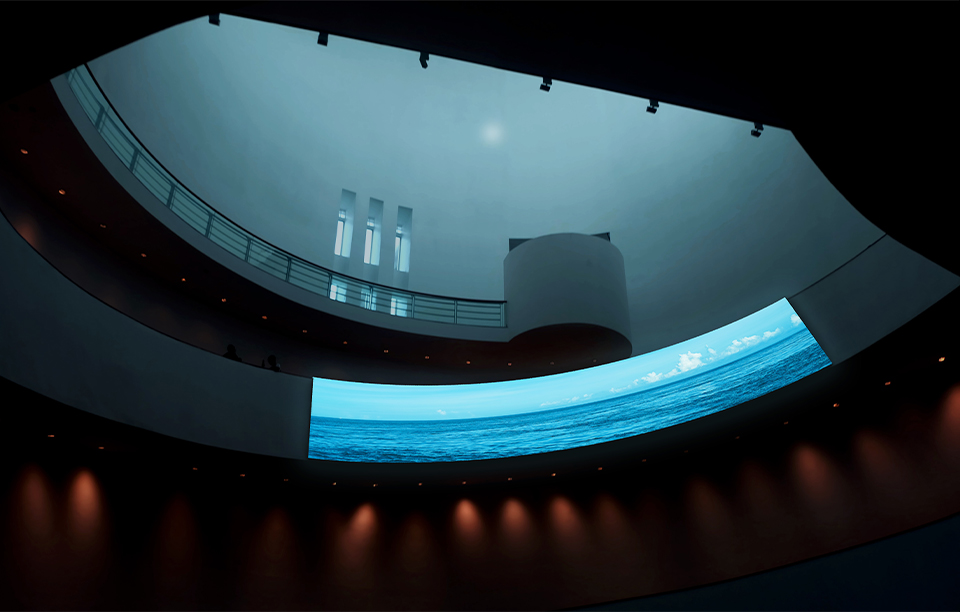

![1642751713680594.jpg P2 Bendable Module 4.jpg](/upload/image/20220121/1642751713680594.jpg)
4 Different Size of Modules
We have 240x120mm, 320x160mm, 200x150mm and 256x128mm four different types of dimension.
Product Parameters
Item | Parameters |
---|---|
Pixel pitch | 2 |
LED Type | SMD1515 |
LED Module Size | 240x120mm |
LED Module Resolution | 120x60 dots |
Special Design | Surface Treatment Protection |
Density per SQ.M | 250,000 dots/SQ.M |
Signal Processing | 12 - 16 bit |
Grey Level | 4096 - 65536 |
Refresh Rate | > 3840Hz |
Scan Mode | 1/30 |
Brightness | > 1,000 nits |
Viewing Distance | > 2m |
Viewing Angle | 150 degree |
Input Voltage | 100-240V/50-60Hz |
Max Consumption | 700 W/SQ.M |
Ave Consumption | 400 W/SQ.M |
Working Temperature | -20 degree to 45 degree |
Storage Temperature | -40 degree to 60 degree |
Input Voltage | DC5V |
IP Rate | IP31 |
Working Humidity | 10% - 60% |
Storage Humidity | 10% - 90% |
Lifespan | > 100,000 hours |
MTBF | > 10,000 hours |
Service Type | Front & Rear Service |
LED Lamp | Nationalstar |
IC | ICN2153 |
Control Card | Nova / Colorlight / LINSN / Huidu |
