Cabinet Material:Power Supply
Application:The Rong Electric MD200PC series includes MD200PC5, MD200PC4.5 (MD200PC4.5HL), MD200PC4.2, MD200PC3.8, and MD200PC3. Small size, self-cooling, high efficiency; especially suitable for sealed boxes; Type medium and high power safety compliance type series
![1631790023507870.jpg PSU 0.jpg](/upload/image/20210916/1631790023507870.jpg)

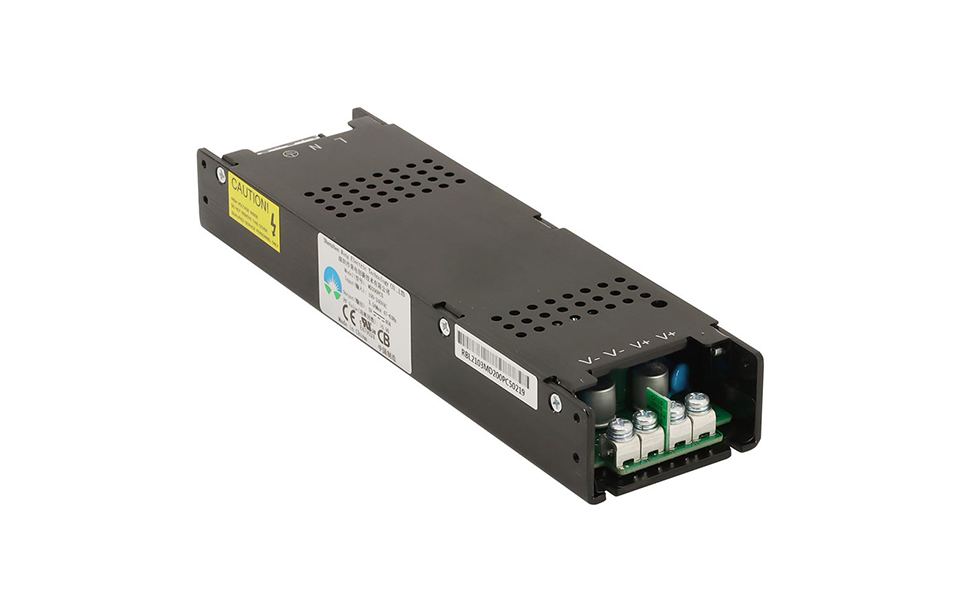

Outdoor Applicable
This power supply is suitable for die-casting al-cabinet because it is very slim and it would use small space.
![1631790085770375.jpg PSU 1 copy.jpg](/upload/image/20210916/1631790085770375.jpg)

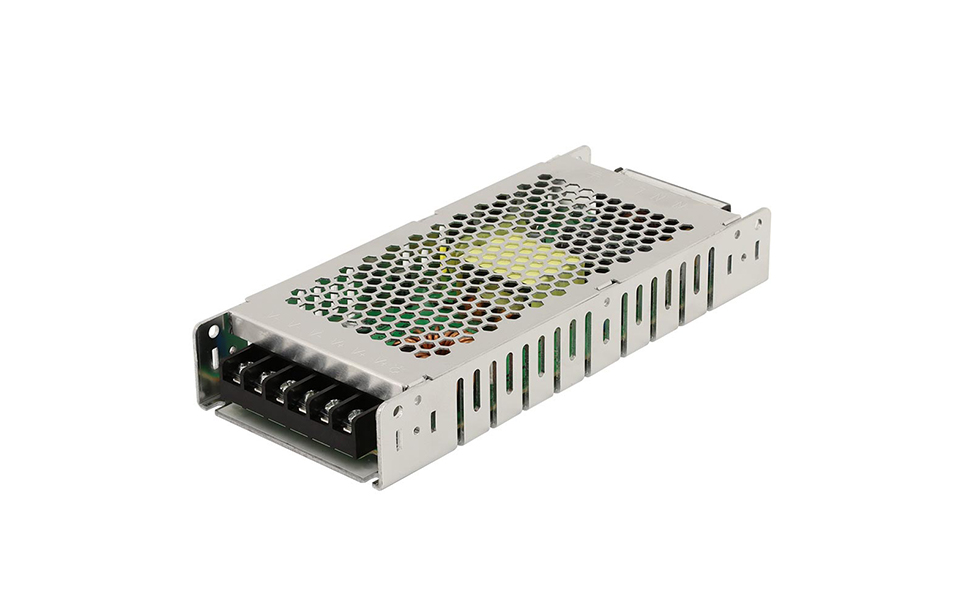

Indoor Applicable
This power supply is also suitable for all indoor series of LED cabinets due to its thin feature.
Product Parameters
Item | Parameters |
---|---|
Product Name | Black Slim Power Supply for LED Display |
Input Voltage | 90-264VAC, 47-63Hz |
Output Power | 200W Max |
Power Factor | 0.98@230Vac |
Insulation | I/P-O/P:3.0KVac I/P-FG: 1.5KVac O/P-FG: 0.5kVac |
Leakage Current | 0.30mA@230Vac |
Protection Function | Input Overvoltage Over Temperature Over Load Short and ect |
Operating Temperature | -30 ~ 60℃ |
Storage Temperature | -40 ~ 100℃ |
Saftety Standards | GB4943, EN60950 |
EMC Stanards | GB9254, EN55022A |
Certificate | CE, CCC, UL, CB |
