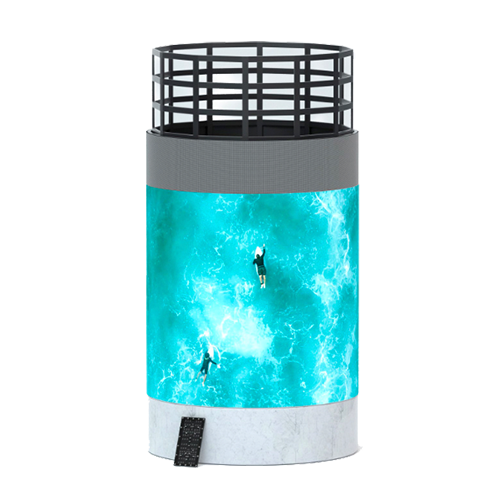

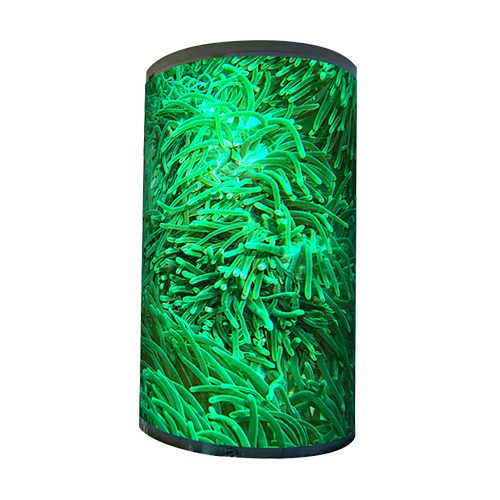

Cylinder LED Screen

Cylinder LED Screen

Product introduction |

Suitable for all kinds of scenarios,can be customized Suitable for all Suitable for all kinds of scenarios.

Cabinet Material: Super thin and strong flexibility, it can be installed at any angle of bending and swing. It is suitable for any concase, convex surface and artistic modeling.

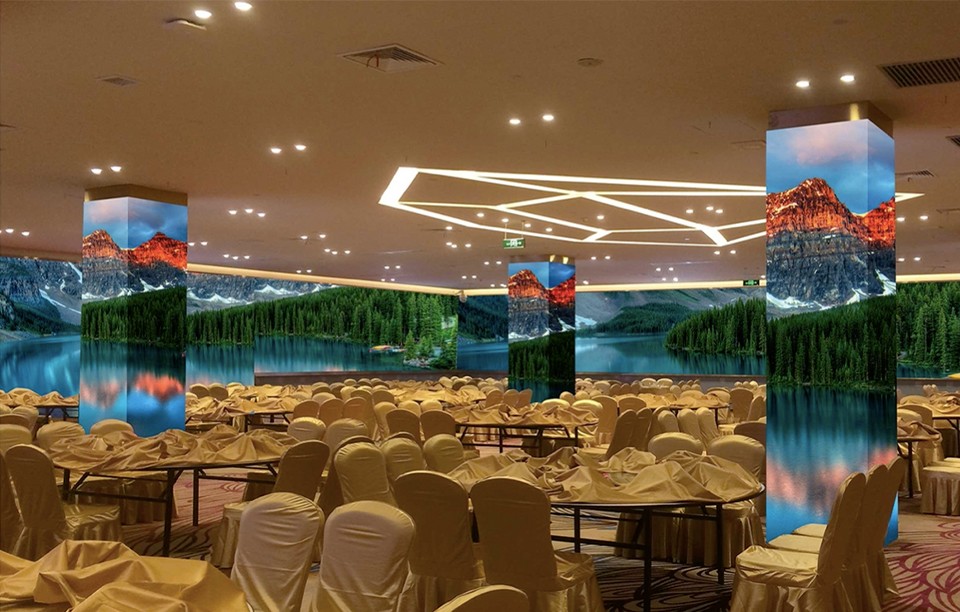

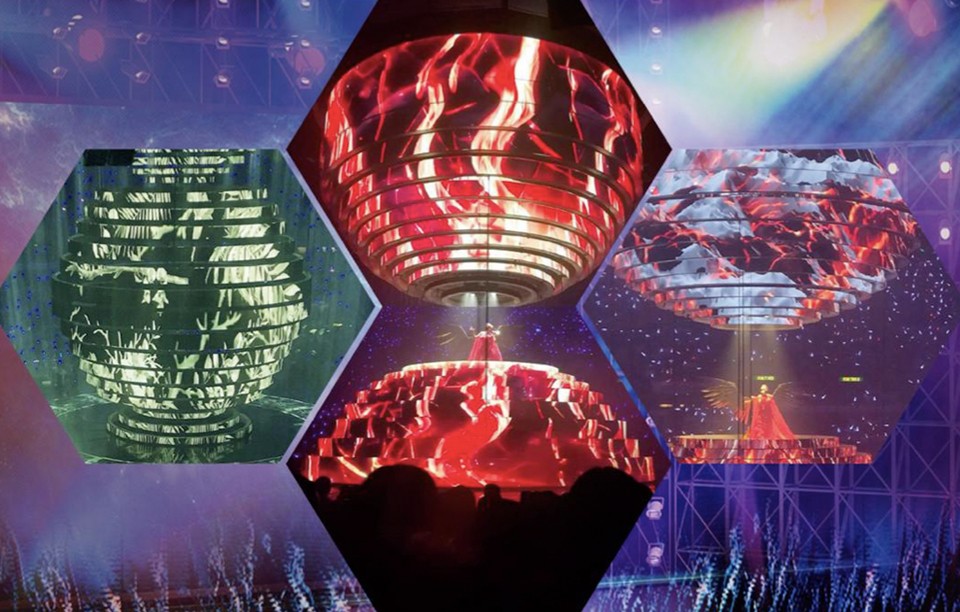

Application: It is widely applied in different situations. This type of soft LED module can be used for irregular buildings, stage performances, fashion shows, night bars and all types of creative applications.

Soft 00.jpg

Easy to Maintain

Front maintenance design of magnetic module, it can be assembled and dismantled independently. It is easy and convenient to operate.

Soft 01.jpg

High Grayscale and High Refresh Rate

This type of module has ultra high greyscale and high refresh rate. Its refresh rate is over 3,840Hz.

flexible 0 960x612.jpg

Support Different Pixel Pitches

This flexible LED module has P1.56, P1.667, P1.86, P2, P2.5, P2.6, P3, P4 and P5 available in our company.

flexible 1 960x612.jpg

4 Different Size of Modules

We have 240x120mm, 320x160mm, 200x150mm and 256x128mm four different types of dimension.

Product Parameters

Pixel pitch2
LED TypeSMD1515
LED Module Size240x120mm
LED Module Resolution120x60 dots
Density per SQ.M250,000 dots/SQ.M
Signal Processing 12 - 16 bit
Grey Level4096 - 65536
Refresh Rate> 3840Hz
Scan Mode1/30
Brightness> 1,000 nits
Viewing Distance> 2m
Viewing Angle150 degree
Input Voltage
Max Consumption700 W/SQ.M
Ave Consumption400 W/SQ.M
Working Temperature-20 degree to 45 degree
Storage Temperature-40 degree to 60 degree
Input VoltageDC5V
IP RateIP31
Working Humidity10% - 60%
Storage Humidity10% - 90%
Lifespan > 100,000 hours
MTBF> 10,000 hours
Service TypeFront & Rear Service
LED Lamp
Control CardNova / Colorlight / LINSN / Huidu
