Stadium Perimeter

Stadium Perimeter

Product introduction |

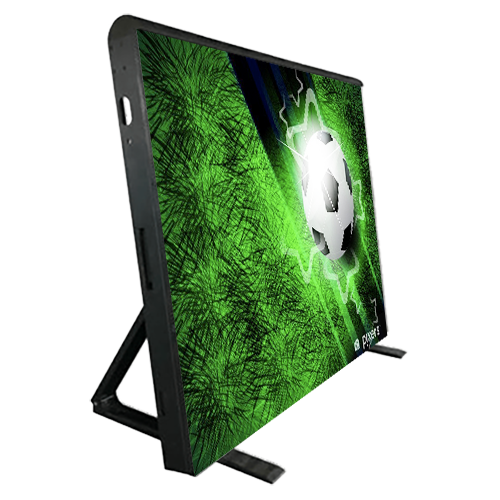

Outdoor stadium led display

Cabinet Material:Die-casting Aluminium LED Cabinet

Application:Those LED products were widely used in both indoor and outdoor places like sports event, basketball stadium, football court, hall, hotel, exhibition room, public square, symbols,building and TV stage background and etc.

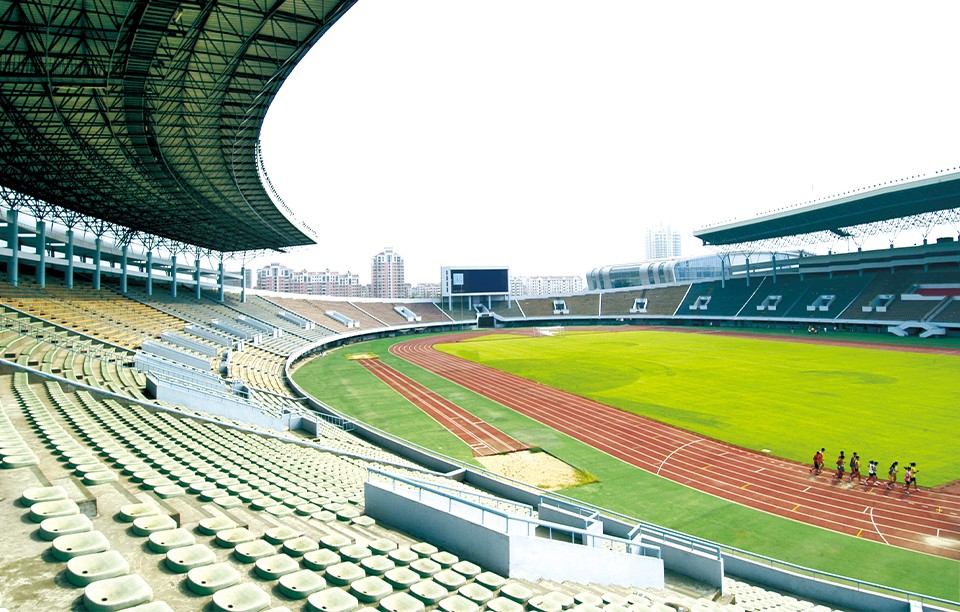

case 24 620x426.jpg

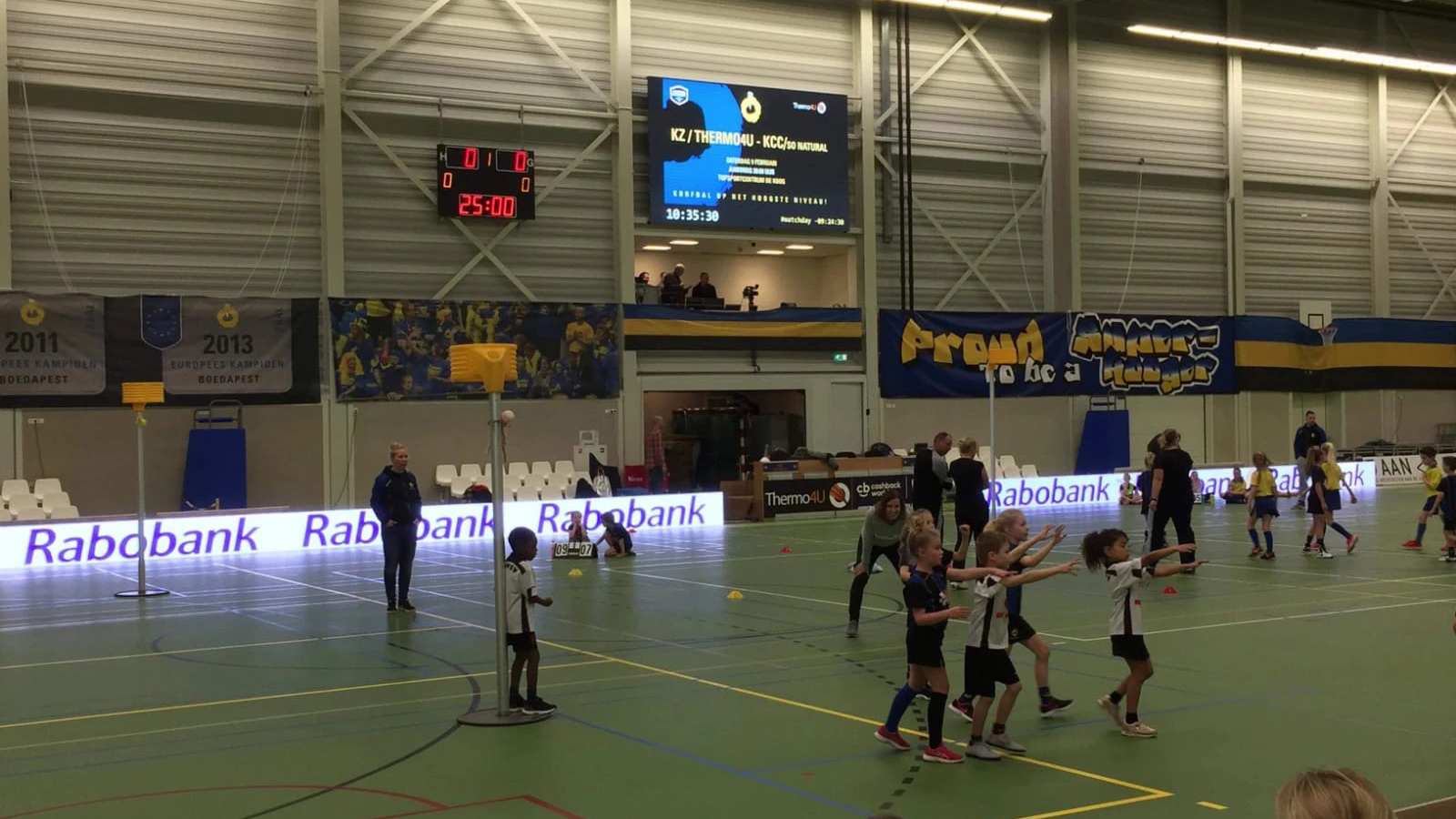

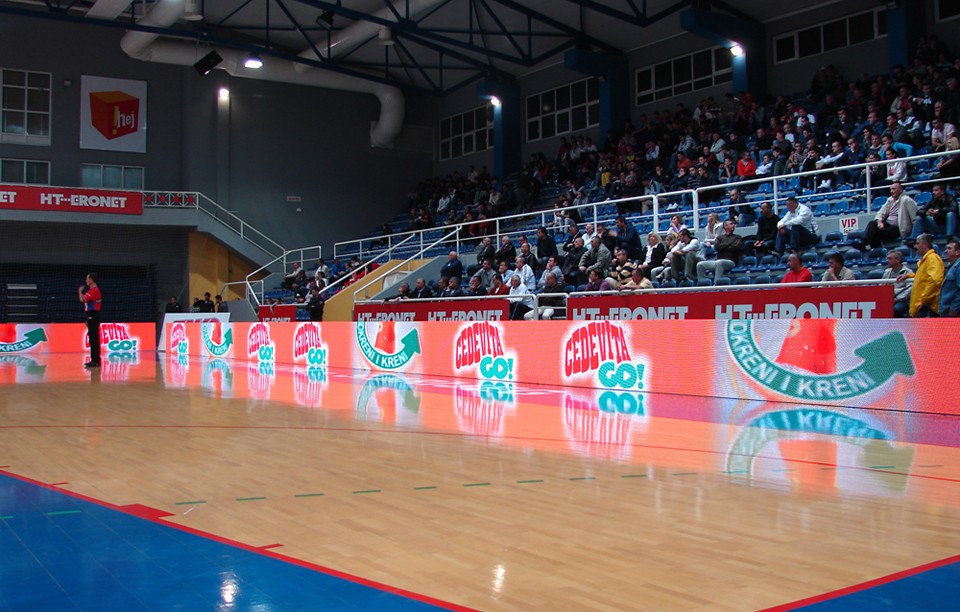

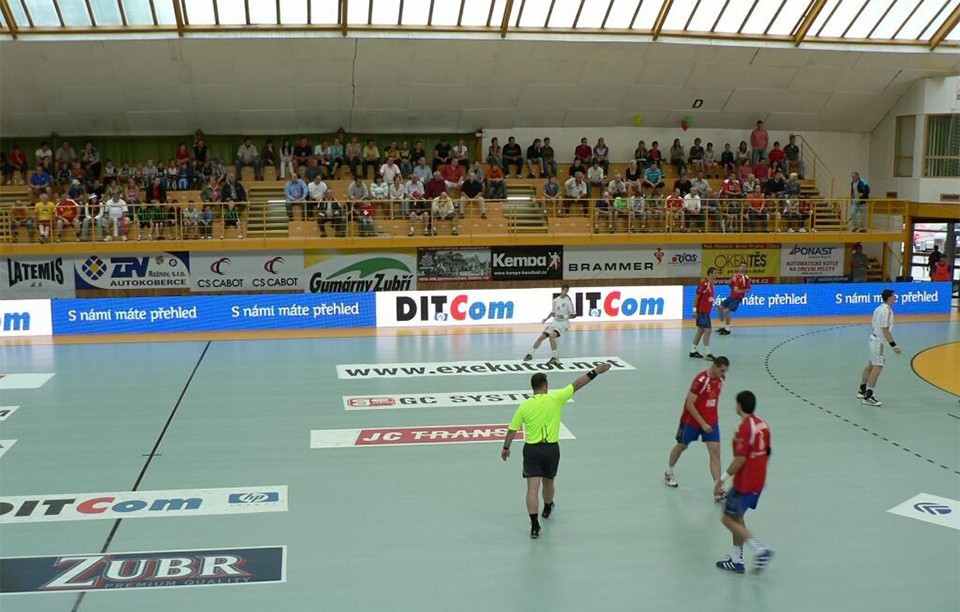

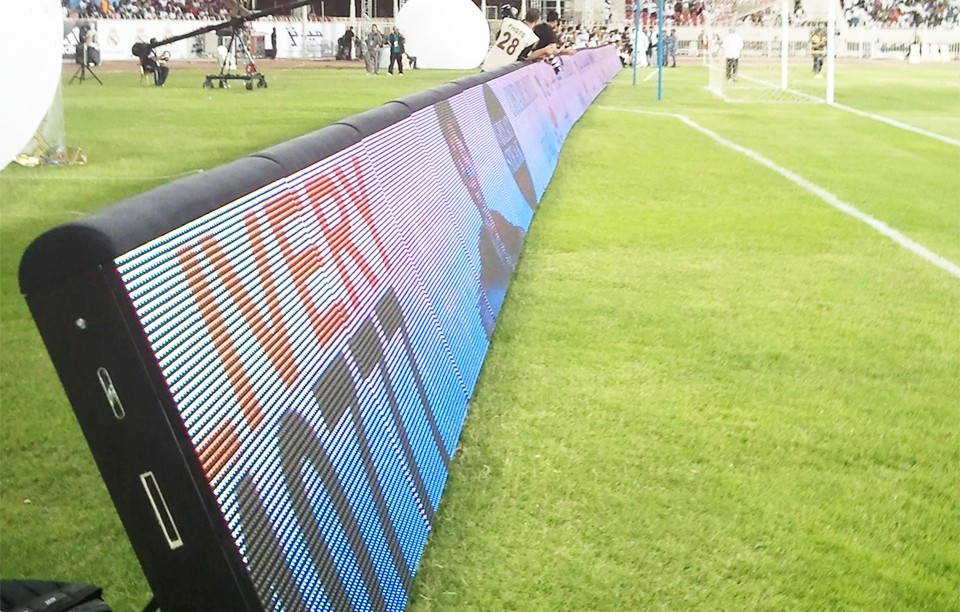

Stadium Perimeter

We have this LED perimeter mainly installed around the competition venue for adveritising broadcasting. It can replace the tranditional spray painting. Its dynamic effects and simple operation can increase advertising revenue by getting higher exposure.

stadium 1 960x612.jpg

Dual Protection Guarantee

Each panel top has one sponge pad. Its face has rubber soft mask on the surface of the display so as to alleviate the damage caused by impact. Dual protection not only can protect the LEDs, but also it will not cause injury to athletes when panel collision happens.

stadium 2 960x612.jpg

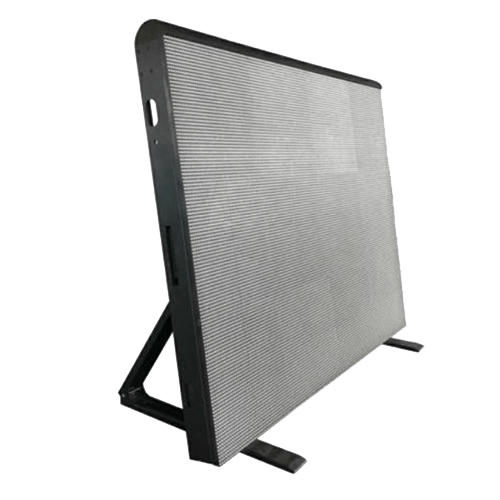

Display Panel Size

This cabinet can be designed to 960mm W x 960mm H and 1280mm W x 960mm H. The module is 320mm W x 320mm H. It suits for pixel pitch 6mm, 8mm and 10mm.

stadium 3 960x612.jpg

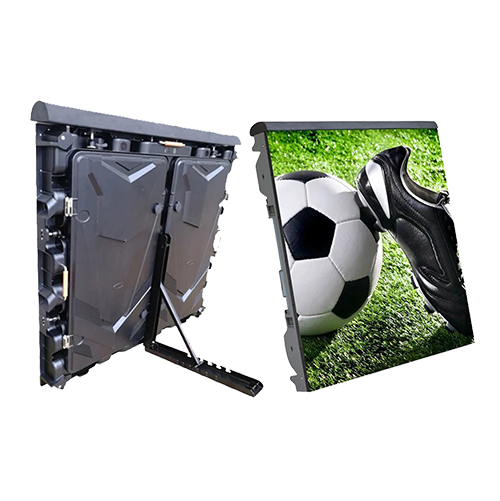

Convenient Maintenace

This cabinet support for full front and rear access for modules, power supplies and control cards with components. It enables you fast disassembly and installation.

Product Parameters

ItemParameters
Pixel pitch10mm
LED TypeSMD3535
LED Module Size320x320mm
LED Module Resolution32x32dots
LED Cabinet Size1280x960mm
Density per SQ.M10,000 dots/SQ.M
Signal Processing 14 bit
Grey Level4096 - 65536
Refresh Rate> 3840Hz
Scan Mode1/2
Brightness> 6500 nits
Viewing Distance> 10m
Contrast Ratio5000:1
Viewing AngleH160/V120
Input Voltage
100-240V/50-60Hz
Max Consumption< 750 W/SQ.M
Ave Consumption300 W/SQ.M
Working Temperature-20 degree to 45 degree
Storage Temperature-40 degree to 60 degree
Input VoltageDC5V
IP RateIP67
Working Humidity10% - 60%
Storage Humidity10% - 90%
Lifespan > 100,000 hours
MTBF> 10,000 hours
Service TypeFront Service
LED Lamp
Nationalstar
ICICN2153
Control CardNova / Colorlight / LINSN / Huidu
