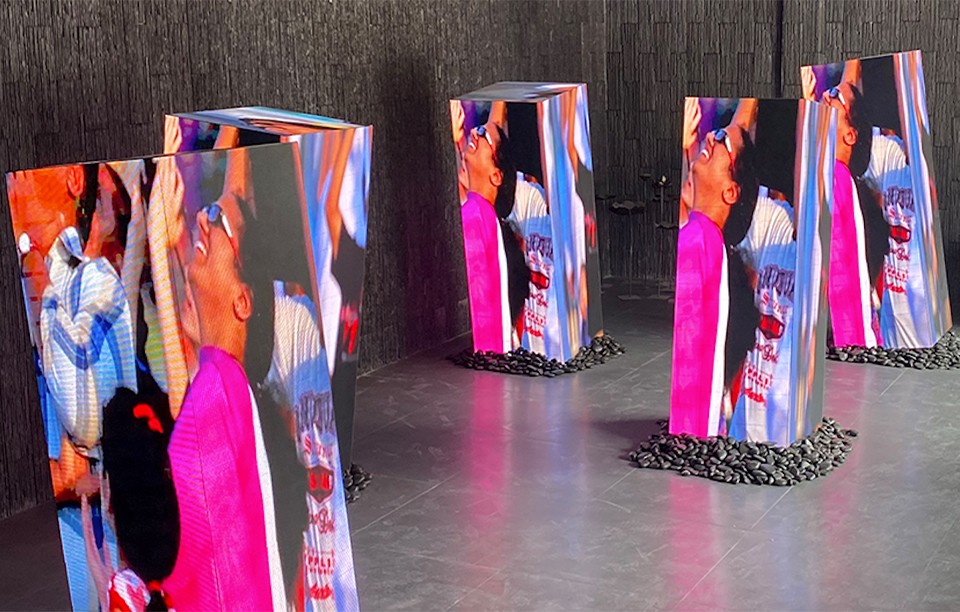

Cabinet Material: This type of outdoor cube display is made by Nationalstar high quality LED lamp.
Application:Those LED products were widely used in both indoor and outdoor places like hall, hotel, exhibition room, public square, symbols,building and TV stage background and etc.
![1632551907227684.jpg 90 degree 0.jpg](/upload/image/20210925/1632551907227684.jpg)

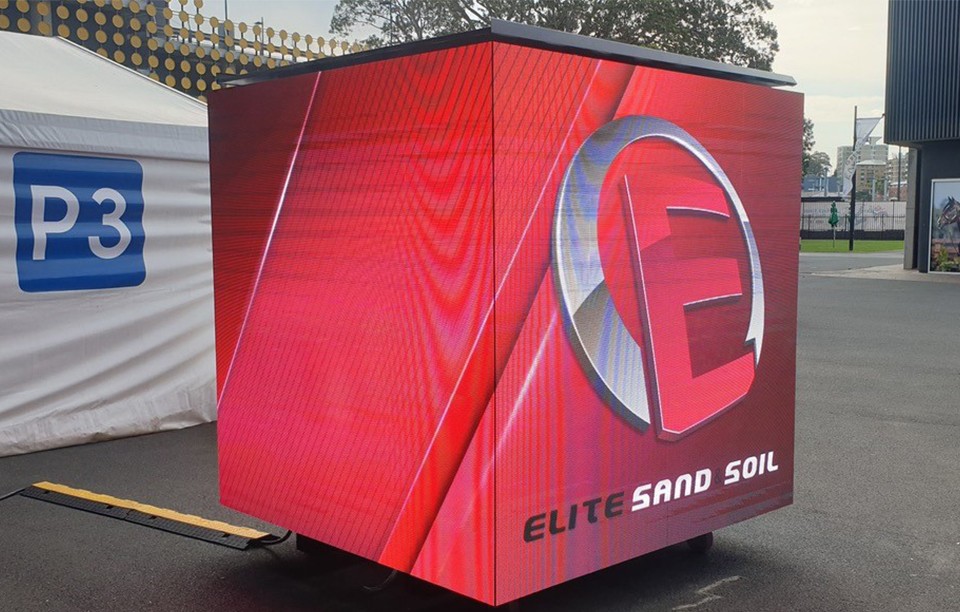

Outdoor IP67 Rated
This type of outdoor flexible LED module can be put inside of the water, and its waterproof rate is IP67.
![1629455460797913.jpg big size cube 960x612.jpg](/upload/image/20210820/1629455460797913.jpg)

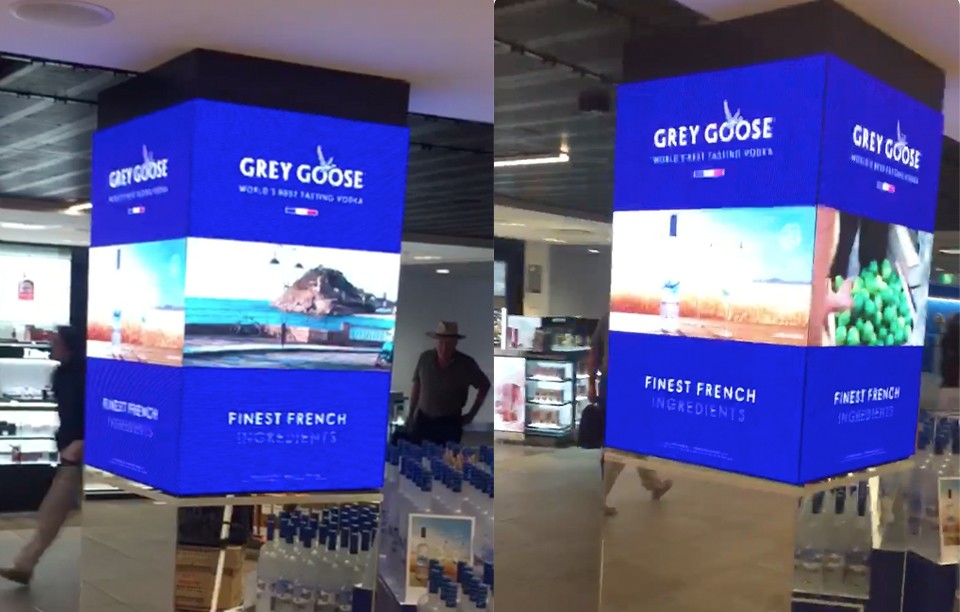

100% Full Front Service

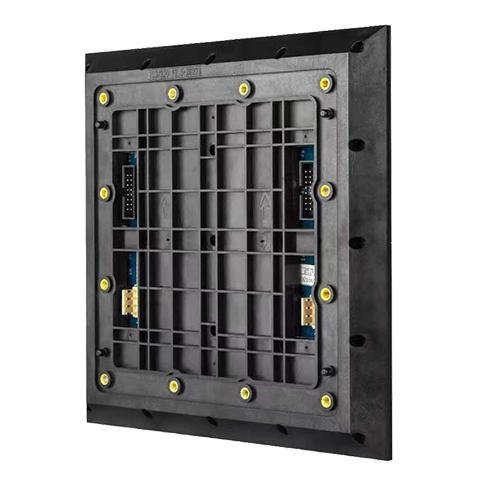

Outdoor cube LED module has magnets and iron plates, so it can be compatible with the front service tool.
![1629506106595427.jpg cube indoor 960x612.jpg](/upload/image/20210821/1629506106595427.jpg)
Easy Installation
This type of magnetic connection to assemble is very easy to install even it is for outdoor environment.

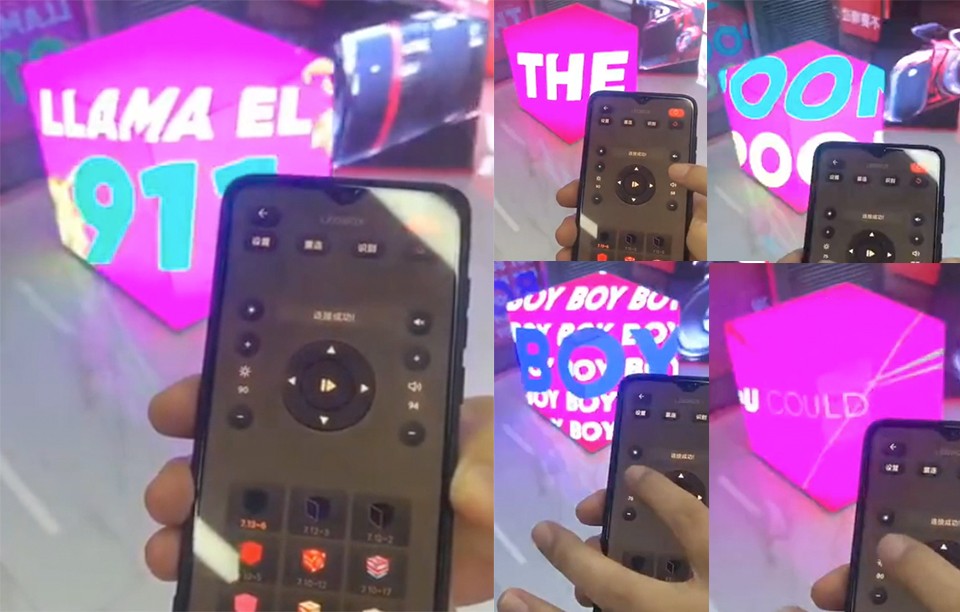

![1629506510492118.jpg cube remote 960x612.jpg](/upload/image/20210821/1629506510492118.jpg)

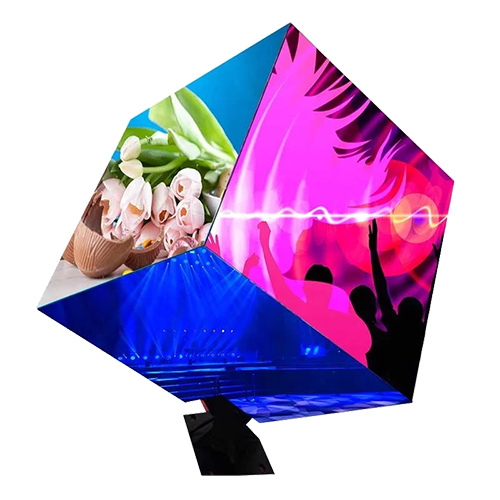

Support 360 degree Angle
It supports any angle to fee the high quality of visual effect.
Product Parameters
Item | Parameters |
---|---|
Pixel pitch | 2.5 |
LED Type | SMD1415 |
LED Module Size | 200 x 200mm |
LED Module Resolution | 80 x 80 dots |
Signal Processing | 12 - 16 bit |
Grey Level | 4096 - 65536 |
Refresh Rate | > 3840Hz |
Scan Mode | 1/10 |
Brightness | >6,000 nits |
Viewing Distance | > 3.8m |
Viewing Angle | 110 degree |
Input Voltage | 100-240V/50-60Hz |
Max Consumption | 750W/SQ.M |
Ave Consumption | 225W/SQ.M |
Working Temperature | -20 degree to 45 degree |
Storage Temperature | -40 degree to 60 degree |
IP Rate | IP67 |
Working Humidity | 10% - 60% |
Storage Humidity | 10% - 90% |
Lifespan | 100,000 hours |
Service Type | Front & Rear Service |
LED Lamp | Nationalstar |
IC | ICN2153 |
Control Card | Nova / Colorlight |
Available Size Qty | 4 sides or 5 sides |
Avaiable Cube Size | 200x200mm 400x400mm 600x600mm 800x800mm |
