P1.25 LED COB Cabinet
Indoor Full Colour P1.25 COB LED Screen
Product introduction |
This is traditional design of indoor LED display module. It has consistently bright and uniform picture quality, and it is reliable indoor LED signage with ongoing performance. This is dramatically cost-efficient design with convenient installation and maintenance.
Cabinet Material:Die-casting Al-cabinet & Single Side Design
Application:The traditional indoor LED screen is a state-of-the-art LED signage that complements any business with vibrant content presentation, along with an enhanced, indoor-friendly design that saves cost and time during installation and operation. It is the ideal display to deliver captivating and meaningful content in any indoor environment.
![1675918338966132.jpg [1]P125 COB 960x612.jpg](/upload/image/20230209/1675918338966132.jpg)
Durable, Reliable Indoor Alternative

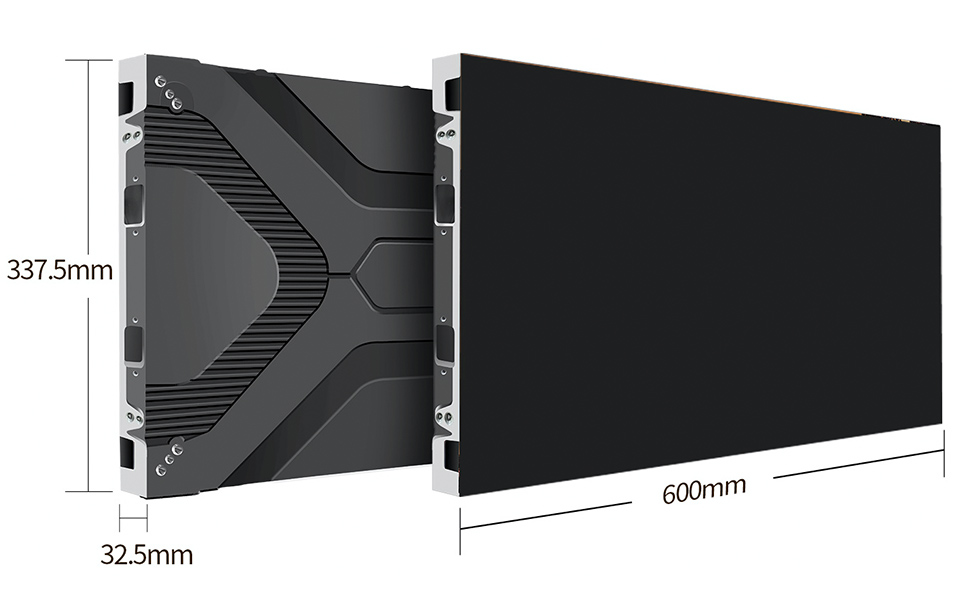

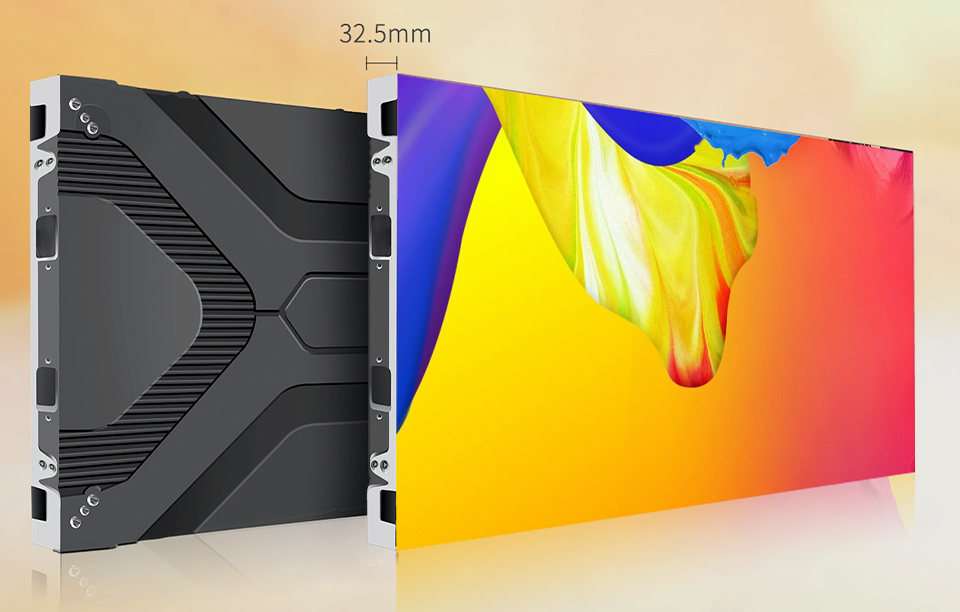

It is subject to environmental tests including exposure to any temperatures, a weather-enacting salt corrosion chamber and package vibration and drop testing. The display also has corrosion-proof painting and anti-UV, deformation-proof housing that extends its shelf life. Its thickness is only 3.25cm. And, the cabinet dimension is 600mm W x 337.5mm H. One cabinet is 27'' LED screen.
![1675918379372363.jpg [2]P125 COB 960x612.jpg](/upload/image/20230209/1675918379372363.jpg)
Environmental Stable Design
It undergoes strict testing to ensure ongoing performance when exposed to water, dust and indoor elements. Ingress Protection (IP) validation confirms defense for the front IP65 and back (IP67) of the display, ensuring continuous operation regardless of the environment. It has the COB protection, so it can resist the damages from the violence and shipment process.
![1675918438779607.jpg [3]P125 COB 960x612.jpg](/upload/image/20230209/1675918438779607.jpg)
Ultra-slim Design and Low Power Consumption
This COB LED display is made by the small module 150mm W x 168.75mm H, and each dot includes COB 1R1G1B. Screen can support full front service by vacuum tool. And, the whole screen supports for maintenance from the front side and rear side of the screen. Its brightness can reach about 600-800 standard indoor screen bright to protect the audiences' eyes. Each cabinet is about 7.5KGS. It is very light for you to install and dismantle.
![1675918554363075.jpg [4]P125 COB 960x612.jpg](/upload/image/20230209/1675918554363075.jpg)
Super High Contrast Ratio
It has a 10000 vs 1 contrast ratio which can secure a very wonderful video displaying effect. The gray level is 14-16 bit. So, you would see the screen working very smoothly without any lagging on the screen when it is displaying the movement videos.
Product Parameters
Item | Parameters |
---|---|
Pixel pitch | 1.25mm |
LED Type | MiniLED 2R2G2B |
LED Module Size | 300x168.75mm |
LED Module Resolution | 240x135dots |
Density per SQ.M | 640,000 dots/SQ.M |
Signal Processing | 12 - 16 bit |
Grey Level | 4096 - 65536 |
Refresh Rate | > 3840Hz |
Scan Mode | 1/60 |
Brightness | > 500 nits |
Viewing Distance | > 1.25m |
Contrast Ratio | 5000:1 |
Viewing Angle | 120 degree |
Input Voltage | 100-240V/50-60Hz |
Max Consumption | < 400 W/SQ.M |
Ave Consumption | 100 W/SQ.M |
Working Temperature | -20 degree to 45 degree |
Storage Temperature | -40 degree to 60 degree |
Input Voltage | DC5V |
IP Rate | IP35 |
Working Humidity | 10% - 60% |
Storage Humidity | 10% - 90% |
Lifespan | > 100,000 hours |
MTBF | > 10,000 hours |
Service Type | Front Service |
LED Lamp | Nationalstar |
IC | ICN2153 |
Control Card | Nova / Colorlight / LINSN / Huidu |
