Front Access Single Side

Front Access LED Screen

Product introduction |

Front Access LED Screen is widely used for advertising boards. It has a good waterproof rate IP65 and 2 years of factory warranty. It is easy to maintain by open the front side of cabinet.

Cabinet Material:Cast Iron & Single Side Design

Application:It can be used for indoor and outdoor LED video wall. This is the traditional design of full front service LED display, and it is very cost-effective comparing to modern tool front service modules.


Support Multiple Pixels

This type of front open LED screen can adopt pixel from 2.5mm to 16mm depending on project requirements. It can be controlled by 4G and WIFI wireless methods. New energy-saving branch-feeding technology is utilised in this front access LED now. It can save a great money for you.


Reliable Quality LED Display

The cabinet is made by cast iron and it has a good level of waterproof protection. The LED lamp is National-star SMD2525, and the driver IC is MBI5124GP-B. It is equiped by Meanwell LRS-350-5 power supplies.

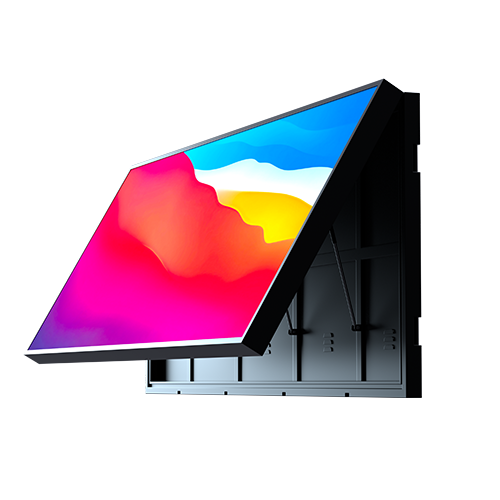

Front Access 1.jpg

Highly Customisable

It offers customisation service including cabinet colour, maintenance, shape, size and the way of control. You are welcome to customise your LED signage that works the best for your architecture or buildings.

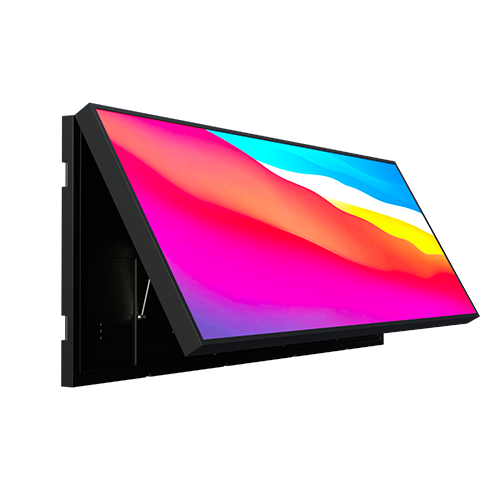

Front Access 2.jpg

Front Access and Quick Service

The cabinet offers flexible way to access your display, module, control system, power or any other components. It can be accessed from front side. It facilitates your maintenance and help to make the best use of installation space.

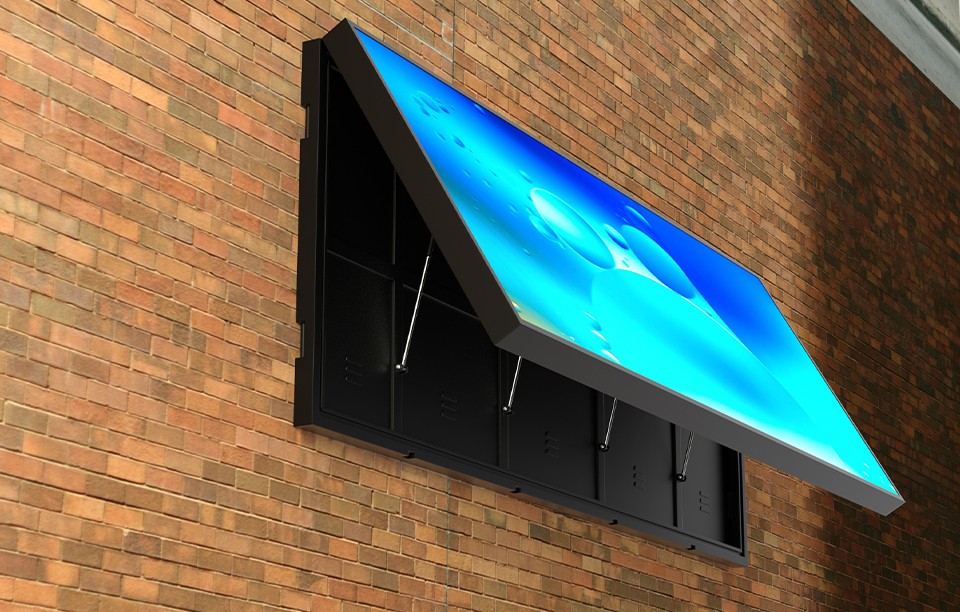

Front Access 3.jpg

Auto Brightness Control

With the brightness sensor built inside the display, this LED signage can automatically adjust brightness as environment changes. It is more energy-efficient than non-brightness controlled screens. And, it can remain working in extremely bad weather. It is suitable for diverse outdoor environments and weather conditions.

Product Parameters


Pitch2.5mm3mm4mm5mm6mm
Module Size320*160mm192*192mm256*128mm320*160mm192*192mm
Module Resolution128*6464*6464*3264*3232*32
LED TypeSMD1415SMD1921SMD1921SMD2727SMD3535
Brightness5000 Nits5500 Nits5500 Nits6000 Nits9000 Nits
Pixel Density/m2160000111111625004000027777
Driving Method1/16 Scan1/16 Scan1/8 Scan1/8 Scan1/4 Scan
Optimal View Distance2-8m3-10m4-13m5-16m6-20m
Avg. Power430W/m2460W/m2500W/m2310W/m2350W/m2
Max. Power950W/m2980W/m21100W/m2700W/m2780W/m2
ICMBI5124
Refresh Rate1920-3840Hz
Brightness Control256 Grade/Each Color
View Angle140/120
Ingress ProtectionIP65
Input VoltageAC110/220V, 50/60Hz
Operating Temp.-30℃~60℃
Gross Weight50Kg/m2
Life Span100000 Hours
