500x1000 LED Cabinet
P2.6 Indoor Rental LED Cabinet 500x1000
Product introduction |

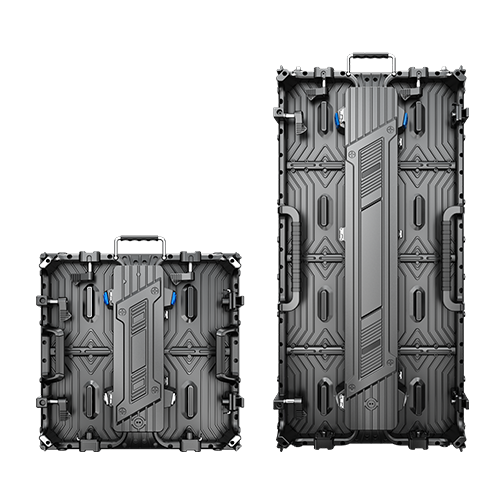

High-precision die casting aluminum material cabinet, extremely light weight, easy to assemble.
Cabinet Material：Cast Iron & Double Sided Design
Application： High-precision die casting aluminum material cabinet, extremely light weight, easy to assemble.
Easy To Install
High-precision die casting aluminum material cabinet, extremely light weight, easy to assemble.
250x250mm module, compatible with P2.6/P2.97/P3.91/P4.81；Cabinet size 500mm W*500mm H*50mm D, one cabinet 7.5KG very thin and light, quick install.
Perfect Performance
MBI driving IC, refresh ≥3840H, ensures true 16bit gray level. Ensure no deformation of PCB Board, perfect flatness performance. Showing the real and full angle display.
Easy To Install
High-precision die casting aluminum material cabinet, extremely light weight, easy to assemble.
250x250mm module, compatible with P2.6/P2.97/P3.91/P4.81；Cabinet size 500mm W*500mm H*50mm D, one cabinet 7.5KG very thin and light, quick install.
Perfect Performance
MBI driving IC, refresh ≥3840H, ensures true 16bit gray level. Ensure no deformation of PCB Board, perfect flatness performance. Showing the real and full angle display.
Product Parameters
| Item | Parameters |
|---|---|
| Pixel pitch | 2.6mm |
| LED Type | SMD2020 1R1G1B |
| LED Module Size | 250 x 250mm |
| LED Module Resolution | 96 x 96 dots |
| LED Cabinet Size | 500x500x58mm |
| Cabinet Resolution | 192 x 192 dots |
| Screen Pixel | 147,456 dots |
| Signal Processing | 12 - 16 bit |
| Grey Level | 4096 - 65536 |
| Refresh Rate | > 3840Hz |
| Scan Mode | 1/32 |
| Brightness | >1,000 nits |
| Viewing Distance | > 2.604m |
| Viewing Angle | 160 degree |
| Input Voltage | 110-240V/50-60Hz |
| Max Consumption | 750W/SQ.M |
| Ave Consumption | 225W/SQ.M |
| Working Temperature | -20 degree to 45 degree |
| Storage Temperature | -40 degree to 60 degree |
| IP Rate | IP43 |
| Working Humidity | 10% - 60% |
| Storage Humidity | 10% - 90% |
| Lifespan | 100,000 hours |
| Service Type | Front & Rear Service |
| LED Lamp | Nationalstar |
| IC | ICN2153 |
| Control Card | Nova / Colorlight |
| Operation Approach | Windows |
