A3 Aluminium 480x320
A3 Series P5.7/P6.67/P8/P10 Aluminium 480x320mm Full Front Service LED Module
Product introduction |

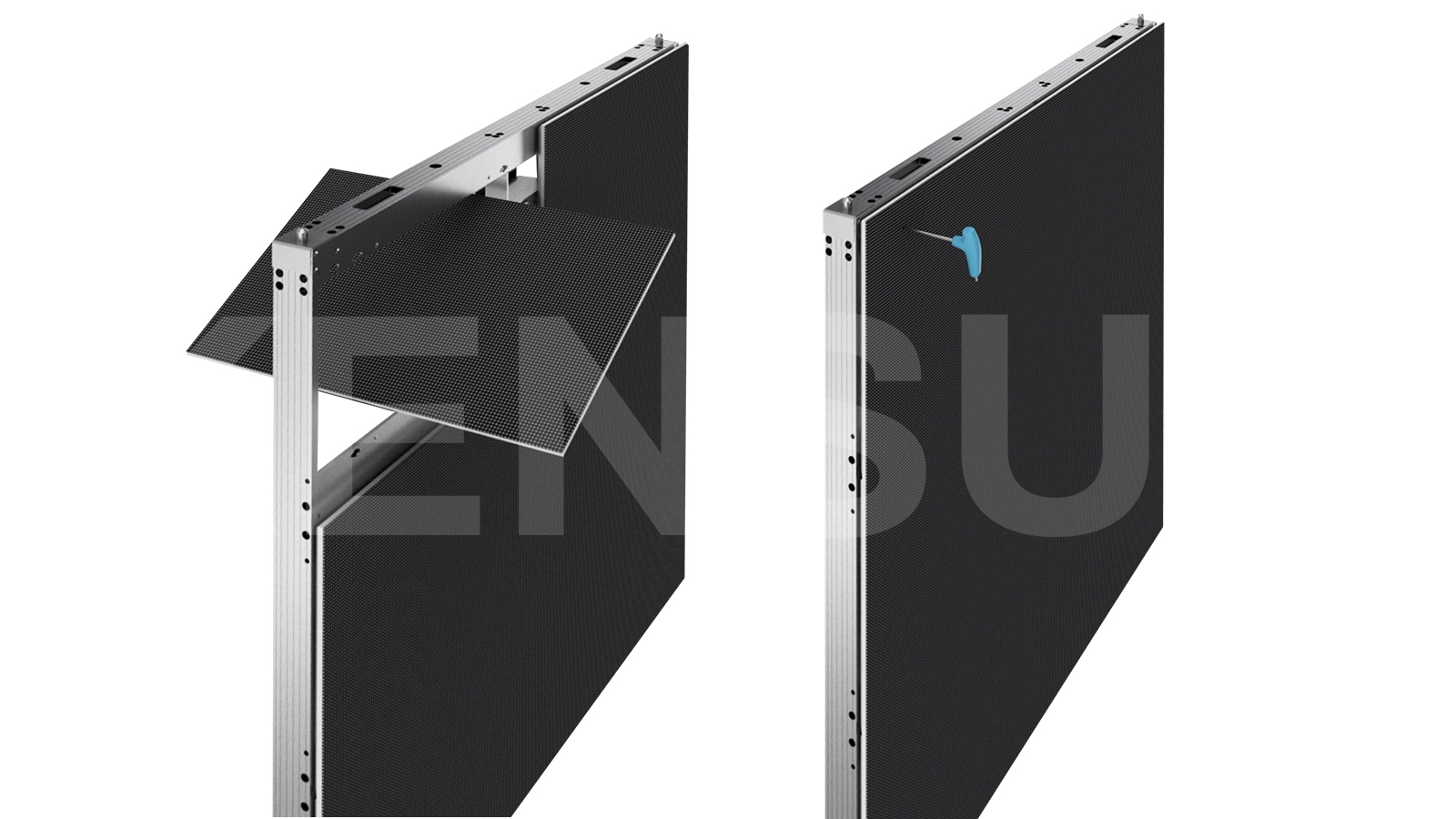

This is new design of full front service LED modules for outdoor application. It is popular these two years worldwidely. It is the best choice for outdoor 3D billboard advertising LED screens at the wall corner places.
Cabinet Material：Aluminum & Single Side Design

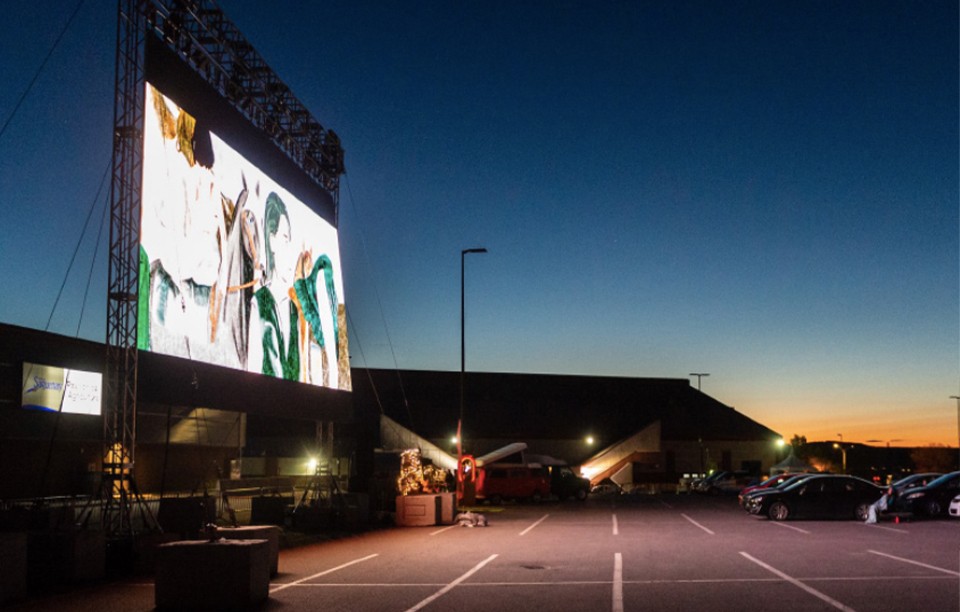

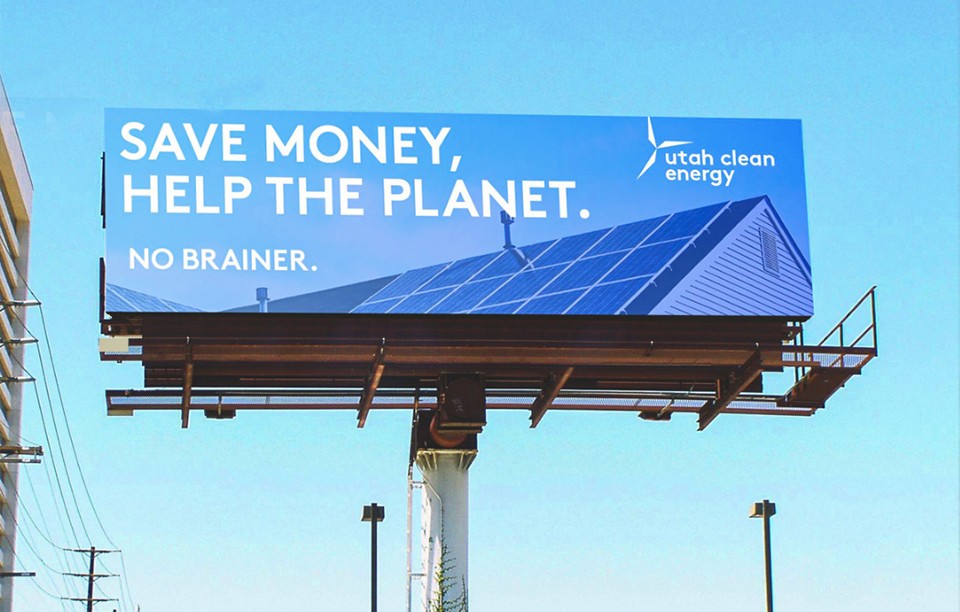

Application：It is applicable for commercial center, airport, big conference, city's landmark plaza, exhibition center and other outdoor advertising walls. It is the best choice for outdoor 3D billboard advertising LED screens. LED module is 480mm W x 320mm H with aluminum frame protection. It supports two-way front and rear service. It has CE, RoHS, EMC, FCC and UL certificates approved.
Strong Adaptability
This LED display adopts full sealed cast iron cabinet to protect its inner componets and make the display body to withstand extremely high and low temperature. It can work whole day in outdoor environment.
Light weight & Energy-saving

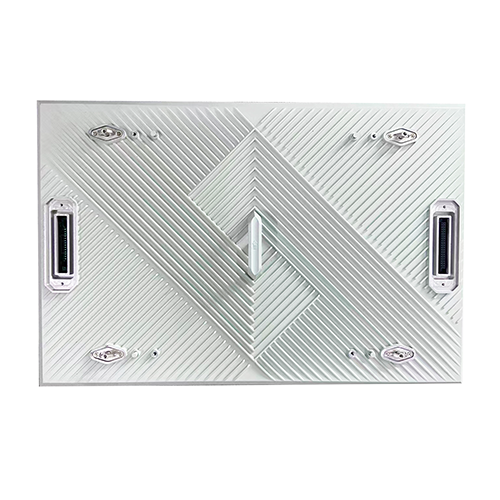

This cabinet is designed to be slim and light weight, which is only 25kgs per cabinet 960x960mm. The common cathode aluminum LED module is designed to meet the requirement of outdoor big wall for full front service purpose.
Product Parameters
| Item | Parameters |
|---|---|
| Pixel pitch | 5.7 |
| LED Type | NationStar SMD1921 SMD 3 in 1 |
| LED Module Size | 480x320mm |
| LED Module Resolution | 84x56 dots |
| Density per SQ.M | 30,625 dots/SQ.M |
| Signal Processing | 14 bit |
| Grey Level | 4096 - 65536 |
| Refresh Rate | > 3840Hz |
| Scan Mode | 1/7 |
| Brightness | > 6,500 nits |
| Viewing Distance | > 5.7m |
| Viewing Angle | 160 degree |
| Input Voltage | 100-240V/50-60Hz |
| Max Consumption | 800 W/SQ.M |
| Ave Consumption | 320 W/SQ.M |
| Working Temperature | -20 degree to +50 degree |
| Storage Temperature | -40 degree to +65 degree |
| Input Voltage | DC5V |
| IP Rate | IP65 |
| Working Humidity | 10% - 60% |
| Storage Humidity | 10% - 90% |
| Lifespan | > 100,000 hours |
| MTBF | > 10,000 hours |
| Service Type | Front Service |
| LED Lamp | Nationalstar |
| IC | ICN2038s/2153 |
| Control Card | Nova / Colorlight / LINSN / Huidu |
| Weight | 25KGS/panel |
| Cabinet Dimension | 960mm W x 960mm H |
| Cabinet Resolution | 168x168 dots |
