K2 Indoor 500X500

K2 P1.95 Indoor 500X500 LED Cabinet

Product introduction |

High-precision die casting aluminium material cabinet, extremely light weight, easy to assemble. It is durable and versatile for indoor and semi-outdoor environment. This screen can be used for both rental business and fixed installation on the building wall.

Cabinet Material:Cast Iron & Double Sided Design

Application: High-precision die casting aluminum material cabinet, extremely light weight, easy to assemble.

500x500 2.jpg

Easy To Install

High-precision die casting aluminum material cabinet, extremely light weight, easy to assemble.

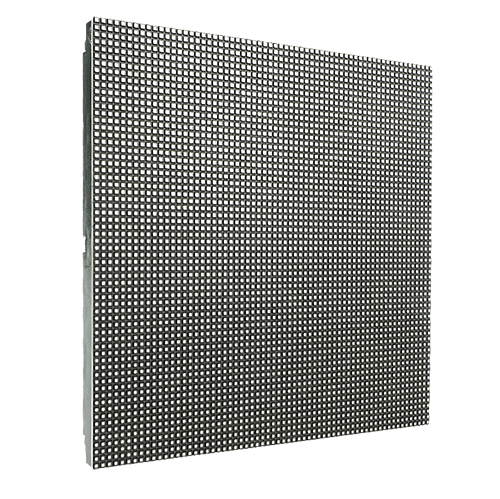

250x250mm module, compatible with P2.6/P2.97/P3.91/P4.81;Cabinet size 500mm W*500mm H*50mm D, one cabinet 7.5KG very thin and light, quick install.

500x500 3.jpg

Perfect Performance

MBI driving IC, refresh ≥3840H, ensures true 16bit gray level. Ensure no deformation of PCB Board, perfect flatness performance. Showing the real and full angle display.

front 960x612.jpg

Support Front and Rear Access

R1 LED Cabinet is accessible from the front side of the body. All cables, power supply, control card, Hub card and other electronic components can be removed from the front side and back side. You can easily replace the new parts and save a great of your time.

500x500 3.jpg

Applicable in Different Environments

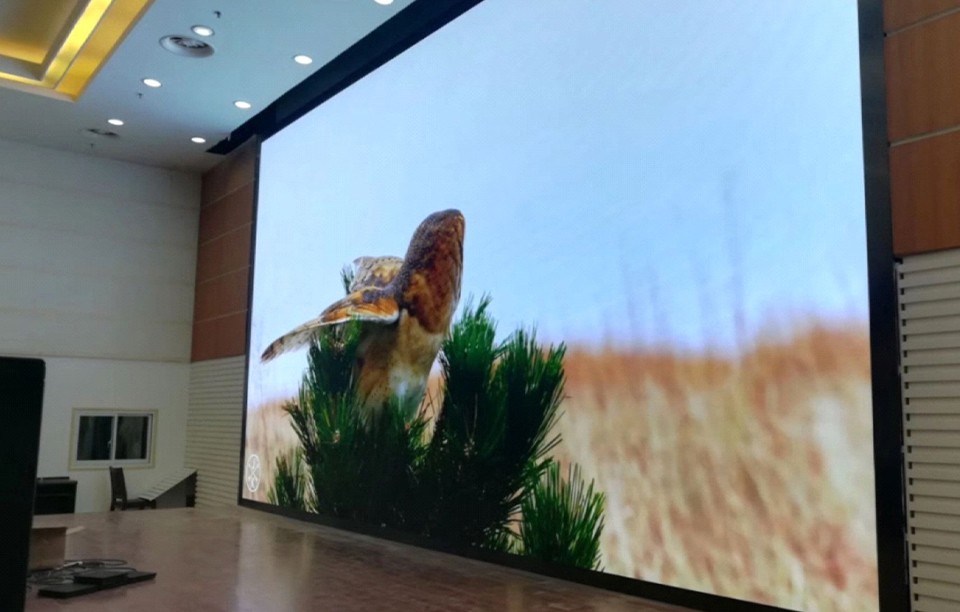

R1 can be made to high brightness over 3,500 nits. It can work properly for all the indoor environment and some of the semi-outdoor places. At the same time, it can also be used for some indoor events because it has a very good brightness and the light weight aluminium cabinet body.

Product Parameters

Pixel pitch1.95mm
LED TypeSMD1010 1R1G1B
LED Module Size250 x 250mm
LED Module Resolution128x128 dots
LED Cabinet Size500x500x57mm
Cabinet Resolution256x256 dots
Screen Pixel262,144 dots
Signal Processing 12 - 16 bit
Grey Level4096 - 65536
Refresh Rate> 3840Hz
Scan Mode1/32
Brightness>800 nits
Viewing Distance> 1.95m
Viewing Angle160 degree
Input Voltage
Max Consumption750W/SQ.M
Ave Consumption225W/SQ.M
Working Temperature-20 degree to 45 degree
Storage Temperature-40 degree to 60 degree
IP RateIP43
Working Humidity10% - 60%
Storage Humidity10% - 90%
Lifespan100,000 hours
Service TypeFront & Rear Service
LED Lamp
Control CardNova / Colorlight
Operation ApproachWindows
