P0.93 Ultra-Protective Fine Pitch

P0.93 Ultra-Protective Fine Pitch Video Wall Ultra-thin HD Display

Product introduction |

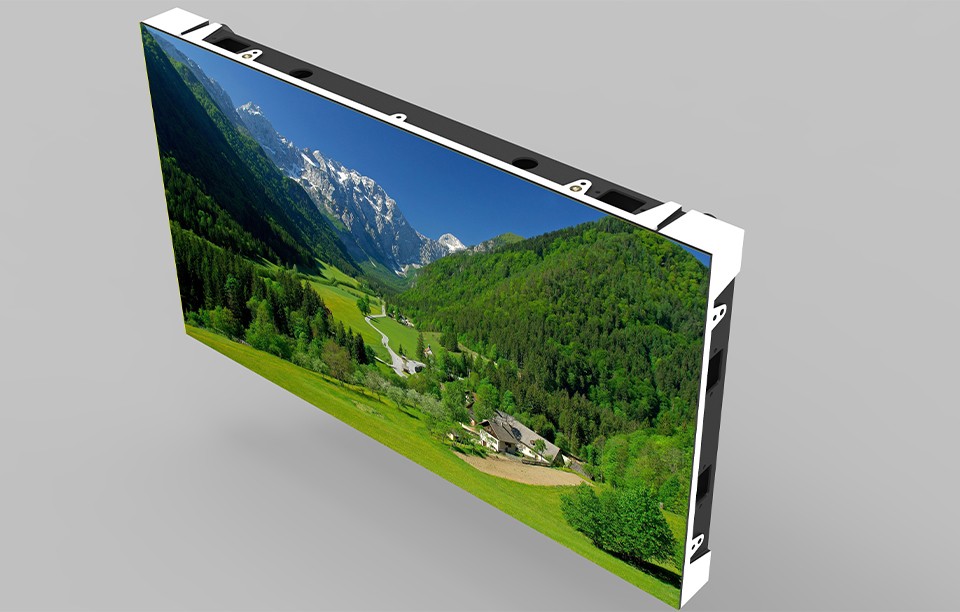

600x337.5mm Ultra-thin Full front service LED Cabinet. It is suitable for wall mounting.

600x337 cabinet 1 960x612.jpg

Durable, Reliable Indoor Alternative

It is subject to environmental tests including exposure to any temperatures, a weather-enacting salt corrosion chamber and package vibration and drop testing. The display also has corrosion-proof painting and anti-UV, deformation-proof housing that extends its shelf life.


Environmental Stable Design

It undergoes strict testing to ensure ongoing performance when exposed to water, dust and indoor elements. Ingress Protection (IP) validation confirms defense for the front IP65 and back (IP67) of the display, ensuring continuous operation regardless of the environment.


Wide Viewing Angle

This screen has an ultra wide range of viewing angle which would reach approximately 180 degree both on horizontal and vertical views. The surface of this LED display is extremely flat.


Ultra-Protective Display

This type of LED display has designed with surface treatment protection so as to anti-impact, anti-collision and anti-damage. Furthermore, this cabinet has functions of dustproof and waterproof IP67 on the surface place.

Product Parameters

ItemParameters
Pixel pitch0.93mm
LED TypeMiniLED 4-in-1
LED Module Size300x168.75x10mm
LED Module Resolution320x180dots
LED Cabinet Size600x337.5x38mm
Cabinet Weight5kgs
Density per SQ.M1137777 dots/SQ.M
Signal Processing 12 - 16 bit
Grey Level4096 - 65536
Refresh Rate> 3840Hz
Scan Mode1/64
Brightness> 500 nits
Viewing Distance> 1.25m
Contrast Ratio6000:1
Viewing AngleH180/V180
Input Voltage
100-240V/50-60Hz
Max Consumption< 800 W/SQ.M
Ave Consumption100-300 W/SQ.M
Working Temperature-20 degree to 45 degree
Storage Temperature-40 degree to 60 degree
Input VoltageDC5V
IP RateIP35
Working Humidity10% - 60%
Storage Humidity10% - 90%
Lifespan > 100,000 hours
MTBF> 10,000 hours
Service TypeFront Service
LED Lamp
Nationalstar
ICICN2153
Control CardNova / Colorlight / LINSN / Huidu
