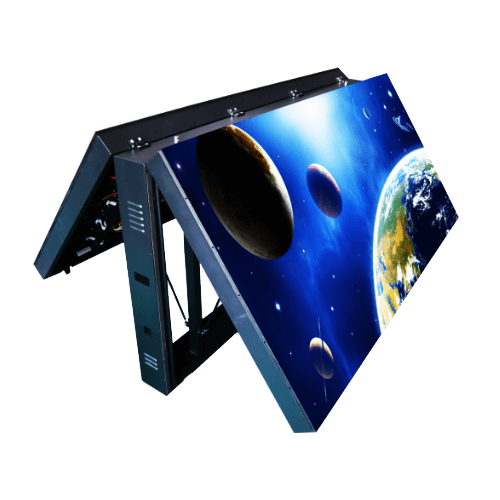

P2.5 Two Sides LED

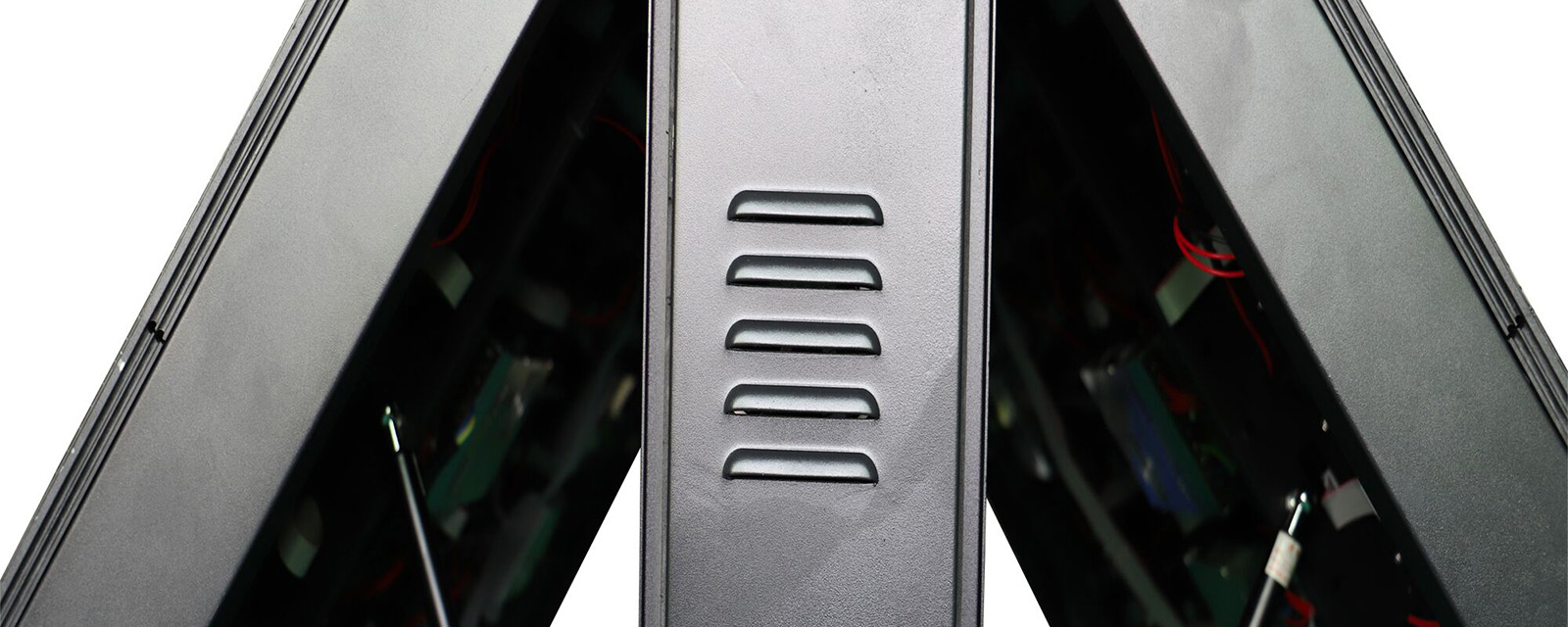

Support Full Front Access and Maintenance
Product introduction |
IP65 Outdoor Waterproof Cabinet, Customised Size: Front Access Available with two poles, easy for maintenance. Customised cabinet color and LOGO as the customer project requirements.

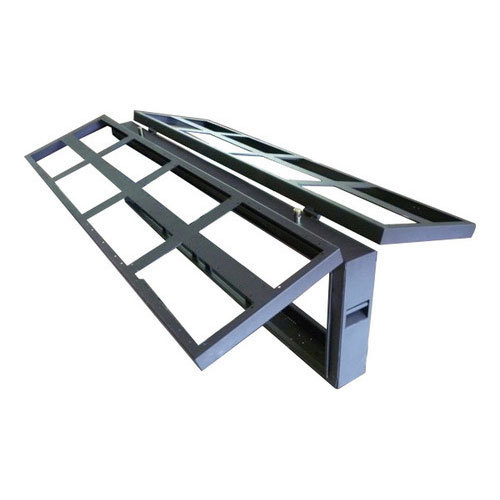

Cabinet Material：Cast Iron & Double Sided Design

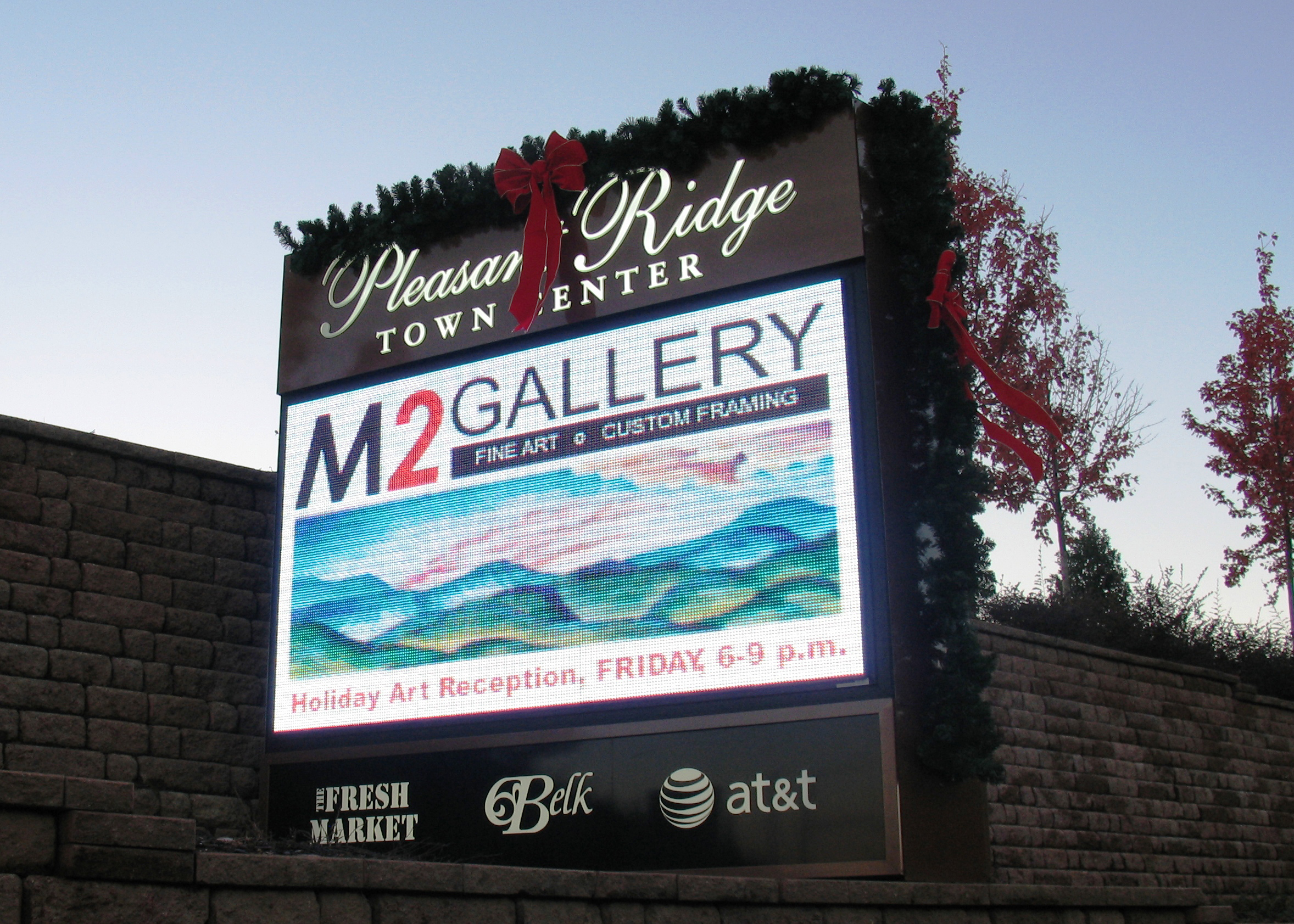

Application：This type of double sided LED display can be used for advertising media on the street because it has ultra-high brightness over 7,500 nits per square meter and full waterproof protection IP67.
Customised Size Available
It is extremely easy to install, and it can be designed to any dimensions according to your project. IP65 Outdoor Waterproof Cabinet, Customised Size: Front Access Available with two poles, easy for maintenance. Customised cabinet color and LOGO as the customer project requirements.
High and adjustable brightness
Double Sided LED Screen can be made from pixel pitch 2.5mm to 10mm. Its brightness can reach over 10,000 nits. It is vivid and attractive to customers.
Product Parameters
| Item | Parameters |
|---|---|
| Pixel pitch | 2.5mm |
| LED Type | SMD2020 |
| LED Module Size | 160x160mm |
| LED Module Resolution | 64x64dots |
| Density per SQ.M | 160,000 dots/SQ.M |
| Signal Processing | 12 - 16 bit |
| Grey Level | 4096 - 65536 |
| Refresh Rate | > 3840Hz |
| Scan Mode | 1/32 |
| Brightness | > 800 nits |
| Viewing Distance | > 0.9m |
| Contrast Ratio | 5000:1 |
| Viewing Angle | 160 degree |
| Input Voltage | 100-300V/50-60Hz |
| Max Consumption | < 500 W/SQ.M |
| Ave Consumption | 100 - 240W/SQ.M |
| Working Temperature | -20 degree to 45 degree |
| Storage Temperature | -40 degree to 60 degree |
| Input Voltage | DC5V |
| IP Rate | IP65 |
| Working Humidity | 10% - 60% |
| Storage Humidity | 10% - 90% |
| Lifespan | > 100,000 hours |
| MTBF | > 10,000 hours |
| Service Type | Front Service & Rear Service |
| LED Lamp | Nationalstar |
| IC | ICN2153 |
| Control Card | Nova / Colorlight / LINSN / Huidu |
