Front Access LED Screen
Front Access LED Screen
Product introduction |

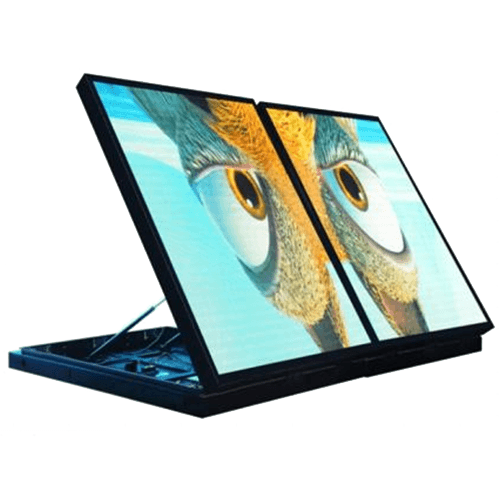

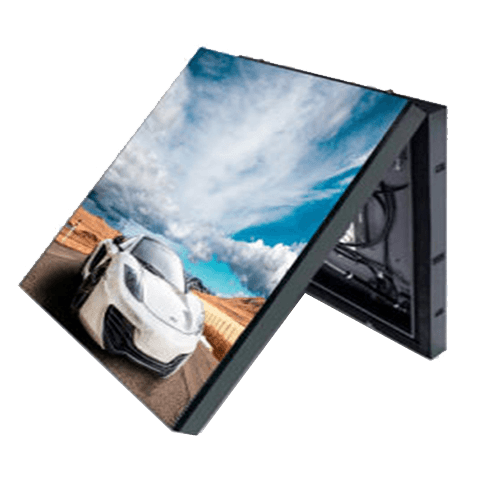

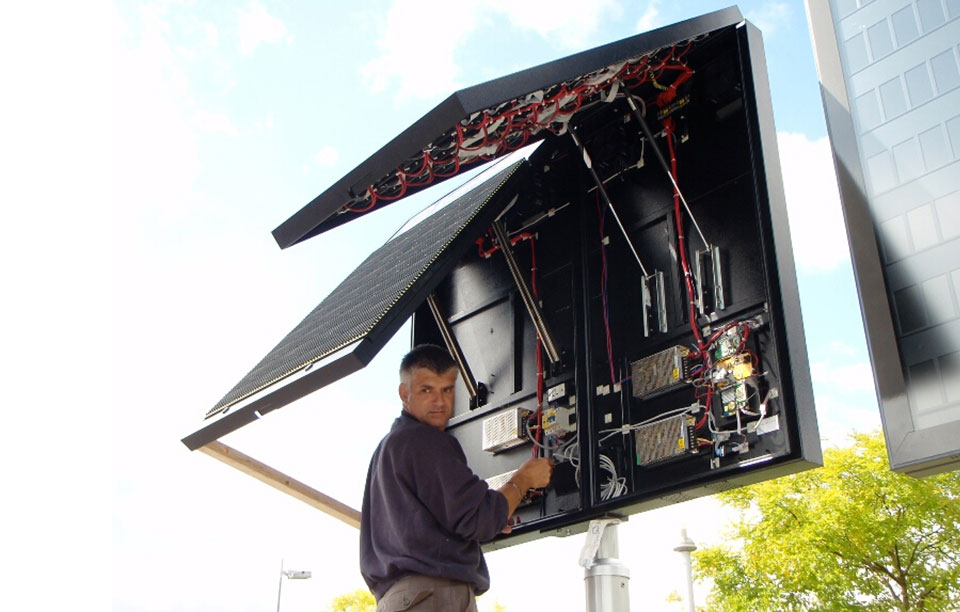

Front Access LED Screen is widely used for advertising boards. It has a good waterproof rate IP65 and 2 years of factory warranty. It is easy to maintain by open the front side of cabinet.
Cabinet Material：Cast Iron&Single Side Design
Application：It can be used for indoor and outdoor LED video wall. This is the traditional design of full front service LED display, and it is very cost-effective comparing to modern tool front service modules.
Support Multiple Pixels
This type of front open LED screen can adopt pixel from 2.5mm to 16mm depending on project requirements. It can be controlled by 4G and WIFI wireless methods. New energy-saving branch-feeding technology is utilised in this front access LED now. It can save a great money for you.
Reliable Quality LED Display
The cabinet is made by cast iron and it has a good level of waterproof protection. The LED lamp is National-star SMD2525, and the driver IC is MBI5124GP-B. It is equiped by Meanwell LRS-350-5 power supplies.
Product Parameters
| Pitch | 2.5mm | 3mm | 4mm | 5mm | 6mm |
| Module Size | 320*160mm | 192*192mm | 256*128mm | 320*160mm | 192*192mm |
| Module Resolution | 128*64 | 64*64 | 64*32 | 64*32 | 32*32 |
| LED Type | SMD1415 | SMD1921 | SMD1921 | SMD2727 | SMD3535 |
| Brightness | 5000 Nits | 5500 Nits | 5500 Nits | 6000 Nits | 9000 Nits |
| Pixel Density/m2 | 160000 | 111111 | 62500 | 40000 | 27777 |
| Driving Method | 1/16 Scan | 1/16 Scan | 1/8 Scan | 1/8 Scan | 1/4 Scan |
| Optimal View Distance | 2-8m | 3-10m | 4-13m | 5-16m | 6-20m |
| Avg. Power | 430W/m2 | 460W/m2 | 500W/m2 | 310W/m2 | 350W/m2 |
| Max. Power | 950W/m2 | 980W/m2 | 1100W/m2 | 700W/m2 | 780W/m2 |
| IC | MBI5124 | ||||
| Refresh Rate | 1920-3840Hz | ||||
| Brightness Control | 256 Grade/Each Color | ||||
| View Angle | 140/120 | ||||
| Ingress Protection | IP65 | ||||
| Input Voltage | AC110/220V, 50/60Hz | ||||
| Operating Temp. | -30℃~60℃ | ||||
| Gross Weight | 50Kg/m2 | ||||
| Life Span | 100000 Hours | ||||
