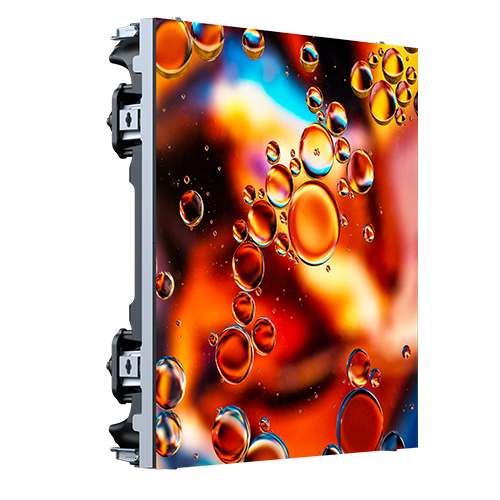

500X500 LED Cabinet

500X500 LED Cabinet

Product introduction |

Suitable for all kinds of scenarios, can be customized Suitable for all Suitable for all kinds of scenarios.

Cabinet Material:Die-casting Aluminium LED Cabinet.

Application:Those LED products were widely used in both indoor and outdoor places like hall, hotel, exhibition room, public square, symbols,building and TV stage background and etc.

500I - D1.jpg

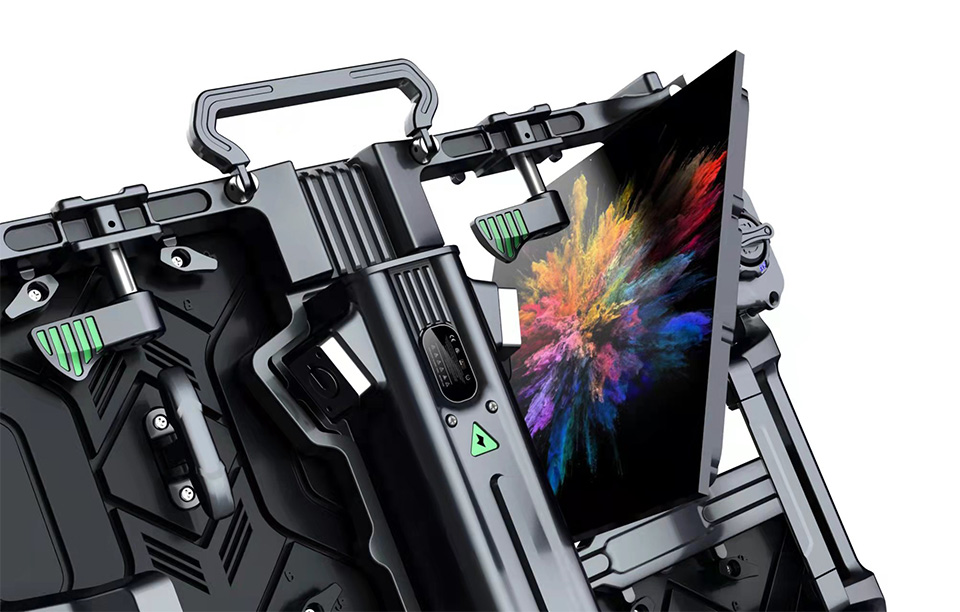

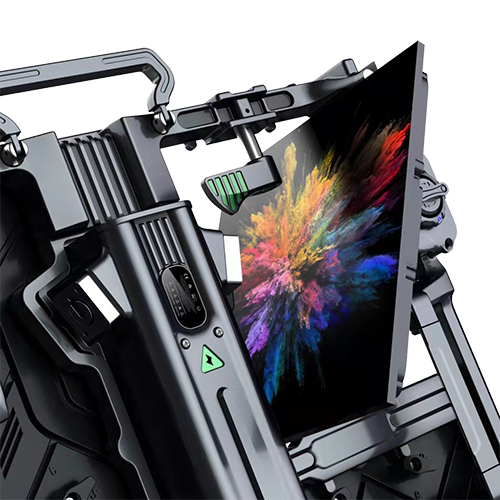

250x250mm LED Module

This module is left side and right side compatible and its size is 250mm W x 250mm H. The weight is very light below 560g each.

500I - D2.jpg

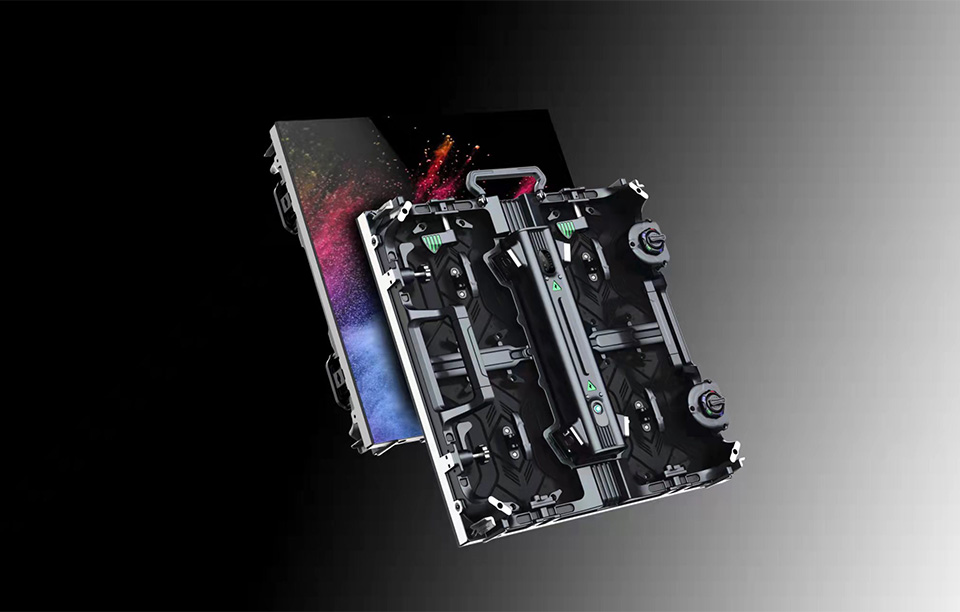

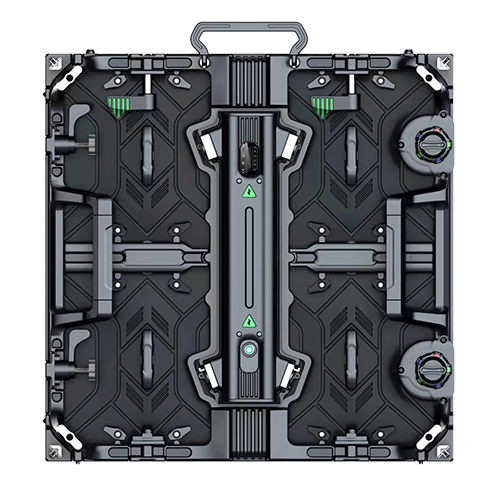

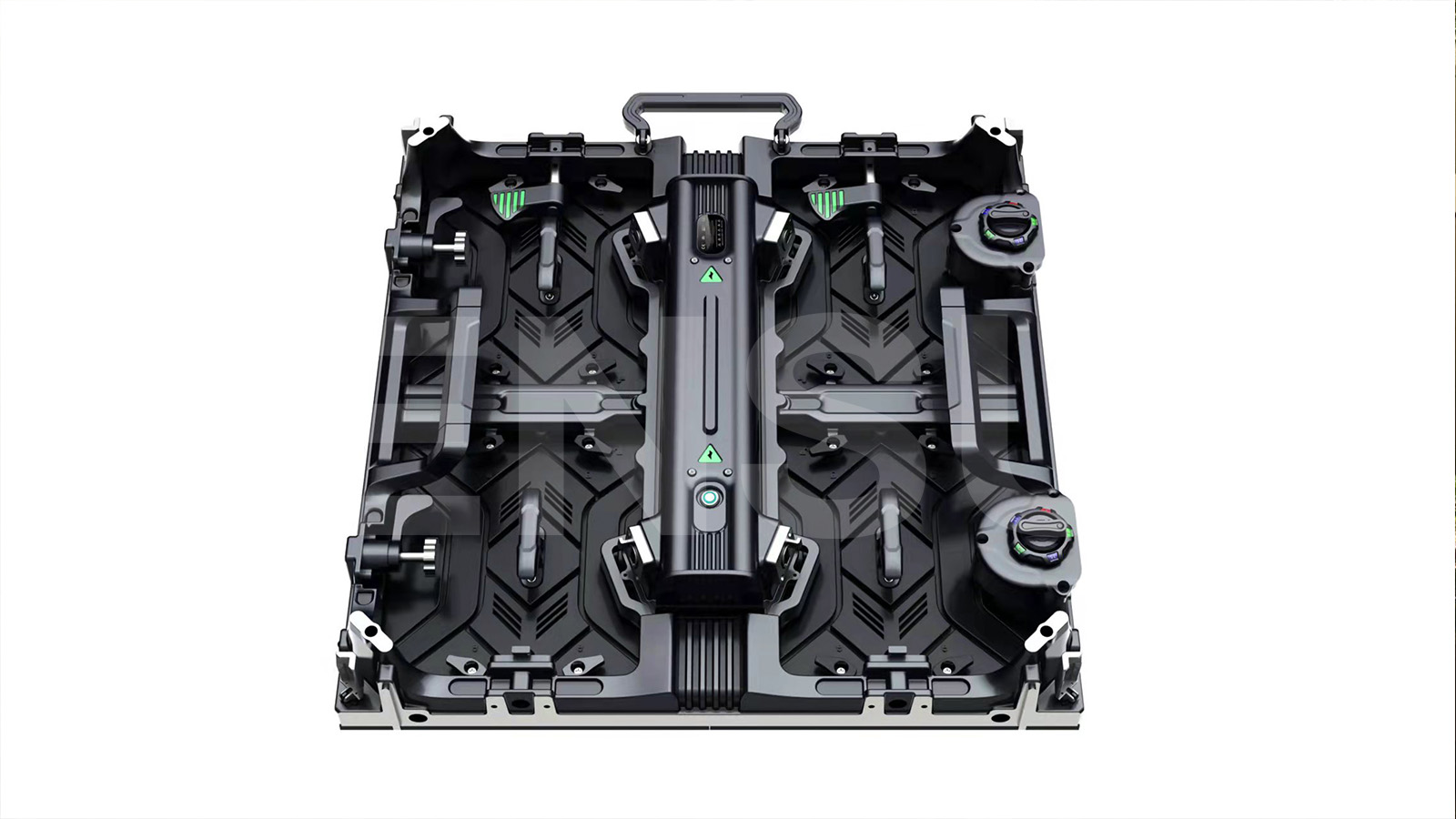

500x500mm LED Cabinet

This cabinet is compatible with P2.6mm, P2.97mm and P3.91mm three different pixel pitches. 4 x LED modules will be fixed to one 500x500 cabinet, but we also have 500x1000 cabinet to suit some special projects

500I - D3.jpg

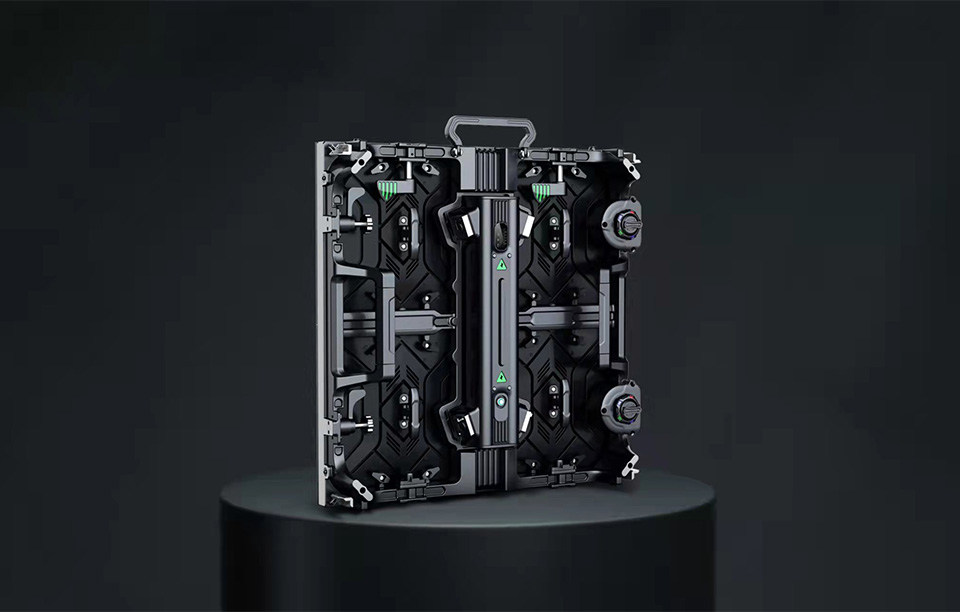

Reliable LED Solution

This cabinet has a small power supply box, which can be taken off from the main body quickly from the back side. It also has a security locker on each side of the main box. This can save greatly of the lobour for customers.

Product Parameters

Pixel Pitch2.97
Pixel Structure1R1G1B
LED LampSMD1515
Resolution112,896 dots
Module Size250x250mm
Module Resolution84x84
Cabinet Size 1500x500x58mm
Cabinet Size 2500x1000x58mm
MaterialDie-casting Aluminium
Scan Mode1/28
Grey Scale14Bit
IP rateIP45
Service TypeFront and rear service
Brightness>1,000 nits
Colour Temperature3200 - 12000 adjustable
Viewing AngleH140/V120
Contrast Ratio>5,000:1
Drive ModeConstant Drive
Refresh Rate> 3,840Hz
Input Voltage110-240V
Max Power Consumption<650W
Ave Power Consumption<200W
Working Temperature-20 degree to +80 degree
Working Humidity10%~95%
Suitable Receiveing CardA5s Plus-N or others
