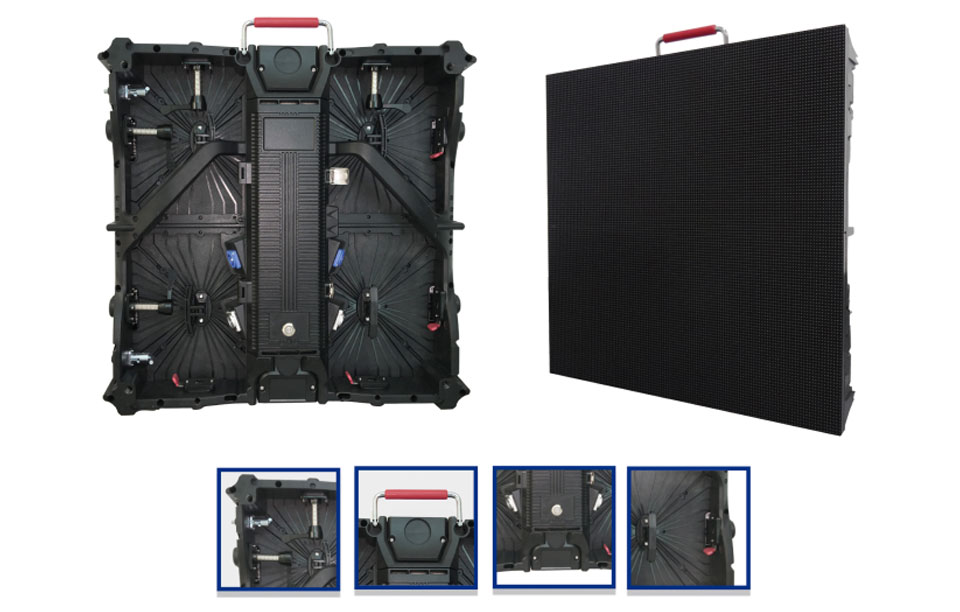

P3.91 Indoor 500X500

P3.91 Indoor 500X500

Product introduction |

High-precision die casting aluminum material cabinet, extremely light weight, easy to assemble.

Cabinet Material:Cast Iron & Double Sided Design

Application: High-precision die casting aluminum material cabinet, extremely light weight, easy to assemble.


Easy To Install

High-precision die casting aluminum material cabinet, extremely light weight, easy to assemble.

250x250mm module, compatible with P2.6/P2.97/P3.91/P4.81;Cabinet size 500mm W*500mm H*50mm D, one cabinet 7.5KG very thin and light, quick install.


indoor 960x612.jpg

Perfect Performance

MBI driving IC, refresh ≥3840H, ensures true 16bit gray level. Ensure no deformation of PCB Board, perfect flatness performance. Showing the real and full angle display.


front 960x612.jpg

Easy To Install

High-precision die casting aluminum material cabinet, extremely light weight, easy to assemble.

250x250mm module, compatible with P2.6/P2.97/P3.91/P4.81;Cabinet size 500mm W*500mm H*50mm D, one cabinet 7.5KG very thin and light, quick install.


front one 960x612.jpg

Perfect Performance

MBI driving IC, refresh ≥3840H, ensures true 16bit gray level. Ensure no deformation of PCB Board, perfect flatness performance. Showing the real and full angle display.


Product Parameters

ItemParameters
Pixel pitch3.91mm
LED TypeSMD2020 1R1G1B
LED Module Size250 x 250mm
LED Module Resolution64 x 64 dots
LED Cabinet Size500x500x58mm
Cabinet Resolution128 x 128 dots
Screen Pixel65,536 dots
Signal Processing 12 - 16 bit
Grey Level4096 - 65536
Refresh Rate> 3840Hz
Scan Mode1/16
Brightness>1,000 nits
Viewing Distance> 3.9m
Viewing Angle160 degree
Input Voltage
110-240V/50-60Hz
Max Consumption750W/SQ.M
Ave Consumption225W/SQ.M
Working Temperature-20 degree to 45 degree
Storage Temperature-40 degree to 60 degree
IP RateIP43
Working Humidity10% - 60%
Storage Humidity10% - 90%
Lifespan100,000 hours
Service TypeFront & Rear Service
LED Lamp
Nationalstar
ICICN2153
Control CardNova / Colorlight
Operation ApproachWindows
