Products Products

Front Access Two Sides

P3.91 Double Sides LED Screen

Product introduction |

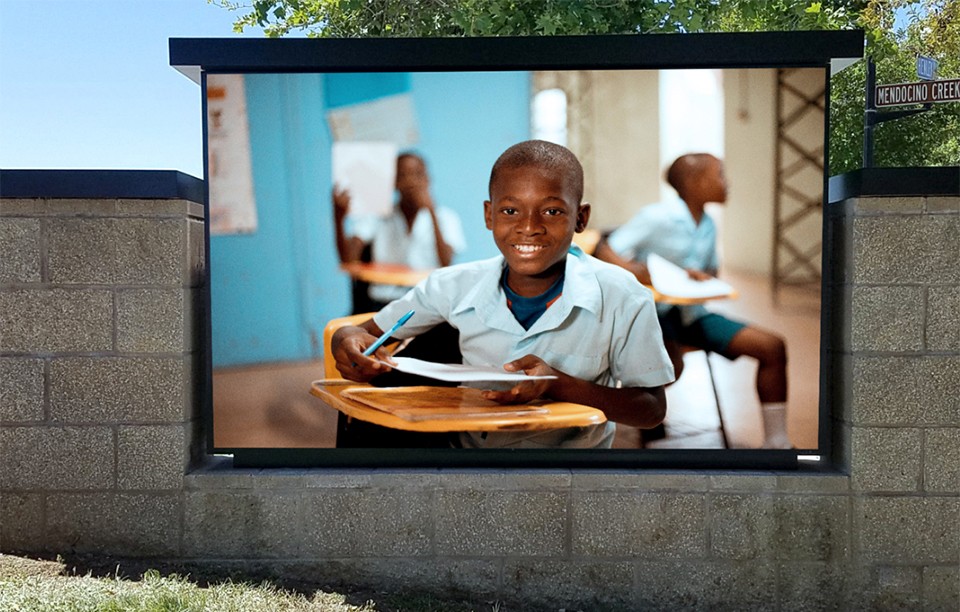

No school is complete without a large sign in front. It is an essential means of communication with the whole community, Kensun S1 outdoor LED signage in school spaces keep students, faculty and visitors engaged, informed, and safely navigating the school campus. With highly customisable features and functions, S1 is designed to suit the style and architecture of your campus the best.

Cabinet Material:Cast Iron & Double Sided Design

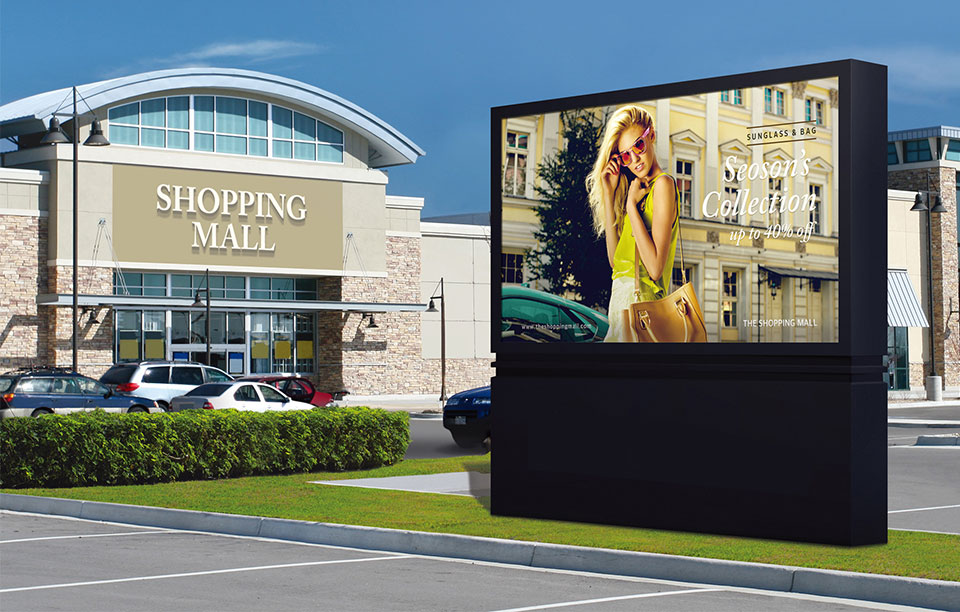

Application:This type of double sided LED display can be used for advertising media on the street because it has ultra-high brightness over 7,500 nits per square meter and full waterproof protection IP67.

S1 960 0.jpg

High Brightness

Kensun S1 signage provides wide range of pixel pitches from 2.5mm to 6mm or above that with minimum brightness up to 5500 nits for different environments. High resolution and high brightness result in perfect readability and visual experience.


Highly customizable

S1 offers customization service including cabinet color, maintenance, shape, size and the way of control, you are welcome to customize you own signage that works the best for your architecture or school.

Product Parameters

Pixel pitch3.91
LED TypeNationStar SMD1921 SMD 3 in 1
LED Module Size250x250mm
LED Module Resolution64x64 dots
Density per SQ.M65,536 dots/SQ.M
Signal Processing 16 bit
Grey Level4096 - 65536
Refresh Rate> 3840Hz
Scan Mode1/8
Brightness> 5,500 nits
Viewing Distance> 4m
Viewing Angle160 degree
Input Voltage
Max Consumption700 W/SQ.M
Ave Consumption400 W/SQ.M
Working Temperature-20 degree to 45 degree
Storage Temperature-40 degree to 60 degree
Input VoltageDC5V
IP RateIP65
Working Humidity10% - 60%
Storage Humidity10% - 90%
Lifespan > 100,000 hours
MTBF> 10,000 hours
Service TypeFront Service
LED Lamp
Control CardNova / Colorlight / LINSN / Huidu
