U4 indoor high definition COB texture surface LED
Kensun’s U4 COB texture LED display
Product introduction |

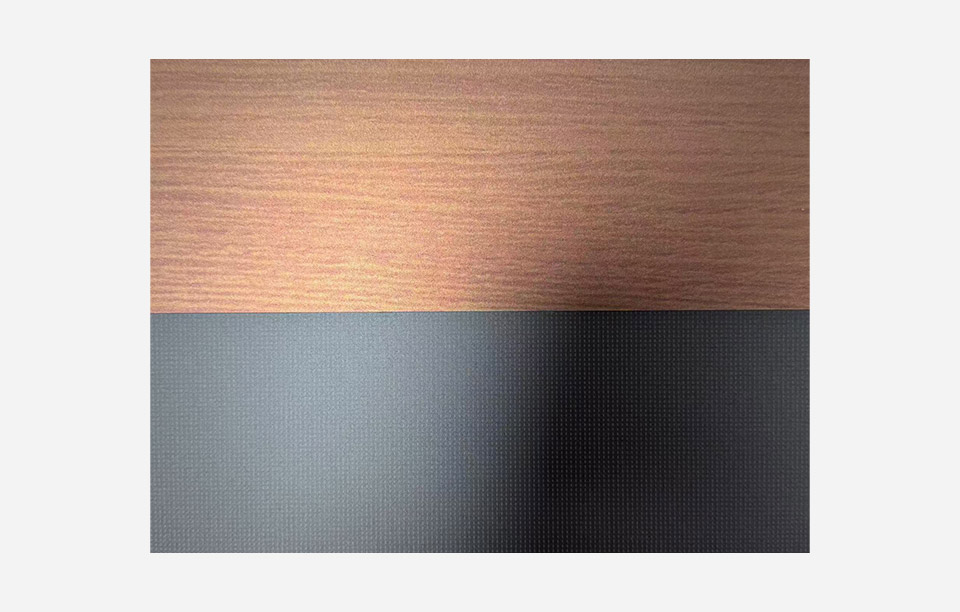

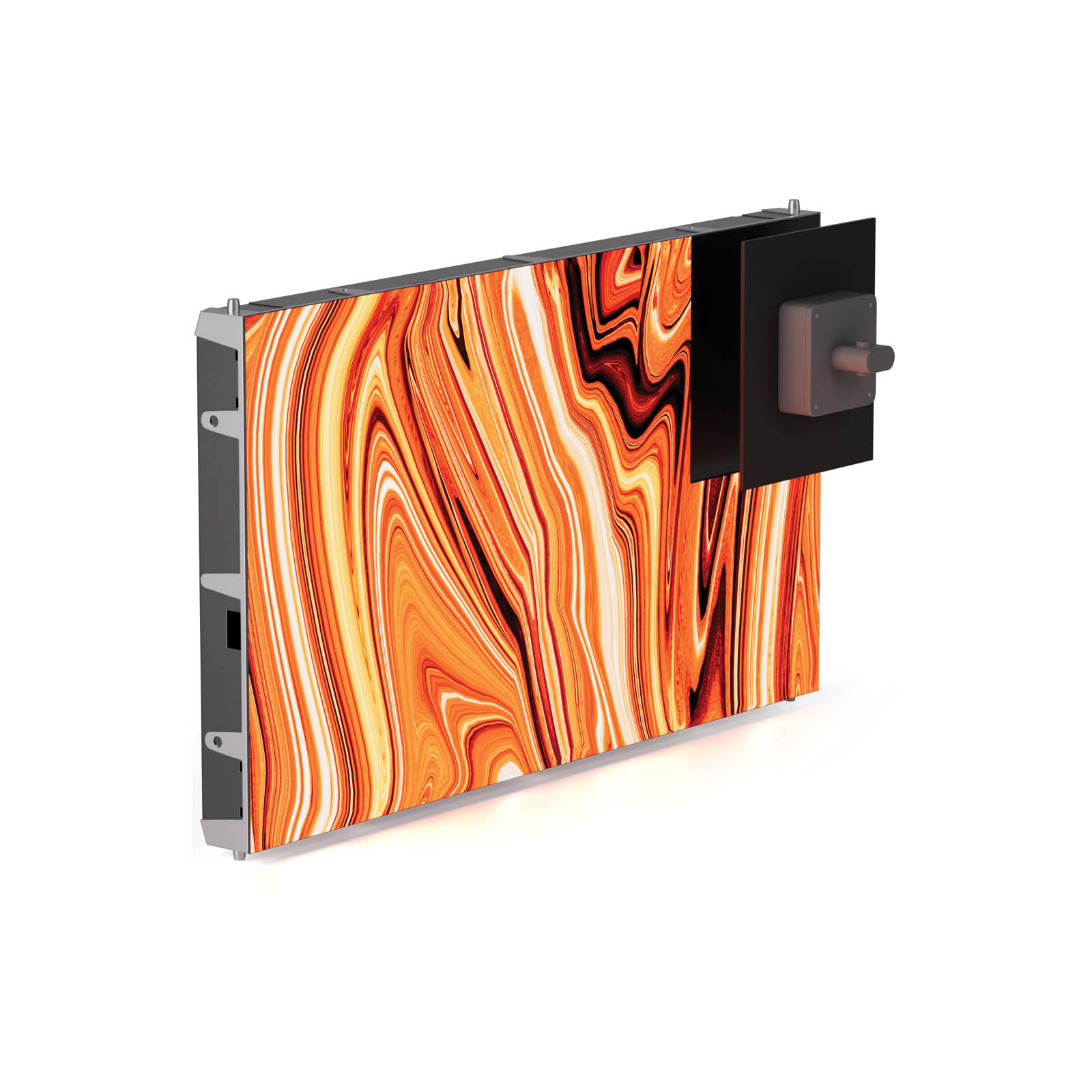

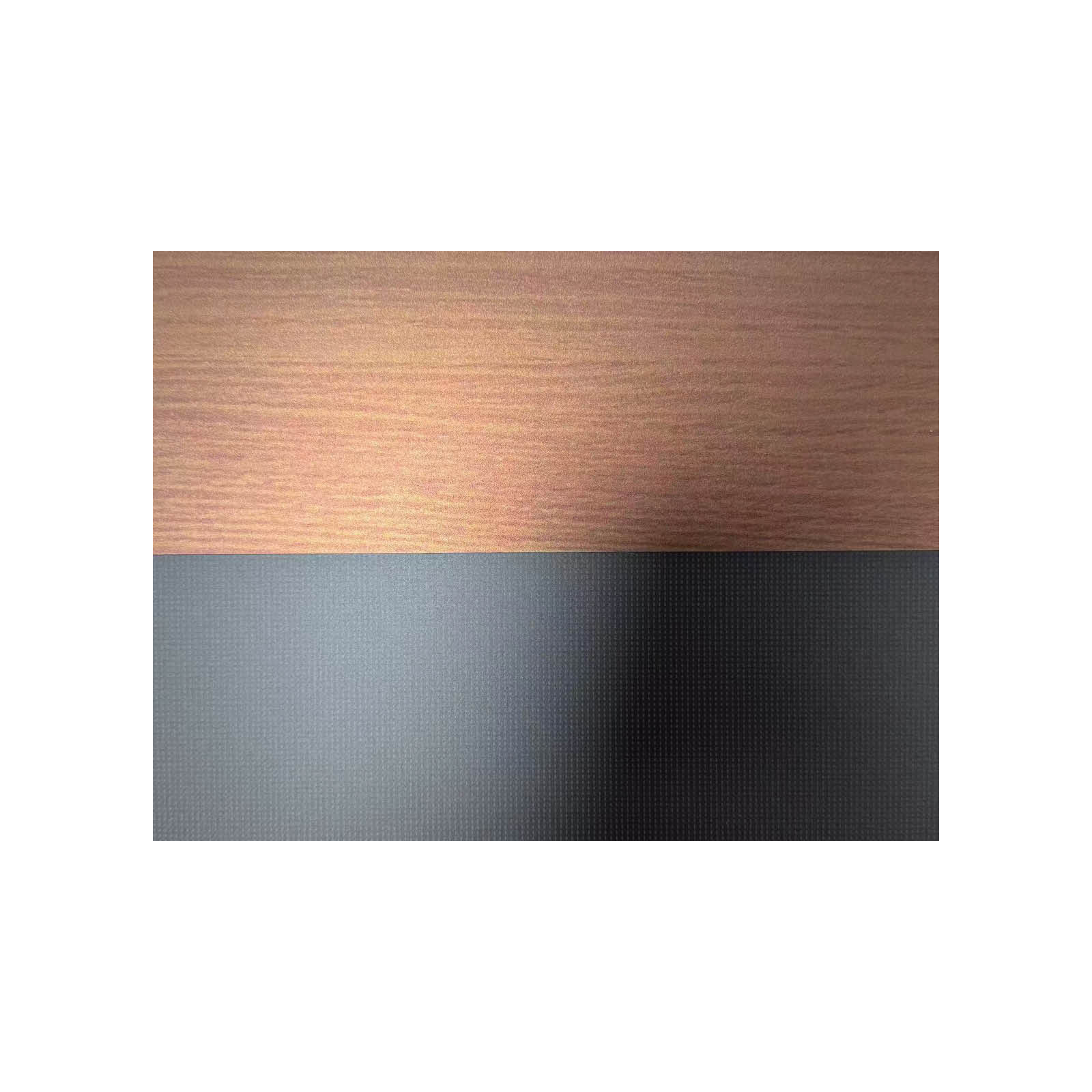

Kensun’s U4 COB texture LED display combines vivid visuals with customizable surfaces like wood, stone, or metal. It blends naturally into spaces when off and supports touch and motion sensing, making it perfect for commercial and cultural environments. Durable, waterproof, and energy-efficient.

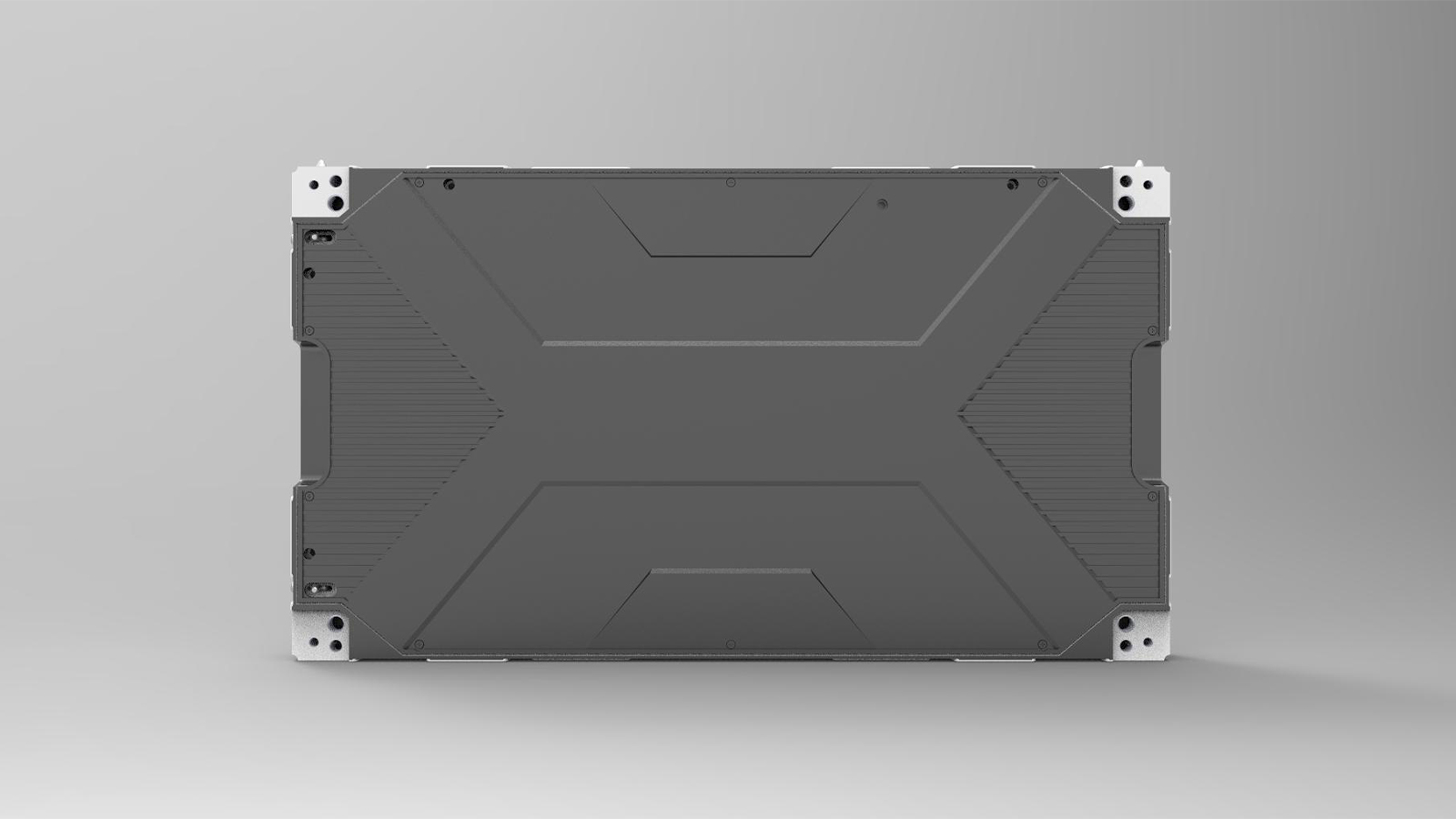

Cabinet Material：Die-casting aluminum
Diode Type: COB
Application：Commercial spaces, office buildings, cultural venues, dining environments.

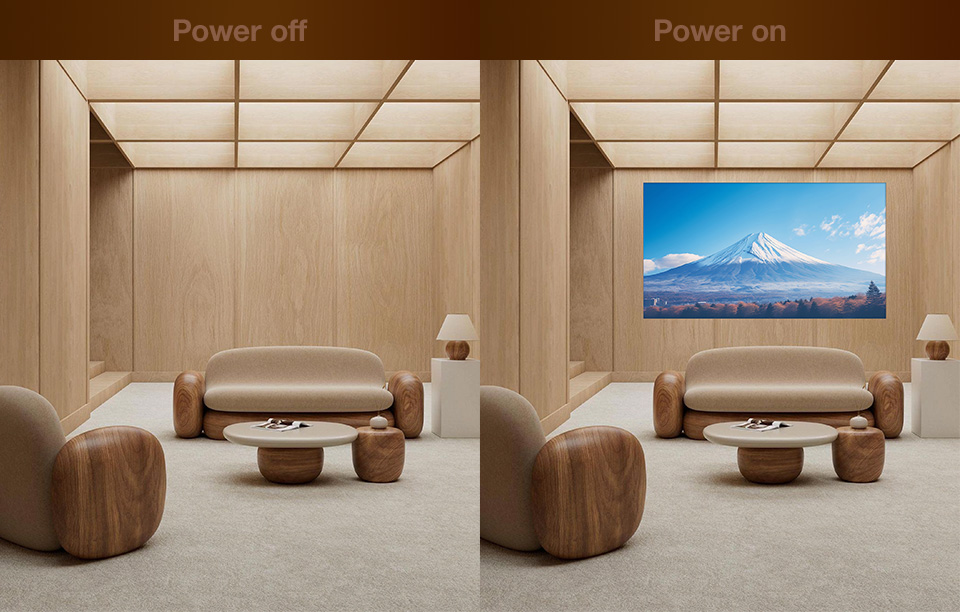

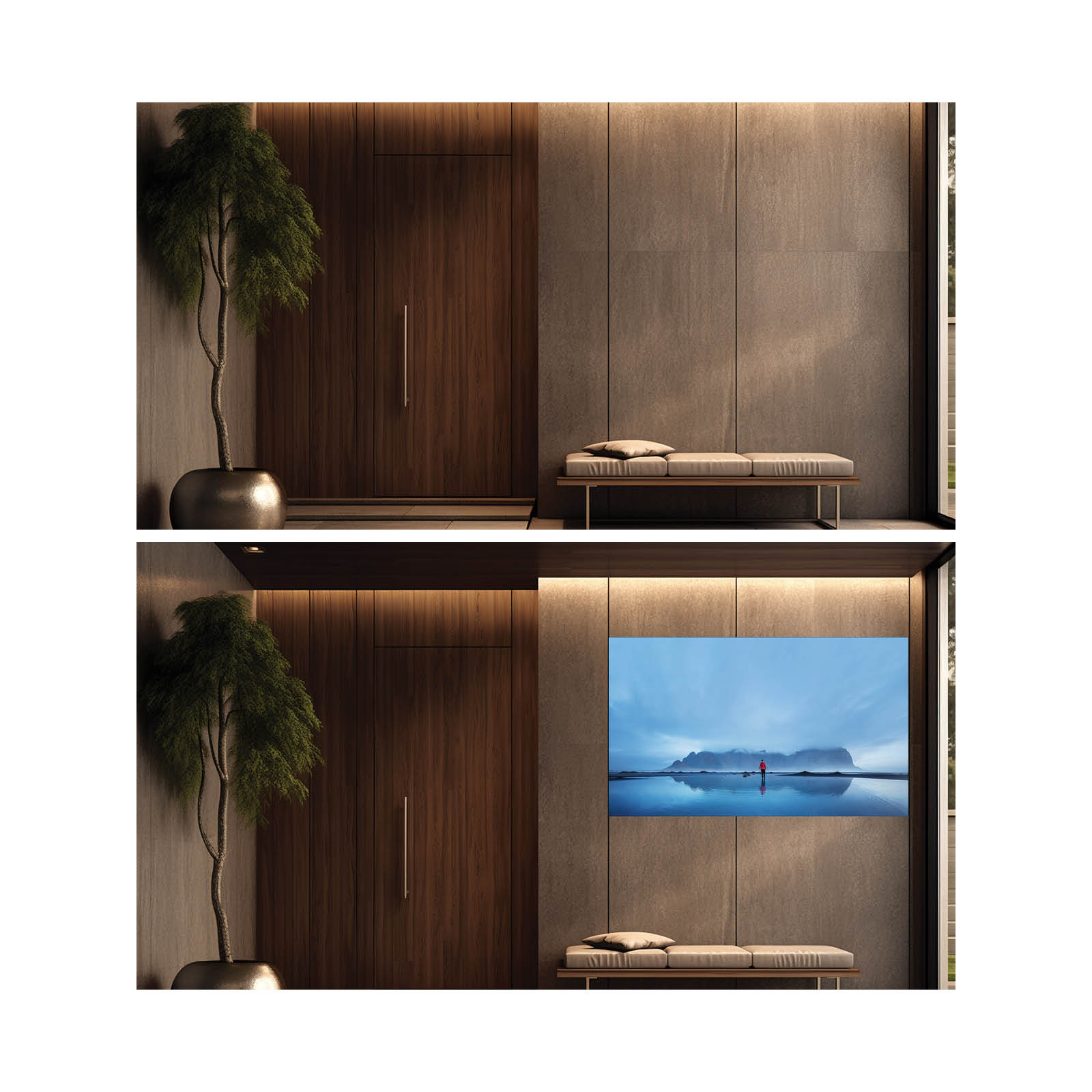

Blends greatly with the environment
Unlike conventional LED displays that turn into large black panels when powered off, the COB texture display maintains a visually pleasing appearance at all times. When not in use, it transforms into part of the surrounding interior or facade, greatly enhancing the aesthetic value of the space.

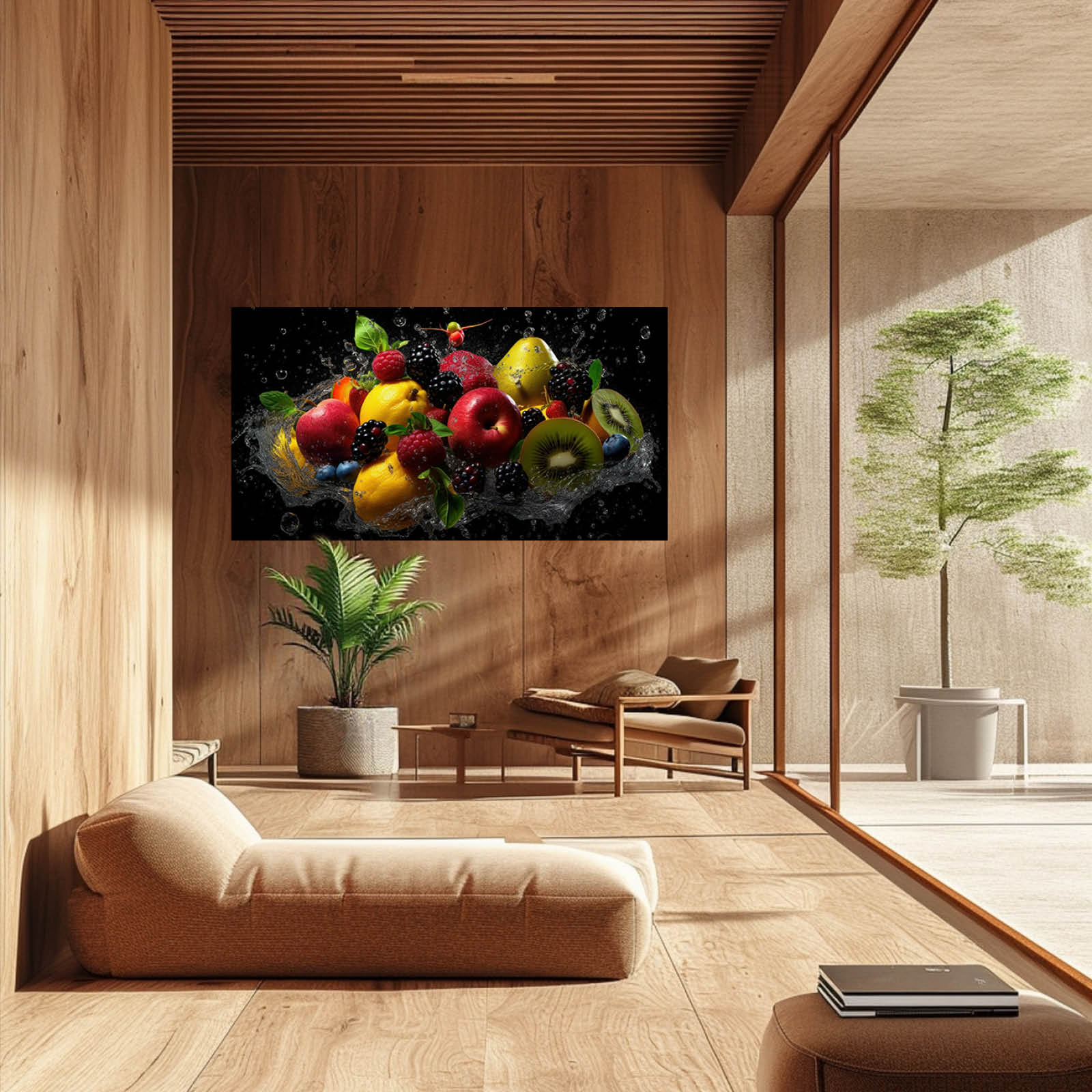

Combines display and decoration

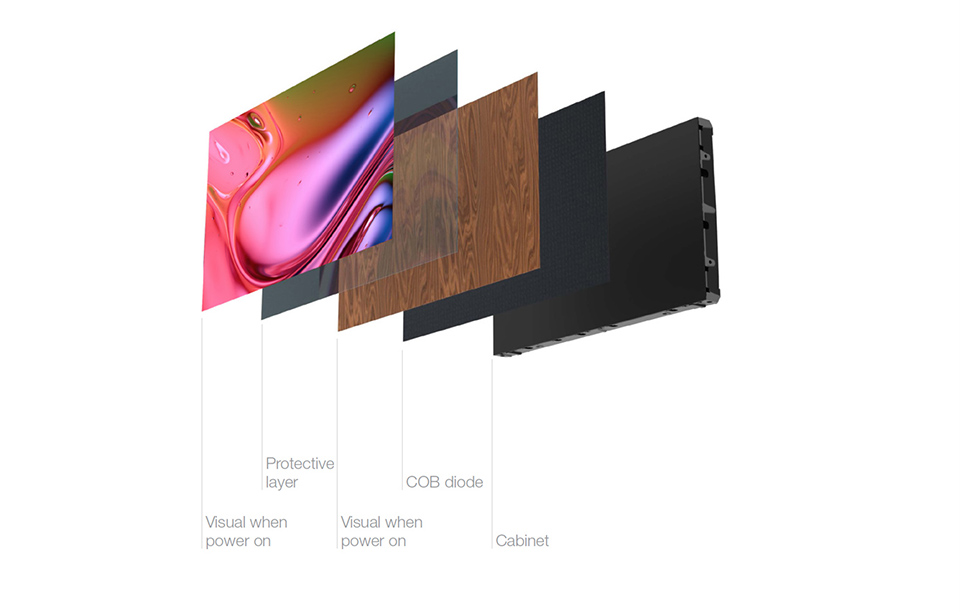

Built with advanced COB packaging and available in textures like wood grain, tile, stone, or metal, this display goes beyond traditional LED technology. It serves as both a high-performance screen and a decorative building material that seamlessly integrates into architectural spaces.
Strong, durable, and built to last
The COB texture screen features an all-in-one sealed surface that’s waterproof, anti-collision, and scratch-resistant. This makes it an ideal solution for busy commercial areas, public spaces, or anywhere durability is a priority.

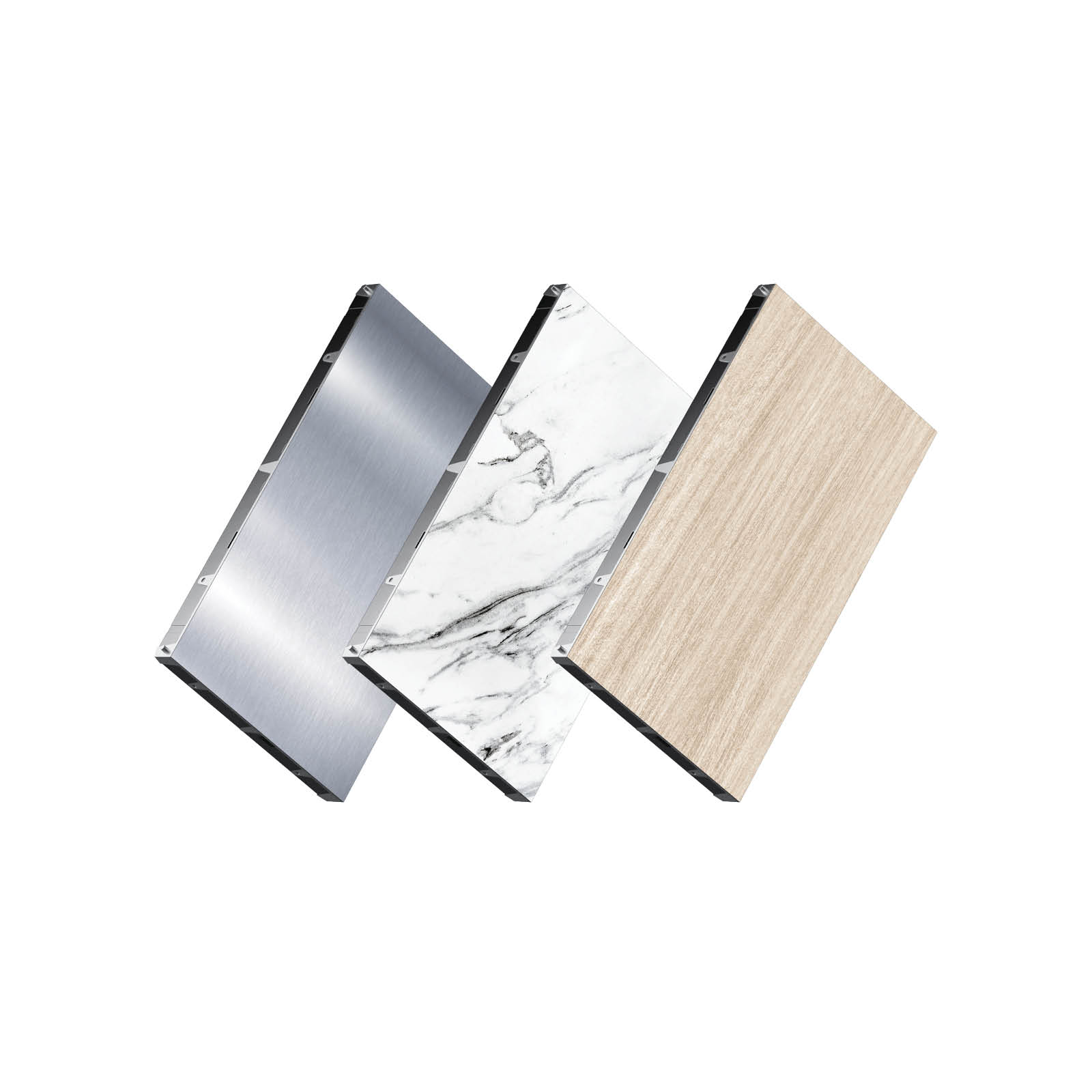

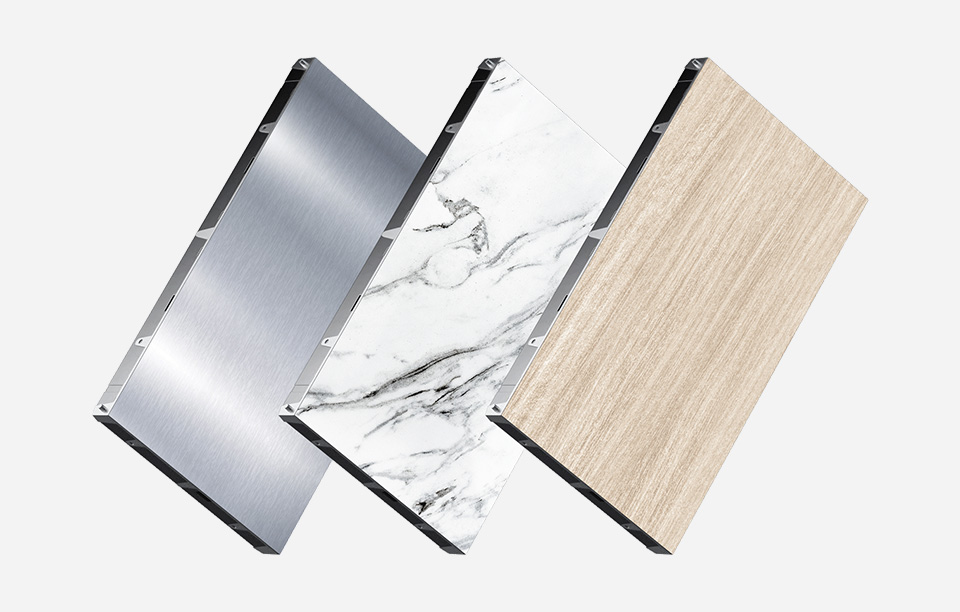

Customizable textures to match your space
Available in a variety of surface finishes including wood, tile, stone, and metal, this display can be tailored to suit the design of any space. With a module size of 320×160mm and cabinet size of 640×480mm, it offers both flexibility and scalability for creative installations.
Product Parameters
| Pixel Pitch | 1.25mm | 1.875mm |
|---|---|---|
| Pixel Density | 64000 pixels / m² | 284089 pixels / m² |
| Pixel Configuration | 1R1G1B | 1R1G1B |
| Diode Type | COB | COB |
| Viewing Angle | H 160° / V 160° | H 160° / V 160° |
| Module Dimension | 320 mm * 160mm | 320 mm * 160mm |
| Module Resolution | 256 pixels * 128 pixels | 170 pixels * 85 pixels |
| Surface Treatment | Texture | Texture |
| Cabinet Material | Die - casting alumimum | Die - casting alumimum |
| Cabinet Weight | 7.5 kg / cabinet | 7.5 kg / cabinet |
| Cabinet Dimension | 640 mm * 480 mm | 640 mm * 480 mm |
| Cabinet Resolution | 512 pixels * 384 pixels | 340 pixels * 256 pixels |
| Ingress Protection | IP54 | IP54 |
| Access | Front | Front |
| Input Power | AC 100 V ~ 240 V | AC 100 V ~ 240 V |
| Max. Power | 140 W | 140 W |
| Ave. Power | 70 W | 70 W |
| Contrast Ratio | 10000 : 1 | 10000 : 1 |
| Brightness | 800 nits | 800 nits |
| Refresh Rate | 3840 Hz | 3840 Hz |
| Color Temperature | 9300 k | 9300 k |
| Working Environment | Indoor | Indoor |
| Working Temperature | -10℃ ~ + 40℃ | -10℃ ~ + 40℃ |
| Working Humidity | 10% ~ 90% | 10% ~ 90% |
| Lifespan | > 10,000 hours | > 10,000 hours |
