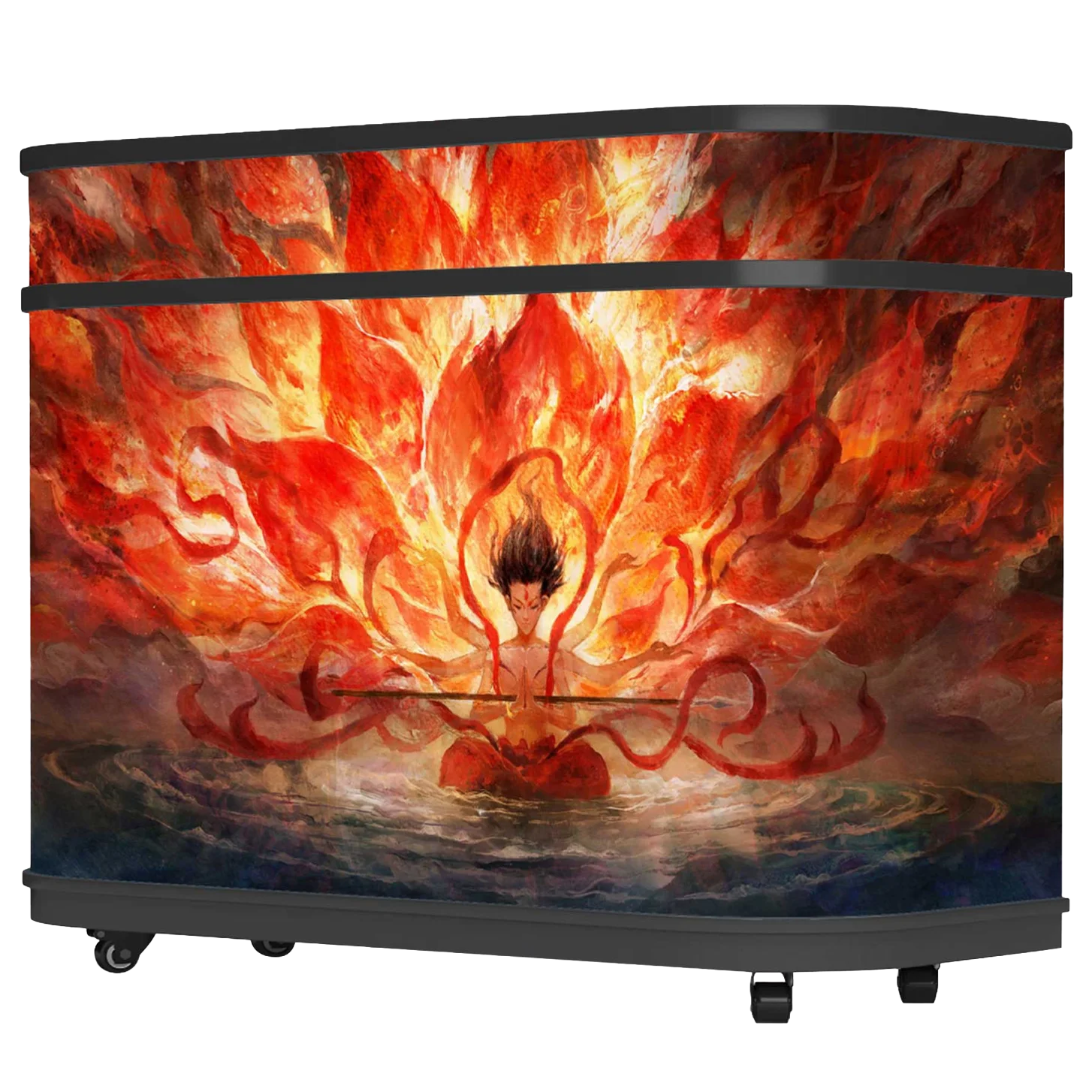

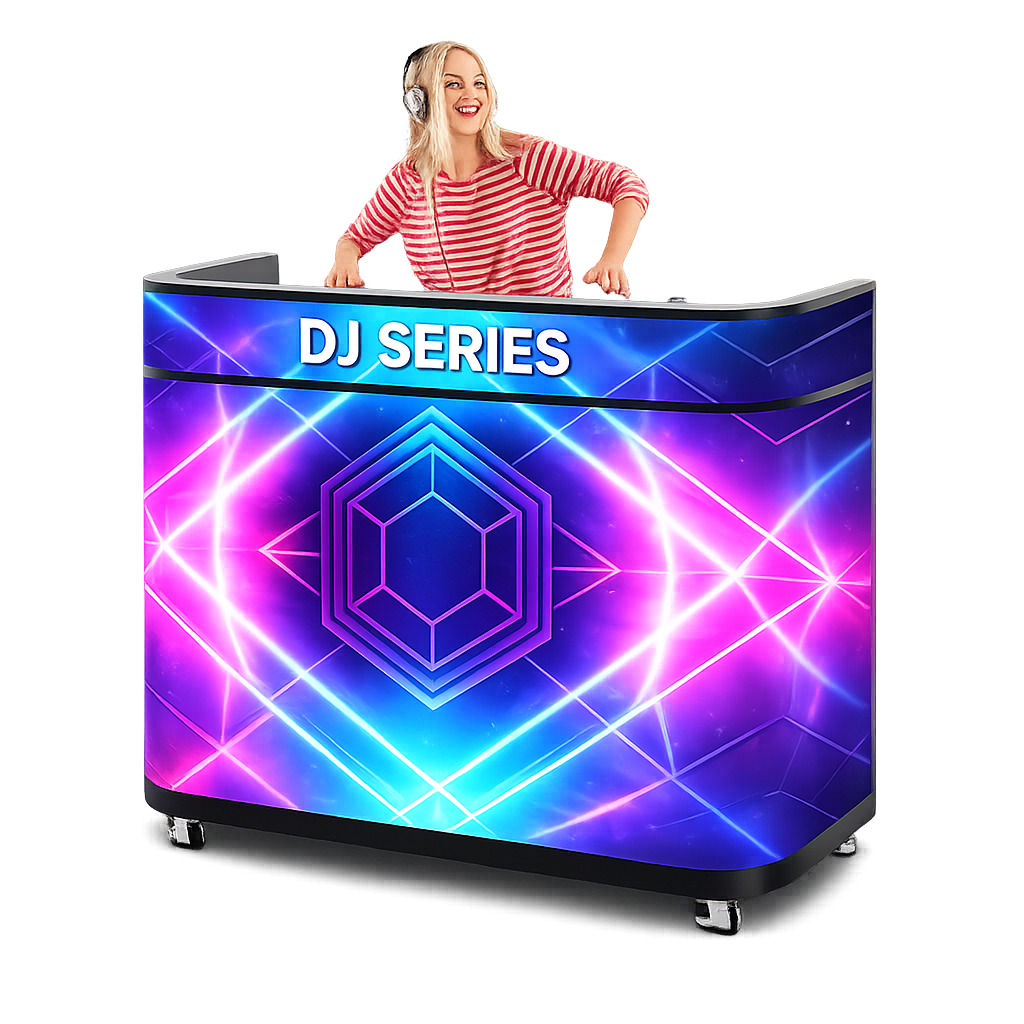

P2.5 Indoor DJ LED Table
P2.5 Indoor Totally Front Service DJ LED Table
Product introduction |
The LED DJ Bar Display Screen delivers vibrant visuals with P2.5 modules and a 3840 Hz refresh rate. Its stylish design enhances bars, clubs, and stage performances while GOB protection ensures durability and reliable indoor display performance.
Cabinet Material：Cast Iron&Single Side Design
Application：Suitable for bars, nightclubs, stages, shopping malls, and live events. The LED DJ bar display creates vibrant visual effects, enhancing the atmosphere and delivering an immersive experience for audiences and performances. LED DJ Bar Display Screen is a modern and visually impressive DJ booth solution designed for bars, nightclubs, shopping malls, exhibitions, and stage performances.
Features
It features high-definition P2.5 LED modules with a resolution of 768×384, delivering sharp images and vibrant colors that enhance the visual atmosphere of any entertainment venue. The display is equipped with a 3840Hz high refresh rate, ensuring smooth video playback without flickering, which makes it suitable for live performances and professional camera recording. Powered by the AD20 main control system, the screen supports stable operation and convenient content control.
Strong Visual Impact
With a brightness level of 500–550 cd/m², the screen provides clear visibility in various indoor lighting environments. The use of GOB protection technology with an IP43 rating improves durability, offering better resistance to dust, moisture, and accidental impacts. Its stylish curved design combined with dynamic LED visuals creates an immersive experience, making it an ideal display solution for modern DJ booths and entertainment spaces.
Product Parameters
| Item | Parameters |
|---|---|
| Pixel pitch | 2.5mm |
| LED Type | SMD2020 1R1G1B |
| LED Module Size | 320 x 160mm |
| LED Module Resolution | 96x96 dots |
| Product Dimensions | 1065mm (L) x 1100mm (H) x 585mm (W) |
| Cabinet Resolution | 768 x 384 dots |
| Screen Pixel | 160,000 dots |
| Signal Processing | 12 - 16 bit |
| Grey Level | 4096 - 65536 |
| Refresh Rate | > 3840Hz |
| Scan Mode | 1/32 |
| Brightness | >500 - 550 nits |
| Viewing Distance | > 2.5m |
| Viewing Angle | 160 degree |
| Input Voltage | 110-240V/50-60Hz |
| Max Consumption | 750W/SQ.M |
| Ave Consumption | 225W/SQ.M |
| Working Temperature | -20 degree to 45 degree |
| Storage Temperature | -40 degree to 60 degree |
| IP Rate | IP43 GOB |
| Working Humidity | 10% - 60% |
| Storage Humidity | 10% - 90% |
| Lifespan | 100,000 hours |
| Service Type | Front & Rear Service |
| LED Lamp | Nationalstar |
| IC | ICN2153 |
| Control Card | AD20 |
| Operation Approach | Windows |
| Display Size | 1920mm W x (800 + 160) mm L |
| Equipment | With Speakers |
| Suitable for | Bars, Shopping Malls, Stages, Ceremonies |
