All-in-one LED TV

All-in-one LED TV Display

Product introduction |

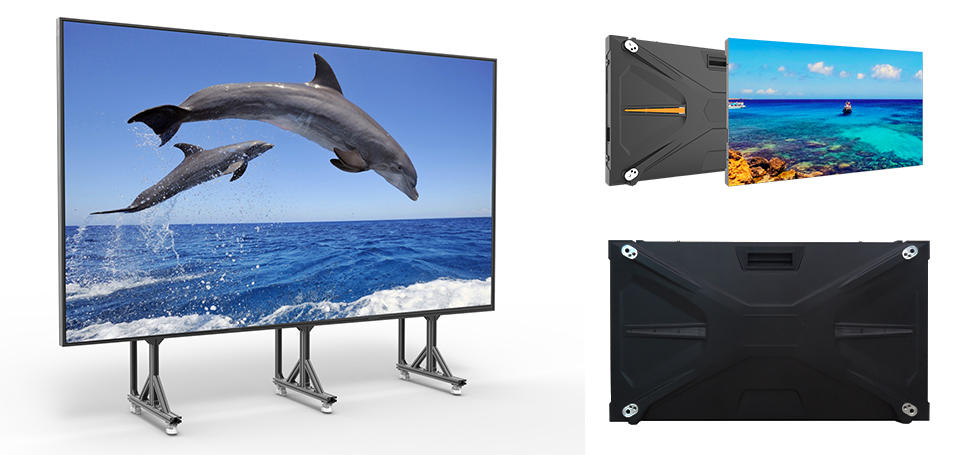

LED video wall for indoor screen P0.9 P1.25 P1.56 P1.87 P2.5 LED display HD LED screen die-casting cabinet.

Cabinet Material:Adopt 64 scan high refresh rate diving IC, smooth and delicate display performance.

Application:It can be used for indoor and outdoor LED video wall. This is the traditional design of full front service LED display, and it is very cost-effective comparing to modern tool front service modules.

big tv 0 960x455.jpg

Product Information

Standard cabinet size:600*337.5mm,16:9 aspect ratio. HD video and picture dot to dot matching. Free splicing into 2K/4K/8K. 27’ single cabinet size is for replacing 54’ and 108’ LCD display..

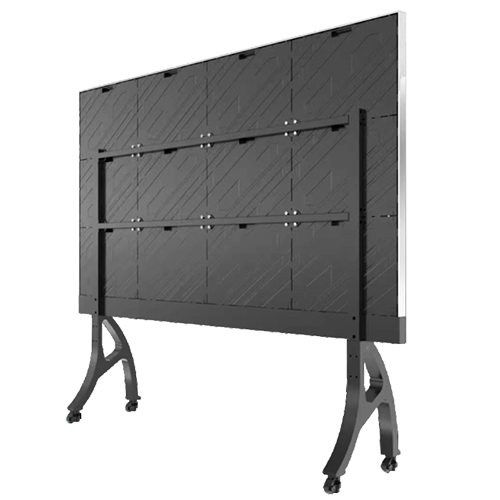

Cable-less Connection

Adopt hard plug connection between the cabinets.cable-less between the power supply and the HUB board, and between HUB board and module. High Efficiency with Front and Rear Maintenance, both interior and external looks neat and clean

big tv 1.jpg

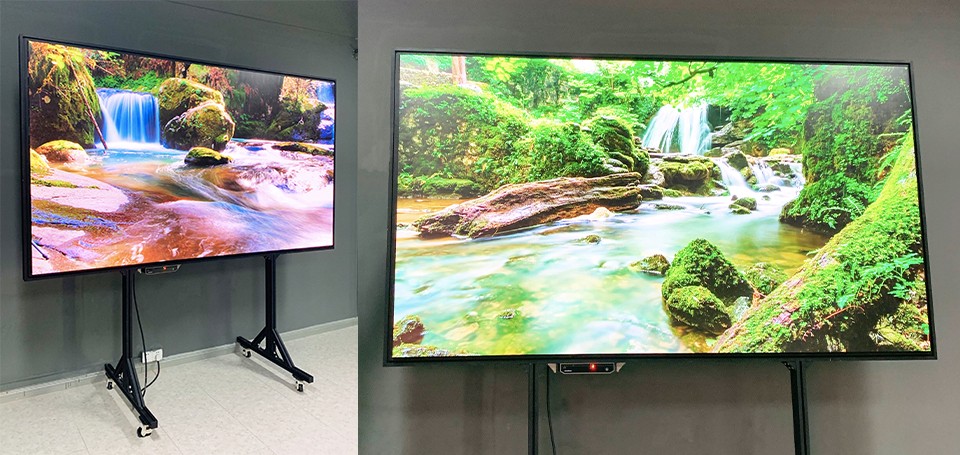

16:9 Aspect Ratio

U1 Cabinet features 16:9 size ratio, it is perfect for creating full HD, 1080P, 2K, 4K and 8K seamless video wall, level up visual experience.

big tv 2.jpg

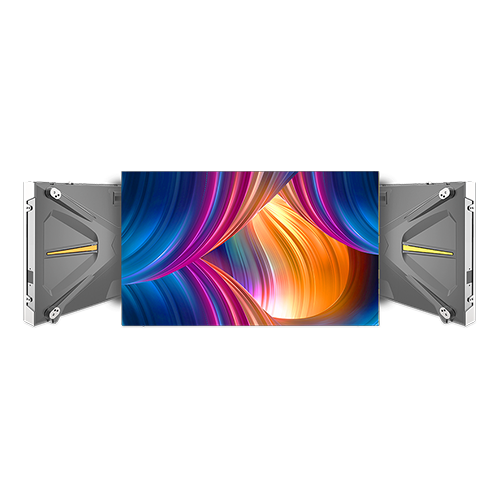

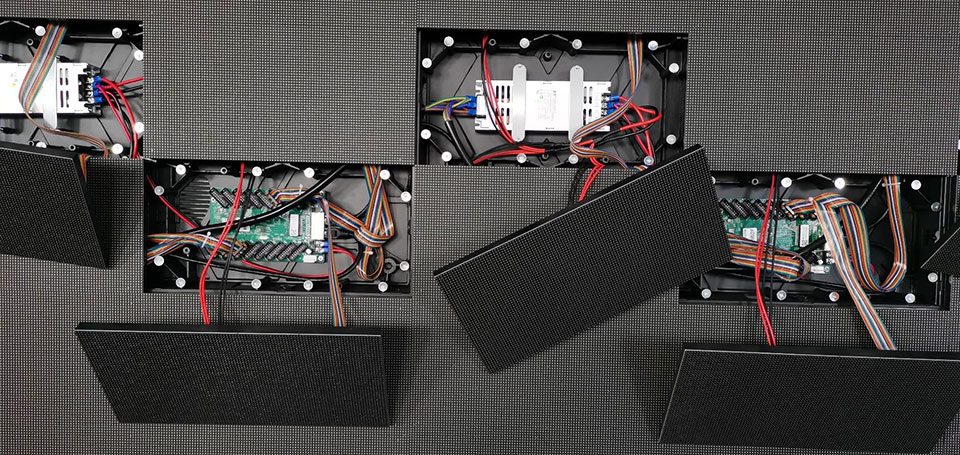

Front Accessibility

With a magnetic tool designed specifically for U1 cabinet, service can be conducted efficiently and quickly. Power supplies, controllers or other components can all be accessed from front.

Product Parameters

ItemParameters
Pixel pitch1.25mm
LED TypeMiniLED 2R2G2B
LED Module Size300x168.75mm
LED Module Resolution240x135dots
Density per SQ.M640,000 dots/SQ.M
Signal Processing 12 - 16 bit
Grey Level4096 - 65536
Refresh Rate> 3840Hz
Scan Mode1/60
Brightness> 500 nits
Viewing Distance> 1.25m
Contrast Ratio5000:1
Viewing Angle120 degree
Input Voltage
100-240V/50-60Hz
Max Consumption< 400 W/SQ.M
Ave Consumption100 W/SQ.M
Working Temperature-20 degree to 45 degree
Storage Temperature-40 degree to 60 degree
Input VoltageDC5V
IP RateIP35
Working Humidity10% - 60%
Storage Humidity10% - 90%
Lifespan > 100,000 hours
MTBF> 10,000 hours
Service TypeFront Service
LED Lamp
Nationalstar
ICICN2153
Control CardNova / Colorlight / LINSN / Huidu




Video Playback
