P2.5 Indoor LED Sign
P2.5 Indoor Totally Front Service LED Screen
Product introduction |

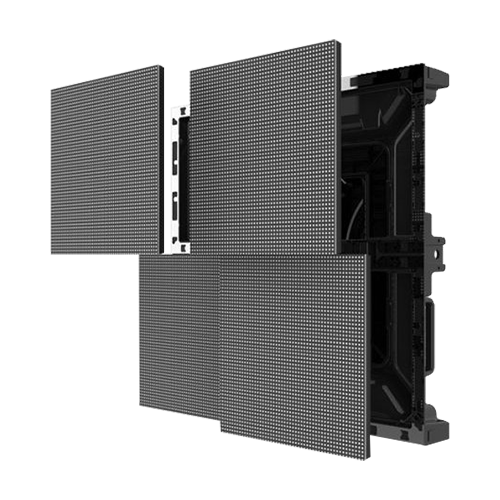

Ultra thin, ultra light weight with 480X480mm and 7kg weight , small cabinet to handle easily, portable and convenient to installation, assembly and disassembly.

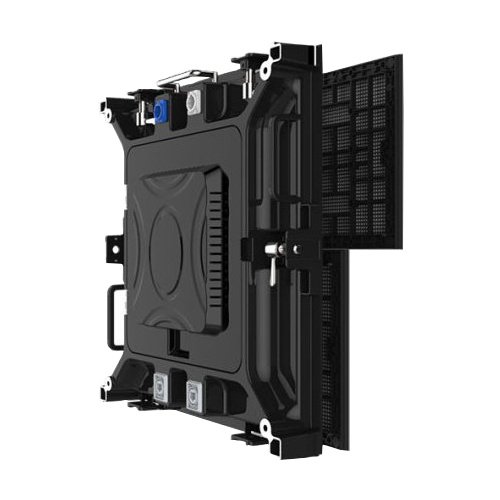

Cabinet Material：Cast Iron&Single Side Design
Application：Die-cast aluminum material made with the features of high precise, high hardness and high strength.
Product Information

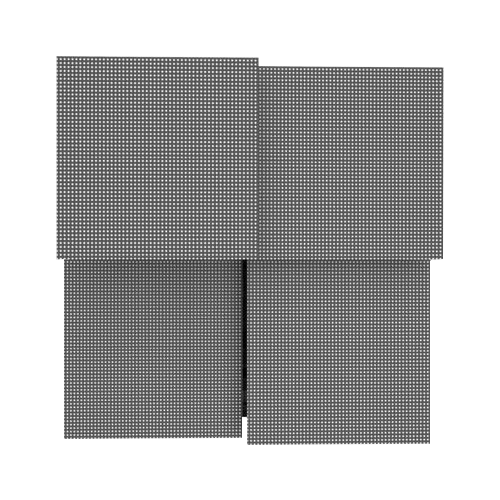

LED display module panel dimension is 240X240mm, the module use unique design with Black SMD 2121 LED lamp Encapsulation, High quality with stable performance.
high refresh rate up to 1920hz to realize high contrast, high definition with uniformity color effect. the display is perfect with clear image and visual present.
Strong Visual Impact
Pure black module mask and SMD2121 LED to make the LED display with higher contrast rate. 14 bit color depth to make the LED display with nature color and visual impact, giving viewer immersive feeling.high flatness, seamless connection using fast lock design, no gaps.
Product Parameters
| Item | Parameters |
|---|---|
| Pixel pitch | 2.5mm |
| LED Type | SMD2020 1R1G1B |
| LED Module Size | 240 x 240mm |
| LED Module Resolution | 96x96 dots |
| LED Cabinet Size | 480x480x58mm |
| Cabinet Resolution | 192 x 192 dots |
| Screen Pixel | 160,000 dots |
| Signal Processing | 12 - 16 bit |
| Grey Level | 4096 - 65536 |
| Refresh Rate | > 3840Hz |
| Scan Mode | 1/32 |
| Brightness | >1,000 nits |
| Viewing Distance | > 2.5m |
| Viewing Angle | 160 degree |
| Input Voltage | 110-240V/50-60Hz |
| Max Consumption | 750W/SQ.M |
| Ave Consumption | 225W/SQ.M |
| Working Temperature | -20 degree to 45 degree |
| Storage Temperature | -40 degree to 60 degree |
| IP Rate | IP45 |
| Working Humidity | 10% - 60% |
| Storage Humidity | 10% - 90% |
| Lifespan | 100,000 hours |
| Service Type | Front & Rear Service |
| LED Lamp | Nationalstar |
| IC | ICN2153 |
| Control Card | Nova / Colorlight |
| Operation Approach | Windows |
