Outdoor Fan-shaped Module

Outdoor Fan-shaped Module

Product introduction |

IP65 Outdoor Waterproof Cabinet, Customised Size: Front Access Available with two poles, easy for maintenance. Customised cabinet color and LOGO as the client's project requirements.

Cabinet Material:Cast Iron and Double Sided Design

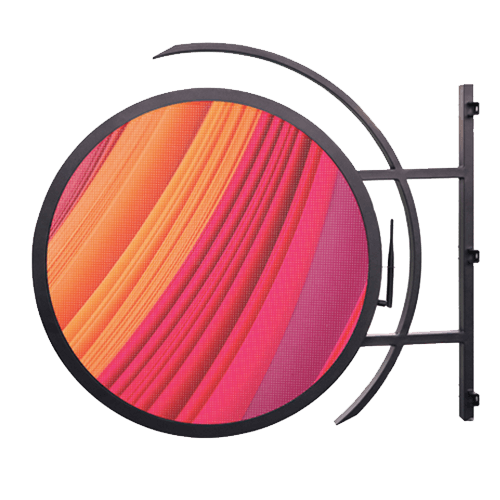

Application:The circular LED display can be used outdoors and can be customized In size. The circular LED display screen highly appraised for its beautiful appearance, good rendering effect, light structure, light weight, reliable quality and high precision.

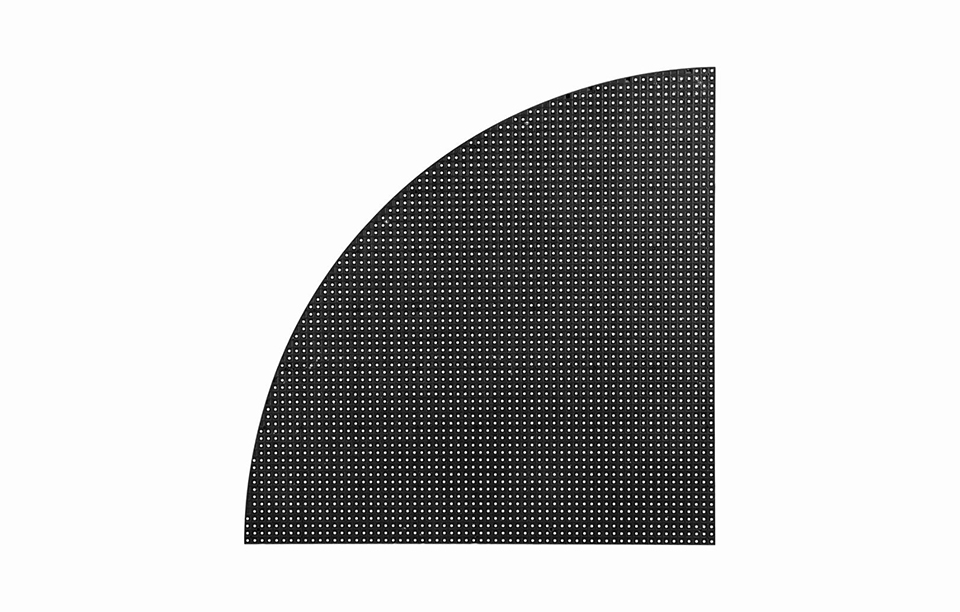

arc module front 960x612.jpg

IP65 Waterproof Protection

The round LOGO LED Display Sign has good anti-static, waterproof, dust-proof, lightining protection.

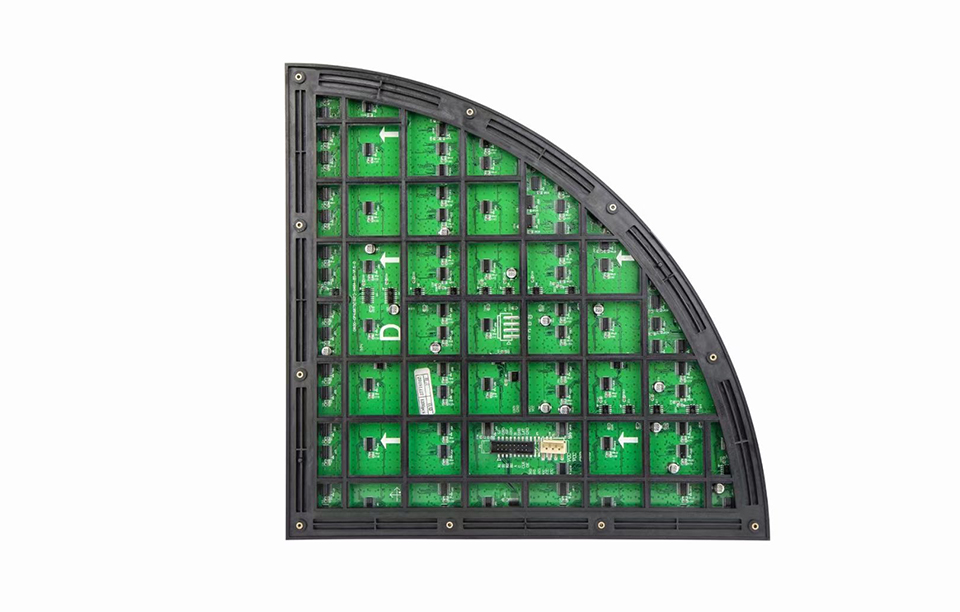

arc module back 960x612.jpg

Lightwieght and Convenient

The circular LED display sign can be used for outdoor environment and it can be customised in different size. The circular LED display screen highly appraised for its beautiful apperance, good rendering effect, light structure, light weight, reliable quality and high precision.

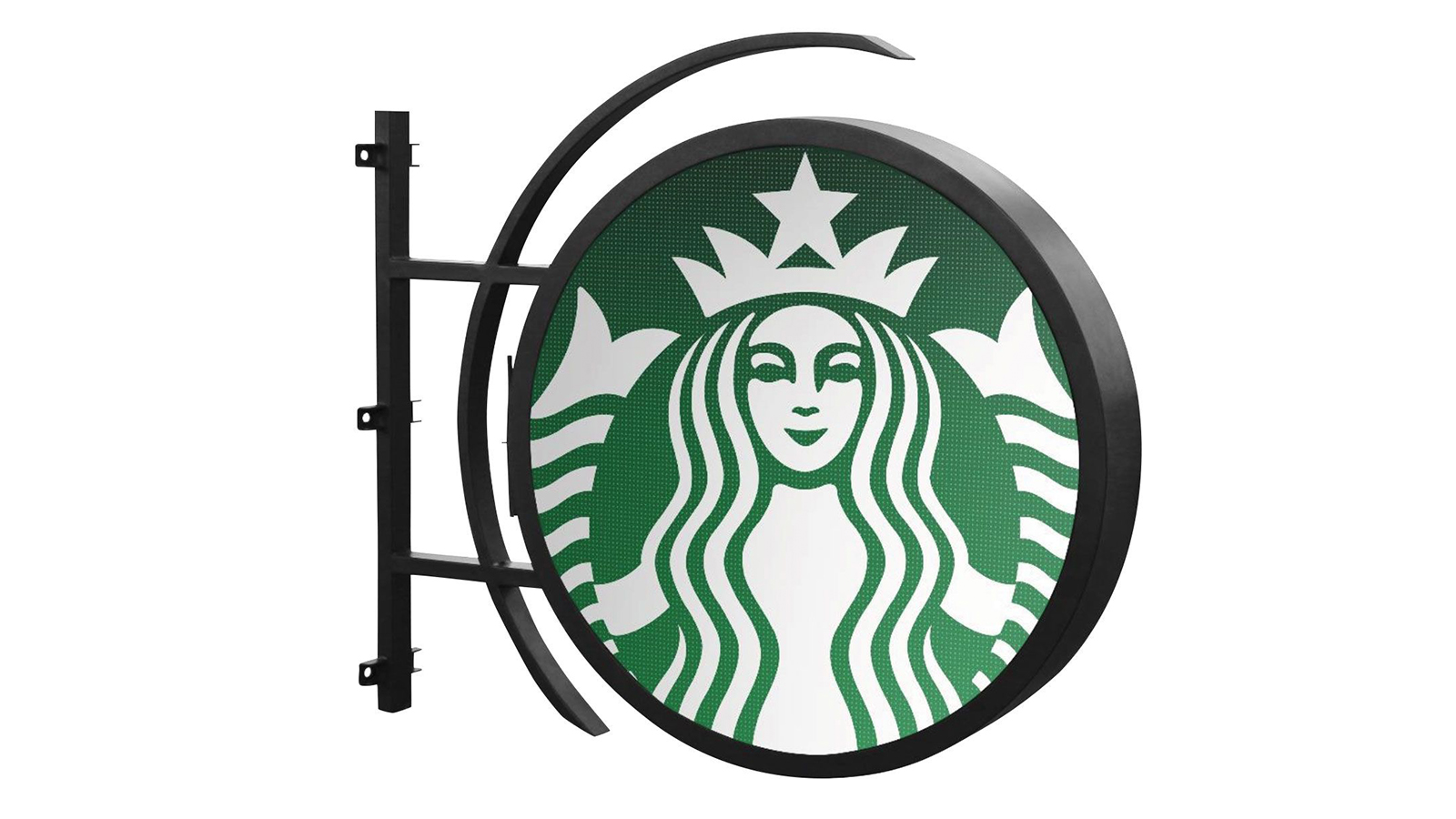

logo front 960x612.jpg

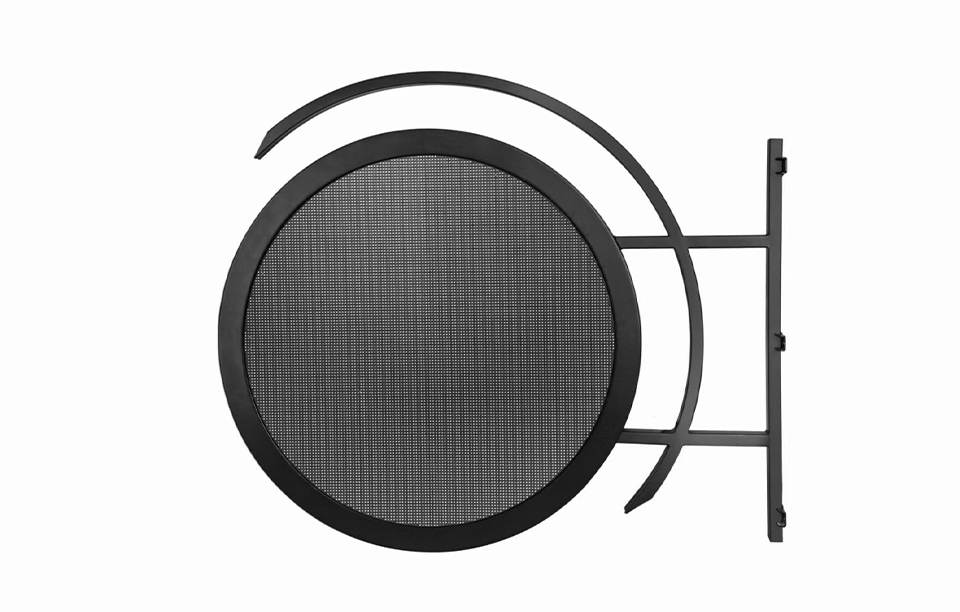

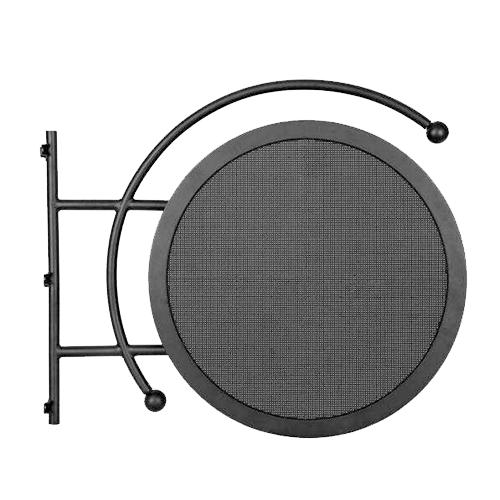

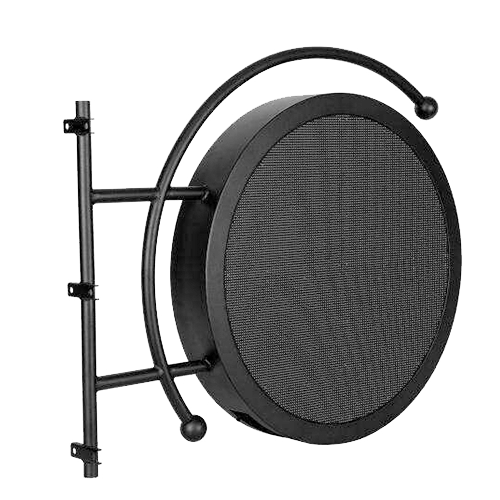

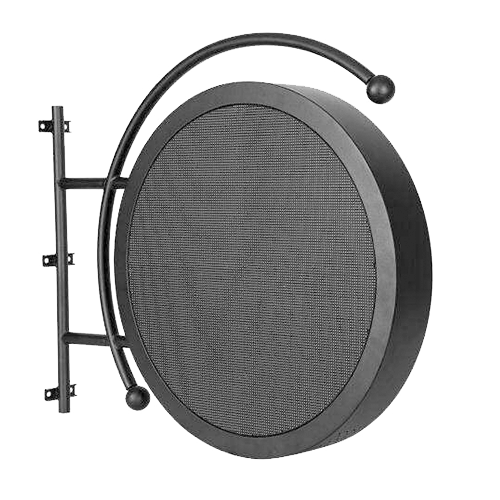

Fashionable Round Design

It has a heavy steel frame work at the outside. Inside, it utilises Nova or Huidu control system, and it supports for WIFI connection with excellent waterproof performance.

logo front 1 960x612.jpg

Network Remote Control

It supports remote control by connecting with the WIIF APP and Ethernet. It uses mobile, laptop and PC to upload contents through WIFI/3G/4G.

logo front 2 960x612.jpg

Loop Advertising Display

Support JEPG, PNG, GIF format of contents

Product Parameters

ItemParameters
Pixel pitch4.68mm

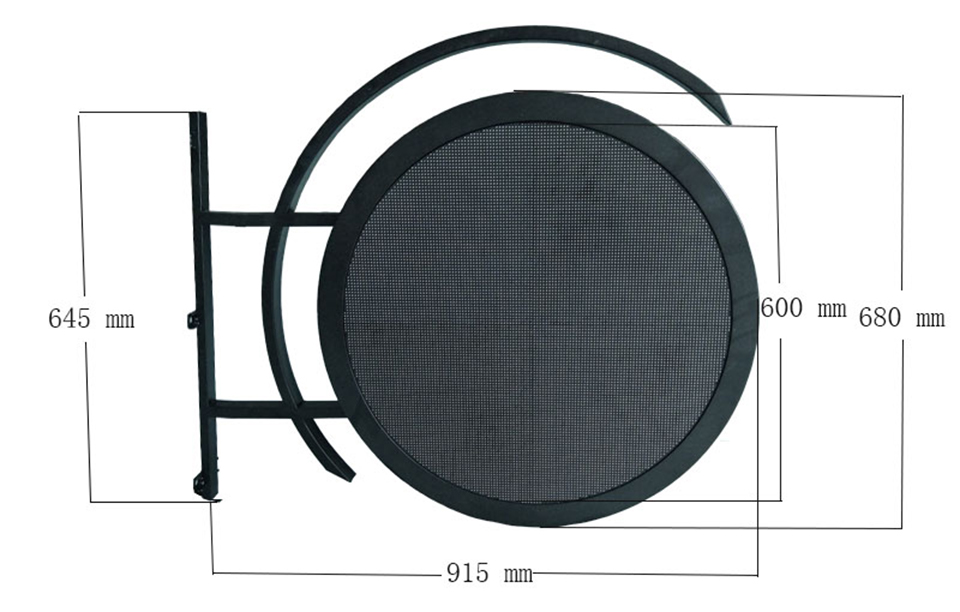

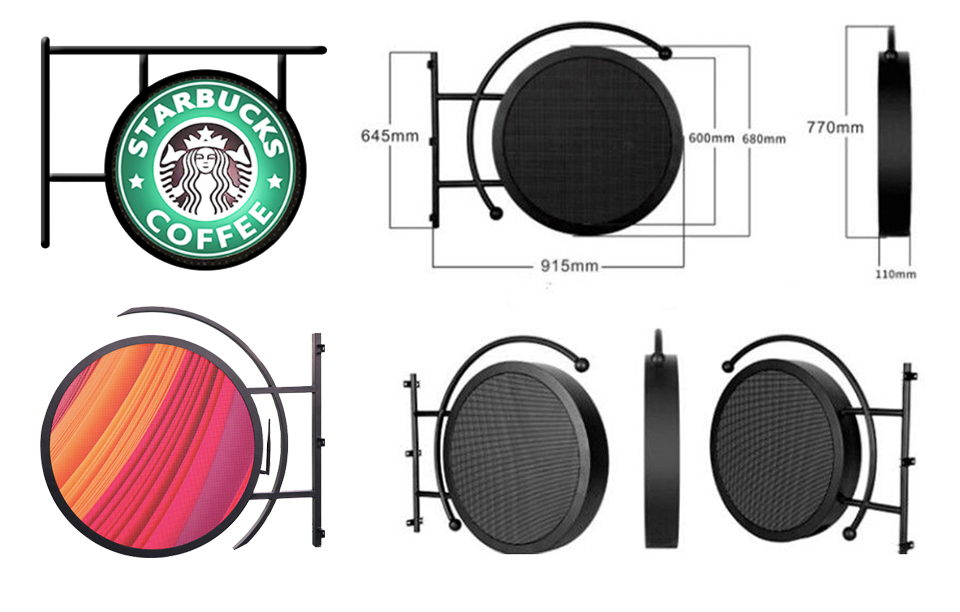

Diameter610mm
Module Size300x300mm
Module Resolution64x64 dots
Density of LED45511 pixels/sq.m
LED LampKN-LIGHT
Refresh Rate1920Hz
Control SystemNova T1 APP
Brightness4000 nits
View Angle120 degree Horizontal
120 degree Vertical
View Distance5-30m
Gray Scale
65,536
Display ColourRGB 3 IN 1
Operation PowerAC100-240V 50-60Hz
Max Power Consumption400W/sq.m
Ave Power Consumption100W/sq.m
Storage Temperature-20~60 ℃
Storage Humidity10-90%
Lifespan> 100,000 hours
MTBF
> 10,000 hours
Continuous Working Life> 72 hours
Protection LevelIP65
Out of Control Pixel Rate< 0.03%
