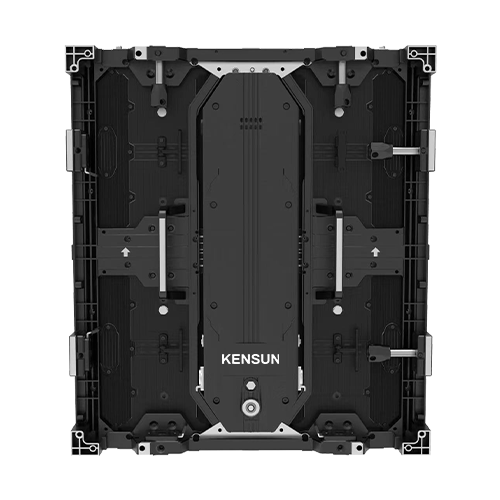

D1 P1.5/P1.875/P2.5 Outdoor Small Pixel Pitch HB Display

Product introduction |

IP65 Outdoor Waterproof Cabinet, Front Access Available, easy for maintenance. Customised cabinet LOGO as the customer project requirements

Cabinet Material:Die-casting Aluminumn Cabinet

Application:KENSUN D1 Cabinet is a small pixel pitch development to accommodate closer viewing considerations for outdoor installations and more detailed content broadcasting. The enhanced ingress protection and dramatically improved brightness ensure satbility and readability of performance for oudoor environments. With ingress protection rating up to IP65, D1 is competent in most of the demanding outdoor envrionments.

480x540 6.jpg

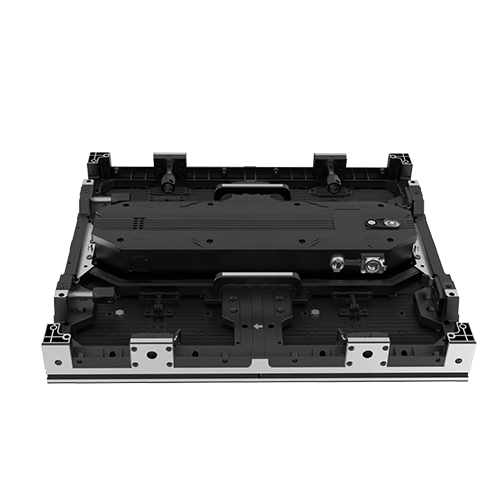

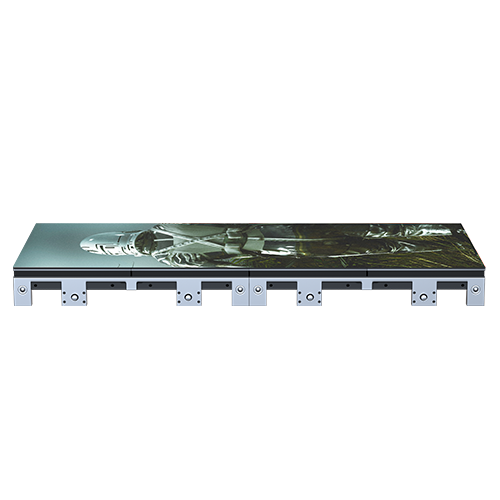

1. Slim and Compact architecture

D1 featuring a robust architecture and anti-erosion cabinet, but weighs in at just 9.5kgs and measures 70mm thick. Thin enough to save your installation space and light enough to manage installation and maintenance efficiently and quickly.

OSF18 4.jpg

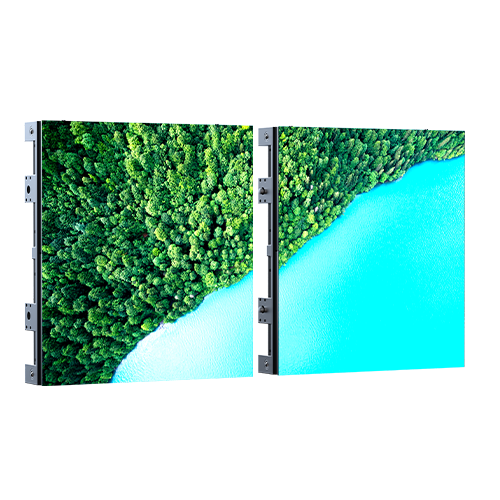

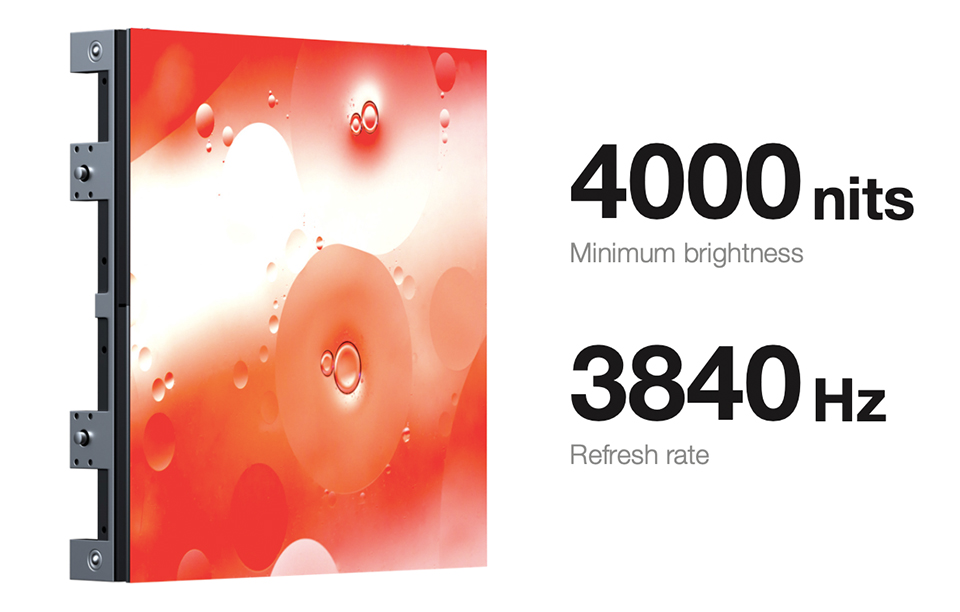

2. Improved Brightness and True-to-life image quality

D1 featuring a stunning brightness of 4000 nits, ensure perfect readability and competent for most of the demanding outdoor environments. With a gray scale up to 14 bit and refresh rate up to 3840Hz, D1 delivers true-to-life image reproduction with every pixel performing perfectly and as intended.

OSF18 5.jpg

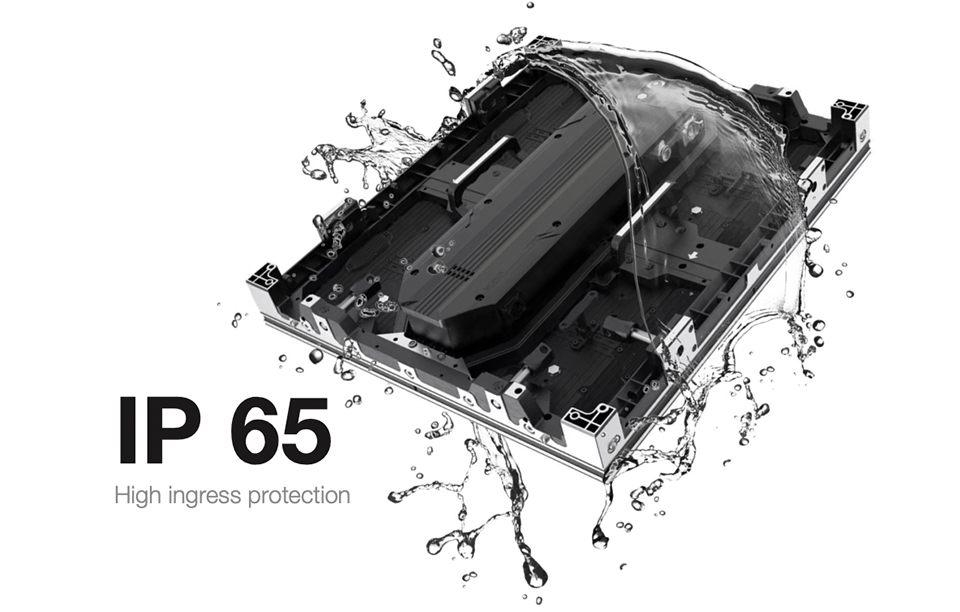

3. Weatherproof Protection

With an ingress protection rating up to IP65, D1 LED display range is extremely versatile and suitable for diverse outdoor environments and weather conditions. No full display surround framework required unless specified.

OSF18 6.jpg

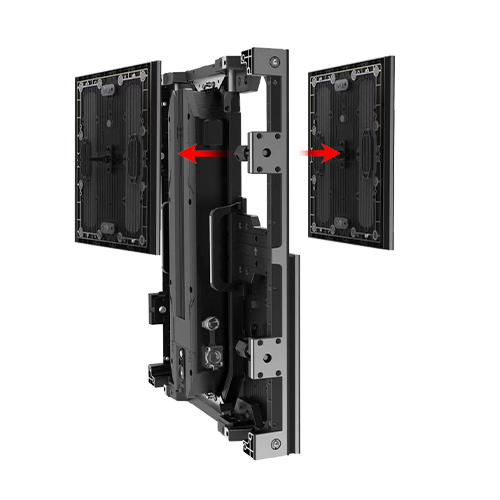

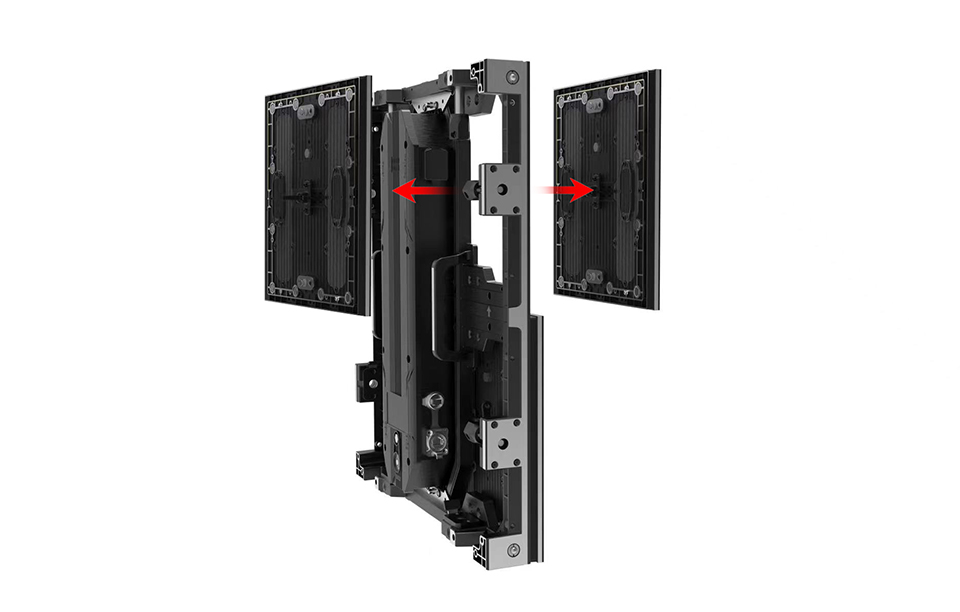

4. Front and rear access, convenient and quick service

Magnetically mounted modules and a user-friendly cabinet structure ensures that maintenance can be conducted efficiently and quickly. All components can be accessed from the front and rear so ideal for surface mounted installations.

480x540 5.jpg

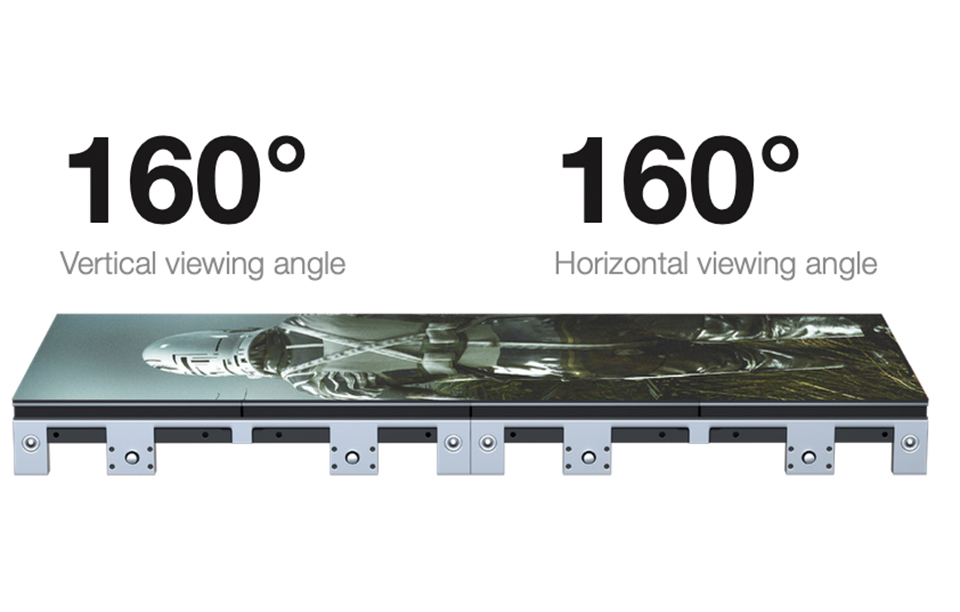

5. Wide Viewing Angle

D1 provides wider viewing angles of 160 degree vertical and 160 degree horizontal, pixel-perfect imagery viewing angle result in wide viewing experience, a real advance over the most LED video walls.

480x540 6.jpg

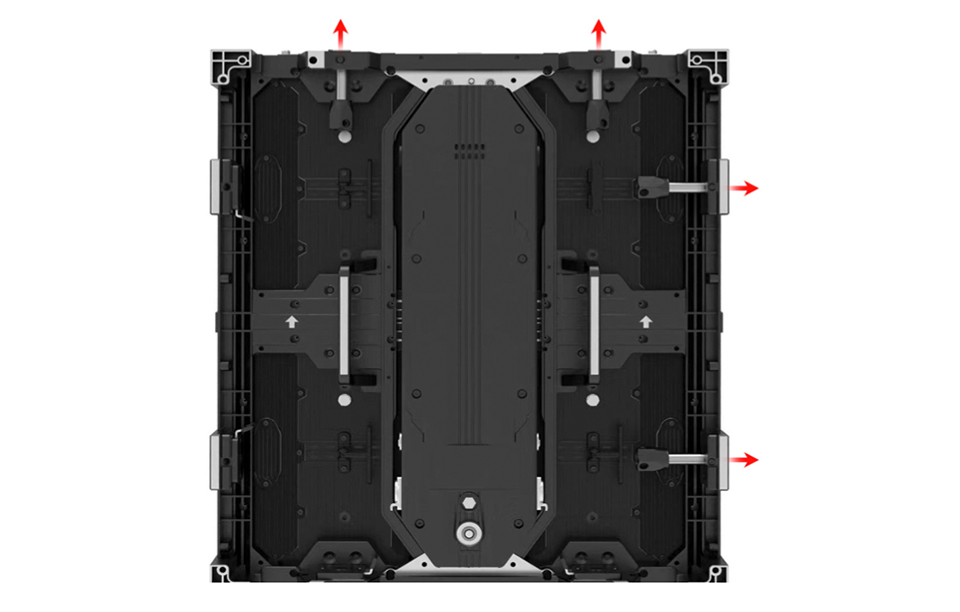

6. Precise, recessed, and chaneled cabinet alignment

Cabinet assembly benefits from full CNC processing achieving accuracy levels up to +/-0.05mm. Designed with four-sided rabbet joints to assist LED display assembly, faster installation and final screen perfection.

Product Parameters

Pixel pitch1.5
Pixel Density444,444 pixels/sq.m
LED Module Size240x270mm
LED Module Resolution160x180 dots
Special DesignSurface Treatment Protection
LED Cabinet Dimension480x540x70mm
Resolution per cabinet320x360 dots
Signal Processing 14 bit
Grey Level4096 - 65536
Refresh Rate> 3840Hz
Scan Mode1/30
Brightness> 4,000 nits
Viewing Distance> 2m
Horizontal Viewing Angle160 degree
Vertical Viewing Angle160 degree
Input Voltage
Max Consumption720 W/SQ.M
Ave Consumption216 W/SQ.M
Working Temperature-20 degree to 45 degree
Storage Temperature-40 degree to 60 degree
Input VoltageDC5V
IP RateFront IP65, Rear IP54
Working Humidity10% - 90%
Storage Humidity10% - 95%
Lifespan > 100,000 hours
MTBF> 10,000 hours
Service TypeFront & Rear Service
LED Lamp
Control CardNova / Colorlight / LINSN / Huidu
Weight per cabinet9.5KGS/Cabinet
Weight per sq.m36.6KGS
Cabinet MaterialDie-casting Al-cabinet
