Interactive Floor Screen

500X500 LED Interactive Floor Screen Cabinet

Product introduction |

Suitable for all kinds of scenarios, can be customized Suitable for all Suitable for all kinds of scenarios.

Cabinet Material:Die-casting Aluminium LED Cabinet.

Application:Those LED products were widely used in both indoor and outdoor places like hall, hotel, exhibition room, public square, symbols,building and TV stage background and etc.

module 0 960x612.jpg

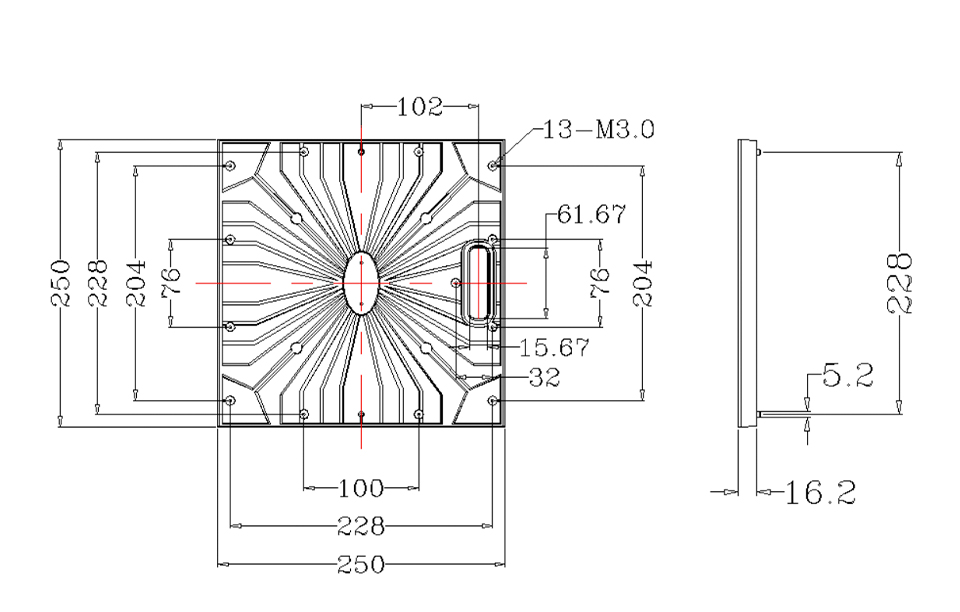

250x250mm LED Module

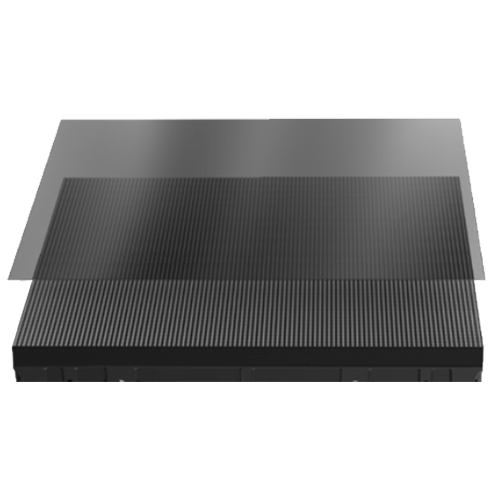

This module is left side and right side compatible and its size is 250mm W x 250mm H. The weight is very light below 560g each.

cabinet 0 960x612.jpg

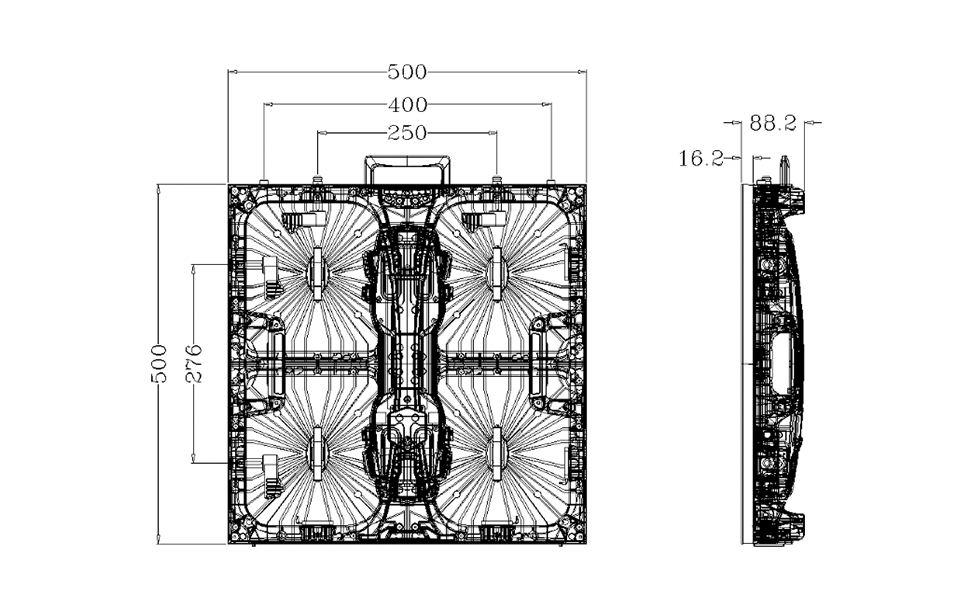

500x500mm LED Cabinet

This cabinet is compatible with P2.6mm, P2.97mm and P3.91mm three different pixel pitches. 4 x LED modules will be fixed to one 500x500 cabinet, but we also have 500x1000 cabinet to suit some special projects

DF 0 960x612.jpg

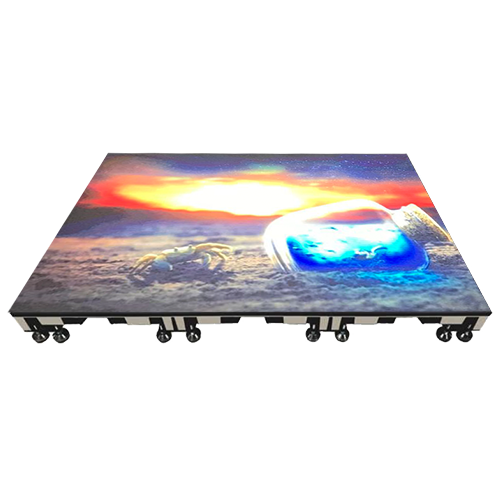

Reliable LED Solution

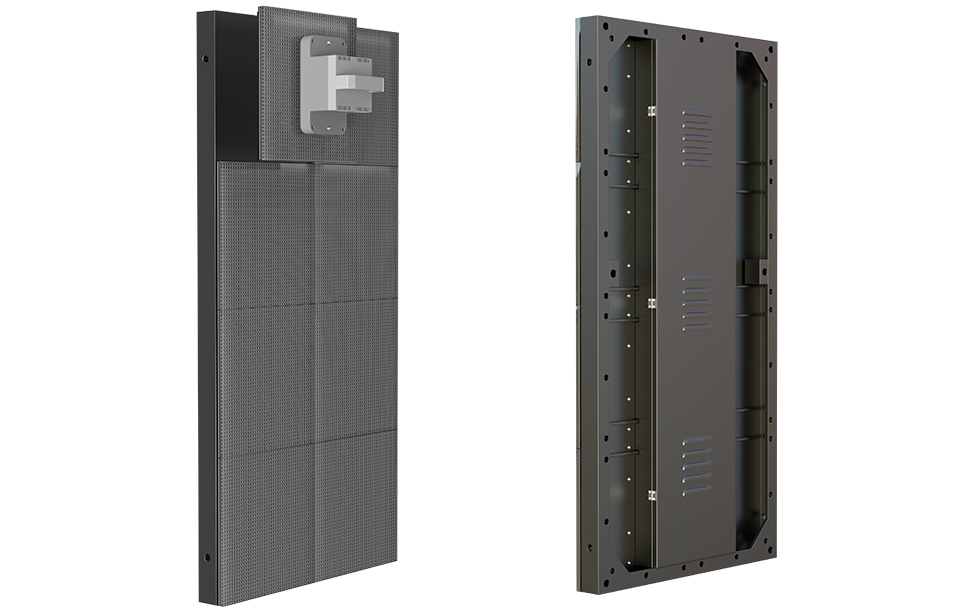

This cabinet has a small power supply box, which can be taken off from the main body quickly from the back side. It also has a security locker on each side of the main box. This can save greatly of the lobour for customers.

Dance Floor 2.jpg

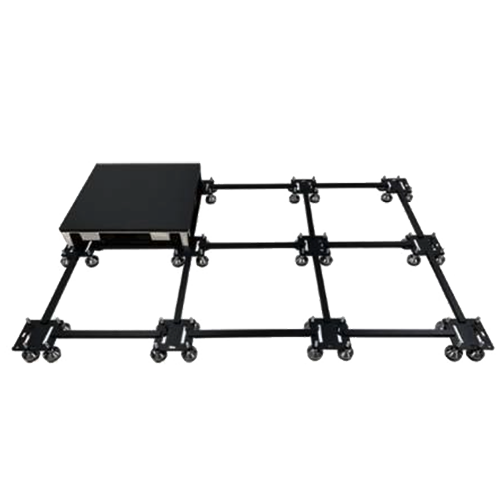

Strong Supporting

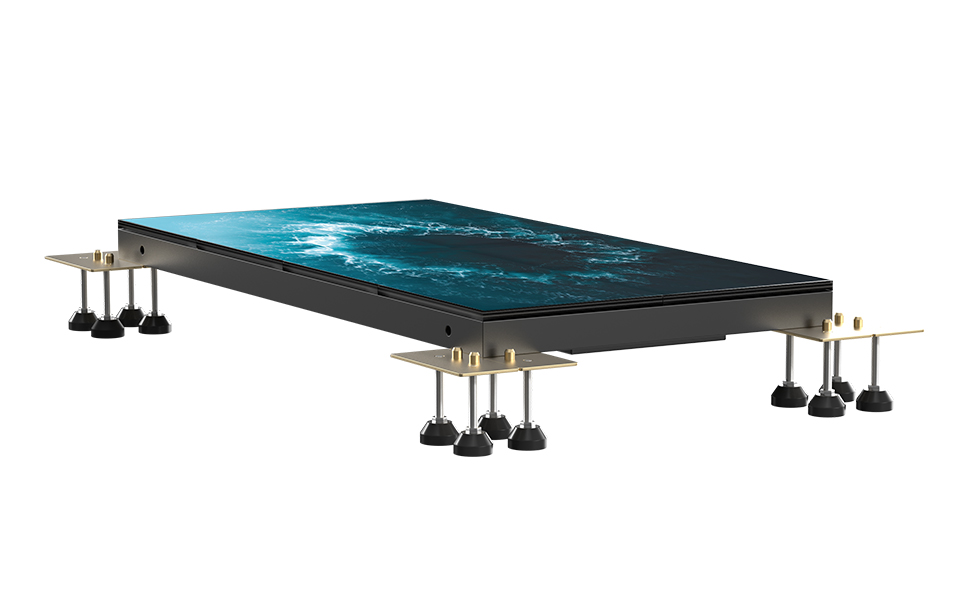

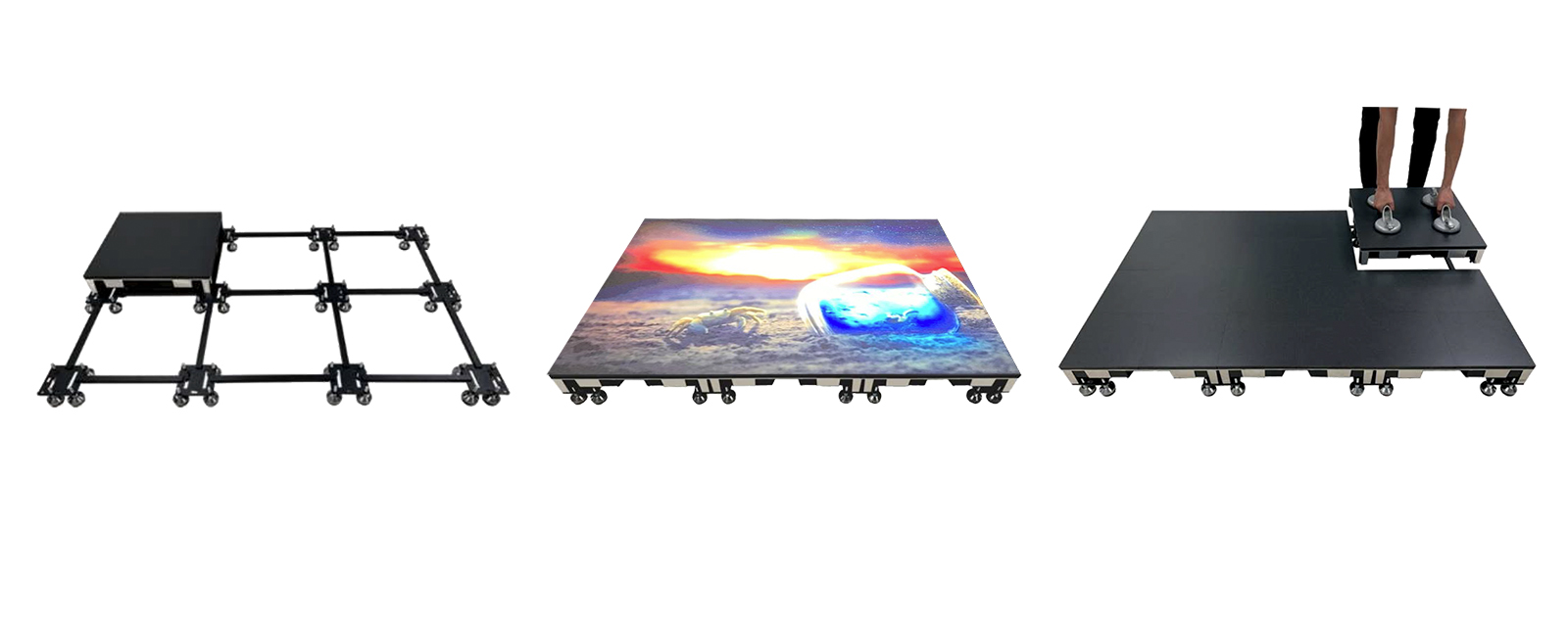

This interactive dance floor is stable and strong supporting by its 4 feet positioning system.

Dance Floor 3.jpg

Front Access

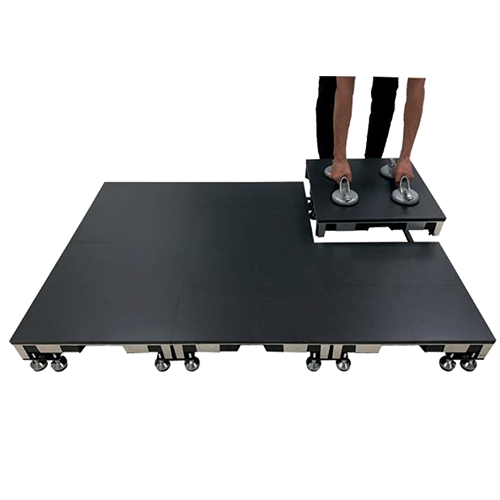

This cabinet can be maintained by a simple tool. All the modules, power supplies and control cards can be easily removed and served from the front side of the cabinets.

Dance Floor 1.jpg.jpg

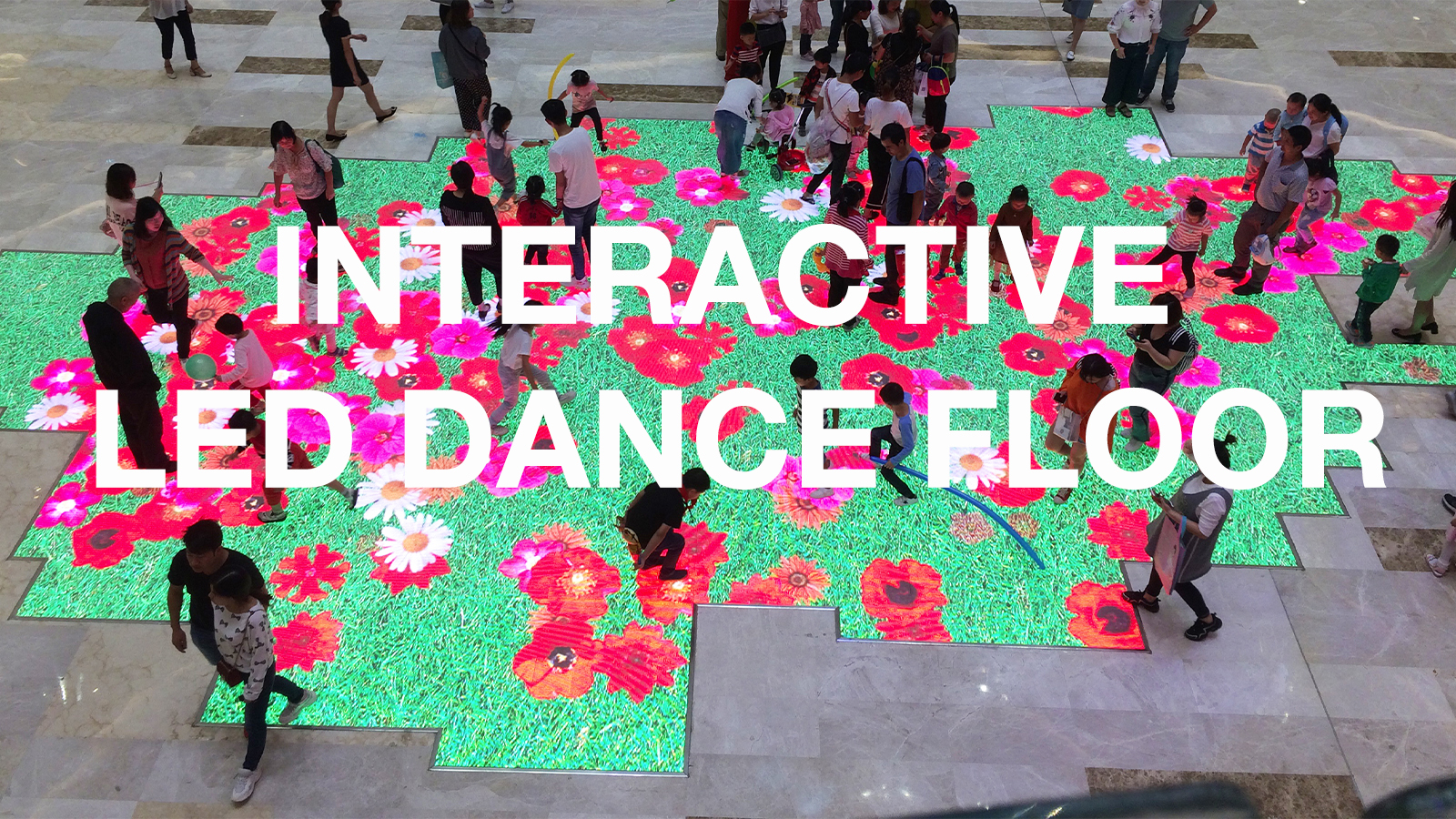

Heavy Load-bearing

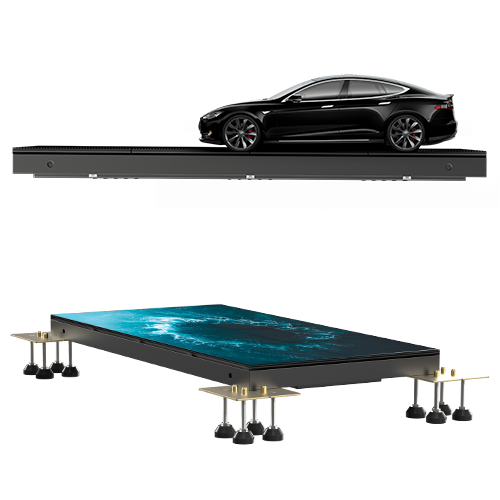

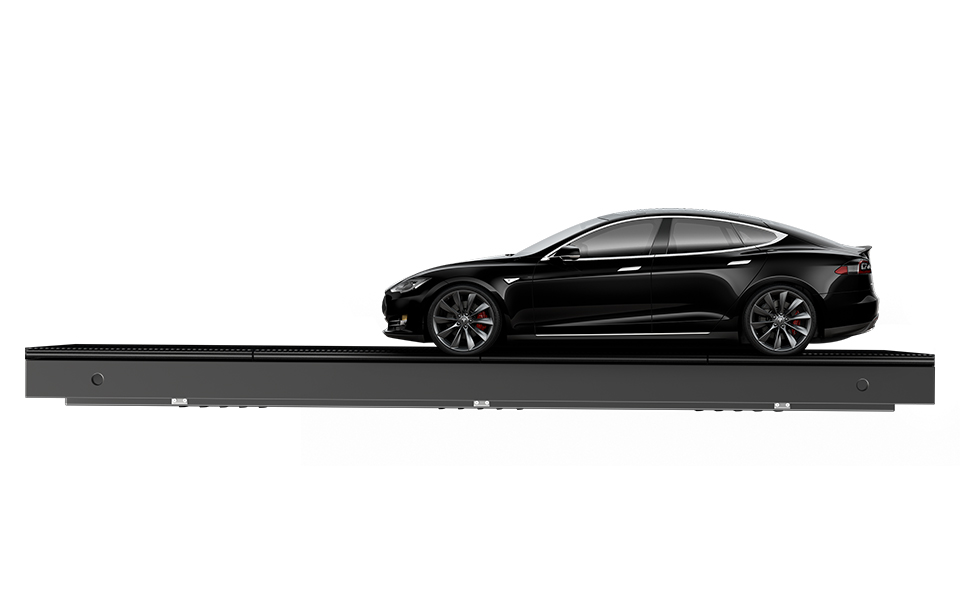

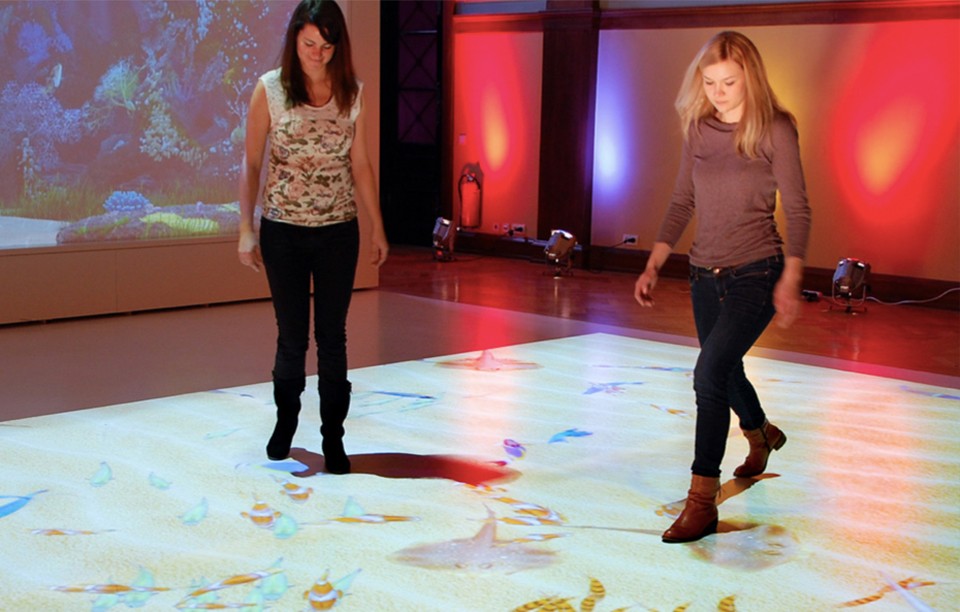

This interactive dance floor can support people to walk, dance and jump. It can bear a car to drive on it.

Product Parameters

ItemParameters
Pixel Pitch1.95mm
Pixel Structure1R1G1B
LED LampSMD1515
Resolution262,144 dots
Module Size250x250x15mm
Module Resolution128x128
Cabinet Size 1500x500x58mm
Cabinet Size 2500x1000x58mm
MaterialDie-casting Aluminium
Scan Mode1/32
Formality<0.10
Grey Scale14-16Bit

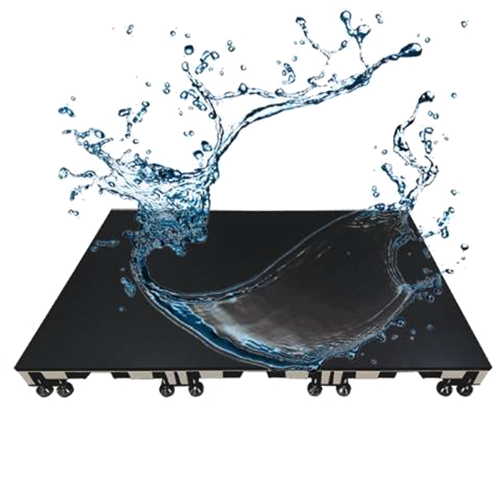

IP rateIP67 at front and IP65 at rear
Service TypeFront and rear service
Brightness>1,000 nits
Colour Temperature3200 - 12000 adjustable
Viewing AngleH140/V120
Contrast Ratio>8,000:1
Drive ModeConstant Drive
Refresh Rate> 3,840Hz
Input Voltage110-240V
Max Power Consumption<650W
Ave Power Consumption<200W
Working Temperature-20 degree to +80 degree
Working Humidity10%~95%
Suitable Receiveing CardA5s Plus-N or others
