Products Products

Aluminium Outdoor LED

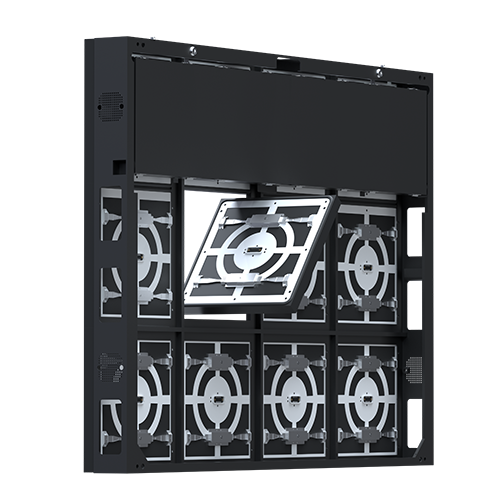

Full Front Service Module

Product introduction |

This is new design of full front service LED modules for outdoor application. It is popular these two years worldwidely.

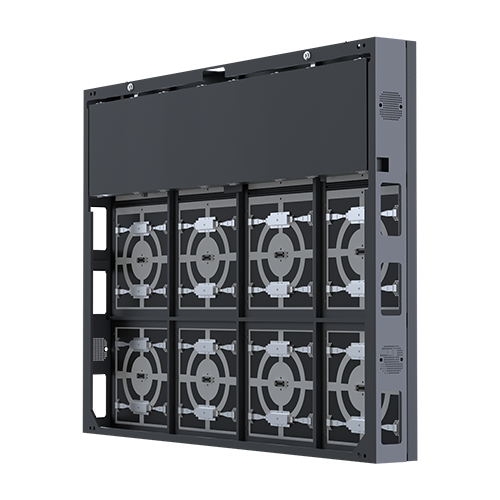

Cabinet Material:Cast Iron & Single Side Design

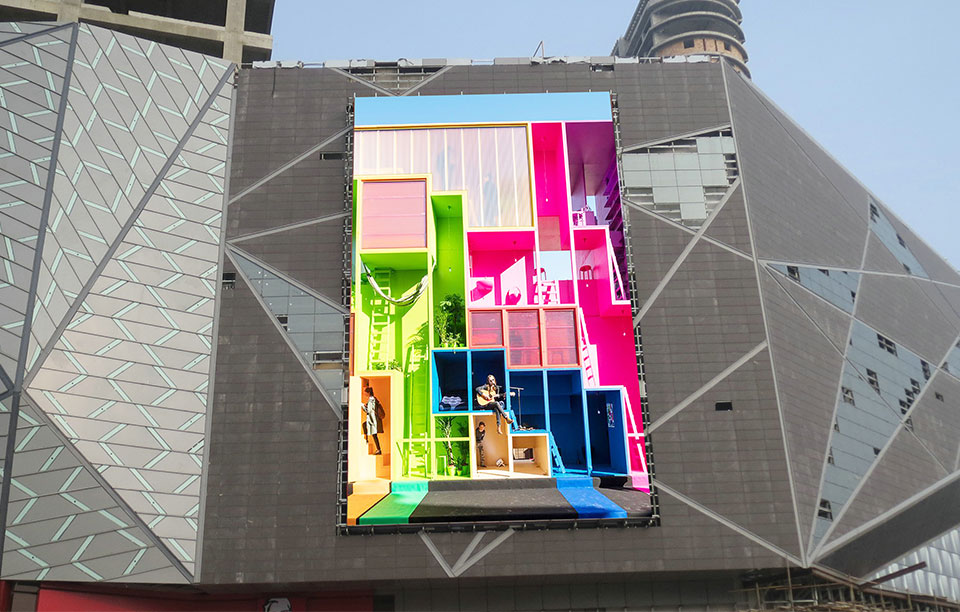

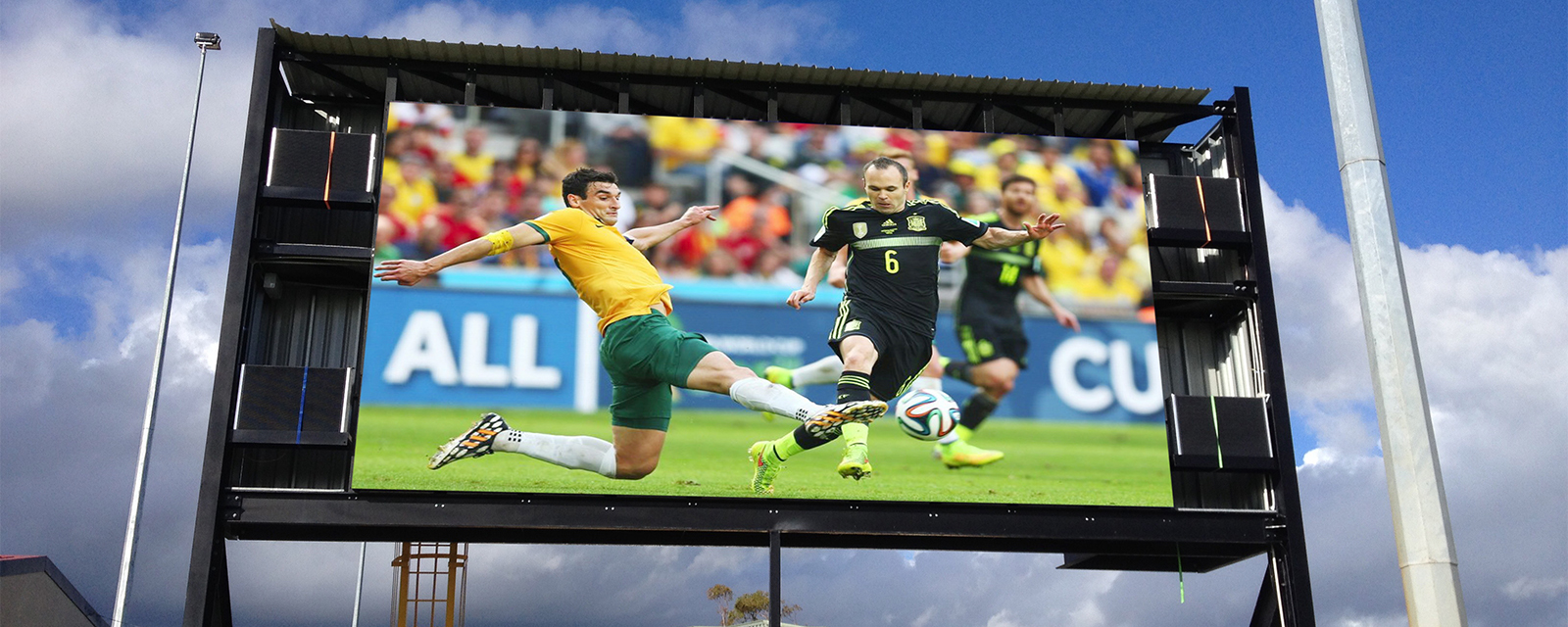

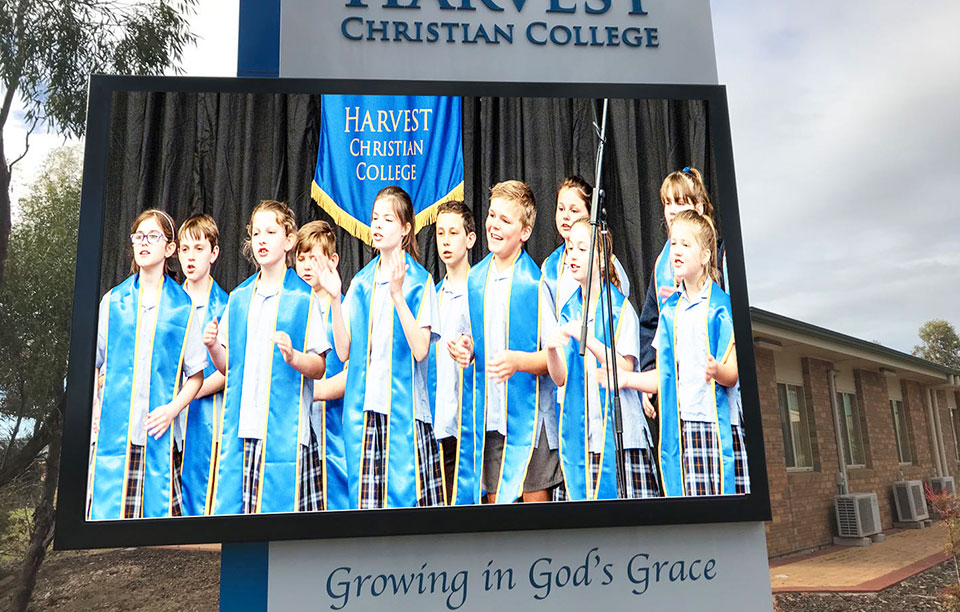

Application:It is applicable for commercial center, airport, big conference, city's landmark plaza, exhibition center and other outdoor advertising walls..


Strong Adaptability

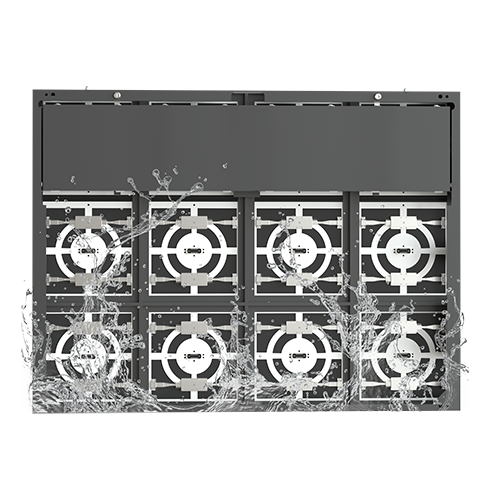

This LED display adopts full sealed cast iron cabinet to protect its inner componets and make the display body to withstand extremely high and low temperature. It can work whole day in outdoor environment.


Light weight & Energy-saving

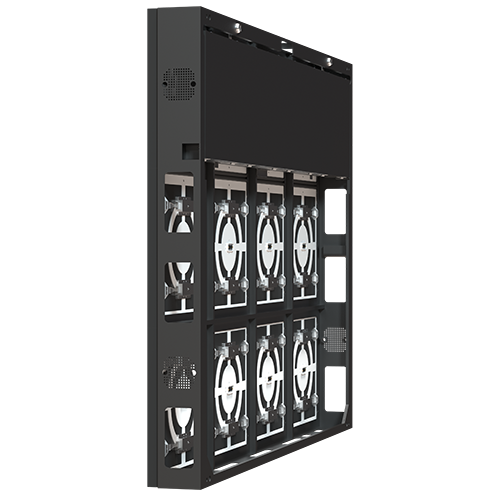

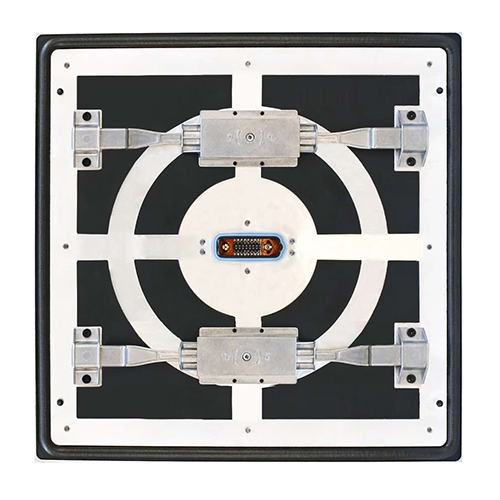

This cabinet is designed to be slim and light weight, which is only 28.5kgs per cabinet 960x960mm. The common cathode aluminum LED module is designed to meet the requirement of outdoor big wall for full front service purpose.

Product Parameters

Pixel Pitch(mm)6.67
Pixel Matrix Per Sq.m22477
Pixel ConfigurationSMD2727
Brightness (nits)5500
Module Dimension320x320mm / 1.05x1.05ft
Cabinet Dimension960x960mm / 3.15x3.15ft
Cabinet Resolution144x144
Cabinet Weight37kg / 81Ib ( Iron)
Power Con. (Max / Avg)800 / 170 w/sq.m
Service AccessFront
Refresh Rate (HZ)≥1920
Grey Scale (bit)16
Viewing Angle (H/V)140 / 140
IP RateIP68
Input Voltage (AC)110V / 240V
