480x320 Outdoor P5

Full Front Service Aluminium Outdoor P5 LED Display Module

Product introduction |

This is new design of full front service LED modules for outdoor application. It is popular these two years worldwidely.

Cabinet Material:Cast Iron & Single Side Design

Application:It is applicable for commercial center, airport, big conference, city's landmark plaza, exhibition center and other outdoor advertising walls..

1_480x320 module 500x500.jpg

Strong Adaptability

This LED display adopts full sealed cast iron cabinet to protect its inner componets and make the display body to withstand extremely high and low temperature. It can work whole day in outdoor environment.

2_480x320 module 500x500.jpg

Light weight & Energy-saving

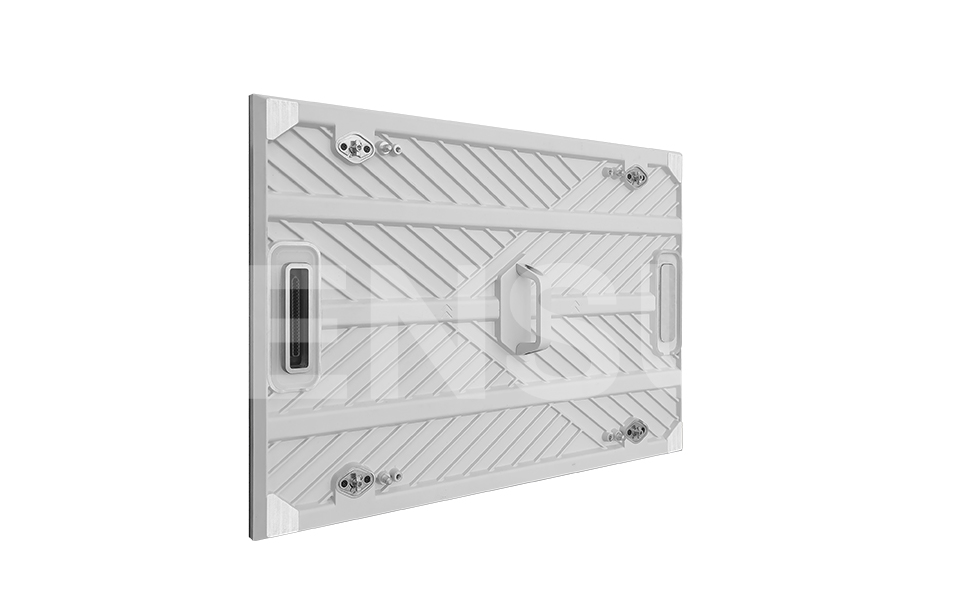

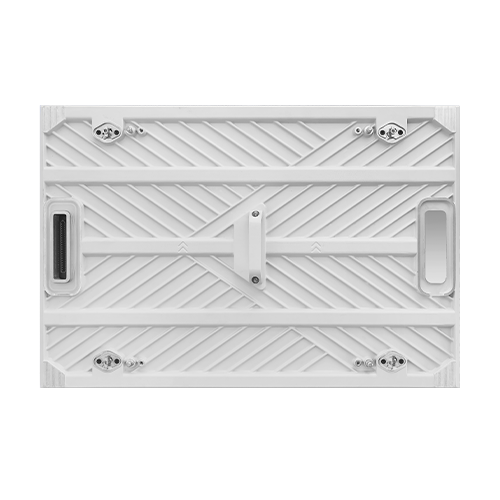

This cabinet is designed to be slim and light weight, which is only 28.5kgs per cabinet 960x960mm. The common cathode aluminum LED module is designed to meet the requirement of outdoor big wall for full front service purpose.

Product Parameters

Pixel pitch5mm
LED TypeSMD2727 1R1G1B
LED Module Size480 x 320 x 46.8mm
LED Module Resolution96 x 64 dots
LED Cabinet Size960 x 960 x 82.3mm
Cabinet Resolution192 x 192 dots
Screen Pixel40,000 dots
Signal Processing 14 - 16 bit
Grey Level4096 - 65536
Refresh Rate> 3840Hz
Scan Mode1/8
Brightness> 6000 nits
Viewing Distance> 5m
Viewing Angle140 H / 120 V degree
Input Voltage
Max Consumption530W/SQ.M
Ave Consumption240W/SQ.M
Working Temperature-20 degree to 45 degree
Storage Temperature-40 degree to 60 degree
IP RateIP66
Working Humidity10% - 60%
Storage Humidity10% - 90%
Lifespan100,000 hours
Service TypeFront & Rear Service
LED Lamp
Control CardNova / Colorlight
Operation ApproachWindows
Receiving Card
A5s Plus
Contrast Ratio
Max Current Per Module
Calibration Function
Cabinet Material

Video Playback
