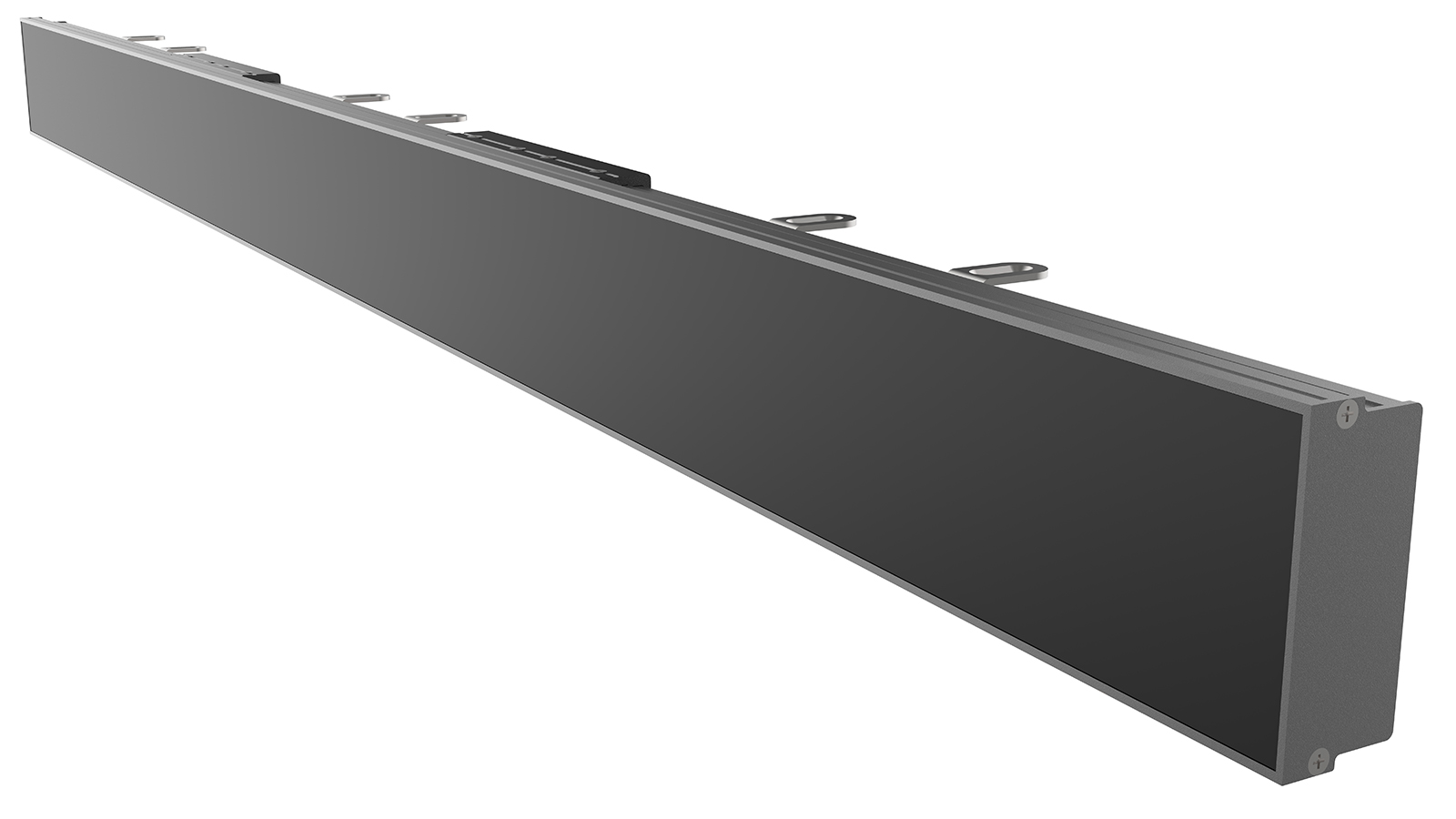

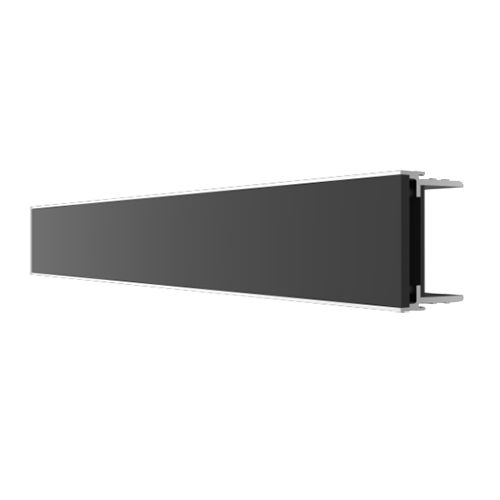

P1.25 LED Shelf Display

Indoor Full Colour P1.25 LED COB Shelf

Product introduction |

Worry free for the damage of the display. It has the characteristics of waterproof, dust-proof, moisture-proof, anti-bumping, etc. In public places such as supermarkets and convenience stores with large traffic, it is not only afraid of touch, but also avoids damage caused by bumps. It can be used normally even in a moderately large fresh area.

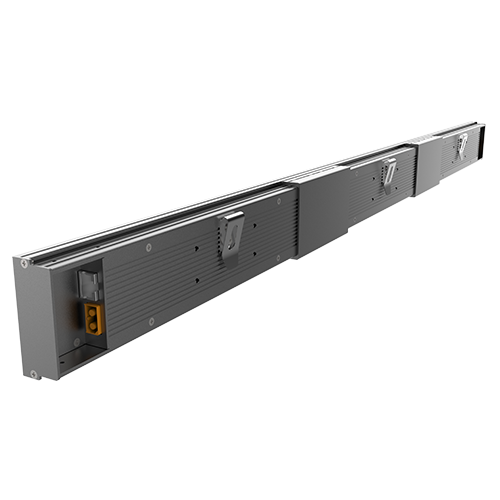

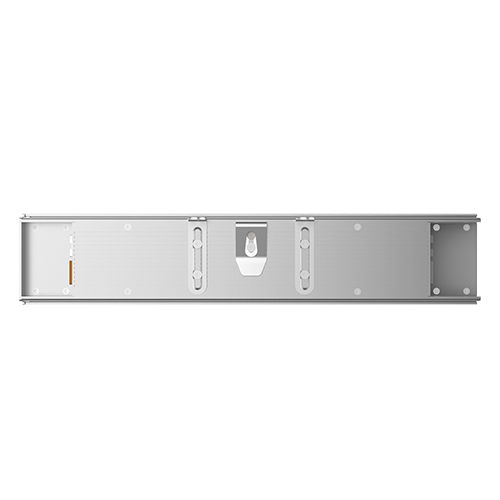

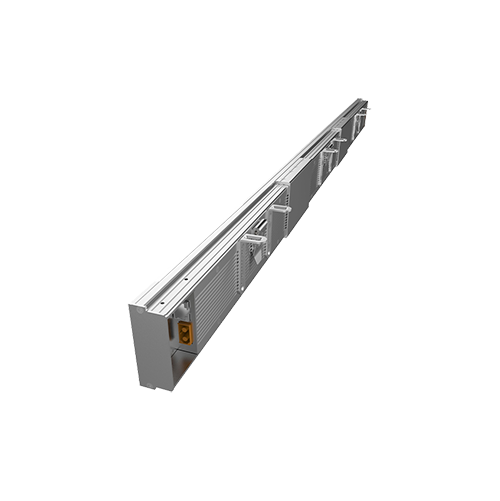

Cabinet Material:Die-casting Al-cabinet & Single Side Design

Application:The traditional indoor LED screen is a state-of-the-art LED signage that complements any business with vibrant content presentation, along with an enhanced, indoor-friendly design that saves cost and time during installation and operation. It is the ideal display to deliver captivating and meaningful content in any indoor environment.

led cob shelf 4.jpg

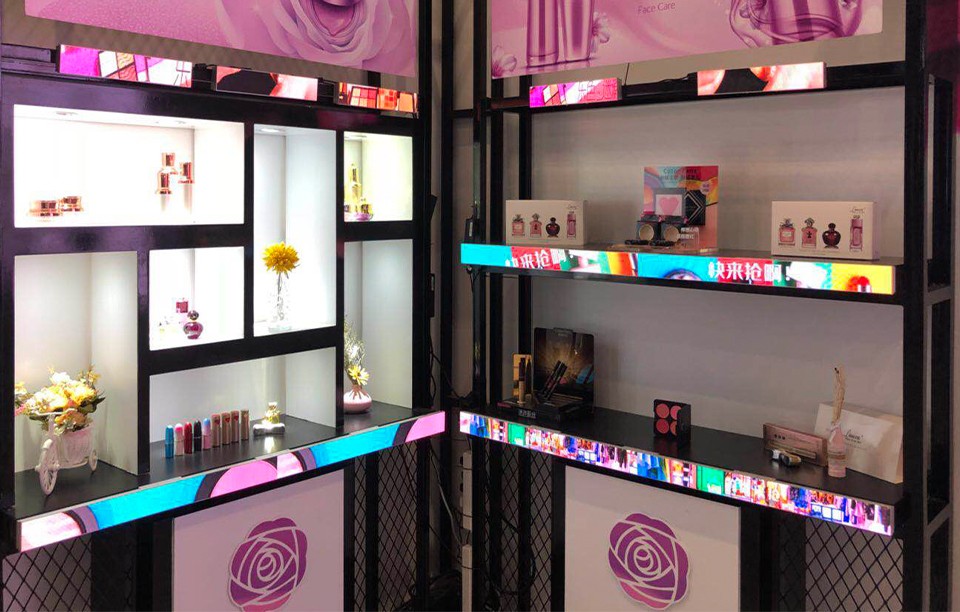

Durable, Reliable Indoor Alternative

It is subject to environmental tests including exposure to any temperatures, a weather-enacting salt corrosion chamber and package vibration and drop testing. The display also has corrosion-proof painting and anti-UV, deformation-proof housing that extends its shelf life.

led cob shelf 5.jpg

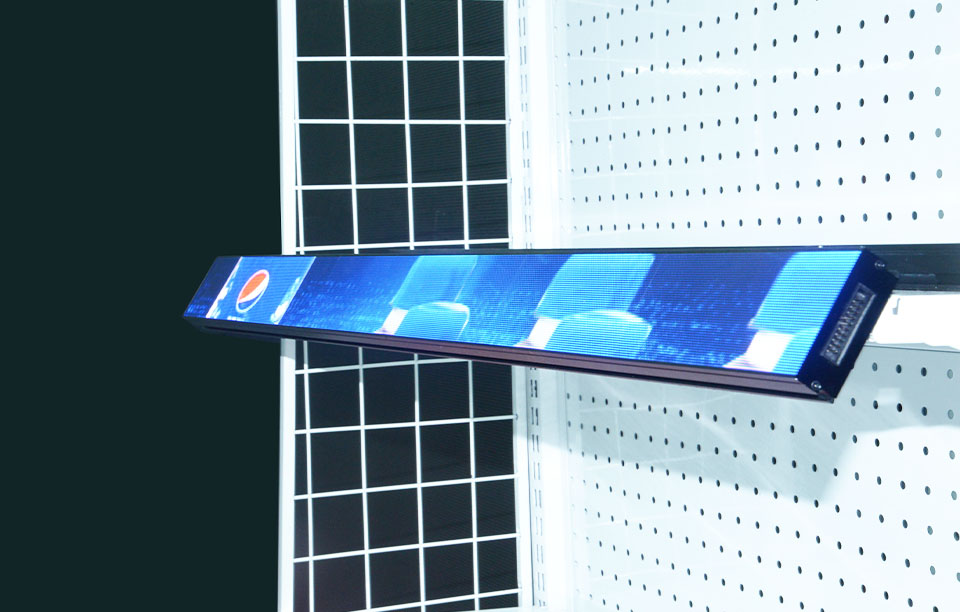

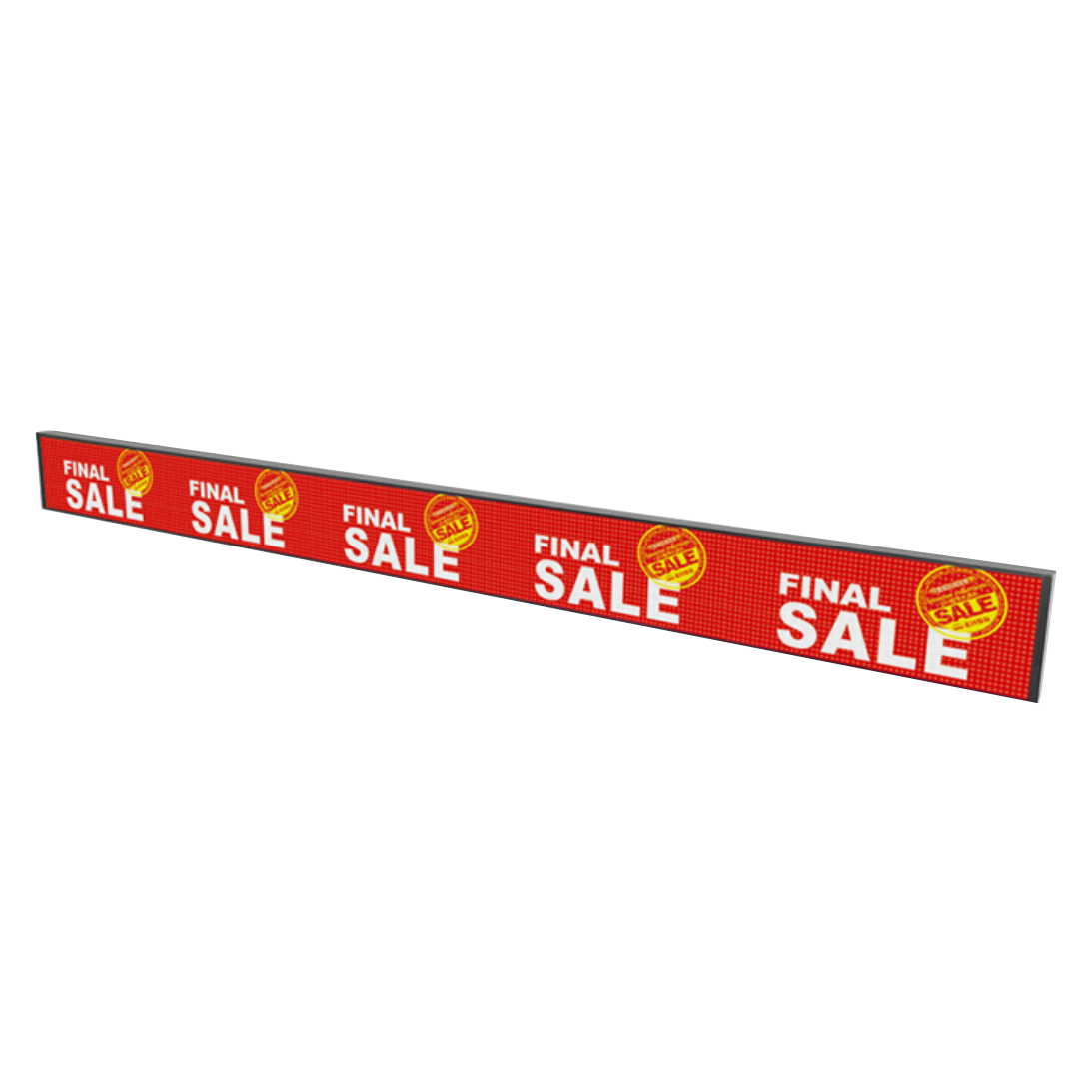

Suitable for Shopping Mall

With the rapid growth of the International economy, customer spending is at an all-time high. These LED signs can be updated with the latest promotional information to maximize consumer interest and build their interest in your products.

led cob shelf 6.jpg

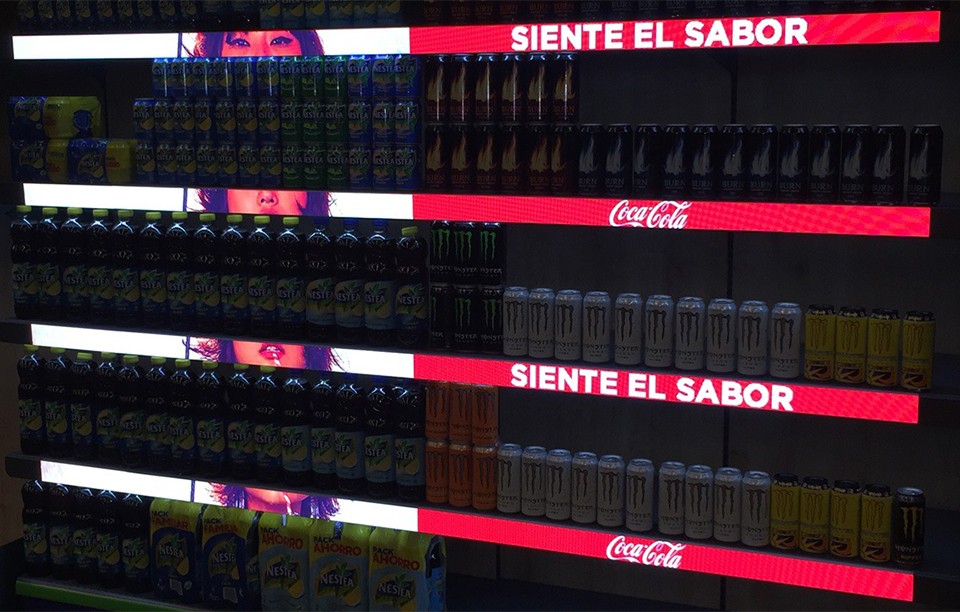

Durable, Reliable Indoor Alternative

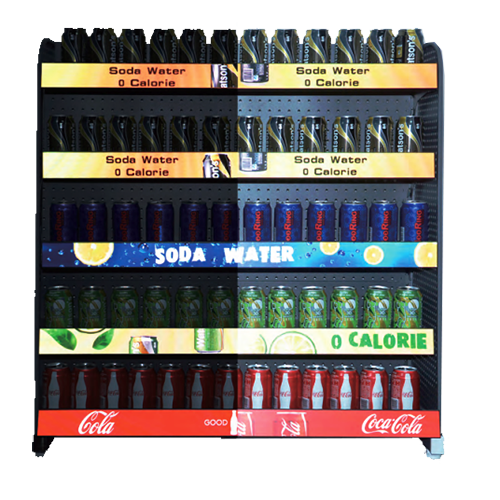

This smart shelf LED display for retail supermarket has 300mm, 600mm, 900mm, 1200mm width and etc. Connection strap can be unlimited connected. Network cable interface is RJ45, and it can directly hang it on the shelf.

led cob shelf 8.jpg

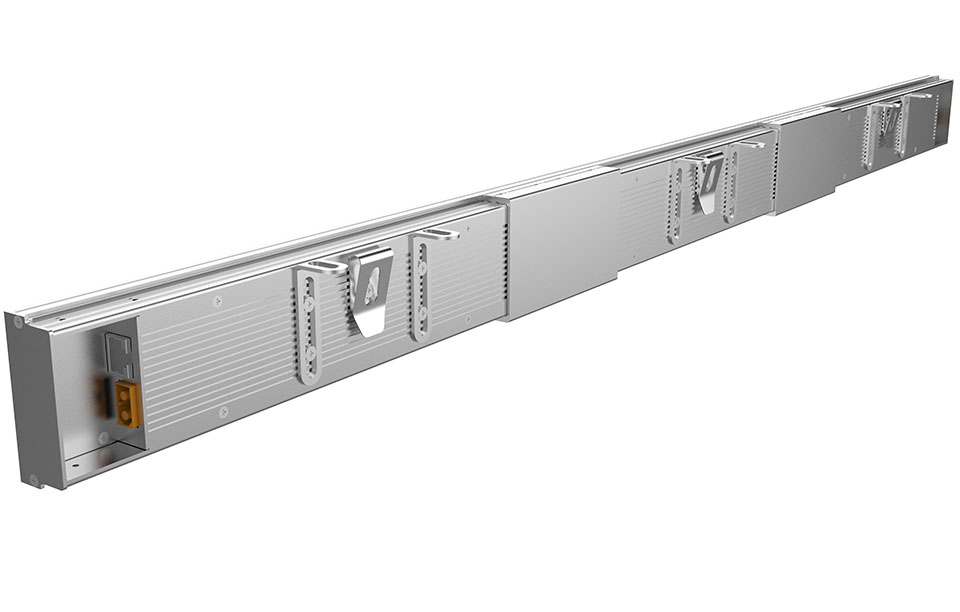

Innotive Shelf Edge

It has the characteristics of waterproof, dust-proof, moisture-proof and anti-bumping etc. Multiple pixel pitch available, multiple sizes available and multi-colour available too.

Product Parameters

Pixel pitch1.25mm
LED Module Size150x56.25mm
LED Module Resolution120x45dots
Density per SQ.M640,000 dots/SQ.M
Signal Processing 12 - 16 bit
Grey Level4096 - 65536
Refresh Rate> 3840Hz
Scan Mode1/45
Brightness> 500 nits
Viewing Distance> 1.25m
Contrast Ratio5000:1
Viewing Angle120 degree
Input Voltage
Max Consumption< 400 W/SQ.M
Ave Consumption100-120 W/SQ.M
Working Temperature-20 degree to 45 degree
Storage Temperature-40 degree to 60 degree
Input VoltageDC5V
IP RateIP45
Working Humidity10% - 60%
Storage Humidity10% - 90%
Lifespan > 100,000 hours
MTBF> 10,000 hours
Service TypeFront Service & Rear Service
LED Lamp
Control CardNova / Colorlight / LINSN / Huidu
Source CompatibilityCVBS, YC, YUV, RGB, DVI, SDI, HD-SDI, HDMI
