LED Baseball Score Screen

LED Baseball Score Screen

Product introduction |

LED Baseball Score Screen

Material:Outdoor Basketball Score Board with Remote Controller

application:Those LED products were widely used in both indoor and outdoor places like sports event, statdium, hall, hotel, exhibition room, public square, symbols,building and TV stage background and etc.

baseball 0 960x612.jpg

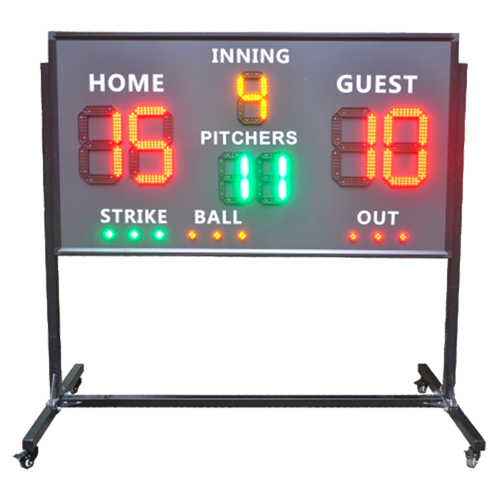

We have this baseball LED scoreboard dimension with 1600mm W x 900mm H. Its depth is only 75mm.

baseball 1 960x612.jpg

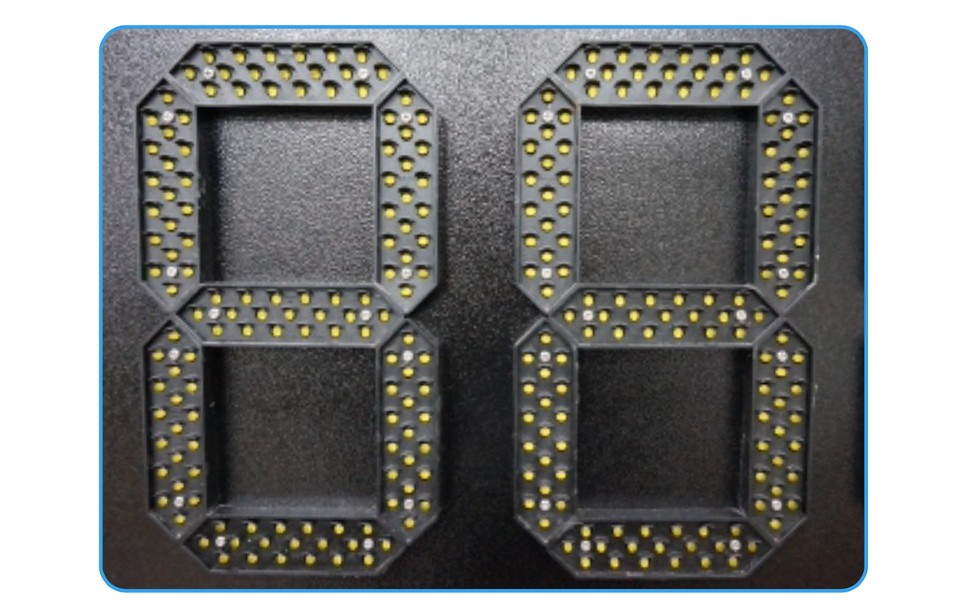

8'' and 12'' Digital

This scoreboard is made by 8 inches digital and 12 inches digital.

baseball 2 960x612.jpg

Remote Control

This scoreboard can be controlled by RF remote controller easily.

Product Parameters

Product Dimension1600x900x75mm
Module Size8'' and 12''
Single Digital Size 18'' is 120x210mm
Single Digital Size 212'' is 170x310mm
Weight of LED Scoreboard40KGS
Power Consumption56W
Red Colour Brightnessover 4,000 nits
Yellow Colour Brightnessover 3,500 nits
Green Colour Brightnessover 4,000 nits
LifespanOver 100,000 hours
Viewing Angle60 degree
Control SystemRF remote controller
Control DistanceBelow 50 meters
Drive ModeStatic Current
Working Temperature-25 degree to 55 degree
Outer MaterialAluminium
Functions18 remote changeable digitals
Warranty Time2 Years Warranty
