Novastar TCC70G Smart Car Screen Sending Card

Smart Car Screen Sending Card

Product introduction |

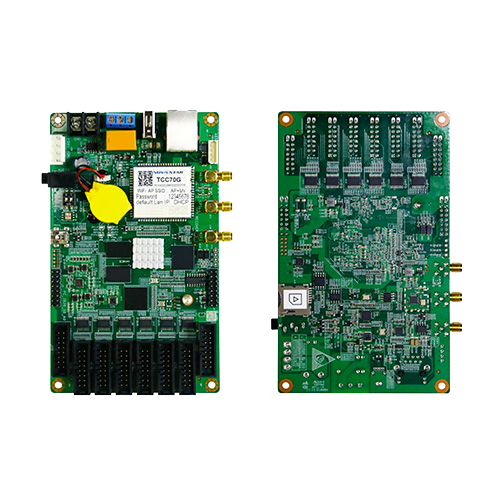

Novastar TCC70G LED Multimedia Player Controller Card for Smart Car Screen

Card Material:Novastar TCC70G LED Multimedia Player Controller Card for Smart Car Screen

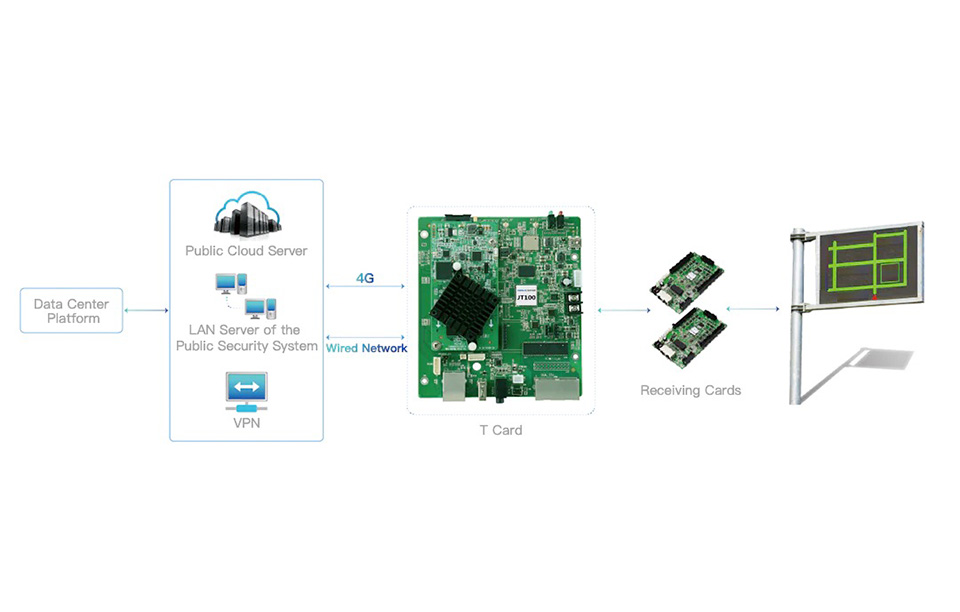

Application: The TCC70G, launched by NovaStar, is a multimedia player that integrates sending and receiving capabilities. It allows for solution publishing and screen control via various user terminal devices such as PC, mobile phone and tablet. The TCC70G can access the cloud publishing and monitoring platforms to easily enable cross-region clustered management of screens.

[0] Details 960x612.jpg

16 Groups RGB Data

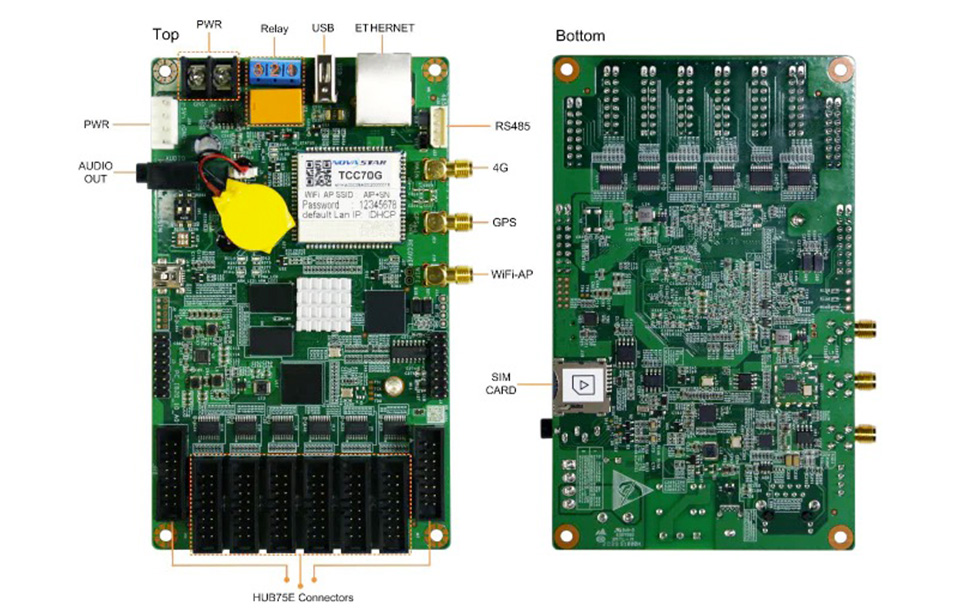

The TCC70G comes with eight standard HUB75E connectors for communication and supports up to 16 groups of parallel RGB data. On-site setup, operation and maintenance are all taken into account when the hardware and software of the TCC70G were designed, allowing for an easier setup, more stable operation and more efficient maintenance.

[1] Details 960x612.jpg

Save Spaces

Thanks to its stable and secure integrated design, the TCC70G saves space, simplifies cabling, and is suitable for the applications requiring small loading capacity, such as vehicle-mounted displays, small traffic displays, displays in communities, and lamp-post displays..

Product Parameters

ItemParameters
Loading CapacityUp to 512x384 dots
Maximum Width1280 -> 1280x128 dots
Maximum Height512 -> 384x512 dots
Stereo Audio Output1PC
USB 2.0 Port1PC
RS485 Connector1PC - Connects to a sensor such as light sensor, or connects to a module to implement corresponding functions.
Processing Capability4 x core 1.2GHz Processor, Hardware Decoding of 1080p Videos, 1GB of RAM, 8GB of Internet Storage
All-round Control SchemeSolution publishing and screen control via user terminal devices such as PC, mobile phone and tablet
Built-in WIFI AppDefault SSID is AP+Last 8 digits of SUN
Support Global 4GJapan is not included
Support for GPSGPS positioning and GPS time Synchronisation
Support for Relays
Maximum DC30V 3A
Input VoltageDC4.5V~5.5V
Maximum Power Consumption10W
Operating Temperature-20 degree to +60 degree
Operating Humidity0% RH to 80% RH,  non-condensing
Dimension150.00 x 99.90 x 18.00mm
Net Weight
121.3g
Dimensions
278.00mm x 218.00mm x 63.00mm
List of goods
1 x TCC70G, 1 x Omnidirectional WIFI Antenna, 1 x 4G Antenna, 1 x Quick Start Guide
