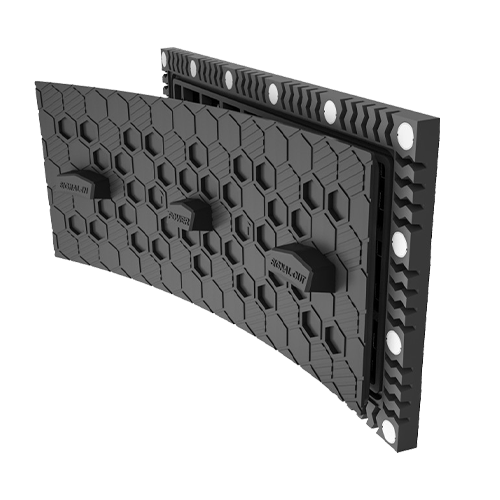

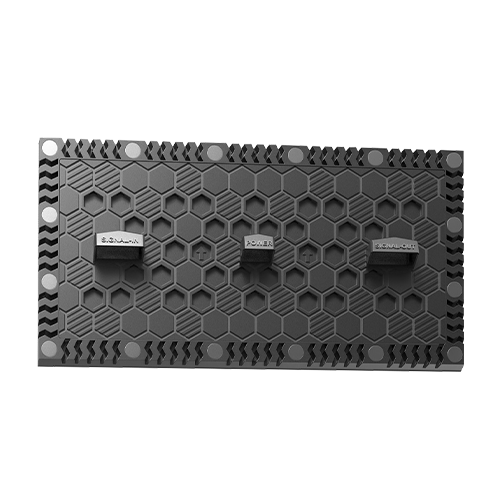

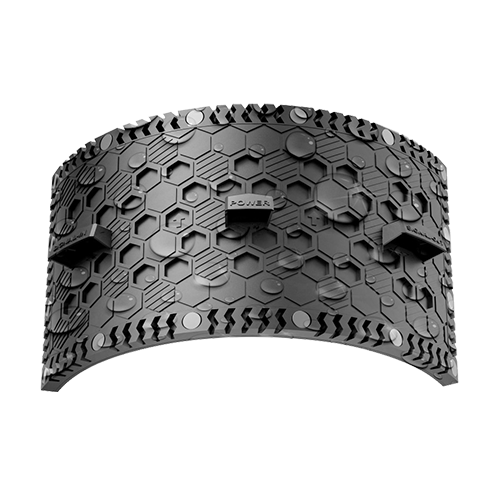

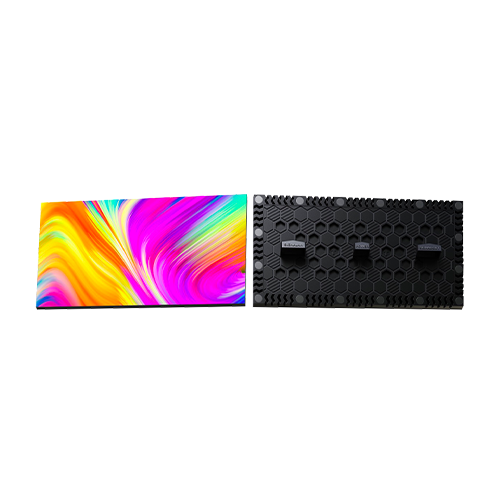

P4 Flexible Outdoor Module
P4 Outdoor Flexible LED Screen
Product introduction |
Suitable for all kinds of scenarios,can be customized Suitable for all Suitable for all kinds of scenarios. It can be used in indoor and outdoor environment.

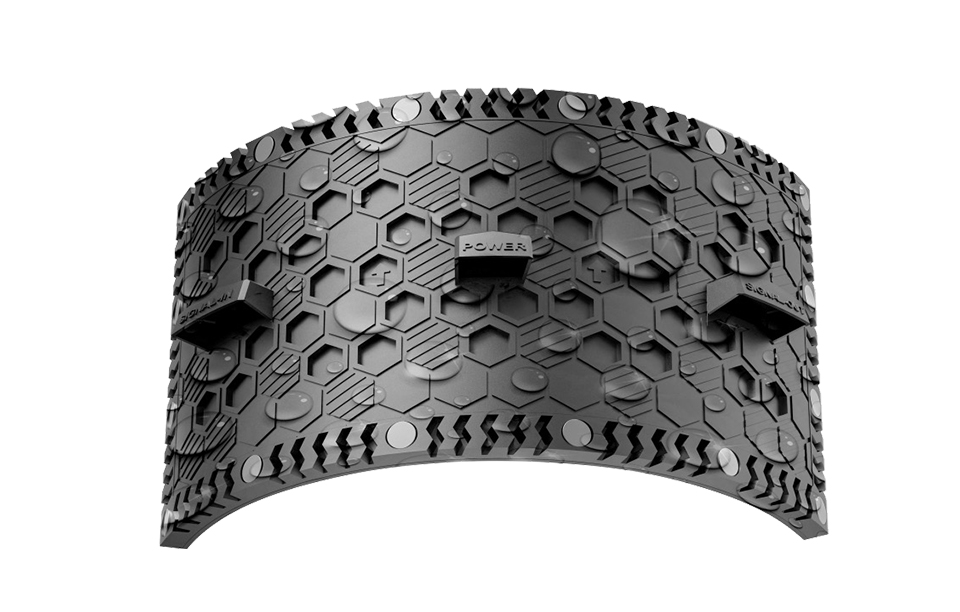

Cabinet Material： This type of outdoor flexible module is made by Nationalstar high quality LED lamp.
Application：Those LED products were widely used in both indoor and outdoor places like hall, hotel, exhibition room, public square, symbols,building and TV stage background and etc.
![[1]P4 outdoor flex 960x612.jpg](/upload/image/20230207/1675729981311854.jpg "1675729981311854.jpg")

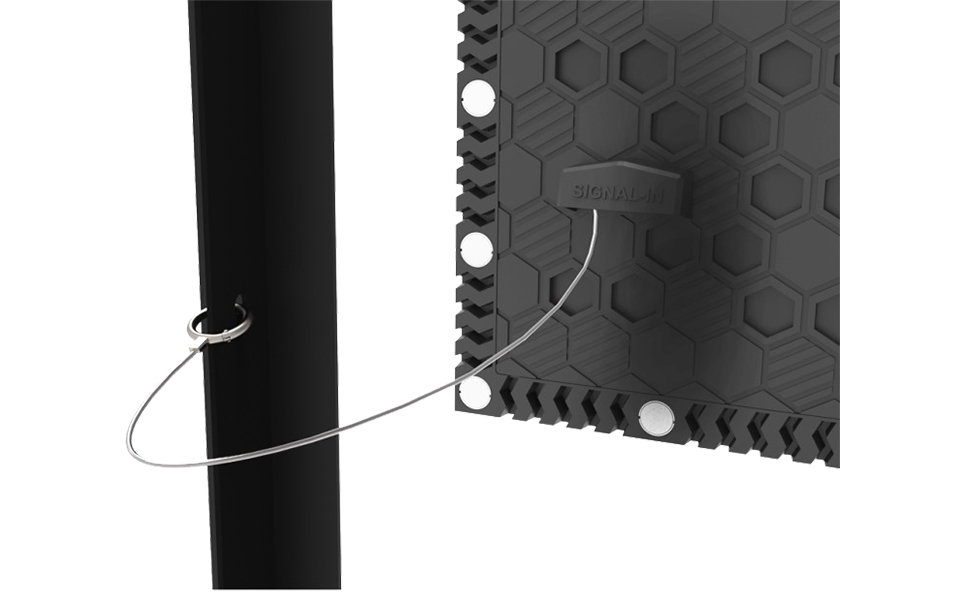

Outdoor IP65 Rated
This type of outdoor flexible LED module can be put outside and it can be water resistance, and its waterproof rate is IP65.
![[2]P4 outdoor flex 960x612.jpg](/upload/image/20230207/1675731393503400.jpg "1675731393503400.jpg")

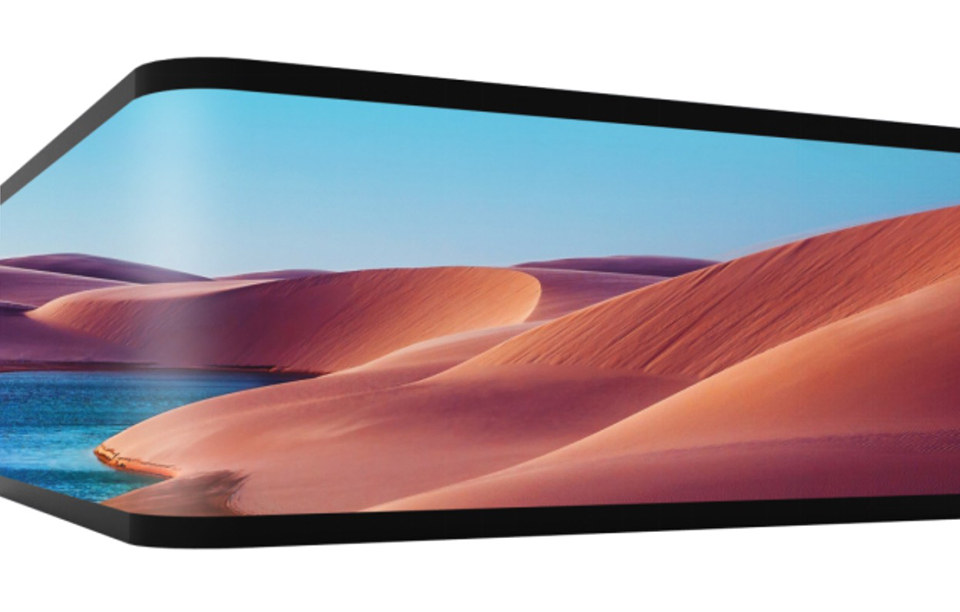

100% Full Front Service
Outdoor flexible module has magnets and iron plates, so it can be compatible with the front service tool. It also has a very robust protection string which support the modules to stick to the cabinet tightly and safely. It can protect the unexpected falling off from the big screen effectively.
![[3]P4 outdoor flex 960x612.jpg](/upload/image/20230207/1675731608956629.jpg "1675731608956629.jpg")

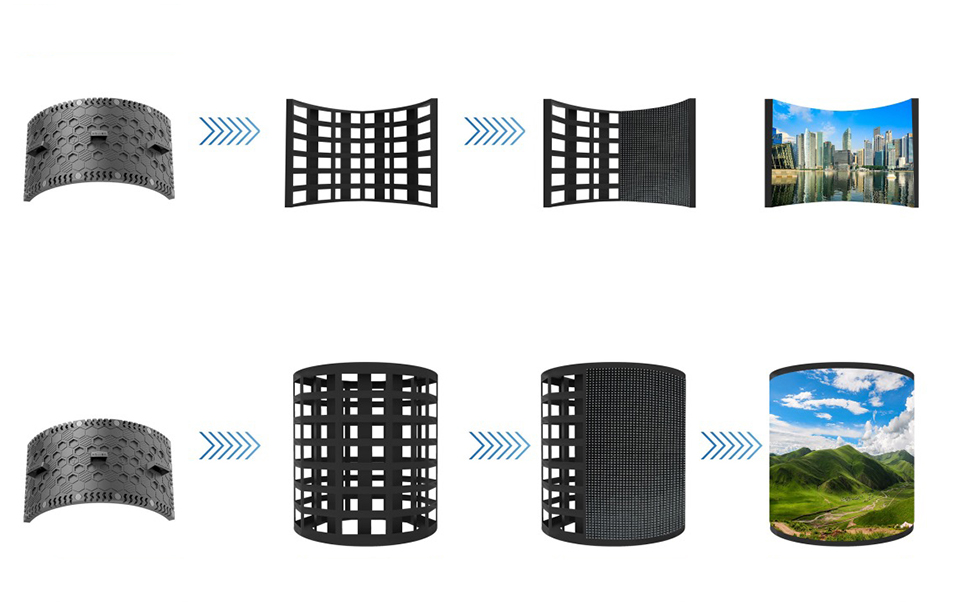

Easy Installation
This type of magnetic connection to assemble is very easy to install even it is for outdoor environment.
![[4]P4 outdoor flex 960x612.jpg](/upload/image/20230207/1675731814664751.jpg "1675731814664751.jpg")
5-star Energy-saving Design
Using environmental materials and low power consumption (0.04W-0.08W) results in a lower cost of ownership.
Product Parameters
| Item | Parameters |
|---|---|
| Pixel pitch | 4 |
| LED Type | SMD1921 |
| LED Module Size | 320x160x12mm |
| LED Module Resolution | 80 x 40 dots |
| Signal Processing | 12 bit |
| Grey Level | 4096 - 65536 |
| Refresh Rate | > 3840Hz |
| Scan Mode | 1/10 |
| Brightness | 5,000 nits |
| Viewing Distance | > 4m |
| Viewing Angle | X: 140 degree, Y: 120 degree |
| Input Voltage | 100-240V/50-60Hz |
| Max Consumption | 600 W/SQ.M |
| Ave Consumption | 170 W/SQ.M |
| Working Temperature | -20 degree to 45 degree |
| Storage Temperature | -40 degree to 60 degree |
| IP Rate | IP65 |
| Working Humidity | 10% - 60% |
| Storage Humidity | 10% - 90% |
| Lifespan | 100,000 hours |
| Service Type | Front & Rear Service |
| LED Lamp | Nationalstar |
| IC | ICN2153 |
| Control Card | Nova / Colorlight |
| Weight per module | 600g |
| Bendable Angle | >162 degree |
| HUB Port | HUB75 one in and one out |
| Contrast Ratio | > 3000:1 |
| Input Voltage | AC110/220V |
