Outdoor Curve Display

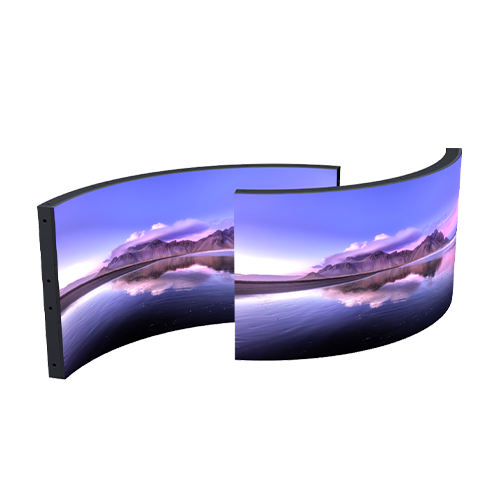

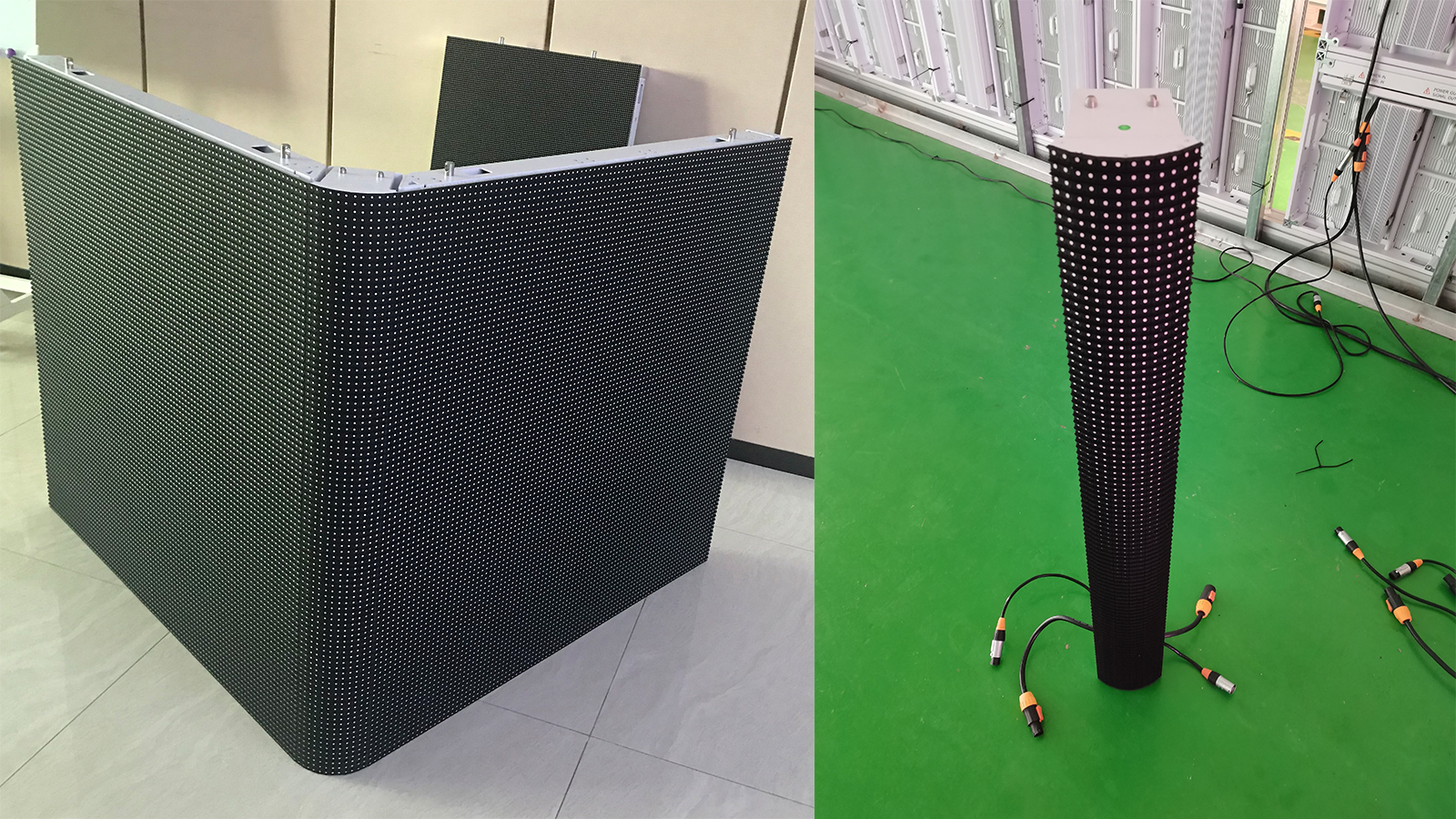

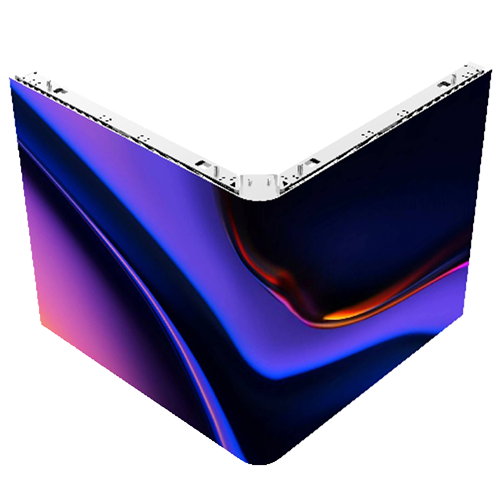

Outdoor Curve LED Display 960x960 Full Front Service LED Cabinet
Product introduction |
This is new design of full front service LED modules for outdoor application. It is popular these two years worldwidely.
Cabinet Material：Cast Iron & Single Side Design
Application：It is applicable for commercial center, airport, big conference, city's landmark plaza, exhibition center and other outdoor advertising walls..
Strong Adaptability

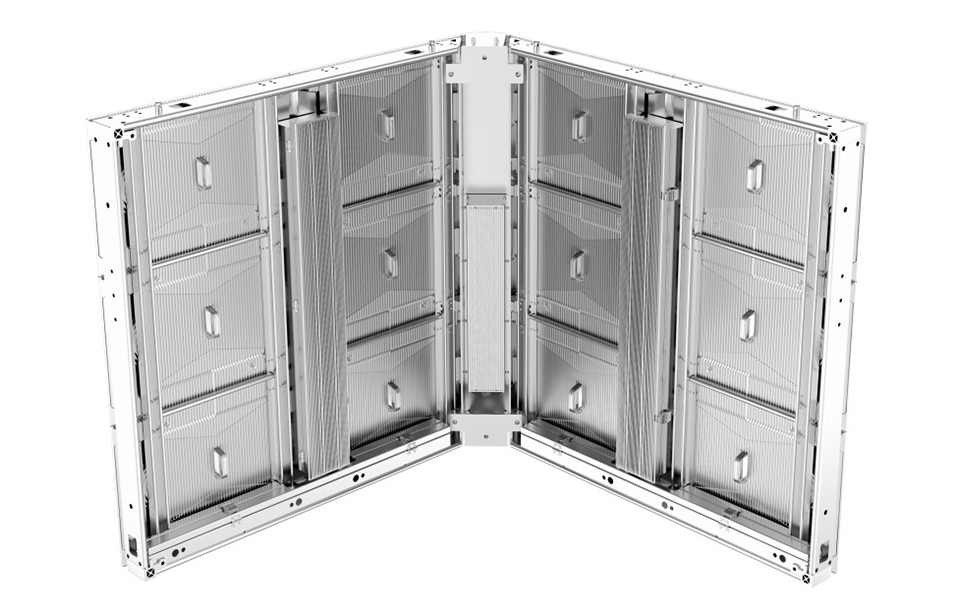

This LED display adopts full sealed cast iron cabinet to protect its inner componets and make the display body to withstand extremely high and low temperature. It can work whole day in outdoor environment.
Light weight & Energy-saving
This cabinet is designed to be slim and light weight, which is only 28.5kgs per cabinet 960x960mm. The common cathode aluminum LED module is designed to meet the requirement of outdoor big wall for full front service purpose.
Product Parameters
| Pitch | 2.5mm | 3mm | 4mm | 5mm | 6mm |
| Module Size | 320*160mm | 192*192mm | 256*128mm | 320*160mm | 192*192mm |
| Module Resolution | 128*64 | 64*64 | 64*32 | 64*32 | 32*32 |
| LED Type | SMD1415 | SMD1921 | SMD1921 | SMD2727 | SMD3535 |
| Brightness | 5000 Nits | 5500 Nits | 5500 Nits | 6000 Nits | 9000 Nits |
| Pixel Density/m2 | 160000 | 111111 | 62500 | 40000 | 27777 |
| Driving Method | 1/16 Scan | 1/16 Scan | 1/8 Scan | 1/8 Scan | 1/4 Scan |
| Optimal View Distance | 2-8m | 3-10m | 4-13m | 5-16m | 6-20m |
| Avg. Power | 430W/m2 | 460W/m2 | 500W/m2 | 310W/m2 | 350W/m2 |
| Max. Power | 950W/m2 | 980W/m2 | 1100W/m2 | 700W/m2 | 780W/m2 |
| IC | MBI5124 | ||||
| Refresh Rate | 1920-3840Hz | ||||
| Brightness Control | 256 Grade/Each Color | ||||
| View Angle | 140/120 | ||||
| Ingress Protection | IP65 | ||||
| Input Voltage | AC110/220V, 50/60Hz | ||||
| Operating Temp. | -30℃~60℃ | ||||
| Gross Weight | 50Kg/m2 | ||||
| Life Span | 100000 Hours | ||||
