LED Power Cable

Power Cable between LED cabinets

Product introduction |

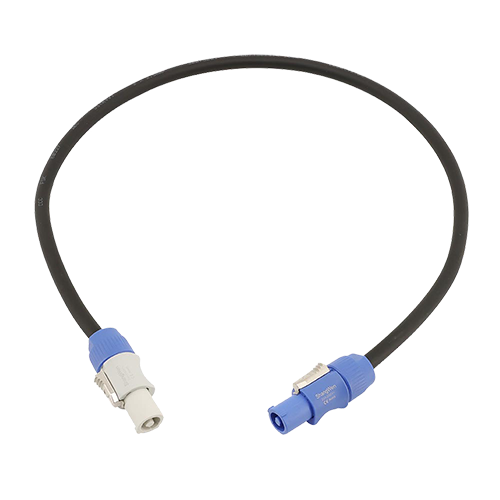

Power Cable between LED cabinets - one meter long

Cabinet Material:Power Cable

Application: This power cable is used between the cabinets. Usually, one cabinet will be with one cable in order to connect with each other. The quality of the connectors is very critical to secure the LED screens working properly. So, you are suggested to purchase good quality of power cable.

cable 0 copy.jpg

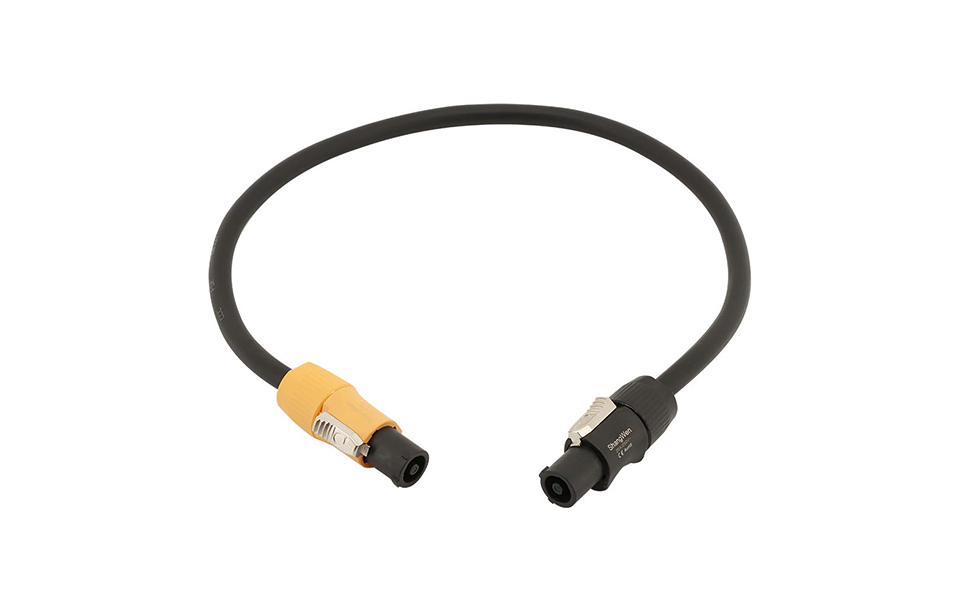

Outdoor Applicable

This power cable is one meter for outdoor screens. It has a reliable PVC housing with lock system and strain relief collect chuck. Its contact resistance is less than 3mΩ. It has a quick and easy locking system.

cable 1 copy.jpg

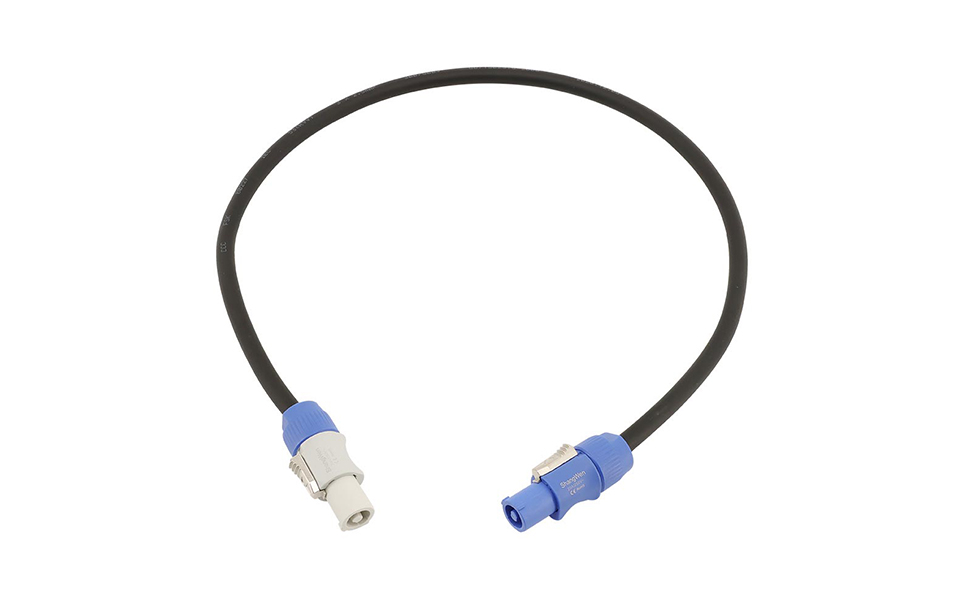

Indoor Applicable

This power cable is one meter for indoor screens. It has a reliable PVC housing with lock system and strain relief collect chuck. Its contact resistance is less than 3mΩ. It has a quick and easy locking system.

Product Parameters

ItemParameters
Lockable Power Cableone meter each piece
Optional85cm, 120cm, 150cm available
Customised LengthYES
Max Power16A 260V
Plug & SocketYES
Indoor TypeWhite to Blue
Outdoor TypeBlack to Black
Contact Resistance≤ 3mΩ
Dielectric Strength4/2.8 kVac
Insulation Resistance> 0.1GΩ (after damp heat test IEC 68-2-30)
Number of electronic contacts2 + PE
Rated Voltage
250VAC
Current Rating20A
Cable Diameter6 - 15mm
Service Life> 1000 connect times
Wire Size2.5mm
CertificateCE, RoHS, EMC, FCC
