P10 960X960 LED

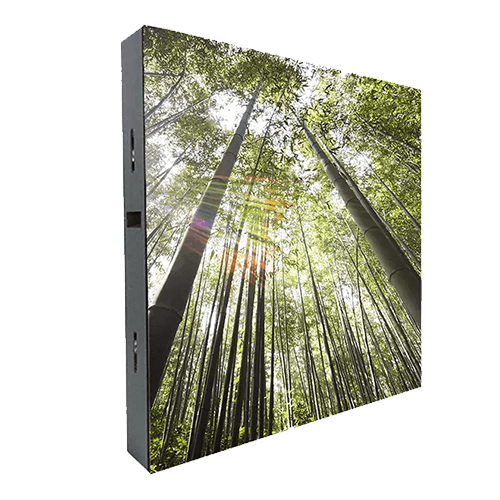

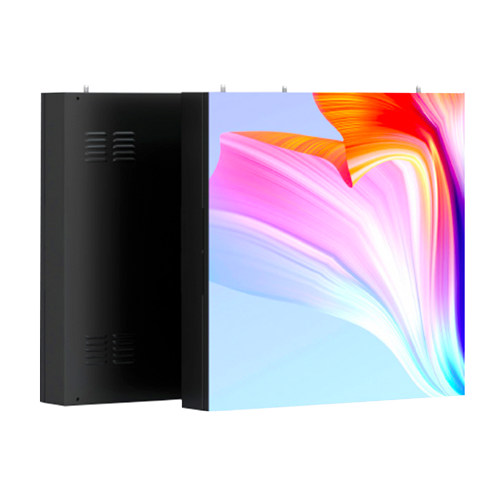

P10 Traditional LED Outdoor Display

Product introduction |

This is traditional design of outdoor LED display cabinet. It has consistently bright and uniform picture quality, and it is reliable outdoor LED signage with ongoing performance. This is dramatically cost-efficient design with convenient installation and maintenance.

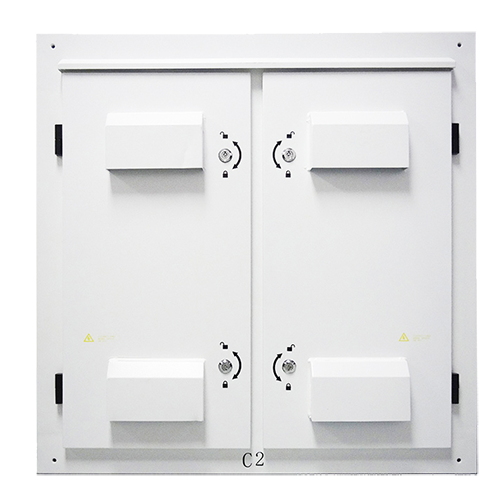

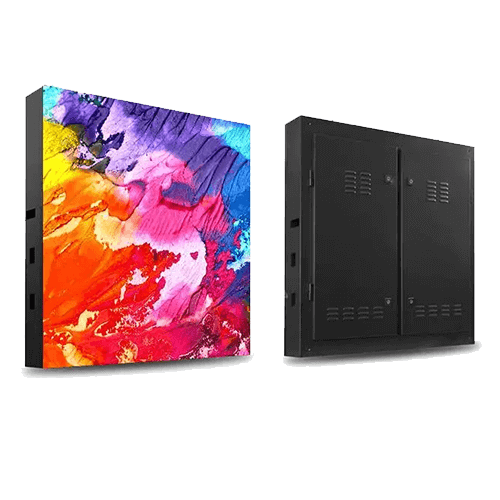

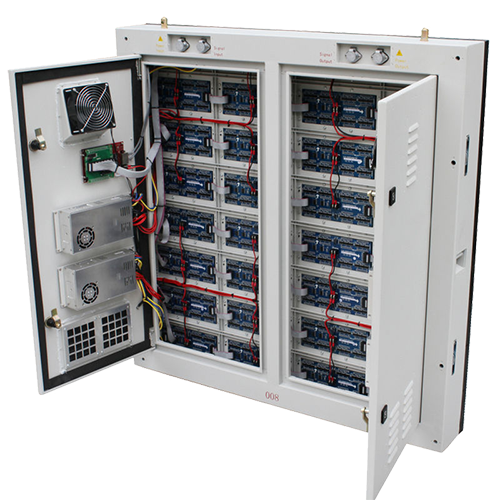

Cabinet Material:Cast Iron & Single Side Design

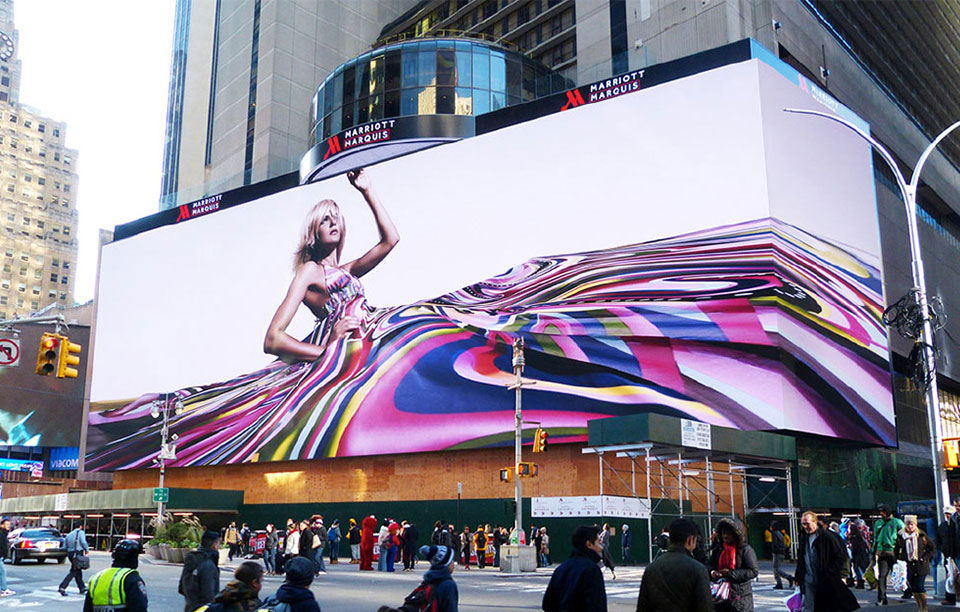

Application:The traditional outdoor LED screen is a state-of-the-art LED signage that complements any business with vibrant content presentation, along with an enhanced, outdoor-friendly design that saves cost and time during installation and operation. It is the ideal display to deliver captivating and meaningful content in any outdoor environment.


Durable, Reliable Outdoor Alternative

It is subject to environmental tests including exposure to high temperatures, a weather-enacting salt corrosion chamber and package vibration and drop testing. The display also has corrosion-proof painting and anti-UV, deformation-proof housing that extends its shelf life.


Environmental Stable Design

It undergoes strict testing to ensure ongoing performance when exposed to water, dust and outdoor elements. Ingress Protection (IP) validation confirms defense for the front IP65 and back (IP67) of the display, ensuring continuous operation regardless of the environment.

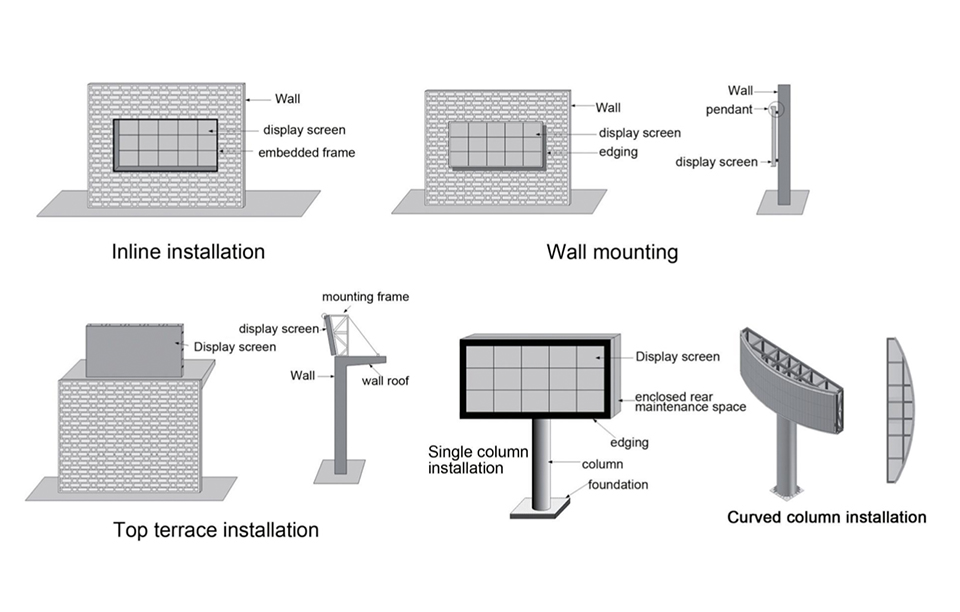

Installation 0.jpg

Durable, Reliable Outdoor Alternative

It is subject to environmental tests including exposure to high temperatures, a weather-enacting salt corrosion chamber and package vibration and drop testing. The display also has corrosion-proof painting and anti-UV, deformation-proof housing that extends its shelf life.

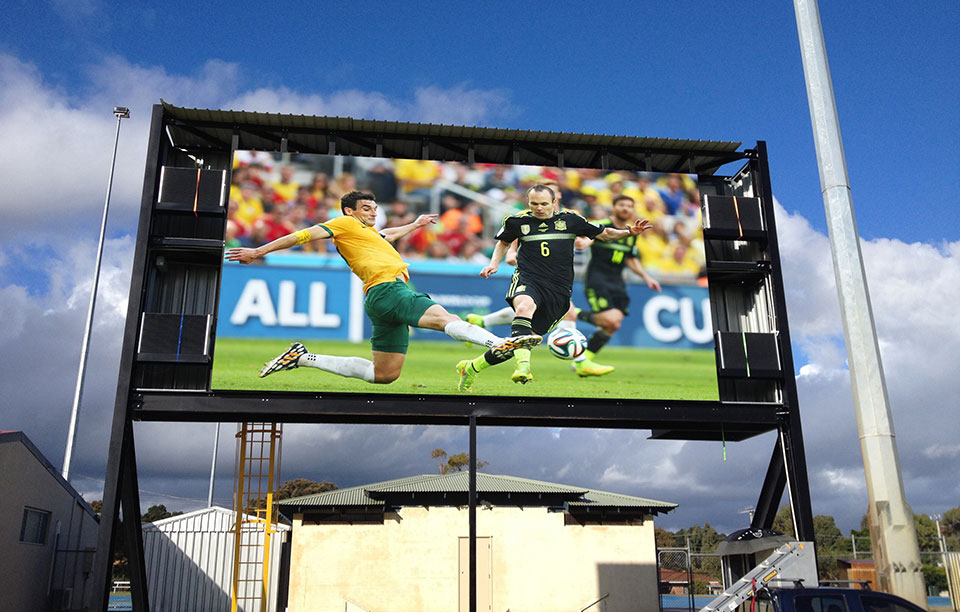

Installation 1.jpg

Environmental Stable Design

It undergoes strict testing to ensure ongoing performance when exposed to water, dust and outdoor elements. Ingress Protection (IP) validation confirms defense for the front IP65 and back (IP67) of the display, ensuring continuous operation regardless of the environment.

Product Parameters

ItemP4P5P6P8P10
Pixel Pitch4mm5mm6mm8mm10mm
Pixel ConfigurationSMD1921SMD2727SMD3535SMD3535SMD3535
Best viewing distance>4m>5m>6m>8m>10m
Brightness5000nit5500nit5300nit5000nit7500nit
Refresh Rate1920Hz1920Hz1920Hz1920Hz1920Hz
Grey Scale65536 level65536 level65536 level65536 level65536 level
Viewing Angle(H/V)140/120°140/120°140/120°140/120°140/120°
IP Rating140/120°IP65 IP65IP65IP65
Power Consumption
(Max./Avg.)
1000/350
W/sq.m.
1000/350
W/sq.m.
1000/350
W/sq.m.
1000/350
W/sq.m.
1000/350
W/sq.m.
Panel Dimensions
(W*H*D)
1024*1024*170mm960*960*170
mm
960*960*170
mm
1024*1024*170
mm
960*960*170
mm
Panel Weight52kg45 kg45 kg52 kg45 kg
Input Voltage110~240V110~240V110~240V110~240V110~240V
