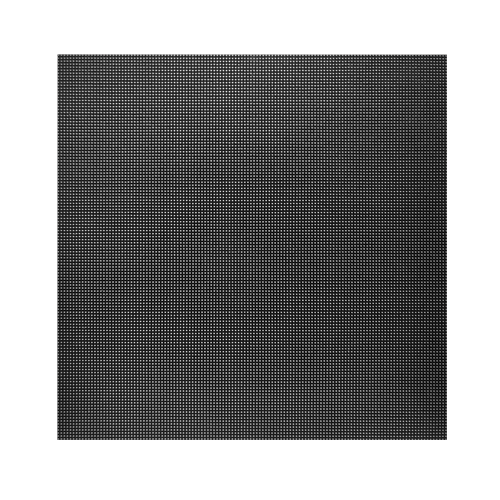

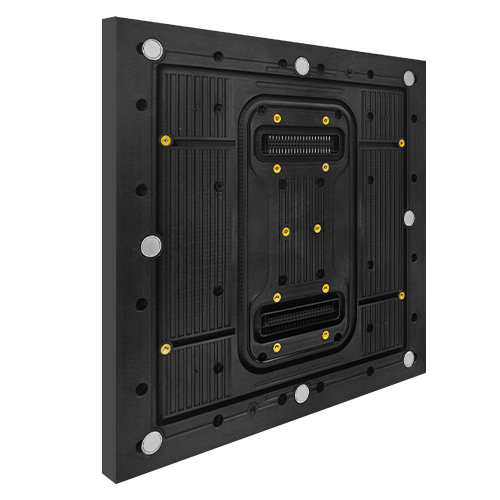

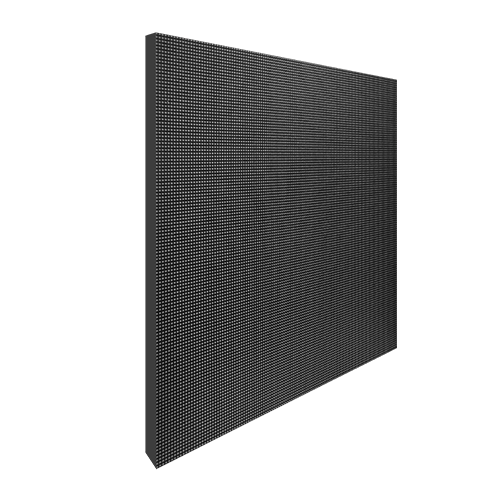

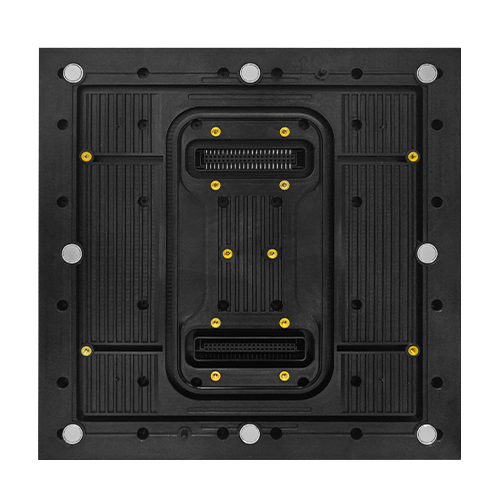

Rental Module 250x250
Outdoor and Indoor Rental LED Module
Product introduction |

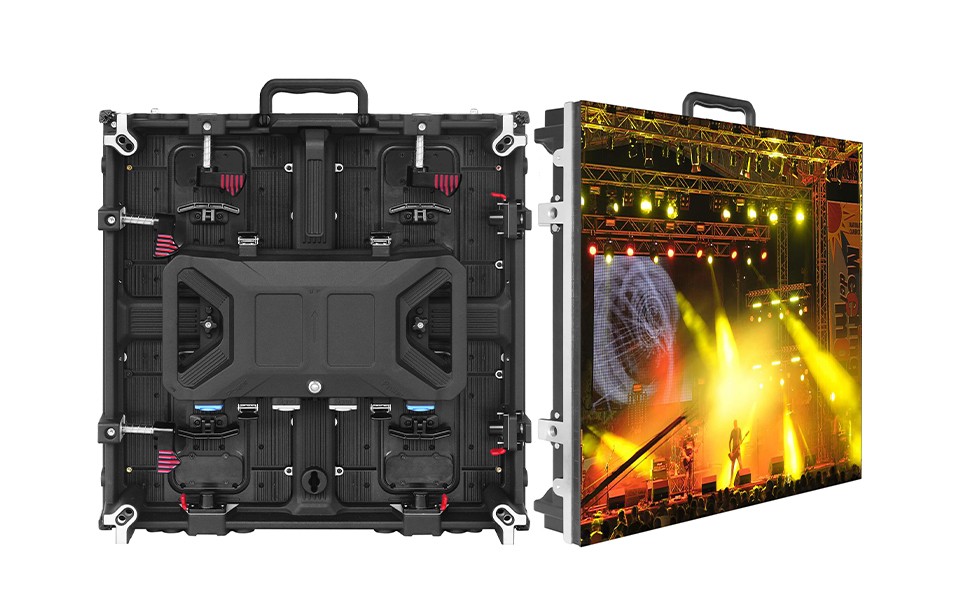

R5 indoor/outdoor die-casting LED display is the second generation rental product Kensun launched, with more than 20 features upgraded and improved, while it only weighs only 3.8kg per cabinet.

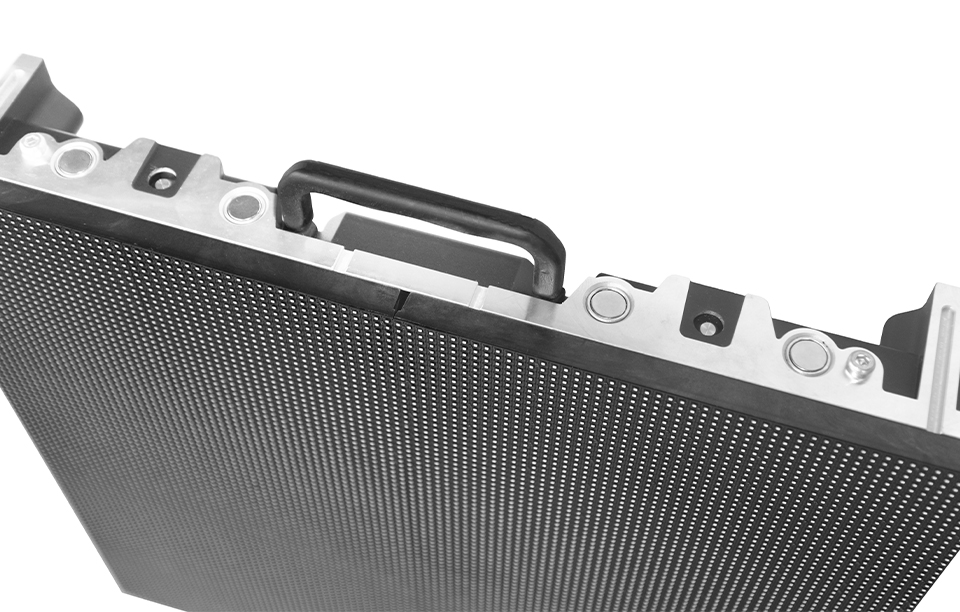

Thin and lightweight

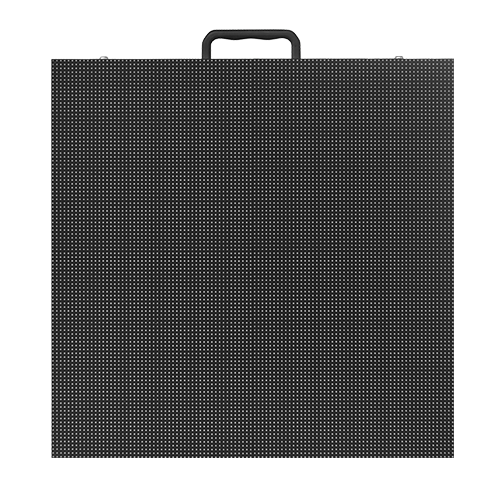

As an outdoor product with new aluminium structure design, R5 weighs only 3.8kg per cabient and measures only 50mm thick, it makes installation much easier and saves shipping cost.
High brightness and grayscale
As an outdoor product, R5 LED featuring hight brightness of 4500 nits and 16 bit gray scale, bringing an amazing and immersive visual experience, make every detail on display more eye-catching and readable.

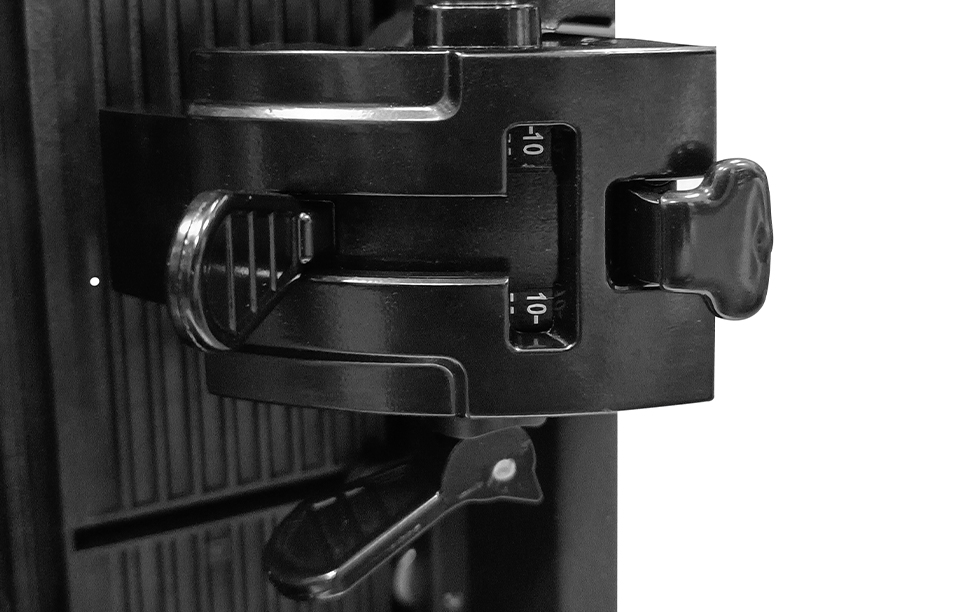

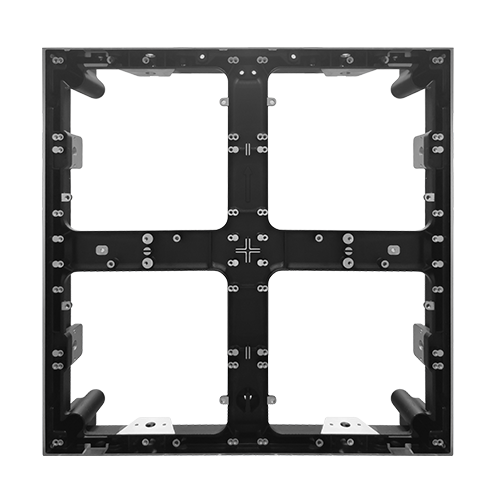

Perfect alignment flatness
Cabinets are finished with module extrusion, result in precise and consistent cabinet
architecture, its accuracy is up to 0.05mm after CNC processing, a finely processed cabinet brings a better cabient alignment and visual experience.
Applicable in different enviroments

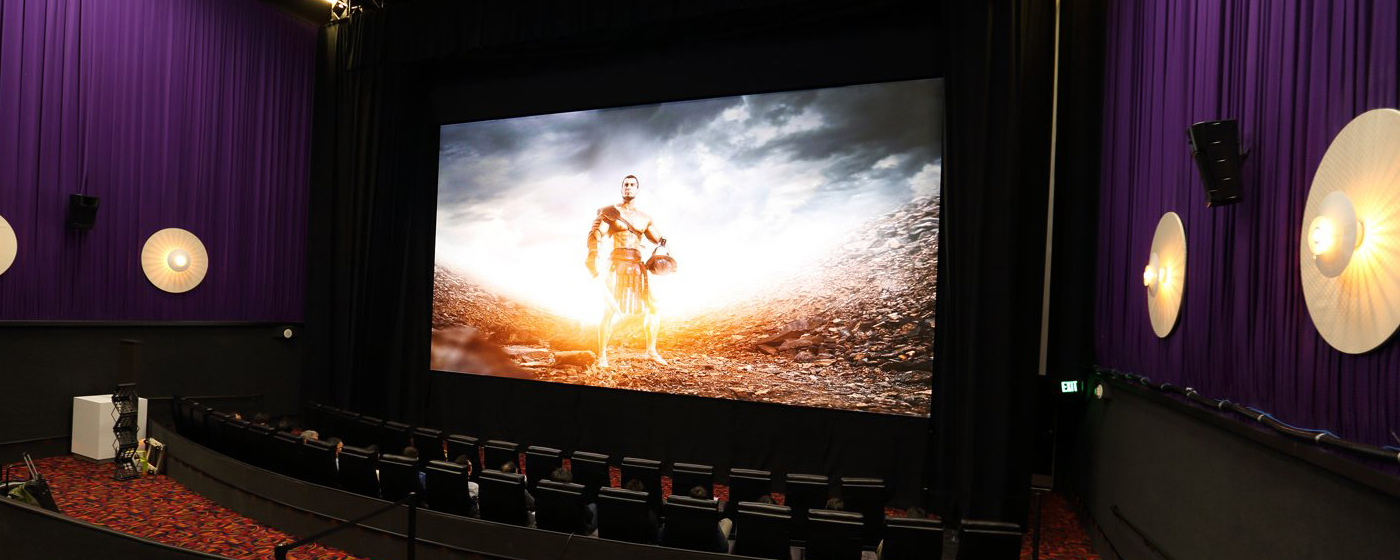

R5 is a weatherproof product with high brightness, it can works properly for most outdoor enviroments, at the same time, it can also be used for indoor events thanks to its light aluminum cabinet and wide brightness range.
Product Parameters
| Pitch | 2.6mm | 3.125mm | 3.91mm | 4.81mm |
| Module Size | 250*250mm | 250*250mm | 250*500mm | 250*500mm |
| Module Resolution | 96*96 | 80*80 | 64*128 | 52*104 |
| LED Type | SMD1516 | SMD1526 | SMD1921 | SMD1921 |
| Brightness/nits | 5500-6000 | 5500-6000 | 6000-6500 | 6000-6500 |
| Pixel Density/m2 | 147456 | 102400 | 65536 | 43264 |
| Driving Method | 1/16 Scan | 1/20 Scan | 1/16 Scan | 1/13 Scan |
| Optimal View Distance | 2-8m | 3-10m | 4-13m | 4-16m |
| Avg. Power | 250W/m2 | 250W/m2 | 250W/m2 | 250W/m2 |
| Max. Power | 800W/m2 | 800W/m2 | 800W/m2 | 800W/m2 |
| IC | MBI5124 | |||
| Refresh Rate | 1920-3840Hz | |||
| Brightness Control | 256 Grade/Color | |||
| View Angle | 140/120 | |||
| Ingress Protection | IP65 | |||
| Input Voltage | AC110/220V | |||
| Operating Temp. | -30℃~60℃ | |||
| Gross Weight | 12.5Kg/m2 | |||
| Life Span | 100000 Hours | |||
