Product introduction |

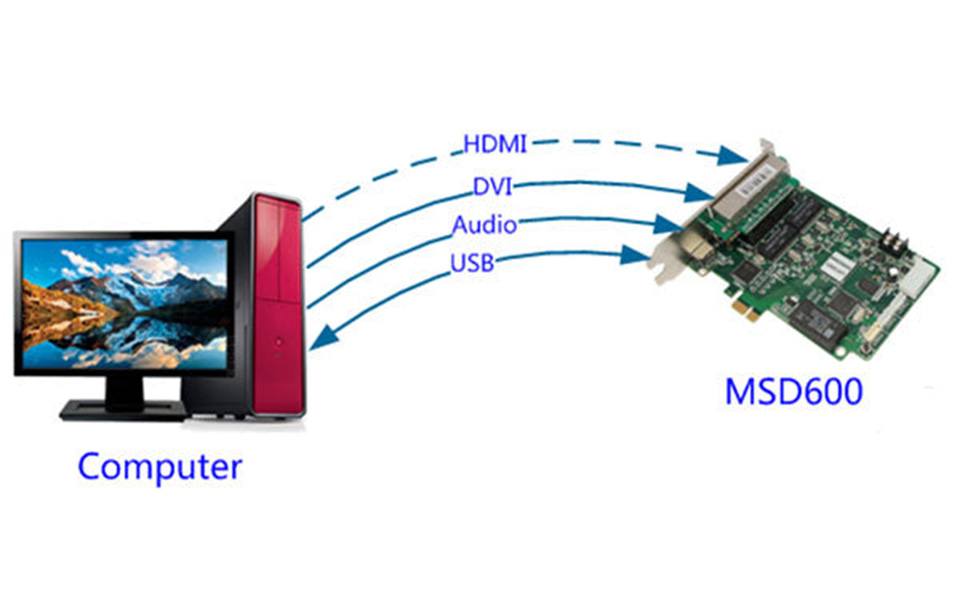

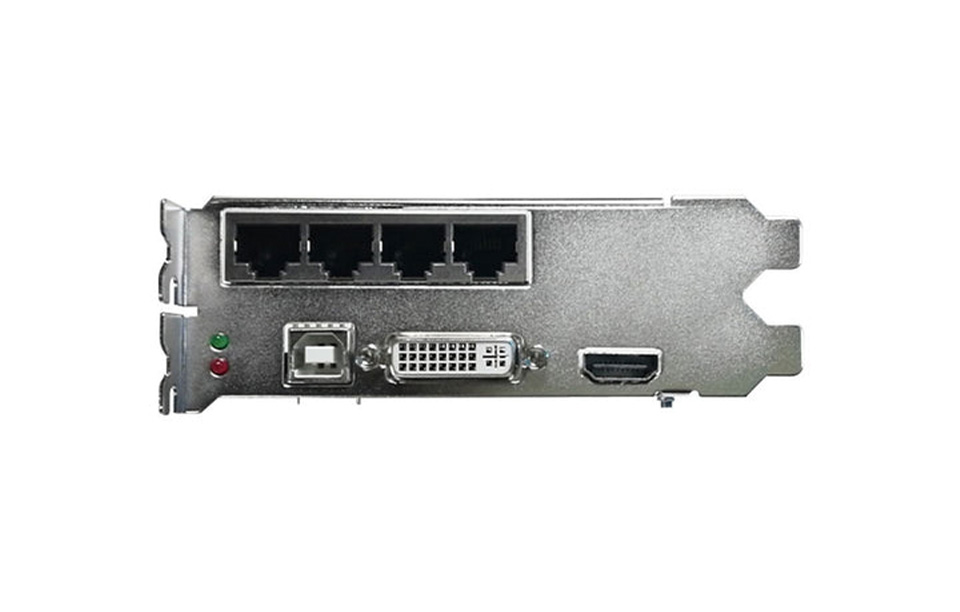

It supports 1x DVI input, 1x HDMI input, and 4x Ethernet outputs. A single MSD600-1 supports input resolutions up to 1920×1200@60Hz. The MSD600-1 communicates with PC via type-B USB port. Multiple MSD600-1 units can be cascaded via UART port.
Card Material：Novastar MSD600-1 LED Sending Card

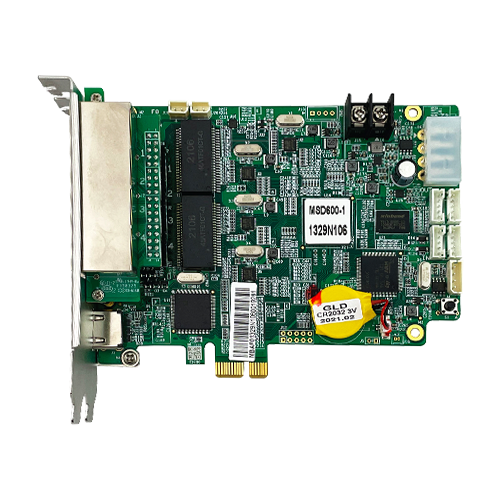

Application： The MSD600-1 is a sending card developed by NovaStar. It supports 1x DVI input, 1x HDMI input, and 4x Ethernet outputs. A single MSD600-1 supports input resolutions up to 1920×1200@60Hz. The MSD600-1 communicates with PC via type-B USB port. Multiple MSD600-1 units can be cascaded via UART port.
![[1]Details 960x612.jpg](/upload/image/20230105/1672874884969629.jpg "1672874884969629.jpg")
Main Features
As a highly cost-effective sending card, the MSD600-1 can be mainly used in the rental and fixed installation applications, such as concerts, live events, security monitoring centers, Olympic Games and various sports centers.
![[2]Details 960x612.jpg](/upload/image/20230105/1672874936835579.jpg "1672874936835579.jpg")
Multiple Applications
Working with NovaLCT and NovaCLB, the sending card supports brightness and chroma calibration on each LED, which can effectively remove color discrepancies and greatly improve LED display brightness and chroma consistency, allowing for better image quality.
Product Parameters
| Item | Parameters |
|---|---|
| Input Voltage | DC 3.3V - 5.5V |
| Maximum Power Consumption | 6.6W |
| Operating Temperature | -20 degree to +75 degree |
| Operating Humidity | 0% RH to 90% RH, non-condensing |
| Dimension | 137.9x99.7x39mm |
| Net Weight | 125.3g |
| Package Dimension | 400x365x355mm |
| Rated Current | 1.32A |
| Certificates | EMC, ROHS, PFOS, FCC |
| Storage Temperature | -40 degree to +80 degree |
| Storage Humidity | 0% RH to 98% RH, non-condensing |
| Accessories | 1 x Power Cord, 1 x USB cable, 1 x DVI cable |
