P3.91 Outdoor Transparent
P3.91-7.81 Outdoor Transparent
Product introduction |

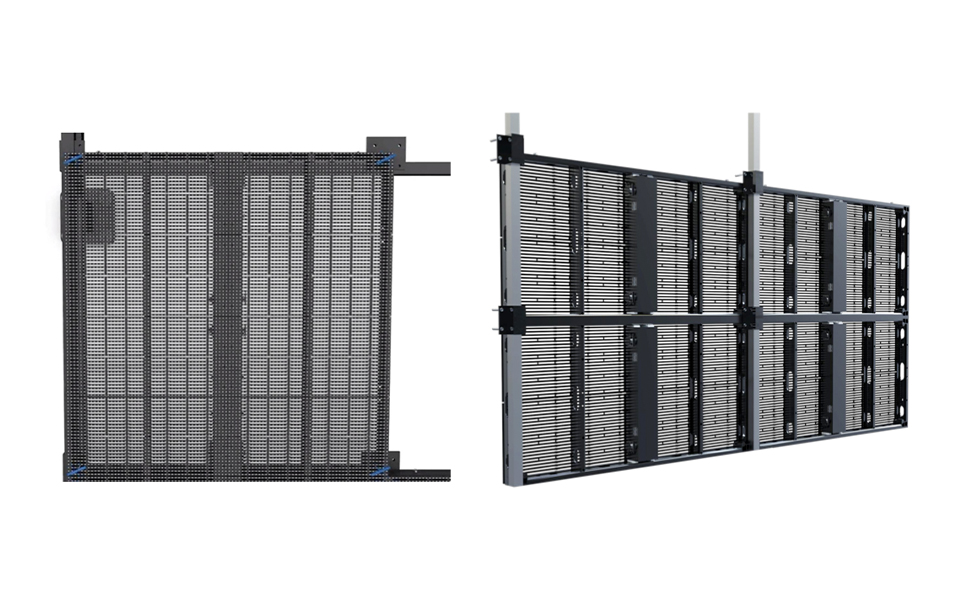

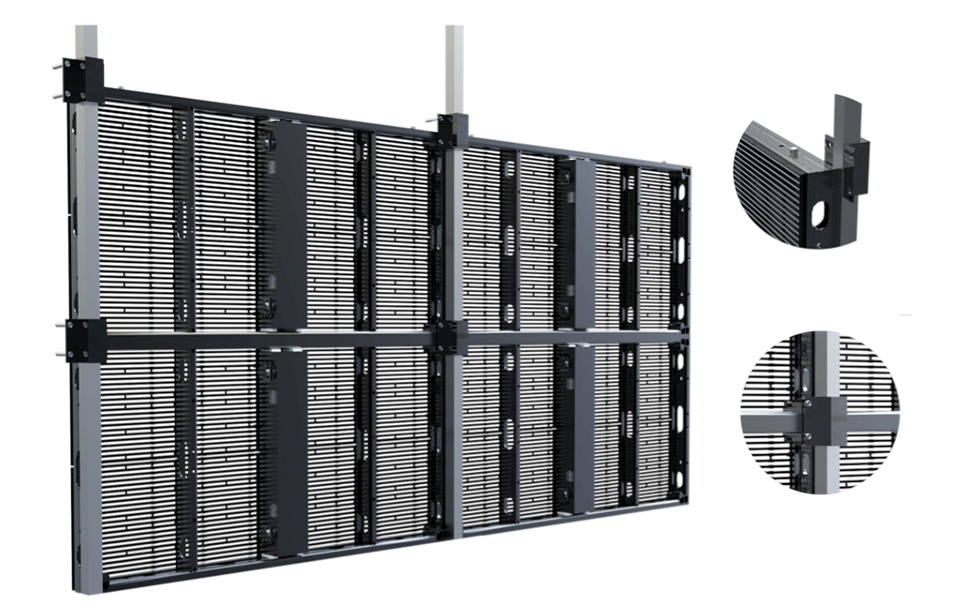

This type of outdoor LED mesh is suitable for fixed installation on the building walls. It supports front and rear service with fast locks. The design is very light which is only 3.8kgs per piece. It also saves 30-50% energy than standard LED screen.

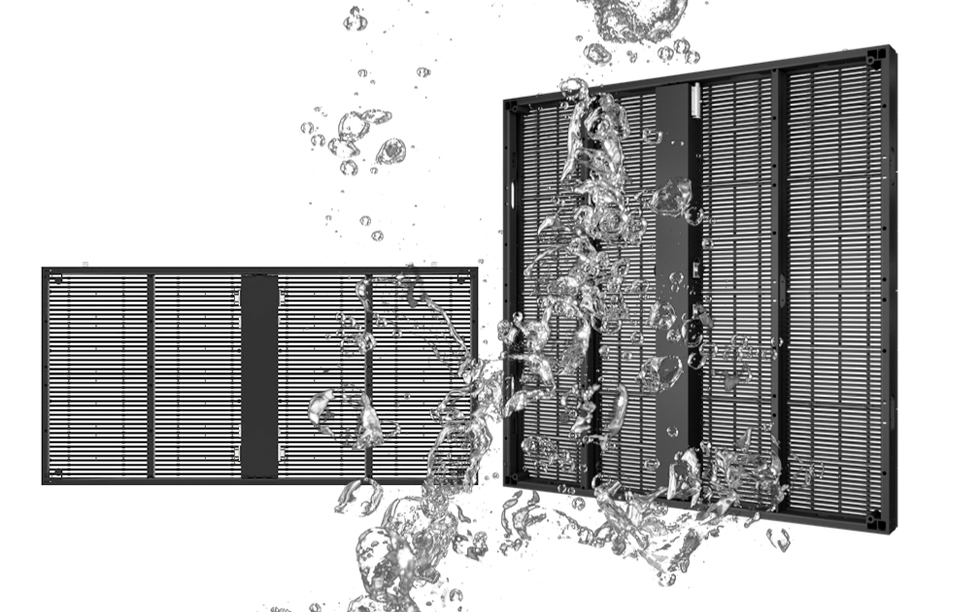

Cabinet Material：To avoid collisions from the outside environment, KENSUN designed super high brightness outdoor transparent Display.The energy-saving driven IC integrated to achieve lower power consumption.
Application：It is widely applied in building glass, shop windows, car showrooms, large outdoor buildings and etc.
45% Transparency Rate
Around 38%. The transparency will not block out light or view on both interior and exterior sides. It will not affect the outer sunlight to go through the mesh display.
Ultra-light Weight

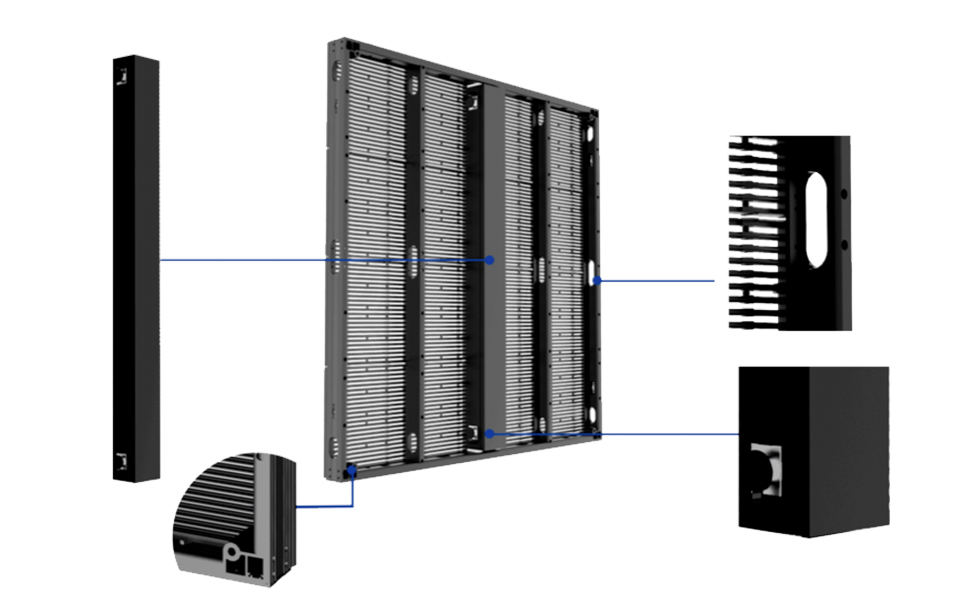

Ultra light weight LED video mesh belongs to the customized LED display cabinet series, the strip length can be customized according to the building structure.
HB over 5,500 nits
With the high brightness up to 5500nits. The contents showing on the mesh LED screen is able to be vivid even under strong sunlight. Screen use will no longer be limited to weather conditions.
Support for Customised Dimension
Glass wall transparent belongs to the customized LED display cabinet series, The strip length can be customized according to the building structure. It is widely applied in building glass, shop windows, car showrooms, etc.
Product Parameters
| Item | Parameters |
|---|---|
| Pixel pitch | 3.9-7.8mm |
| LED Type | SMD 1R1G1B |
| LED Cabinet Size | 1000x1000x65mm |
| Cabinet Resolution | 256x128dots |
| Screen Pixel | 32768 dots/㎡ |
| Signal Processing | 12 - 16 bit |
| Grey Level | 4096 - 65536 |
| Refresh Rate | > 3840Hz |
| Scan Mode | 1/8 |
| Brightness | >5,500nits |
| Transparency | 45% |
| Viewing Distance | > 4m |
| Viewing Angle | H140/V120 |
| Input Voltage | 5V DC |
| Max Consumption | 800W/SQ.M |
| Ave Consumption | 225W/SQ.M |
| Working Temperature | -20 degree to 45 degree |
| Storage Temperature | -40 degree to 60 degree |
| IP Rate | IP67 |
| Working Humidity | 10% - 60% |
| Storage Humidity | 10% - 90% |
| Lifespan | 100,000 hours |
| Service Type | Front & Rear Service |
| LED Lamp | Nationalstar |
| IC | ICN2153 |
| Control Card | Nova TB1 |
| Operation Approach | App/USD/WIFI |
| Weight of Cabinet | 16kgs/m2 |
| Certificates | CE, RoHS, FCC, EMC and etc |
