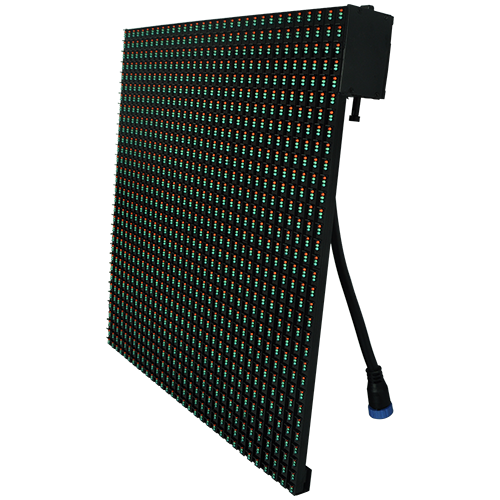

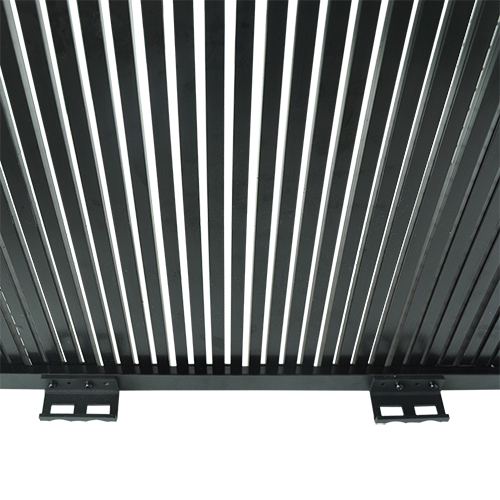

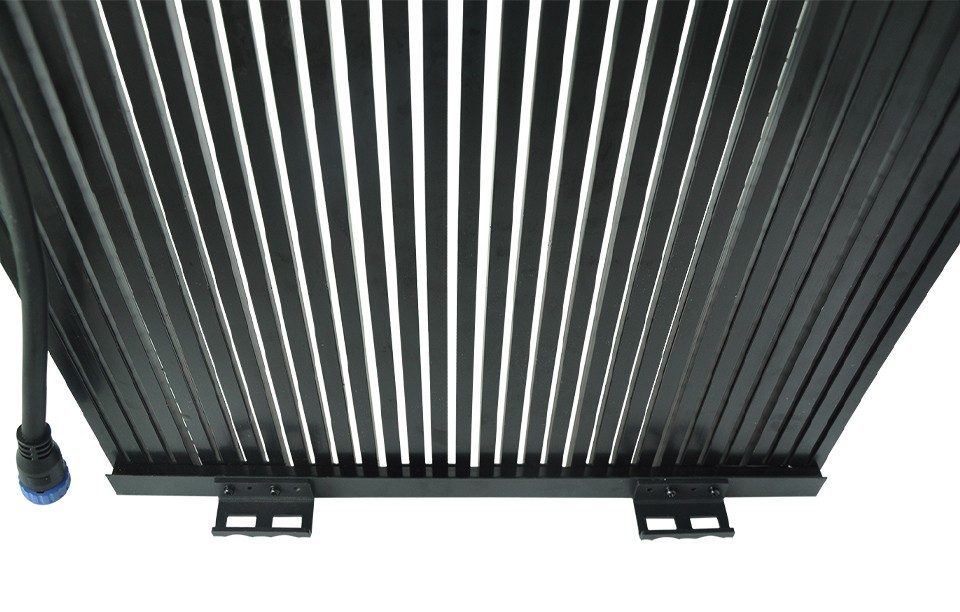

P16 Mesh LED Screen

P16 Mesh LED Screen

Product introduction |

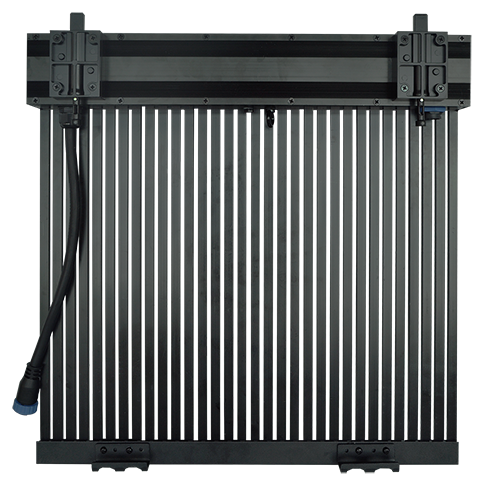

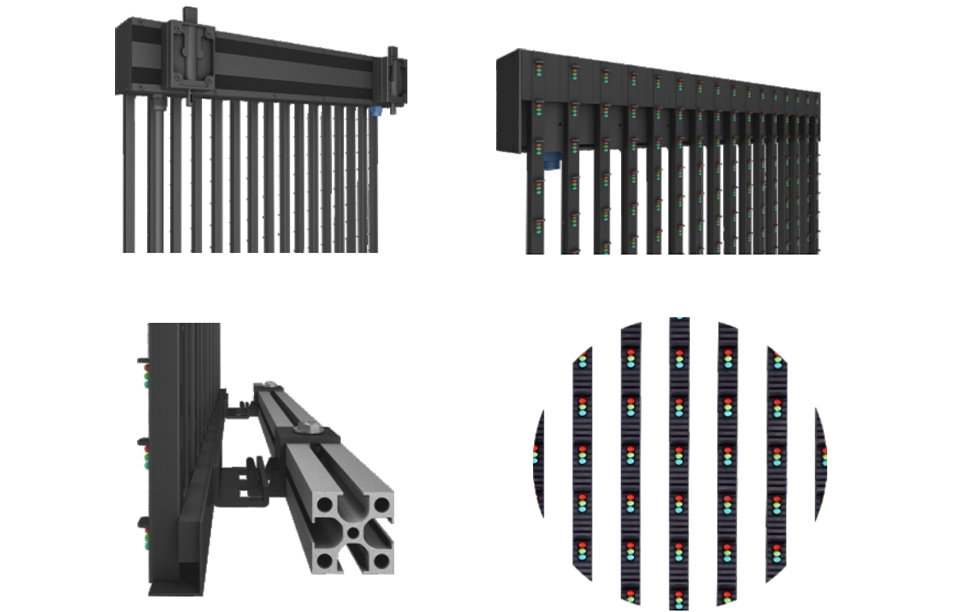

This type of outdoor LED mesh is suitable for fixed installation on the building walls. It supports front and rear service with fast locks. The design is very light which is only 3.8kgs per piece. It also saves 30-50% energy than standard LED screen.

Cabinet Material:To avoid collisions from the outside environment, KENSUN designed super high brightness LED Mesh Display.The energy-saving driven IC integrated to achieve lower power consumption.

Application:It is widely applied in building glass, shop windows, car showrooms, large outdoor buildings and etc.

mesh 6.jpg

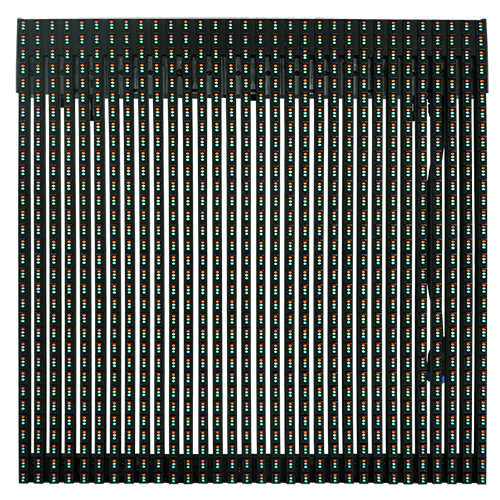

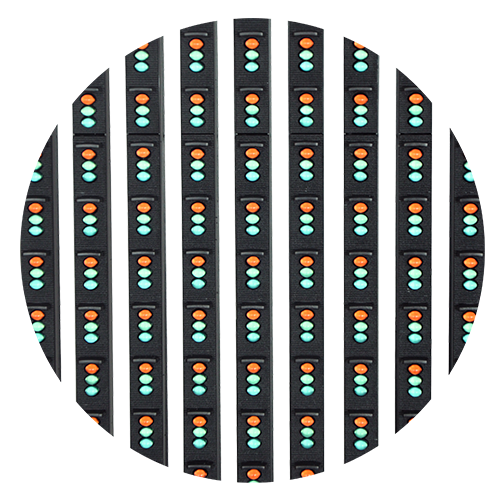

38% Transparency Rate

Around 38%. The transparency will not block out light or view on both interior and exterior sides. It will not affect the outer sunlight to go through the mesh display.

mesh 7.jpg

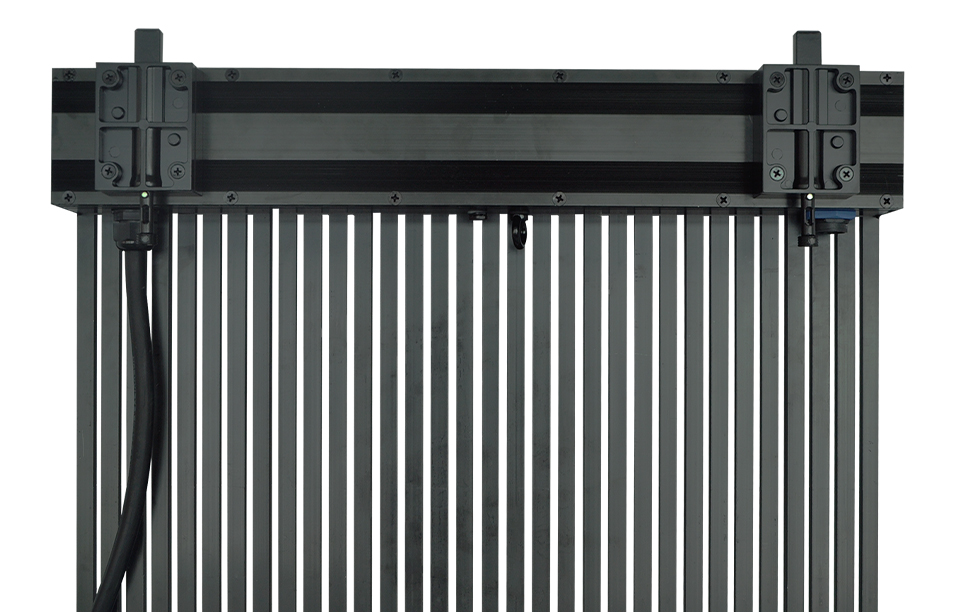

Ultra-light Weight

Ultra light weight LED video mesh belongs to the customized LED display cabinet series, the strip length can be customized according to the building structure.

mesh 8.jpg

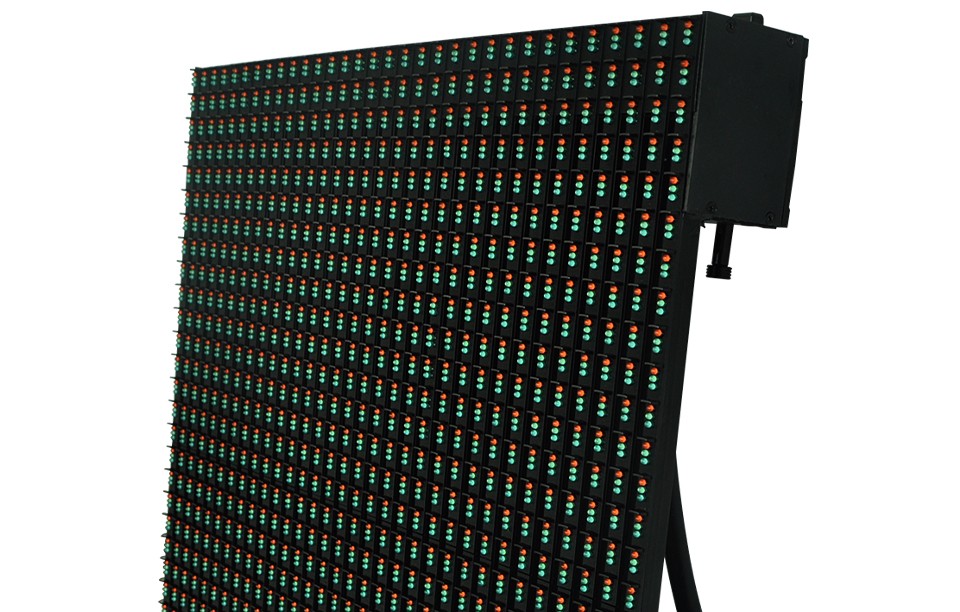

HB over 9,000 nits

With the high brightness up to 9000nits. The contents showing on the mesh LED screen is able to be vivid even under strong sunlight. Screen use will no longer be limited to weather conditions.

mesh 9.jpg

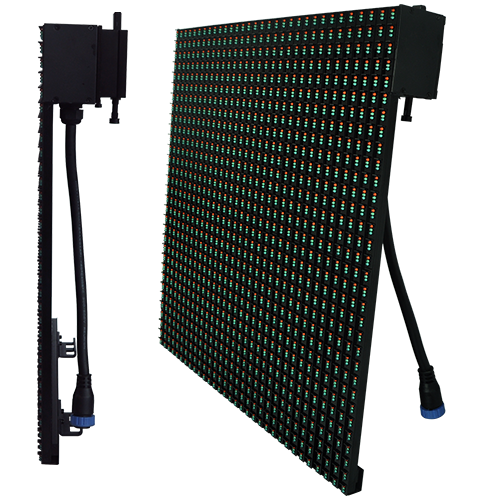

Support for Customised Dimension

Glass wall transparent belongs to the customized LED display cabinet series, The strip length can be customized according to the building structure. It is widely applied in building glass, shop windows, car showrooms, etc.

Product Parameters

ItemParameters
Pixel pitch15.625mm
LED TypeDIP346 1R1G1B
LED Cabinet Size500x1000x65mm
Cabinet Resolution32x64dots
Screen Pixel4096 dots/㎡
Signal Processing 12 - 16 bit
Grey Level4096 - 65536
Refresh Rate> 3840Hz
Scan ModeStatic Drive
Brightness>5,000 - 9,000nits
Viewing Distance> 16m
Viewing AngleH140/V120
Input Voltage
5V DC
Max Consumption400W/SQ.M
Ave Consumption125W/SQ.M
Working Temperature-20 degree to 45 degree
Storage Temperature-40 degree to 60 degree
IP RateIP67
Working Humidity10% - 60%
Storage Humidity10% - 90%
Lifespan100,000 hours
Service TypeFront & Rear Service
LED Lamp
Nationalstar
ICICN2153
Control CardNova TB1
Operation ApproachApp/USD/WIFI
Transparency38%
CertificatesCE, RoHS, FCC, EMC and etc
