P5.3 TFS LED Cabinet

P5.3 TFS Totally Front Service LED Cabinet

Product introduction |

This is new design of full front service LED modules for outdoor application. It is popular these two years worldwidely.

Cabinet Material:Cast Iron & Single Side Design

Application:It is applicable for commercial center, airport, big conference, city's landmark plaza, exhibition center and other outdoor advertising walls..

960x960 0 960x612.jpg

Strong Adaptability

This LED display adopts full sealed cast iron cabinet to protect its inner componets and make the display body to withstand extremely high and low temperature. It can work whole day in outdoor environment.

960x960 1 960x612.jpg

Light Weight Cabinet

This cabinet is designed to be slim and light weight, which is only 25kgs per cabinet 960x960mm. The common cathode aluminum LED module is designed to meet the requirement of outdoor big wall for full front service purpose.

960x960 3 960x612.jpg

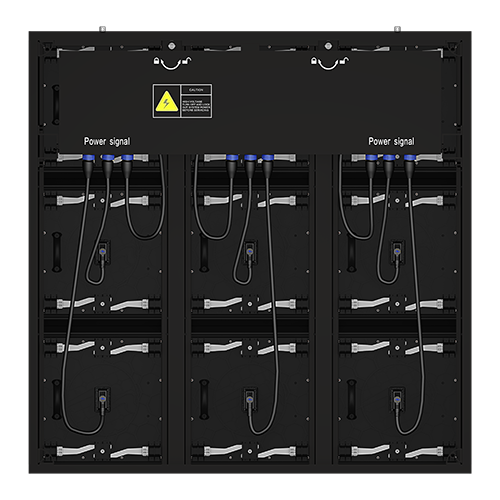

Two Ways Maintenance

This LED display can be maintained from both front side and rear side. The front service tool is very simple and easy to use.

960x960 4 960x612.jpg

Ultra-thin Cabinet

This cabinet has a ultra-high contrast ration which is 5000:1. The module design adopts the energy-saving solution, which is able to save at least 30% of the power and reduce 50% of the LED screen heat.

Product Parameters

Pixel Pitch5.33
Pixel Structure1R1G1B
LED LampSMD2727
Resolution35156 dots
Module Size320x320mm
Module Weight1.36kgs
Module Resolution60x60 dots
Cabinet Size 1960x960x90mm
Cabinet Size 21280x960x90mm
MaterialCast Iron
Scan Mode1/6
Grey Scale14Bit
IP rateIP68
Service TypeFront and rear service
Brightness>5,500 nits
Colour Temperature3200 - 12000 adjustable
Viewing AngleH140/V120
Contrast Ratio>5,000:1
Drive ModeConstant Drive
Refresh Rate> 3,840Hz
Input Voltage110-240V
Max Power Consumption<590W
Ave Power Consumption<210W
Working Temperature-20 degree to +80 degree
Working Humidity10%~95%
Suitable Receiveing CardColorlight or others
