P6.67 Aluminium 960x960

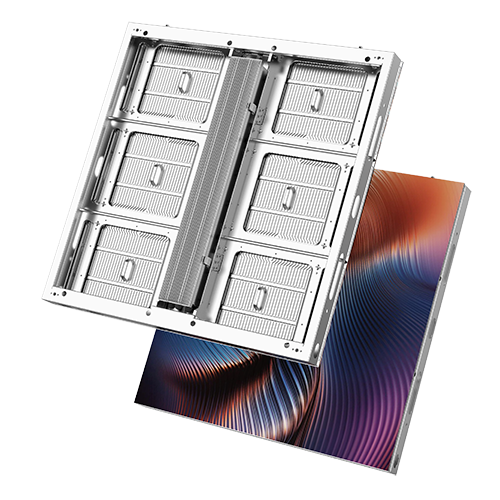

P6.67 Aluminium 960x960 Full Front Service LED Cabinet

Product introduction |

This is new design of full front service LED modules for outdoor application. It is popular these two years worldwidely.

Cabinet Material:Cast Iron & Single Side Design

Application:It is applicable for commercial center, airport, big conference, city's landmark plaza, exhibition center and other outdoor advertising walls..

480x320 4.jpg

Strong Adaptability

This LED display adopts full sealed cast iron cabinet to protect its inner componets and make the display body to withstand extremely high and low temperature. It can work whole day in outdoor environment.

480x320 5.jpg

Light weight & Energy-saving

This cabinet is designed to be slim and light weight, which is only 28.5kgs per cabinet 960x960mm. The common cathode aluminum LED module is designed to meet the requirement of outdoor big wall for full front service purpose.

Product Parameters

ValueP6.67
Pixel Pitch(mm)6.67
Pixel Matrix Per Sq.m22477
Pixel ConfigurationSMD2727
Brightness (nits)5500
Scan1/6
Module Dimension480x320mm
Cabinet Dimension960x960mm / 3.15x3.15ft
Cabinet Resolution144x144
Cabinet Weight37kg / 81Ib ( Iron)
Power Con. (Max / Avg)800 / 170 w/sq.m
Service AccessFront
Refresh Rate (HZ)≥1920
Grey Scale (bit)16
Viewing Angle (H/V)140 / 140
IP RateIP68
Input Voltage (AC)110V / 240V
