Mechanical LED matrix display for dynamic visuals

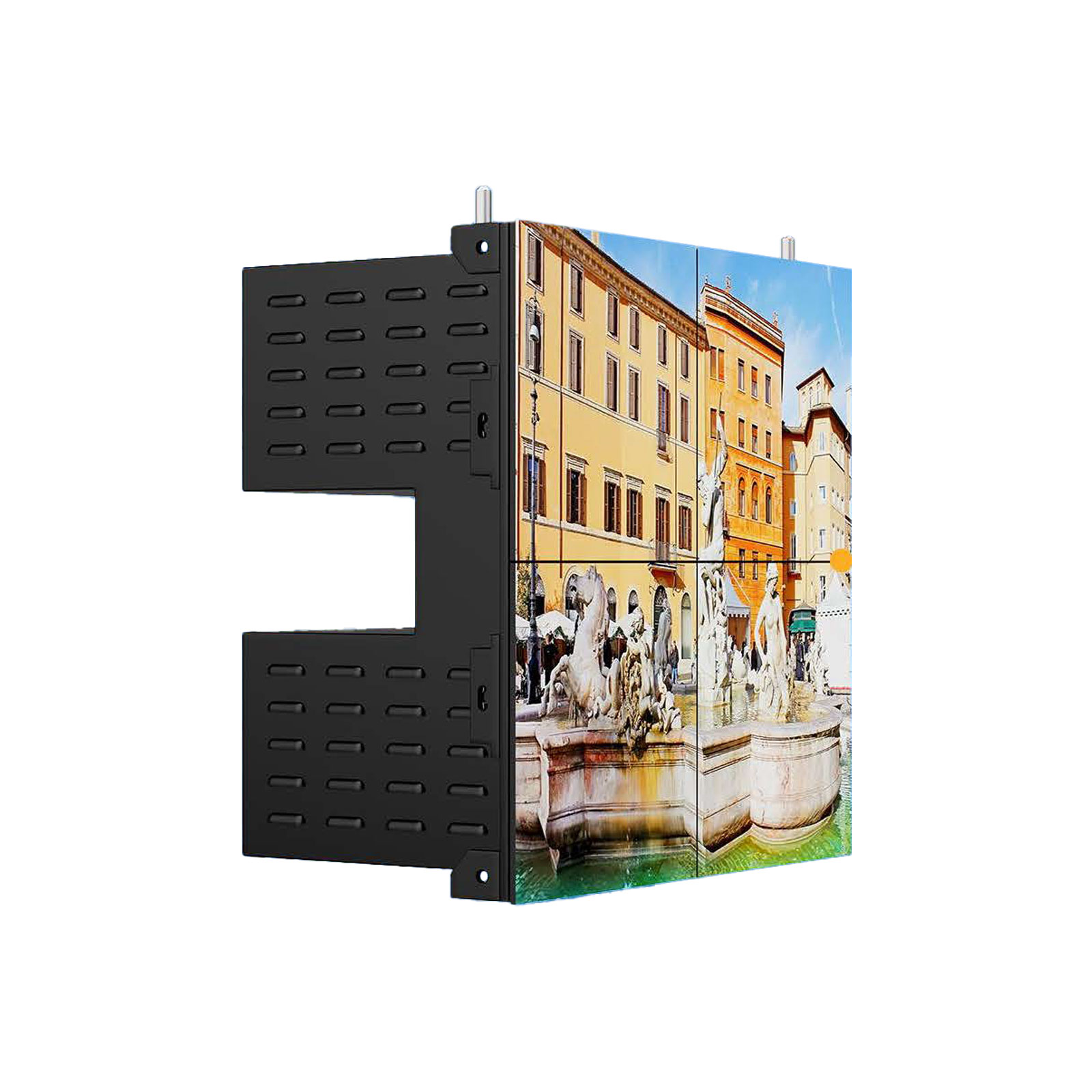

Kensun mechanical LED matrix Display, dynamic, customizable digital Display Solution

Product introduction |

Kensun’s mechanical LED matrix display features modules that move independently, creating dynamic, interactive visuals. This innovative design allows the display to form waves, shapes, and other moving patterns. Fully customizable in size, it’s ideal for art installations, exhibitions, and events.

Display type: mechanical dynamic matrix LED display

Application:museums, exhibition halls, science and technology spaces, shopping malls and airports

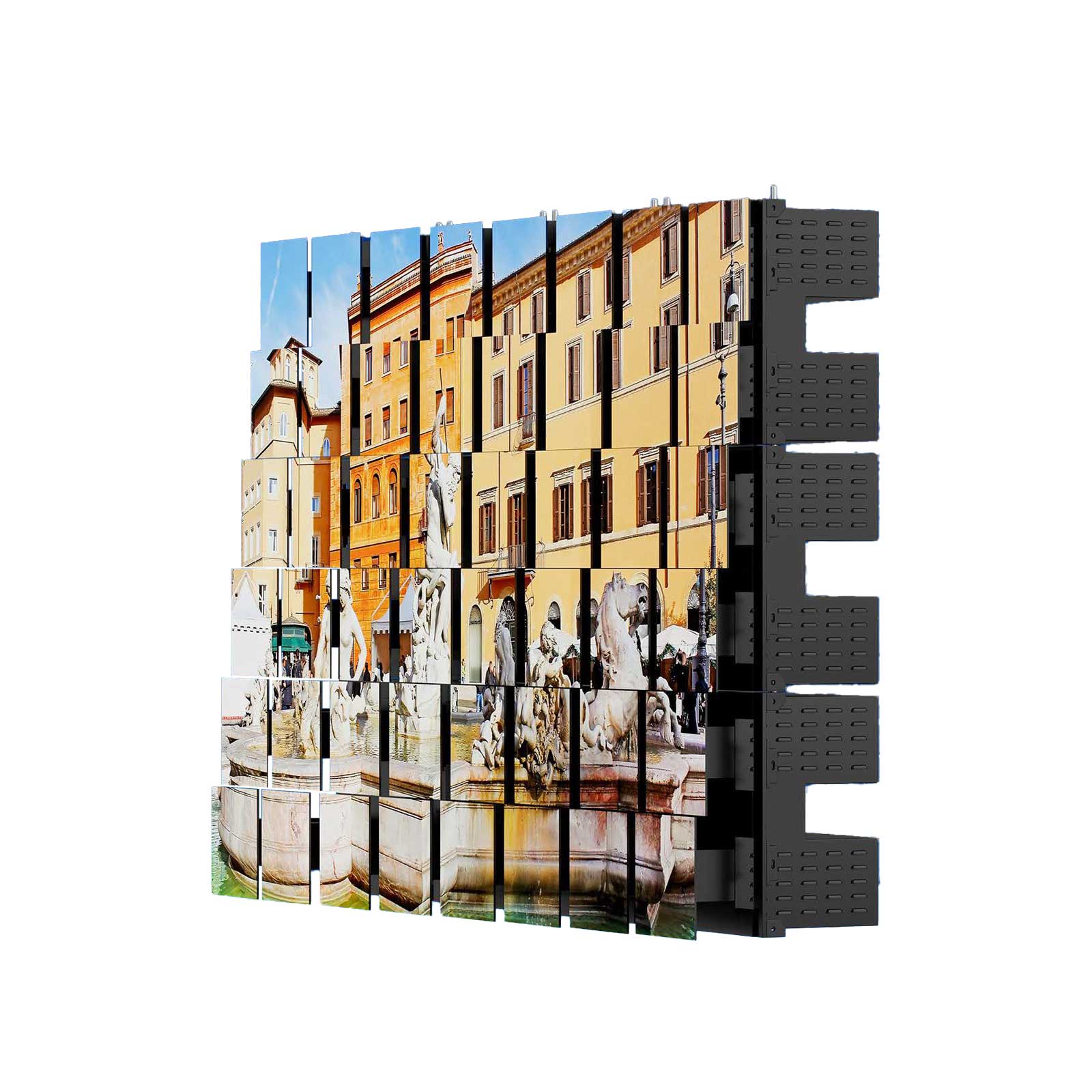

Stunning 3D-like visuals

When combined with vivid LED content, the mechanical movement creates a mesmerizing 3D effect, transforming your display into a captivating visual experience that draws attention and elevates any space.


Dynamic and customizable motion

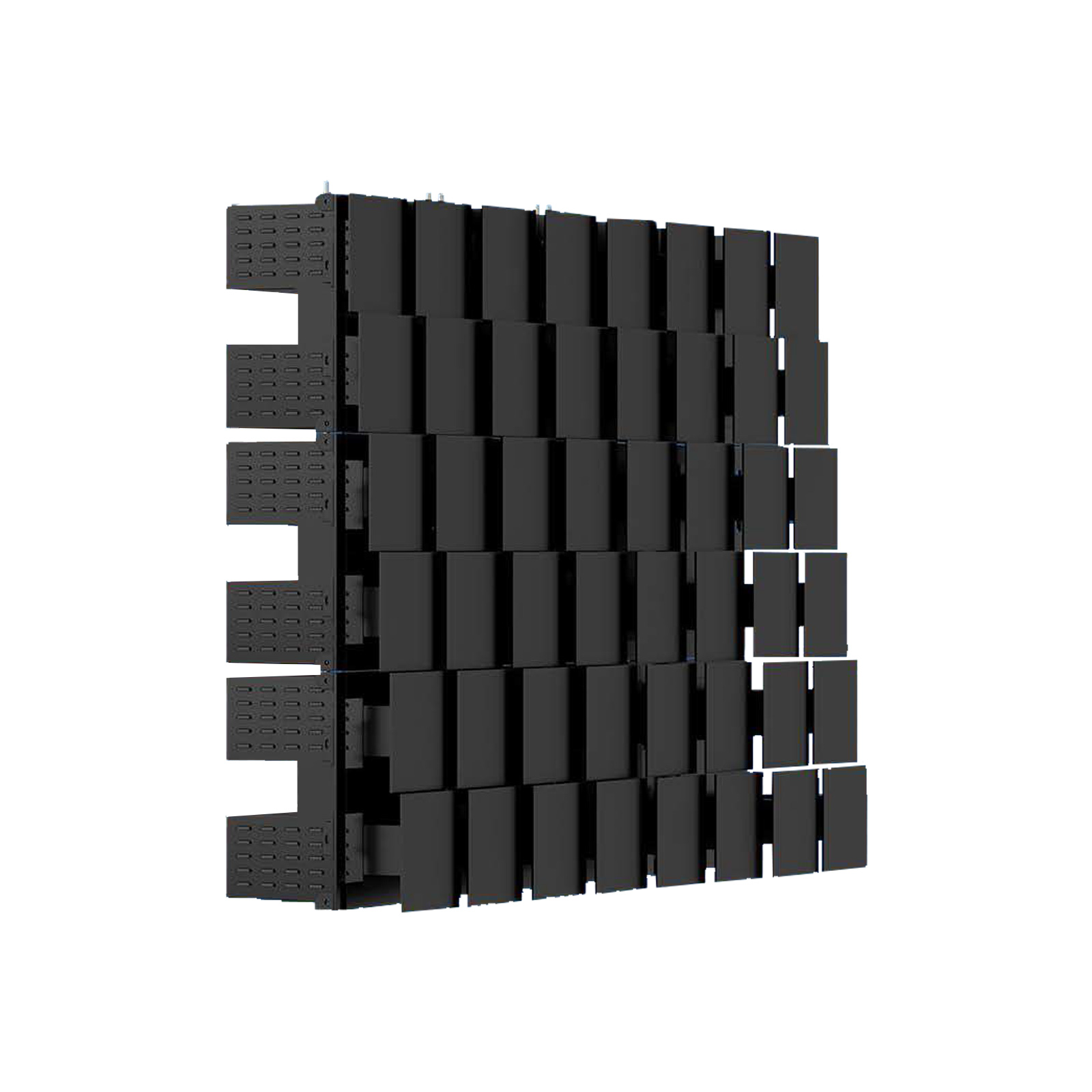

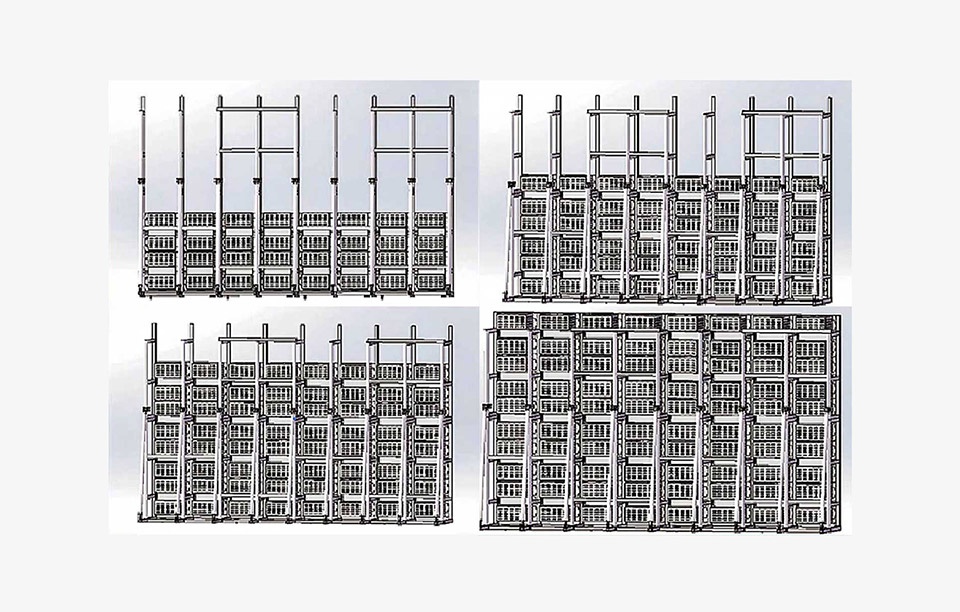

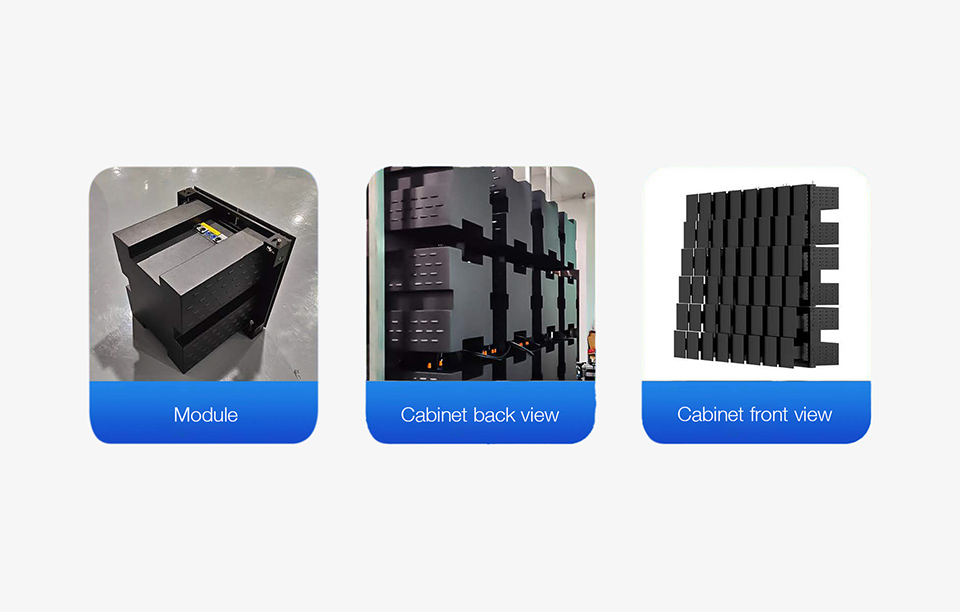

Each module on the Kensun Mechanical LED Display is powered by a mechanical structure, allowing it to stretch and retract independently. This enables the display to create stunning, dynamic patterns like waves or custom shapes, offering an engaging 3D experience.

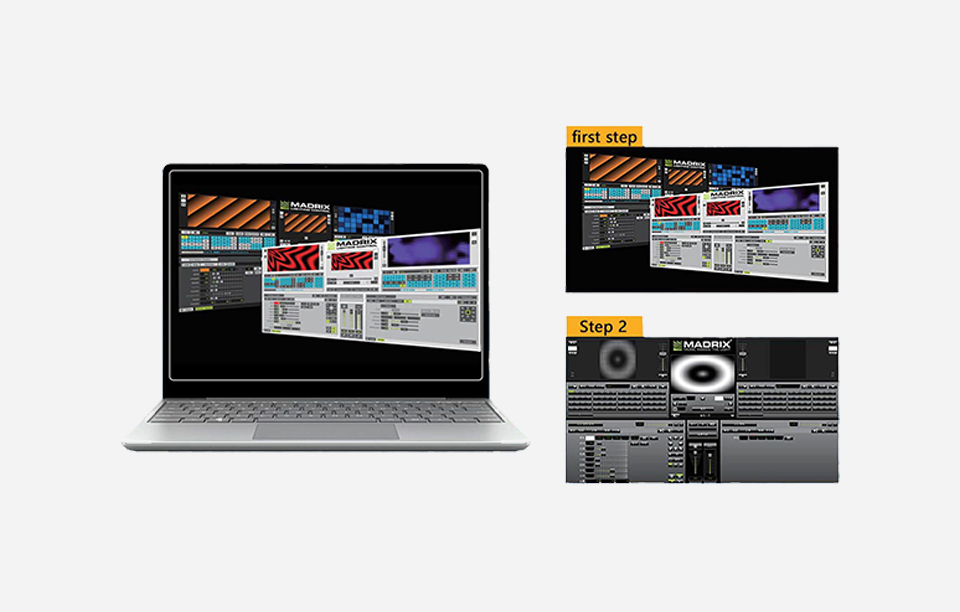

Advanced control system for real-time ppdates

The display is equipped with an advanced control system that allows for real-time updates and diversified content display, ensuring that your message is always current and adaptable to various needs.

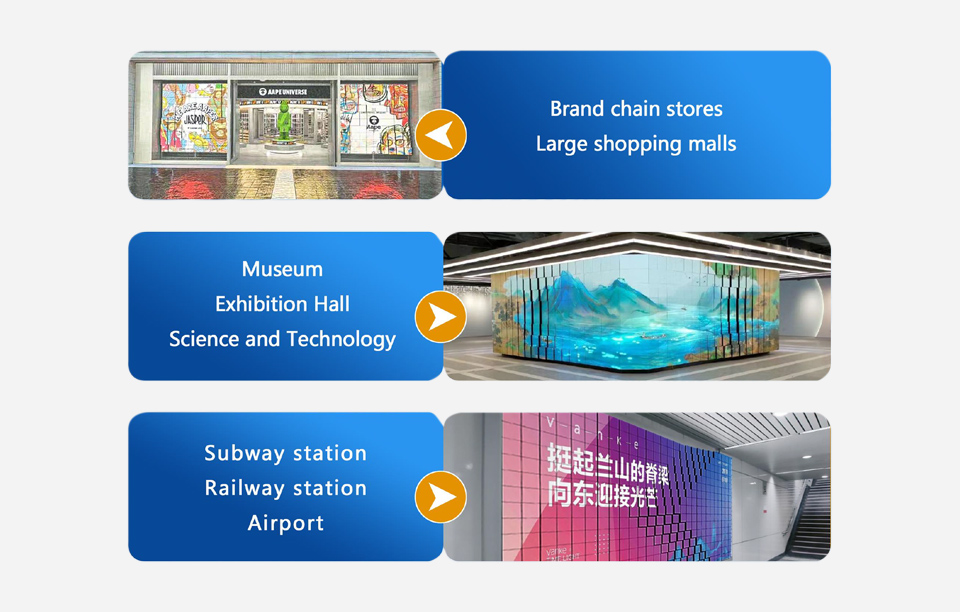

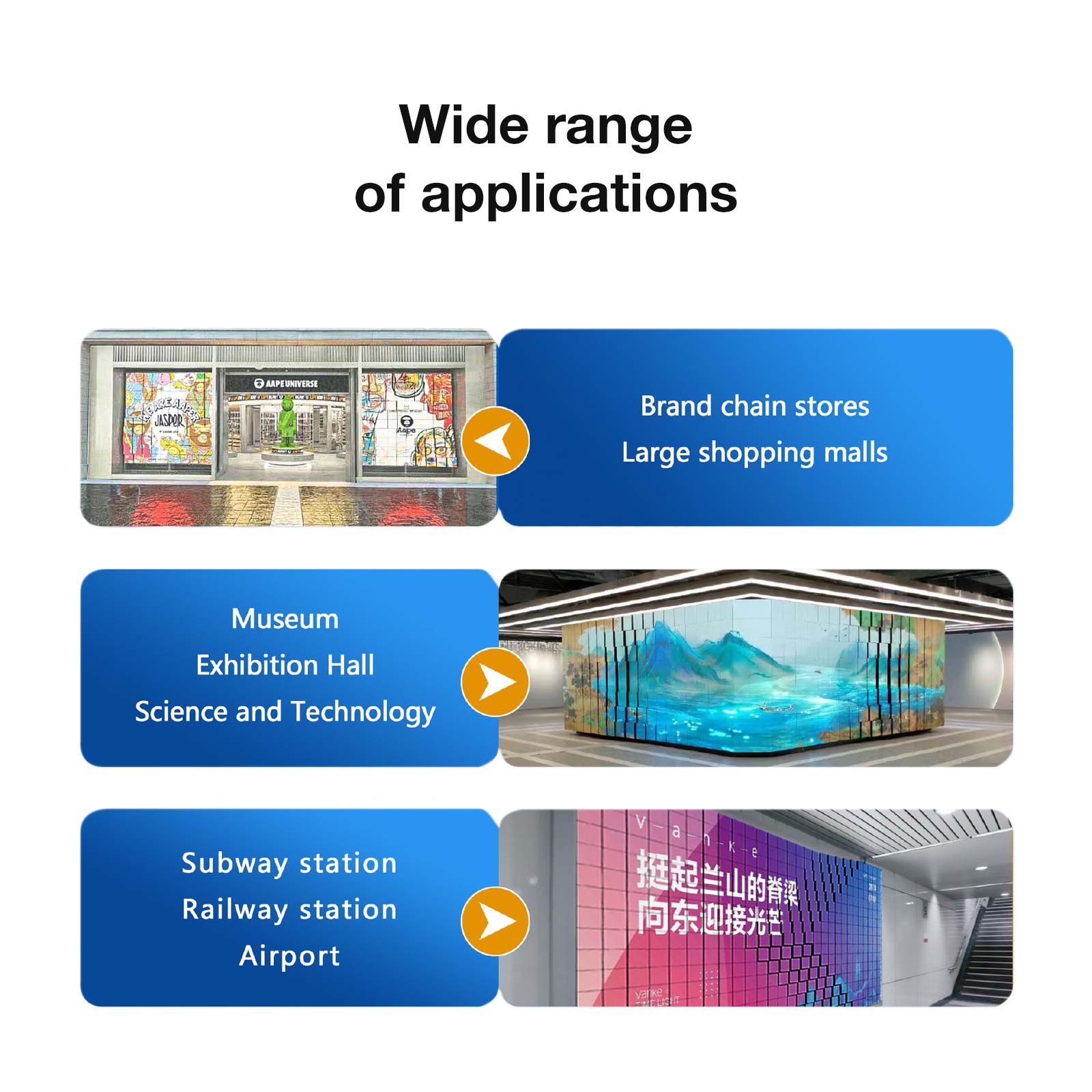

Wide range of applications

Kensun’s Mechanical LED Matrix Display is versatile enough for a variety of environments, including museums, exhibition halls, science and technology spaces, shopping malls, and airports, bringing creativity and innovation wherever it is needed.



Stunning 3D-like visuals

When combined with vivid LED content, the mechanical movement creates a mesmerizing 3D effect, transforming your display into a captivating visual experience that draws attention and elevates any space.

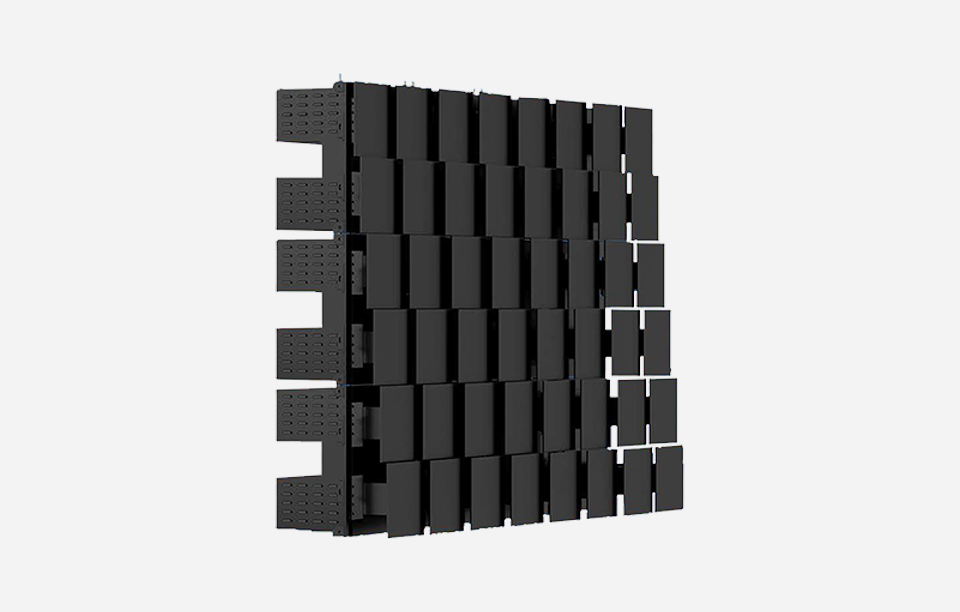

Dynamic and customizable motion

Each module on the Kensun Mechanical LED Display is powered by a mechanical structure, allowing it to stretch and retract independently. This enables the display to create stunning, dynamic patterns like waves or custom shapes, offering an engaging 3D experience.

Product Parameters

Pixel Pitch1.5mm2.5mm
Pixel Density409600 pixels / m²160000 pixels / m²
Pixel Configuration1R1G1B 1R1G1B
Screen TypeMechnical dynamicMechnical dynamic
Viewing AngleH 160° / V 160°H 160° / V 160°

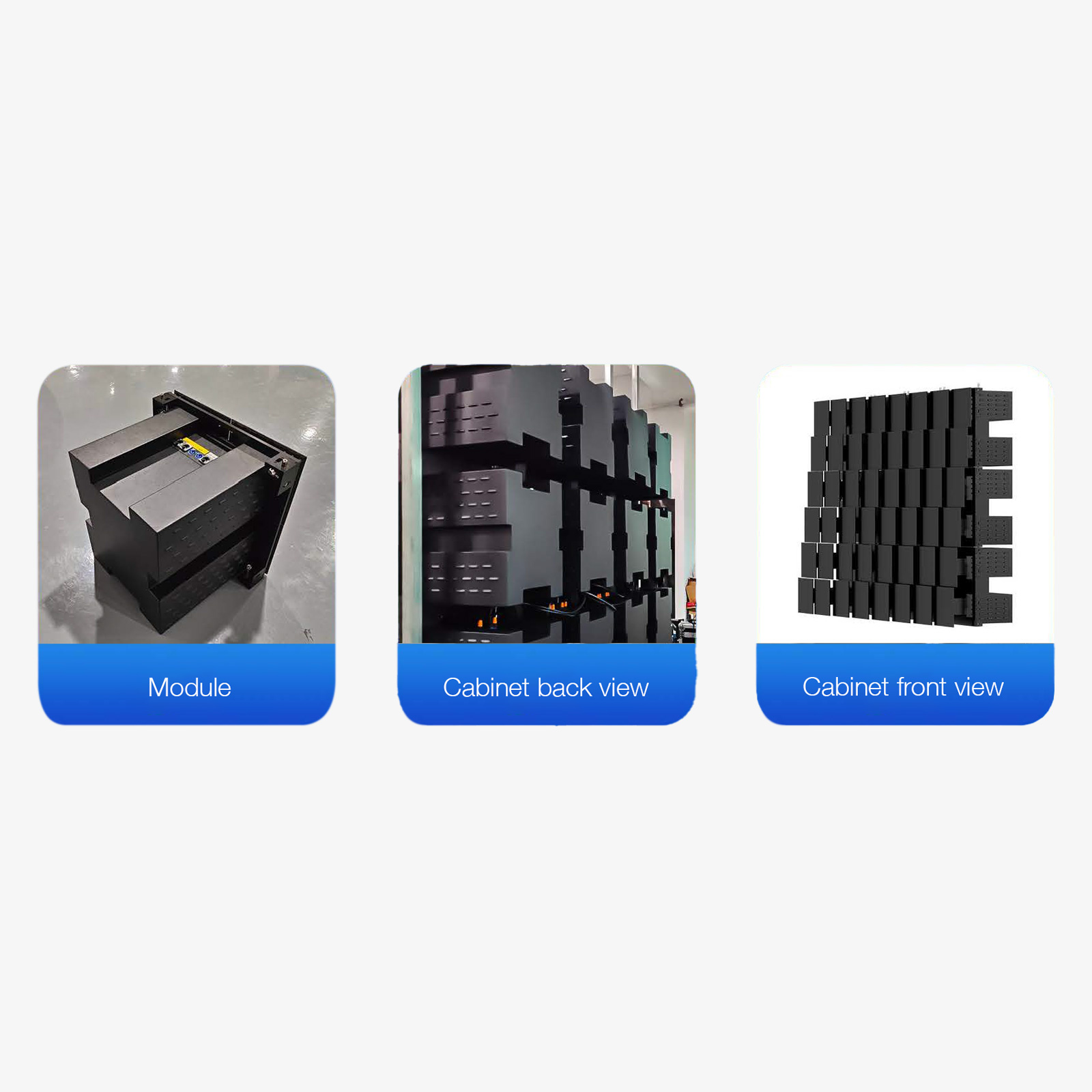

Module Dimension250 mm * 250mm
250 mm * 250mm
Module Resolution160 pixels * 160 pixels100 pixels * 100 pixels
Screen SizeCustomizableCustomizable
Box Weight22kg22kg
Box Dimension504mm * 504mm504 mm * 504 mm
Box Thickness360mm360mm
Ingress ProtectionIP54IP54
AccessFrontFront
Input Power
AC 100 V ~ 240 VAC 100 V ~ 240 V
Contrast Ratio10000 : 110000 : 1
Brightness800 nits800 nits
Refresh Rate3840 Hz3840 Hz
Color Temperature9300 k9300 k
Working EnvironmentIndoorIndoor
Working Temperature-10℃ ~ + 40℃
-10℃ ~ + 40℃
Working Humidity10% ~ 90%10% ~ 90%
Lifespan> 100,000 hours> 100,000 hours
