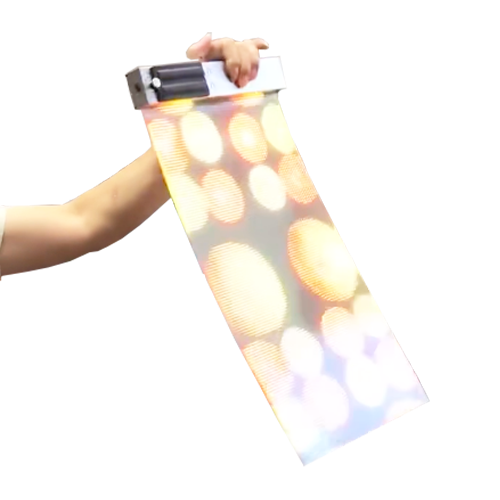

P3.75 Handheld LED Film

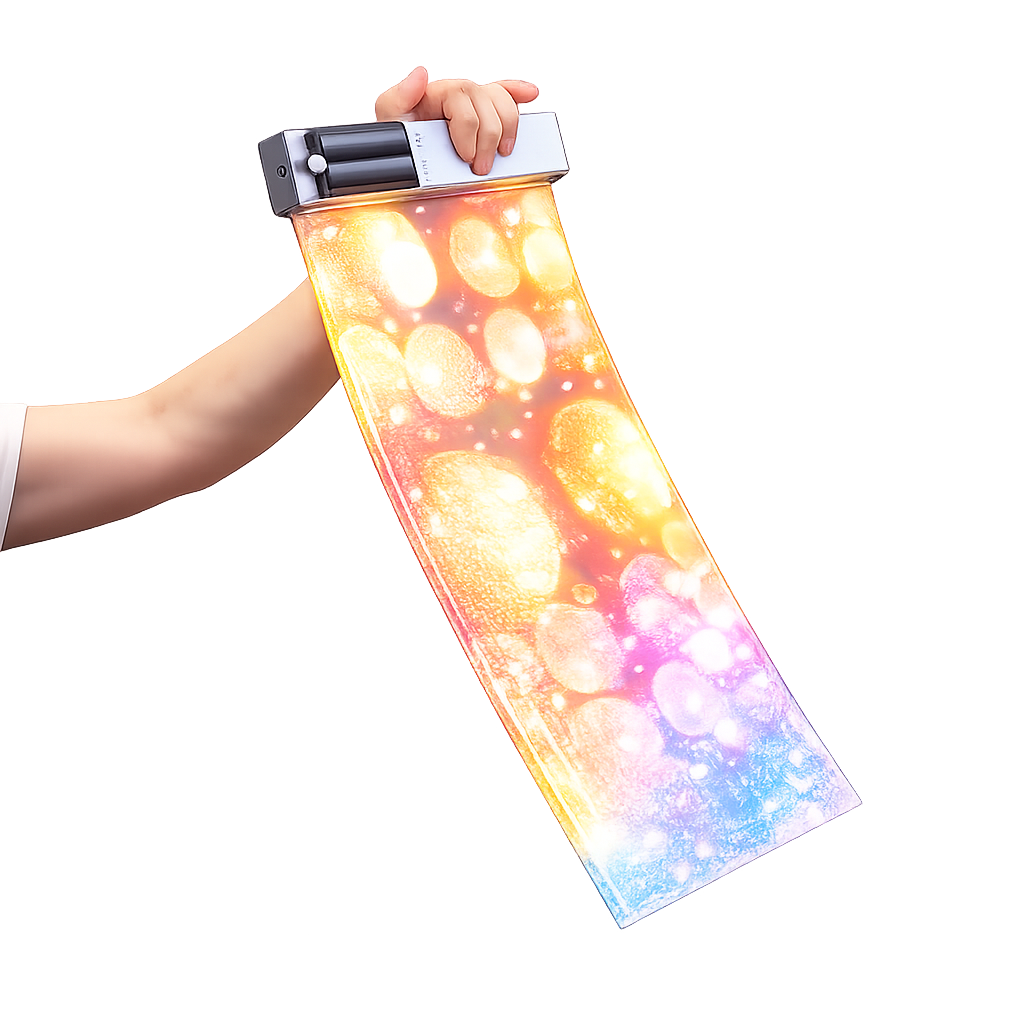

P3.75 Handheld LED Film Transparent Display Panel 500x240mm

Product introduction |

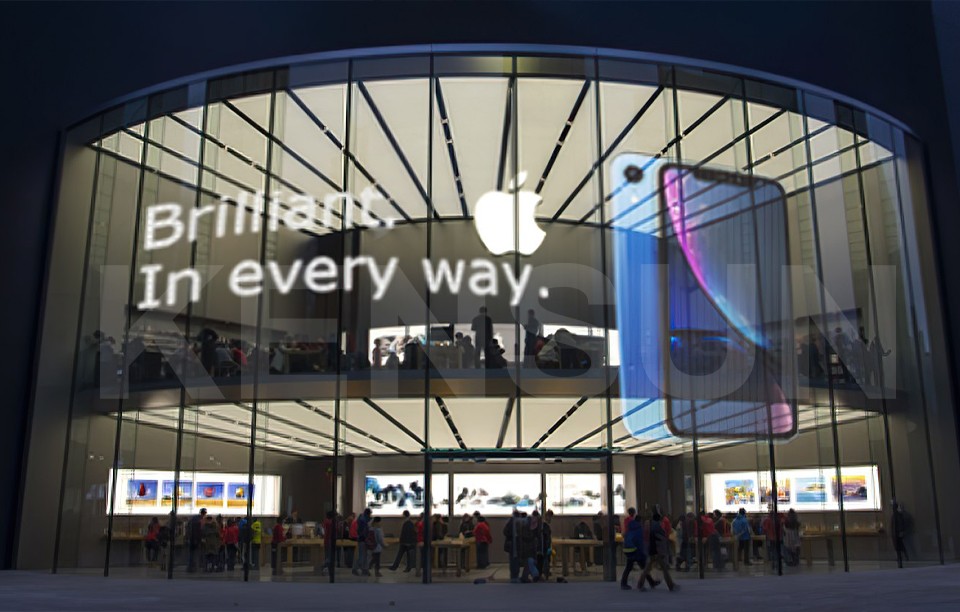

Comparing to traditional LED screens, the transparent LED screen is more creative in displaying content. It has a very high level of transparency over 90%, and it can reach a very high brightness over 5,500 nits. It is widely used in the shop glass windows and other similar circumstances.

Cabinet Material:To avoid collisions from the outside environment, KENSUN designed an acrylic surface to protect the transparent car back window LED display.The energy-saving driven IC integrated to achieve lower power consumption.

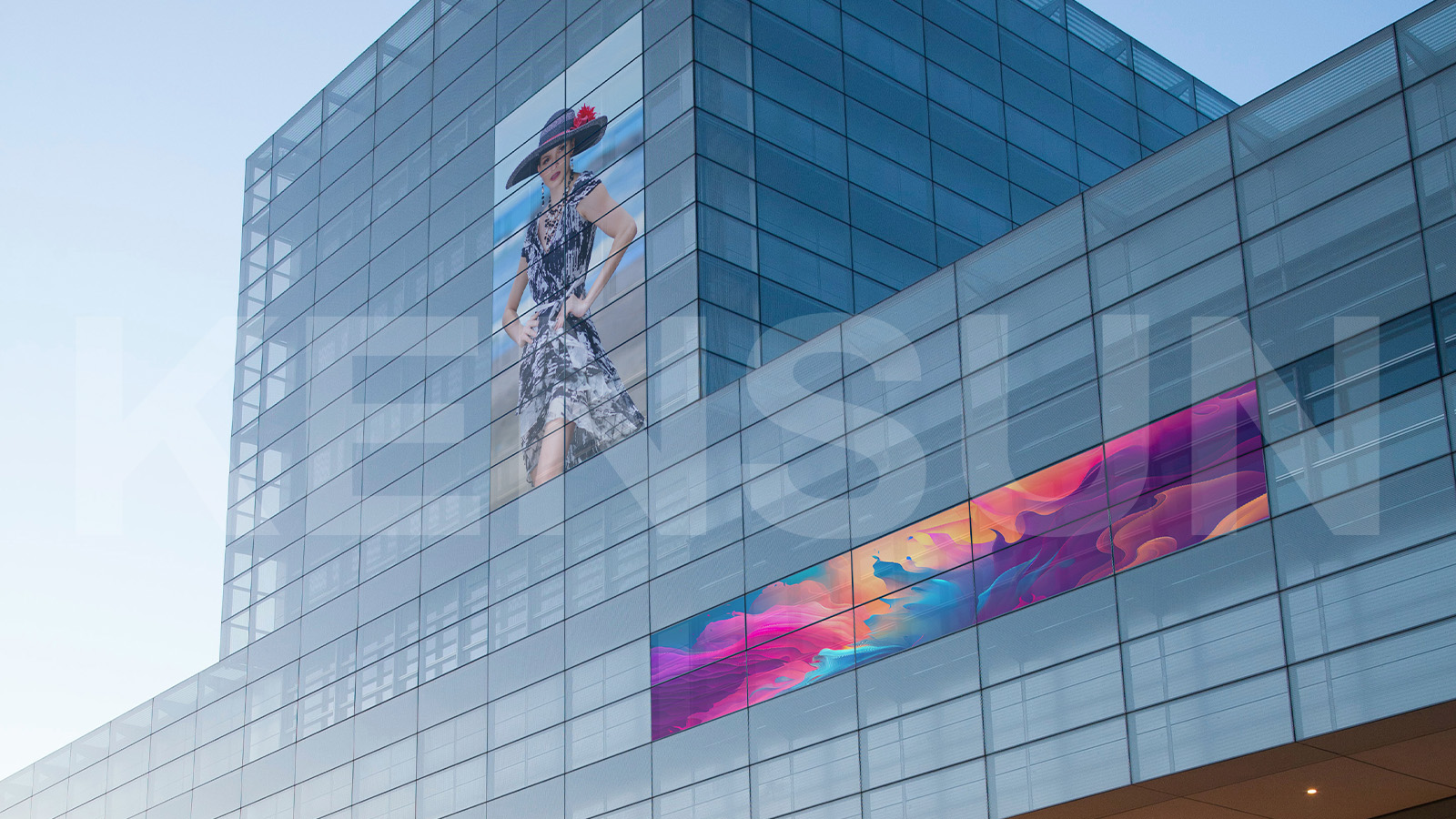

Application:It is widely applied in building glass, shop windows, car showrooms, etc.

Flim 960x612.jpg

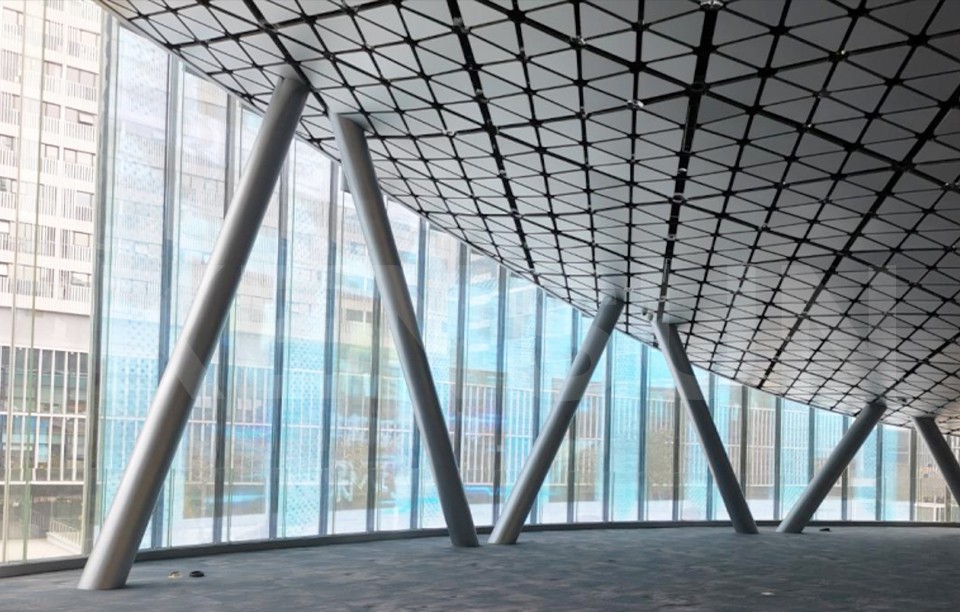

High Transparency 95%

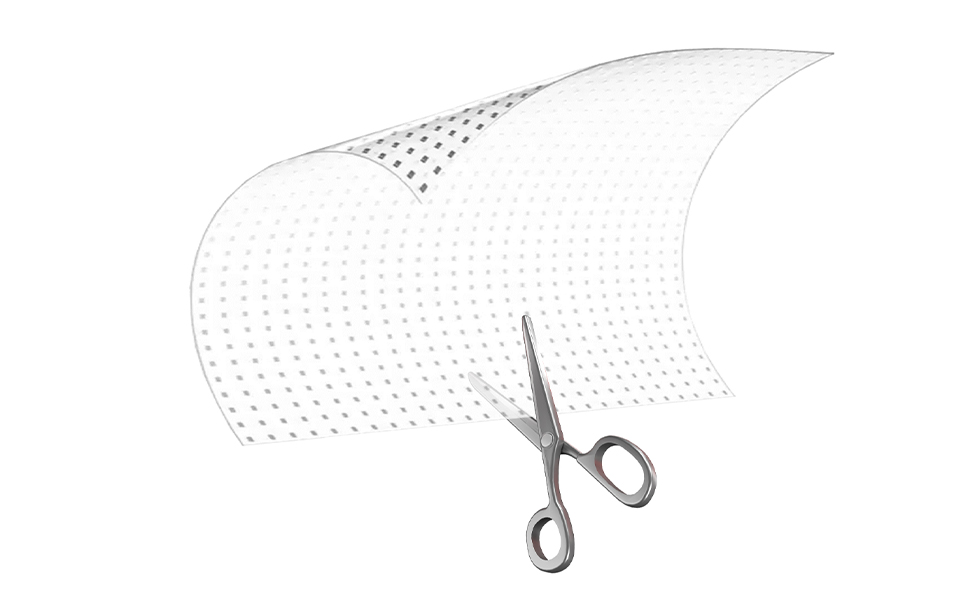

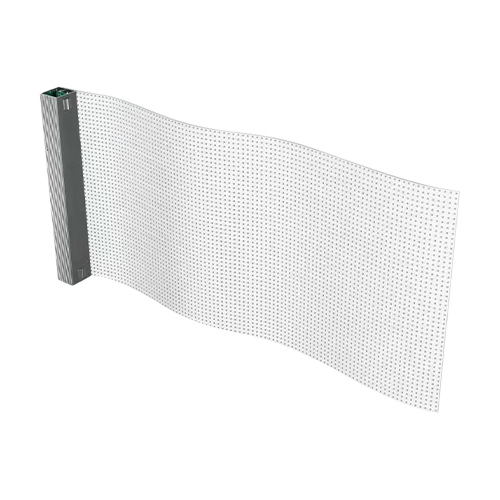

This product is designed to be very slim and thin. It can be cut to any size as you wish, and it is flexible and bendable. But our standard LED panel size is 500x240mm film sign. It can attach to the glass wall directly, and it would not destory the original building structure. When it is not working, you would never notice it has one LED screen there. It can be hidden very easily. It would not affect the sunlight go into the indoor rooms. The transparency rate is over 95% according to our labratory testing data.

Flim 960x612_1.jpg

Ultra-slim frame and Ultra-lightweight

Glass wall transparent belongs to the customized LED display cabinet series, the strip length can be customized according to the building structure. The thickness of this clear film LED display is only 5mm, and the weight is about 8KGS per each square meter. Our P30 product can reach over 95% of the transparency. It is very easy for you to maintain the LED screens.

Flim 960x612_2.jpg

High Brightness over 3000 nits

With the high brightness up to 3000nits. The contents showing on the transparent LED screen is able to be vivid even under strong sunlight. Screen use will no longer be limited to weather conditions. We have pixel pitch 2.5mm, 3.75mm, 6mm, 8mm, 10mm, 20mm and 30mm for this clear film screen series. It is very suitable for shopping malls, 4S stores, clothing stores and exhibitions.

Flim 960x612_3.jpg

Support for Customised Dimension

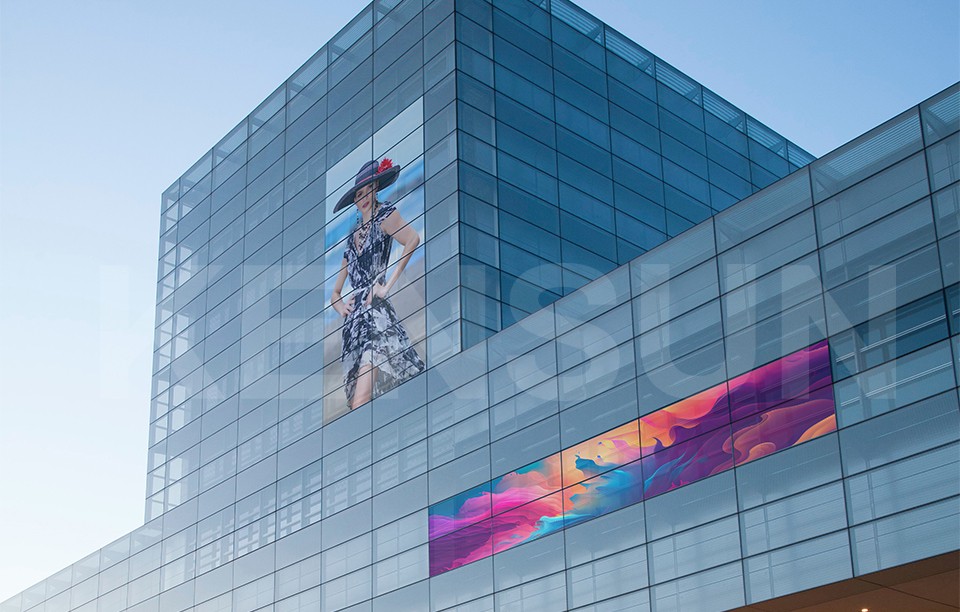

Glass wall transparent belongs to the customized LED display cabinet series. The strip length can be customized according to the building structure. It is widely applied in building glass, shop windows, car showrooms, etc. As a result, the application is very wide and flexible. It will boost your business sales performance.

Handable battery_1.jpg

Built-in Rechargeable Batteries

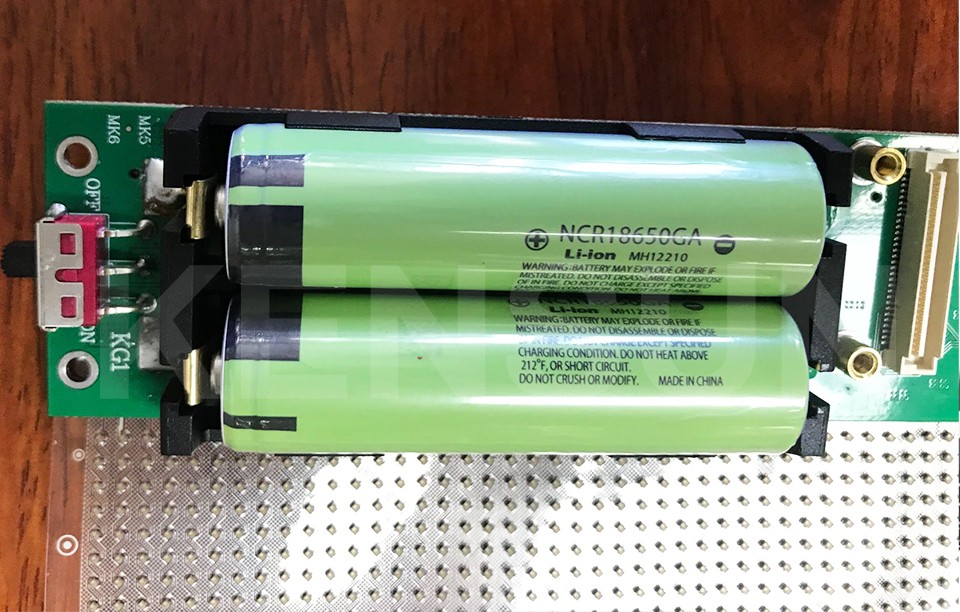

This LED transparent film used NCR18650GA battery. The voltage capacity can reach over 3500mAh. Charging voltage is 4.2V+/-0.05V. Usually, you can charge it 4 x hours by standard mode, while you can make it to charge faster by 2.5 hours. The maximum volume is 10A. Battery weight is about 48g. 2 x NCR18650GA batteries can allow you to use the P3.75mm flexible LED panel about 8 hours pending what contents will you play on the LED screen. If there are many white colour or bright colour videos or pictures, the power will run out very quickly.

Handable battery_2.jpg

Built-in WIFI Card

This high transparency LED crystal film screen has one built-in WIFI control card inside of the controller box. It is customised by our software engineers. You can download the APP 'ledmedia' from your mobile APP store, and connect the control card WIFI from your phone. The WIFI name is BX-Y00xxx and the password is A601B732. Each sign WIFI password may vary, please check the lable when you receive your LED sign. The last 8 digits are the WIFI passpord. After you have set it up, you can enter the LEDMEDIA app to change the contents. It is very easy to manage this LED sign. If you don't want to change it, you can just use it plug and play mode.

Handable battery_3.jpg

Convenient Mini Road Case

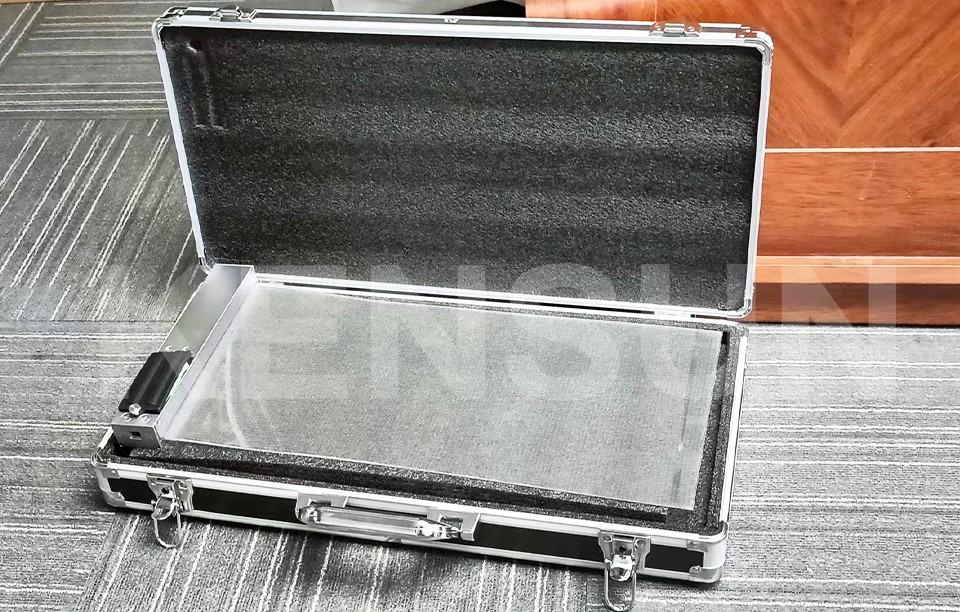

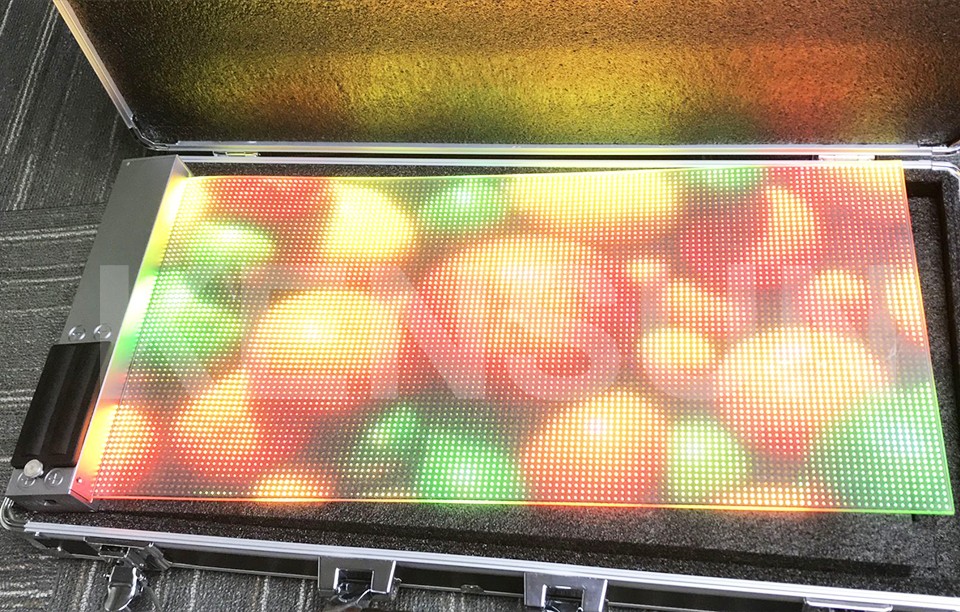

We have designed the mini road case to pack this slim and ultra thin transparent LED panel. It can keep one single piece sample in the road case safely and you may not worry the screen been damaged by unexpected circumstances. This road case is 60x34x12cm. The total weight is about 5KGS. It is not heavy, so you can carry it to anywhere.

Product Parameters

Pixel pitch3.75mm
Pixel Density71,111
LED Module Size500x240mm
LED Module Resolution133x64dots
LED Cabinet Size500x240mm
Cabinet Resolution133x64dots
Screen Pixel8512dots
Signal Processing 12 - 16 bit
Grey Level4096 - 65536
Refresh Rate> 3840Hz
Scan ModeStatic
Brightness>3000 nits
Viewing Distance> 4m
Viewing Angle160 degree
Input Voltage
Max Consumption125W/SQ.M
Ave Consumption400W/SQ.M
Working Temperature-20 degree to 45 degree
Storage Temperature-40 degree to 60 degree
IP RateIP43
Working Humidity10% - 60%
Storage Humidity10% - 90%
Lifespan100,000 hours
Service TypeFront & Rear Service
LED Lamp
Control CardNova TB1
Operation ApproachApp/USD/WIFI
Cabinet Material6063 Aluminum
Total Weight1.2KGS with PSU
Cabinet Wiring Method
Internal Wiring / Clear back
Package Method
Mini Road Case
Road Case Dimension60x34x12cm
Total Weight
5KGS including the case
