P3.91 Trans Film LED
P3.91 Trans Film Transparent Display Panel 1200x1000mm
Product introduction |

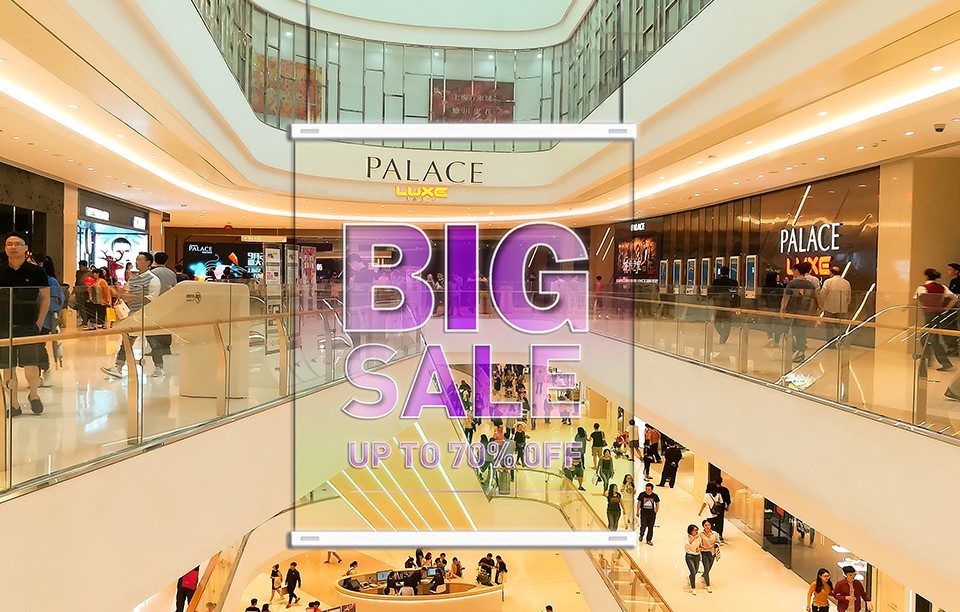

Comparing to traditional LED screens, the transparent LED screen is more creative in displaying content. It has a very high level of transparency over 92%, and it can reach a very high brightness over 3,000 nits. It is widely used in the shop glass windows and other similar circumstances.
Cabinet Material:To avoid collisions from the outside environment, KENSUN designed an acrylic surface to protect the transparent car back window LED display.The energy-saving driven IC integrated to achieve lower power consumption.
Application:It is widely applied in building glass, shop windows, car showrooms, etc.
![1700717227202910.jpg [6]T3 500x500.jpg](/upload/image/20231123/1700717227202910.jpg)

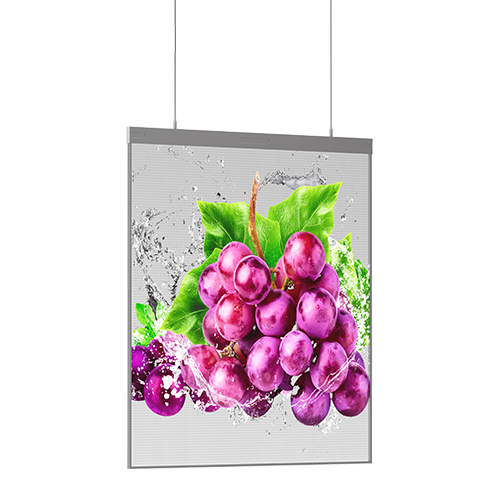

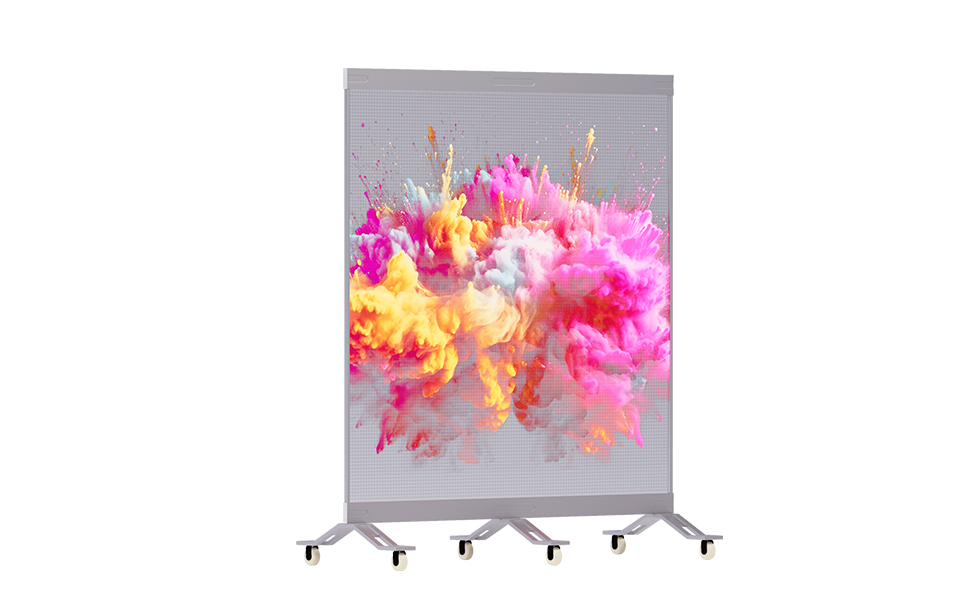

High Transparency 92%
This product is designed to be very slim and thin. It can be cut to any size as you wish, and it is flexible and bendable. But our standard LED panel size is 1200x250mm film sign. It can attach to the glass wall directly, and it would not destory the original building structure. When it is not working, you would never notice it has one LED screen there. It can be hidden very easily. It would not affect the sunlight go into the indoor rooms. The transparency rate is over 92% according to our labratory testing data.
![1700715261506292.jpg [2]T3 500x500.jpg](/upload/image/20231123/1700715261506292.jpg)

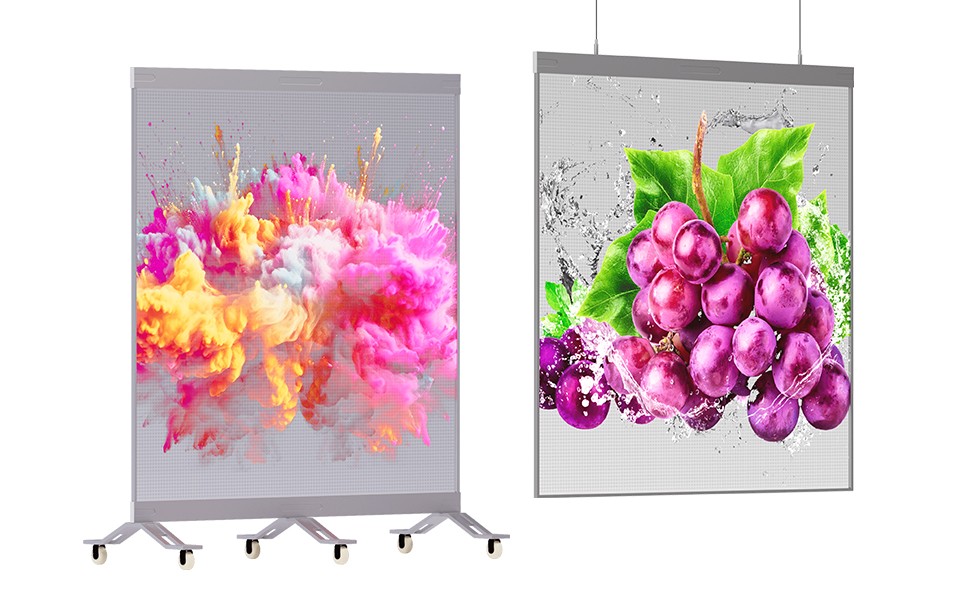

Ultra-slim frame and Ultra-lightweight
Glass wall transparent belongs to the customized LED display cabinet series, the strip length can be customized according to the building structure. The thickness of this clear film LED display is only 5mm, and the weight is about 8KGS per each square meter. Our P30 product can reach over 95% of the transparency. It is very easy for you to maintain the LED screens.
![1700715331635419.jpg [3]T3 500x500.jpg](/upload/image/20231123/1700715331635419.jpg)

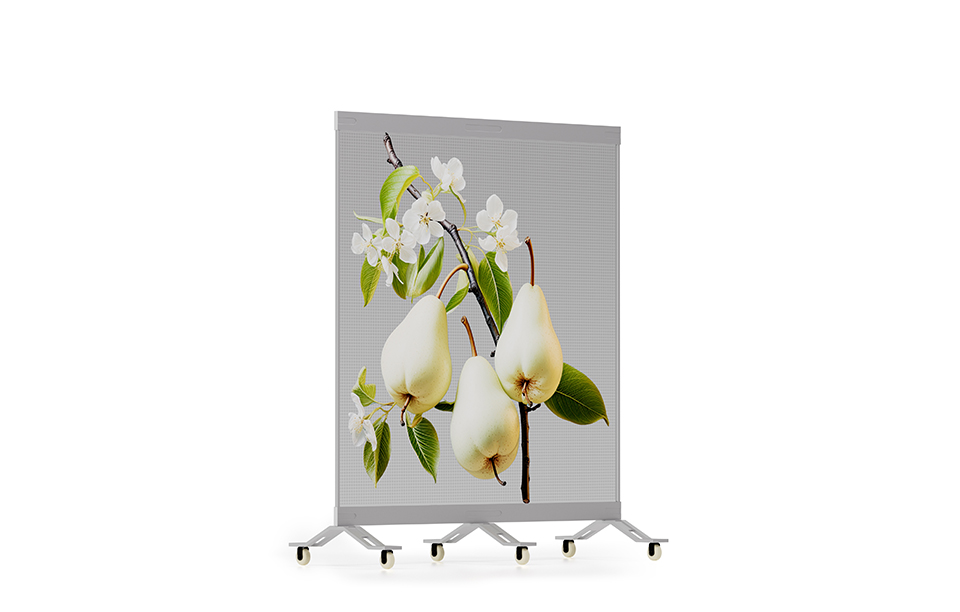

High Brightness over 3000 nits
With the high brightness up to 3000nits. The contents showing on the transparent LED screen is able to be vivid even under strong sunlight. Screen use will no longer be limited to weather conditions. We have pixel pitch 2.5mm, 3.75mm, 6mm, 8mm, 10mm, 20mm and 30mm for this clear film screen series. It is very suitable for shopping malls, 4S stores, clothing stores and exhibitions.
![1700715379323745.jpg [4]T3 500x500.jpg](/upload/image/20231123/1700715379323745.jpg)
Support for Customised Dimension
Glass wall transparent belongs to the customized LED display cabinet series. The strip length can be customized according to the building structure. It is widely applied in building glass, shop windows, car showrooms, etc. As a result, the application is very wide and flexible. It will boost your business sales performance.
Product Parameters
Item | Parameters |
---|---|
Pixel pitch | 3.91mm |
Pixel Density | 65536 |
LED Module Size | 1200x250mm |
LED Module Resolution | 306x64dots |
LED Cabinet Size | 1200x1000mm |
Cabinet Resolution | 306x256dots |
Screen Pixel | 19584dots |
Signal Processing | 12 - 16 bit |
Grey Level | 4096 - 65536 |
Refresh Rate | > 3840Hz |
Scan Mode | Static |
Brightness | >3500 nits |
Viewing Distance | > 4m |
Viewing Angle | 160 degree |
Input Voltage | 12-24V |
Max Consumption | 125W/SQ.M |
Ave Consumption | 400W/SQ.M |
Working Temperature | -20 degree to 45 degree |
Storage Temperature | -40 degree to 60 degree |
IP Rate | IP43 |
Working Humidity | 10% - 60% |
Storage Humidity | 10% - 90% |
Lifespan | 100,000 hours |
Service Type | Front & Rear Service |
LED Lamp | Nationalstar |
IC | ICN2153 |
Control Card | Nova TB1 |
Operation Approach | App/USD/WIFI |
Cabinet Material | 6063 Aluminum |
Total Weight | 1.2KGS with PSU |
Transparency | >95% |
Cabinet Wiring Method | Internal Wiring / Clear back |
Package Method | Mini Road Case |
Road Case Dimension | 60x34x12cm |
Total Weight | 5KGS including the case |
