P3.8 SolarPower LED

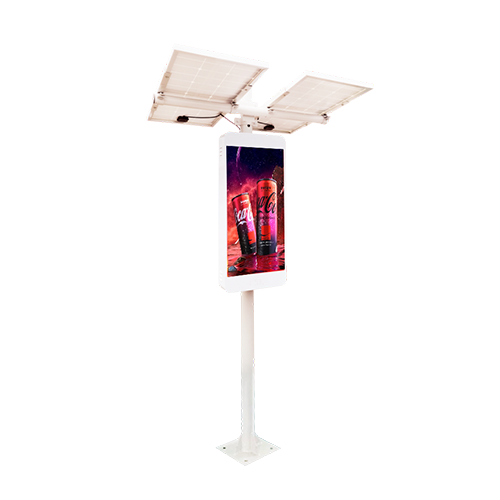

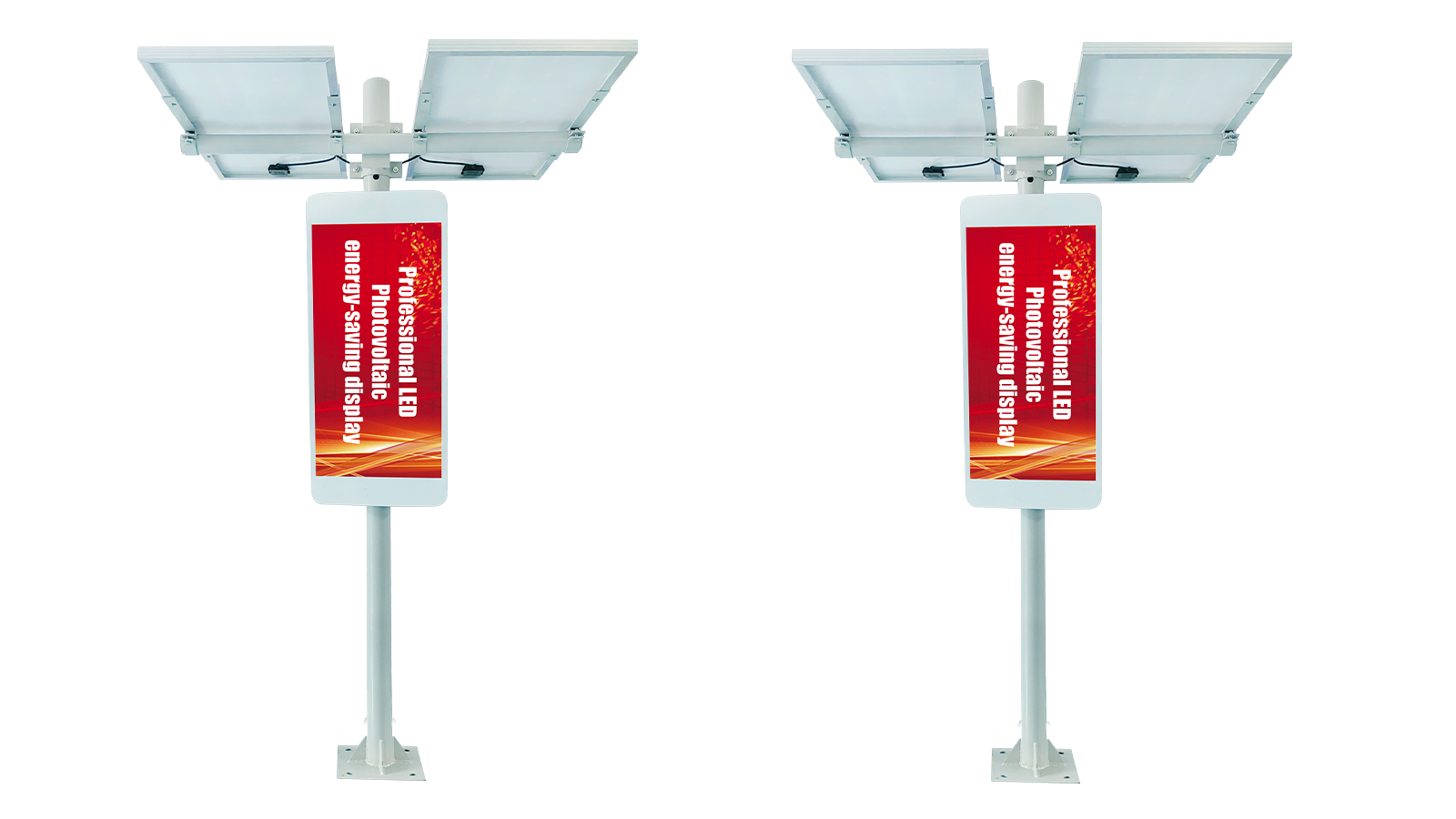

P3.8 Full Colour Energy-Saving Solar Power LED Display

Product introduction |

This is new design of full front service LED modules for outdoor application. It is popular these two years worldwidely.

Cabinet Material:Cast Iron & Single Side Design

Application:It is applicable for commercial center, airport, big conference, city's landmark plaza, exhibition center and other outdoor advertising walls..

[0]SolarPower 960x612.jpg

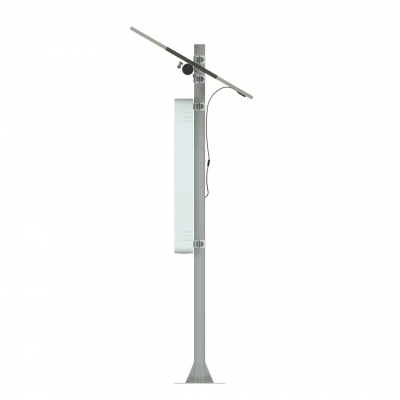

Support Full Front Service

This LED display adopts full sealed cast iron cabinet to protect its inner componets and make the display body to withstand extremely high and low temperature. It can work whole day in outdoor environment. It also support full front service.

[2]SolarPower 500x500.jpg

Energy-saving and Super High Brightness

This cabinet is designed to be slim and light weight, which is only 28.5kgs per cabinet 960x960mm. The common cathode aluminum LED module is designed to meet the requirement of outdoor big wall for full front service purpose. Its brightness can reach over 8,000 nits and the maximum power consumption is less than 375 Watts.

[3]SolarPower 500x500.jpg

Ultra-light weight and thinner

This cabinet is less weight than standard outdoor LED cabinet. Usually, standard outdoor LED cabinet 960x960mm is over 54KGS per square meter, while this new design of slim cabinet is only 30KGS per square meter. In addition, the deepth is thin less than 11cm, but the standard outdoor cabinet is about 14cm deep.

[4]SolarPower 500x500.jpg

Full Waterproof IP65

This cabinet is designed to be seamless on both front side and rear side. Its IP rate is IP65. It can effectively protect the dust and water. It also can unti-UV and anti-erosion. This cabinet can be used in all types of the harsh environment.

Product Parameters

ItemParameters
Pixel pitch3.84mm-3.84mm
Pixel Density67,816 pixels/sq.m
LED Module Size200x200mm
LED Module Resolution52x52 dots
LED TypeSMD1921 Copper Wire LED Lamp
LED Cabinet Dimension440x1000mm
Display Size400x800mm
Signal Processing 15 bit
Grey Level4096 - 65536
Refresh Rate> 3840Hz
Scan Mode1/13
Brightness> 6,000 nits
Viewing Distance> 5m
Horizontal Viewing Angle160 degree
Vertical Viewing Angle160 degree
Input Voltage
100-240V/50-60Hz
Max Consumption80 W/SQ.M
Ave Consumption50 W/SQ.M
Working Temperature-20 degree to 45 degree
Storage Temperature-40 degree to 60 degree
Input VoltageDC5V
IP RateFront IP65, Rear IP54
Working Humidity10% - 90%
Storage Humidity10% - 95%
Lifespan > 100,000 hours
MTBF> 10,000 hours
Service TypeFront Service
LED Lamp
Nationalstar
ICICN2153
Control CardNova / Colorlight / LINSN / Huidu
Weight per cabinet50KGS
Weight per sq.m50KGS
Cabinet MaterialCast Iron Cabinet
Control Mode
4G, WIFI, USB, PC
Support
Audio system by built-in speaker

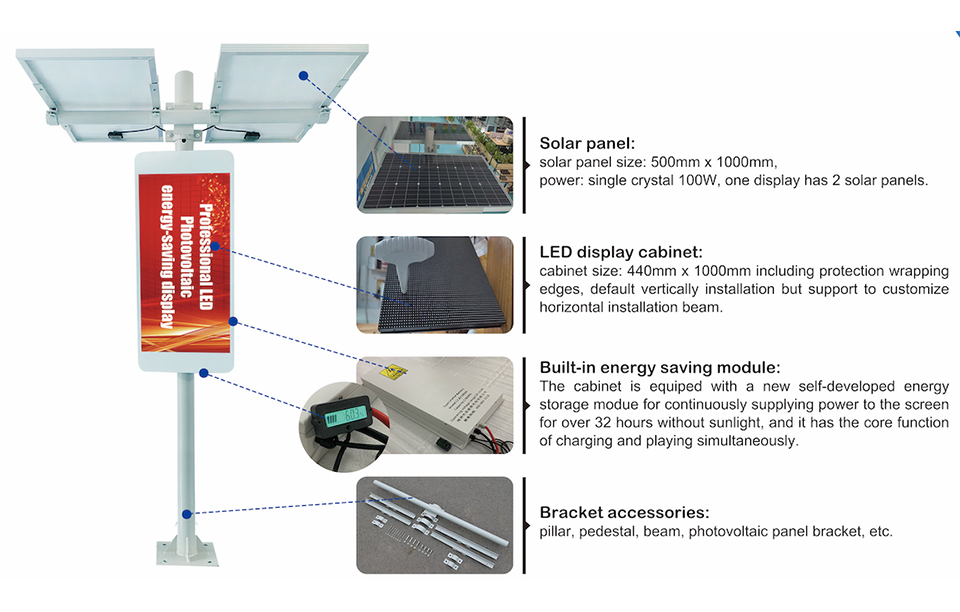

Power Storage Model No.
12.8V 100AH Standard
Outer Box Dimension
690x260x60mm
Power Storage Capability
1280WH
Working Voltage
10-14.6V
Power Charging Time
About 8 - 12 hours
Support Power Charging
By Local 220V to 12V Electricity
Solar Panel Dimension
500x1000mm
Solar Panel Voltage
90W ~ 100W
Qty of Solar Power Panel
2PCS
Frame for Solar Panel1SET
Recycling Lifespan
> 3,000 times
Storage Module Weight
7.92KGS
Maximum Charging Current
100A
Standard Power Current15A
