500H Outdoor 500X500

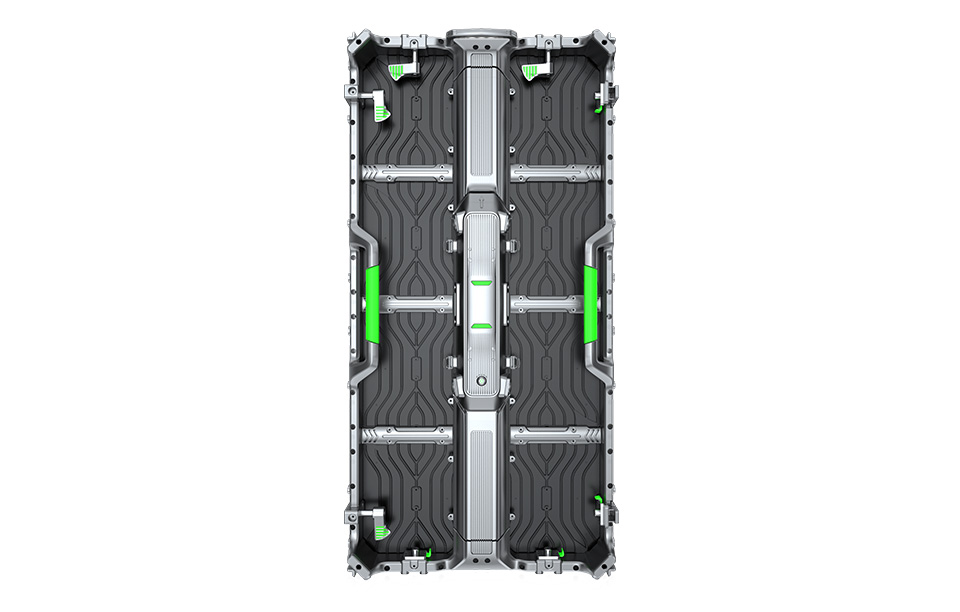

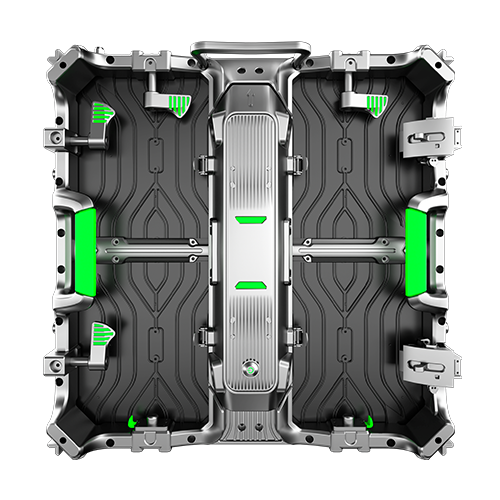

H Series P1.9/P2.6/P2.97/P3.91/P4.81 Outdoor 500X500 Rental LED Cabinet

Product introduction |

High-precision die casting aluminium material cabinet, extremely light weight, easy to assemble. It is durable and versatile for indoor and outdoor environment. This screen can be used for both rental business and fixed installation on the building wall.

Cabinet Material:Cast Iron & Quick Rental Design

Application: High-precision die casting aluminum material cabinet, extremely light weight, easy to assemble. KENSUN 500H Series elevates Kensun's outdoor fine pixel pitch LED display to a whole new level of performance and usability. It features unique and well-designed and CNC processed aluminium finish with cabinet weighs only 5KGS and measures 60mm, along with rear and front cabinet service access and extremely flexible installation to meet different installation environments. Put simplely, 500H is the state-of-the-art outdoor fine pixel pitch LED display and ready to deliver the most stunning visual experience for you.

[1] 500H960x612.jpg

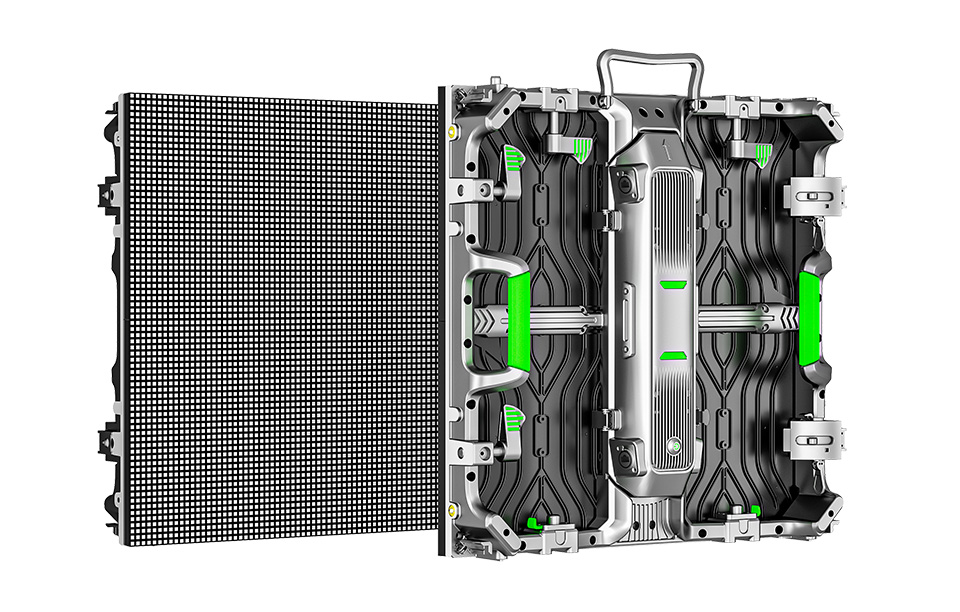

Easy To Install

High-precision die casting aluminum material cabinet, extremely light weight, easy to assemble. 250x250mm module, compatible with P1.9/P2.6/P2.97/P3.91/P4.81;Cabinet size 500mm W*500mm H*50mm D, one cabinet 7.5KG very thin and light, quick install.


[2] 500H960x612.jpg

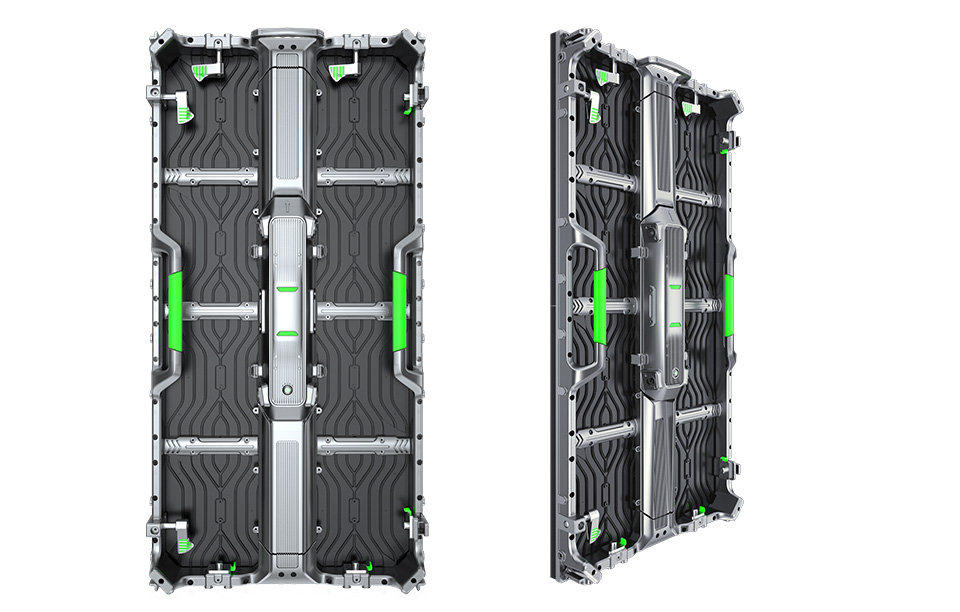

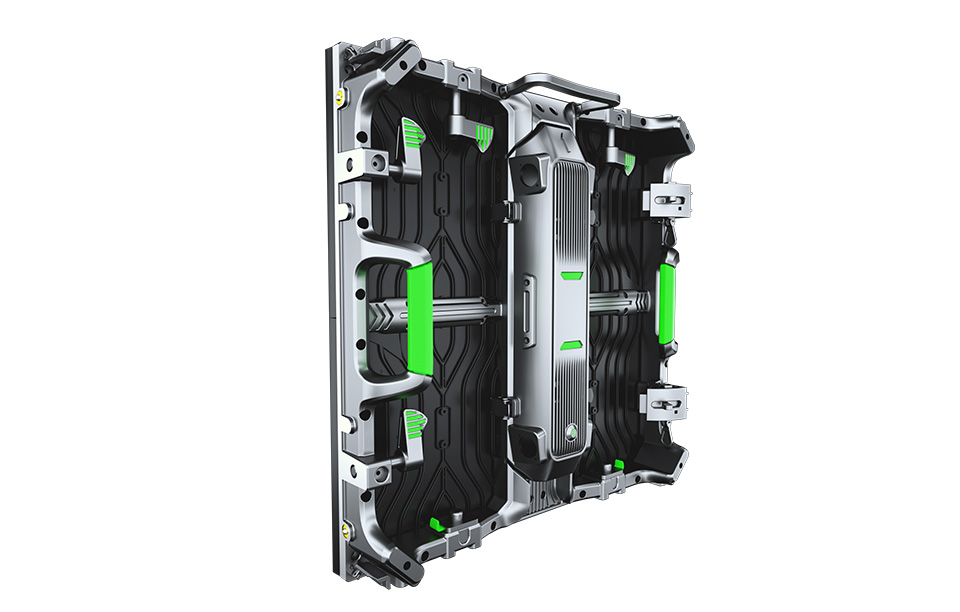

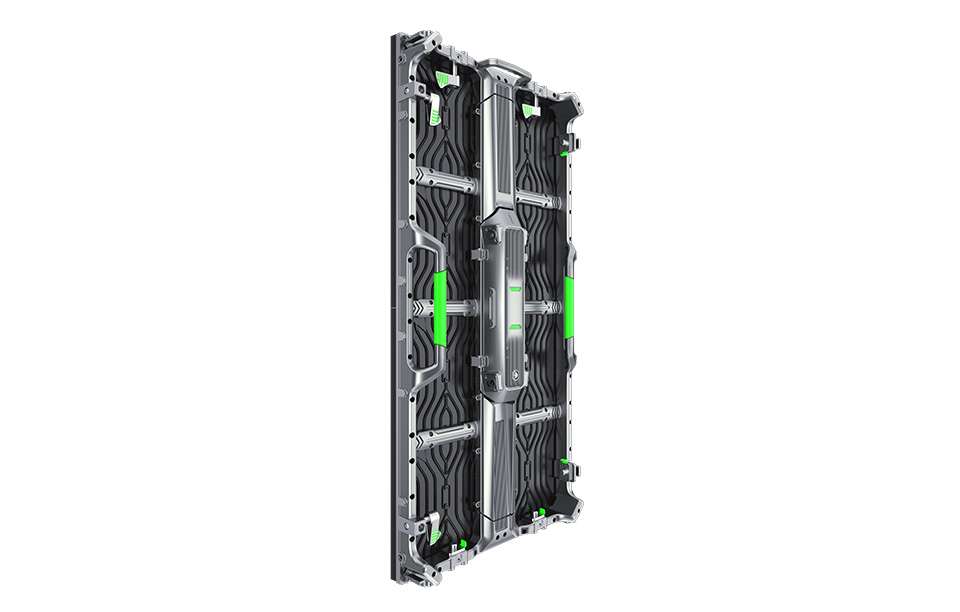

Light and Thin

H Series featuring a brand-new architecture and anti-erosion material, but weighs in at just 6KGS and measuring 62mm thick per cabinet. Thin enough to save your installation space and light enough to manage installations and maintenance efficiently and quickly.


[3] 500H960x612.jpg

IP65 Waterproof

With an ingress protection rating up to IP65, 500H Series range is extremely versatile and suitable for diverse environments and weather conditions. No full display surround framework required unless specified.


[4] 500H960x612.jpg

Whisper-quiet Operation

Fan-less design, excellent power management controls heat and power consumption, and the high thermal conductivity aluminum cabinet cooperates with heat dissipation to provide long-term use of the display while being quiet.


[5] 500H960x612.jpg

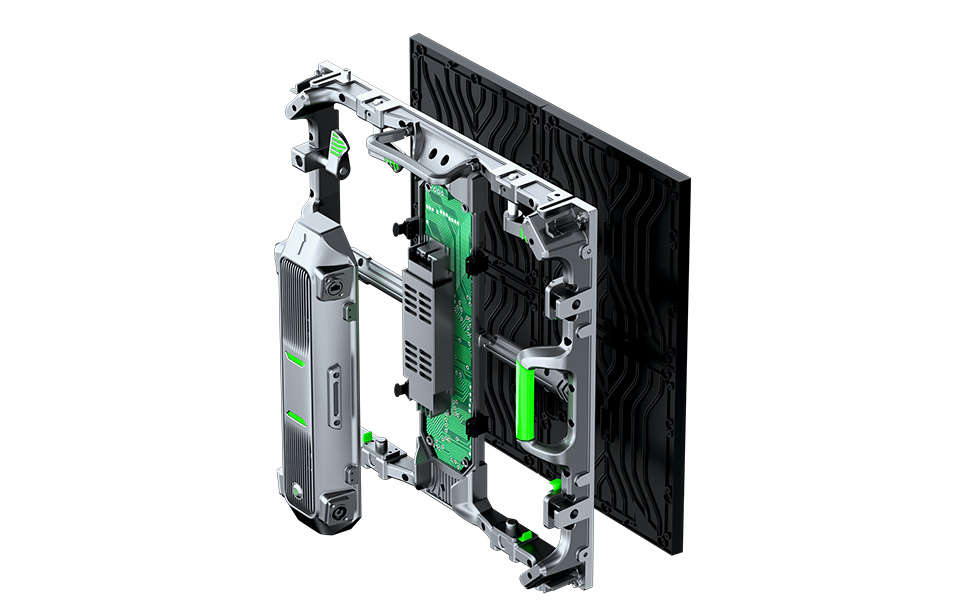

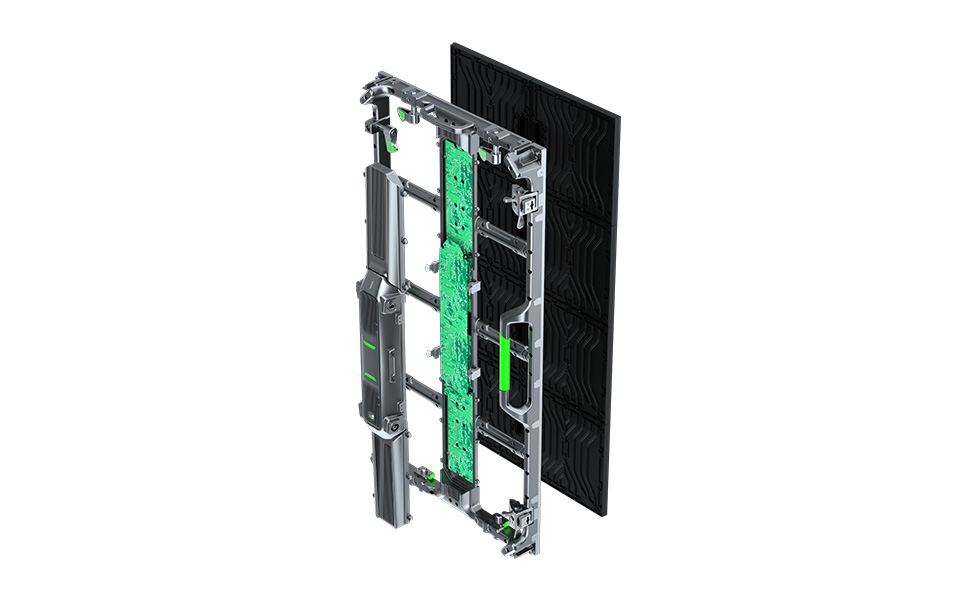

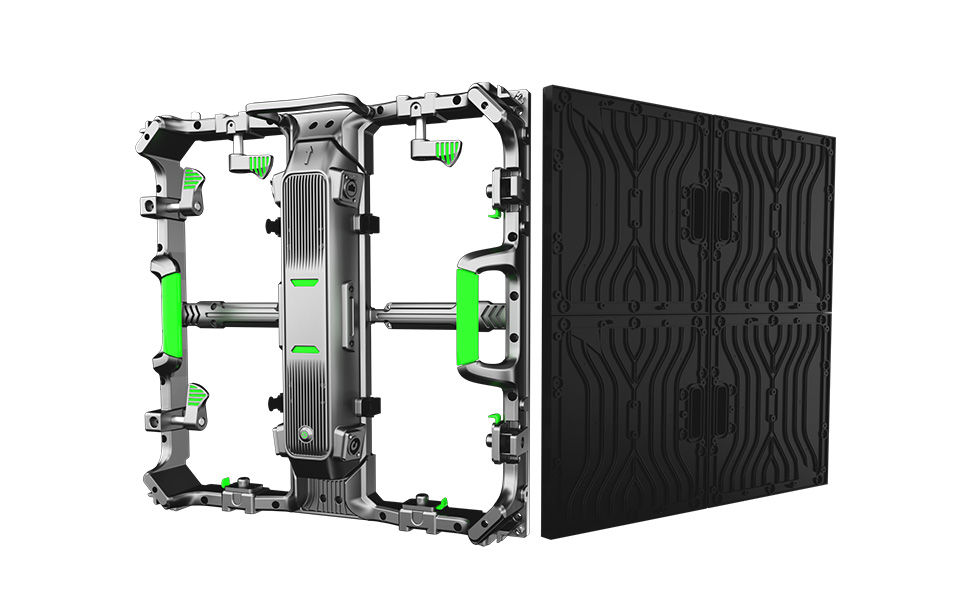

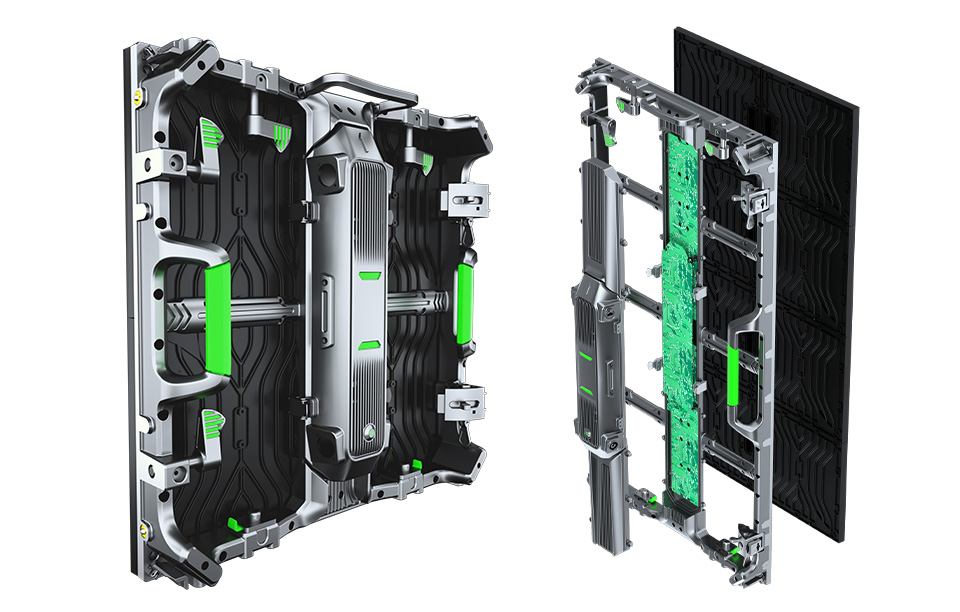

Front and Rear Access

Cabinet is magnetically connected with module and accessible and serviceable both from front and rear, no need to remove any screw.

By using zero screw on the surface of module, it reduces light reflection and ensures perfect visual experience.


[6] 500H960x612.jpg

Front Accessble Power Box

As cabinet can be accessed either from rear and front, power box is also designed to be accessible from front or rear to maximumly faciliatate maintenance and installation space.


[7] 500H960x612.jpg

Foldable Protective Hoods

500H series cabinet is designed with foldable protective hood on for corners, it protects cabinets from any accident or improper handle during production and transportation.


[8] 500H960x612.jpg

Sophisticated Cabinet to cabinet position system

500H series cabinet is equipped with industry-leading cabinet to cabinet position system, adjustable pins and locks on each side help to facilitate installation and ensure precise and perfect cabinet flatness so as to achieve the integrated visual experience of no patchwork seam and no bright line on screen.


[8]K2 960x612.jpg

Adjustable Seamless Curve

Unlike the traditional clumsy way to make a curve LED display, every 500H series cabinet is designed with a mechanical system which can adjust curve between each 2 cabinet from -5 degree to 5 degree.

It helps to deliver stunning, curve visual experience by just rotating knob on each cabinet, easy and fast.


[9] 500H960x612.jpg

True-to-life Image Quality

With brightness up to 5500 nits and refresh rate up to 3840Hz, 500H series delivers true-to-life image reproduction with every pixel performing perfectly and as intended.


[10]K2 960x612.jpg

Flexible Installation Ways

Thanks to the user-friendly cabinet design, 500H series display can be either hung from a truss structure, fixed on an installation system, or mounted onto a wall, making the installation more flexbile.


Product Parameters

ItemParameters
Pixel pitch2.6mm
LED TypeSMD1921 1R1G1B
LED Module Size250 x 250mm
LED Module Resolution96x96 dots
LED Cabinet Size500x500x57mm
Cabinet Resolution192x192 dots
Screen Resolution147,456 dots per square meter
Signal Processing 12 - 16 bit
Grey Level4096 - 65536
Refresh Rate> 3840Hz
Scan Mode1/24
Brightness>5500 nits
Viewing Distance>2.6m
Viewing Angle160 degree
Input Voltage
110-240V/50-60Hz
Max Consumption750W/SQ.M
Ave Consumption225W/SQ.M
Working Temperature-20 degree to 45 degree
Storage Temperature-40 degree to 60 degree
IP RateIP65 Front/Rear
Working Humidity10% - 60%
Storage Humidity10% - 90%
Lifespan100,000 hours
Service TypeFront & Rear Service
LED Lamp
Nationalstar Copper Wire
ICICN2153
Control CardNova / Colorlight
Operation ApproachWindows


Video Playback
