640X480mm Indoor Cabinet
P1.53 640x480mm Indoor Front Service LED Screen

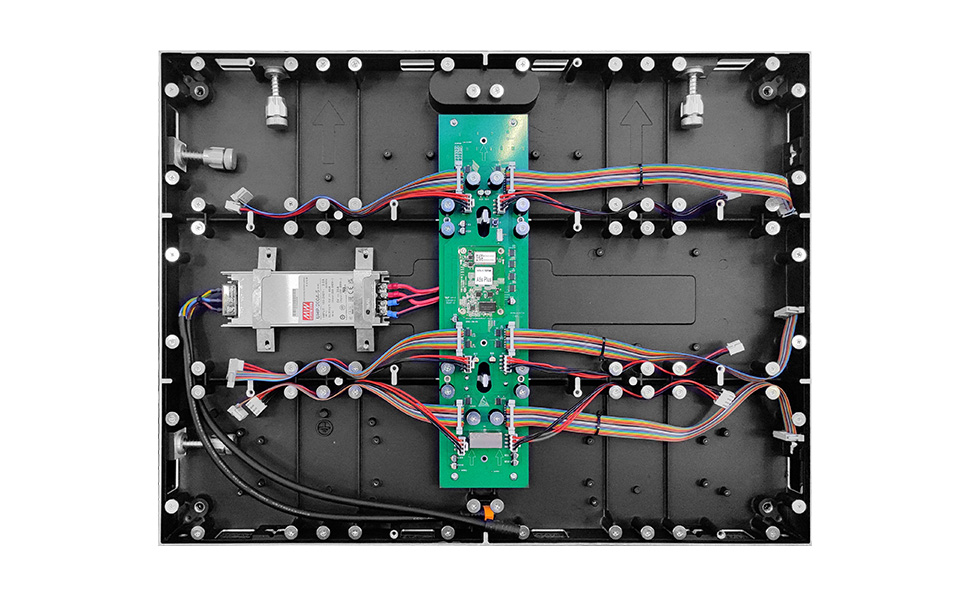

Product introduction |
Ultra thin, ultra light weight with 640X480mm and 7kg weight , small cabinet to handle easily, portable and convenient to installation, assembly and disassembly.
Cabinet Material：Cast Iron&Single Side Design
Application：Die-cast aluminum material made with the features of high precise, high hardness and high strength.
![[0]64x48cm 960x612.jpg](/upload/image/20230805/1691200868579574.jpg "1691200868579574.jpg")

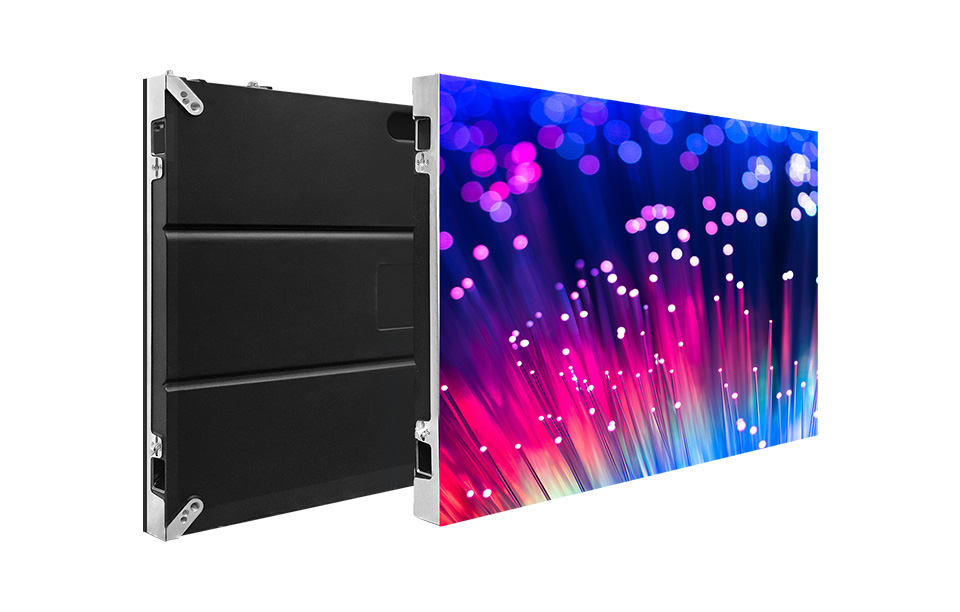

Product Information
LED display module panel dimension is 320x160mm, the module use unique design with Black SMD2121 LED lamp Encapsulation, High quality with stable performance.
high refresh rate up to 3840hz to realize high contrast, high definition with uniformity color effect. the display is perfect with clear image and visual present.
![[1]64x48cm 960x612.jpg](/upload/image/20230805/1691200963930601.jpg "1691200963930601.jpg")
Strong Visual Impact
Pure black module mask and SMD1212 LED to make the LED display with higher contrast rate. 14 bit color depth to make the LED display with nature color and visual impact, giving viewer immersive feeling.high flatness, seamless connection using fast lock design, no gaps.
![[2]64x48cm 960x612.jpg](/upload/image/20230805/1691201137695091.jpg "1691201137695091.jpg")

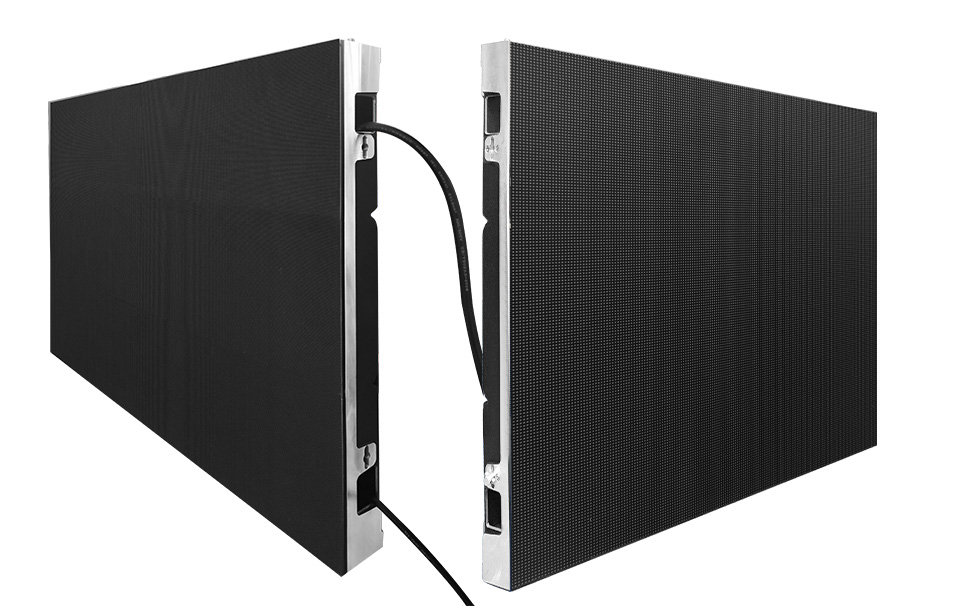

Seamless Joint
LED display cabinet can be joint seamlessly from the horizontal and vertical orientation.
This effectively reduces the interface of the joint gaps so as to reach a perfect displaying picture.
![[4]64x48cm 960x612.jpg](/upload/image/20230805/1691201406292444.jpg "1691201406292444.jpg")

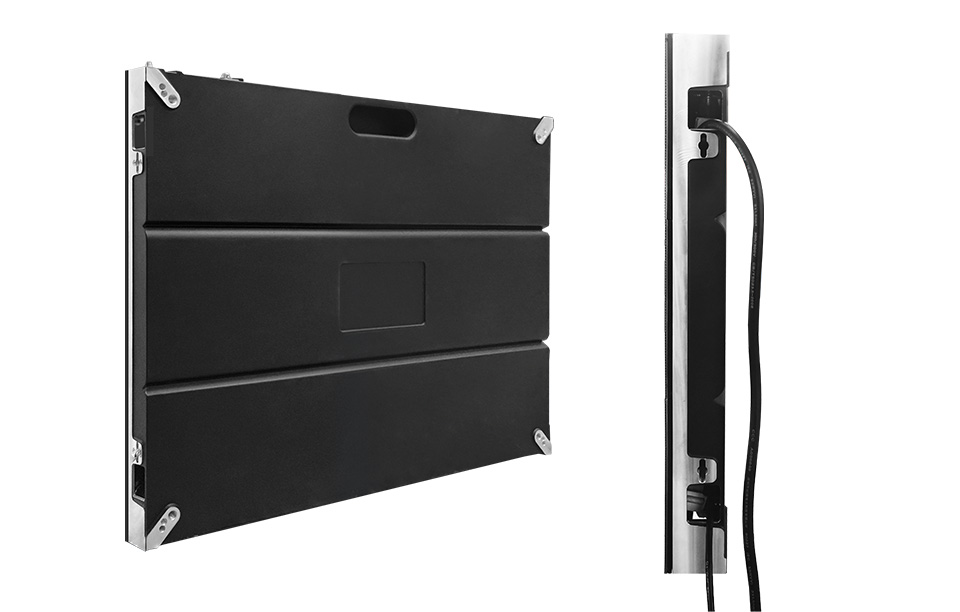

View from short distance
This cabinet is made by die-casting aluminium CNC design, so the heat will be released quickly by cabinet. The pixel pitch is very small, then people can view the LED screen from very close distance.
Product Parameters
| Item | Parameters |
|---|---|
| Pixel pitch | 1.53mm |
| LED Type | SMD1212 |
| LED Module Size | 320x160x18mm |
| LED Cabinet Size | 640x480x74mm |
| LED Module Resolution | 208x104dots |
| LED Cabinet Resolution | 416x312dots |
| Density per SQ.M | 422,500 dots/SQ.M |
| Cabinet Weight | 7 kgs |
| Signal Processing | 14 bit |
| Grey Level | 4096 - 65536 |
| Refresh Rate | > 3840Hz |
| Scan Mode | 1/52 |
| Brightness | 600 - 900 nits |
| Viewing Distance | > 1.53m |
| Contrast Ratio | 5000:1 |
| Viewing Angle | 160 degree |
| Input Voltage | 100-300V/50-60Hz |
| Max Consumption | < 600 W/SQ.M |
| Ave Consumption | 200W/SQ.M |
| Working Temperature | -20 degree to 45 degree |
| Storage Temperature | -40 degree to 60 degree |
| Input Voltage | DC5V |
| IP Rate | IP45 |
| Working Humidity | 10% - 60% |
| Storage Humidity | 10% - 90% |
| Lifespan | > 100,000 hours |
| MTBF | > 10,000 hours |
| Service Type | Front Service & Rear Service |
| LED Lamp | Nationalstar |
| IC | ICN2163 |
| Control Card | Nova / Colorlight / LINSN / Huidu |
| Receive Card | A5s Plus |
