P2.5 HB Outdoor LED MODULE
P2.5 HB Outdoor LED MODULE
Product introduction |
Rear Access LED screen is widely used for advertising boards. It has a good waterproof rate IP65 and 2 years of factory warranty. It is easy to maintain by open the front side of cabinet.
Cabinet Material：Cast Iron & Single Side Design
Application：It can be used for indoor and outdoor LED video wall. This is the traditional design of full front service LED display, and it is very cost-effective comparing to modern tool front service modules.
Product Size

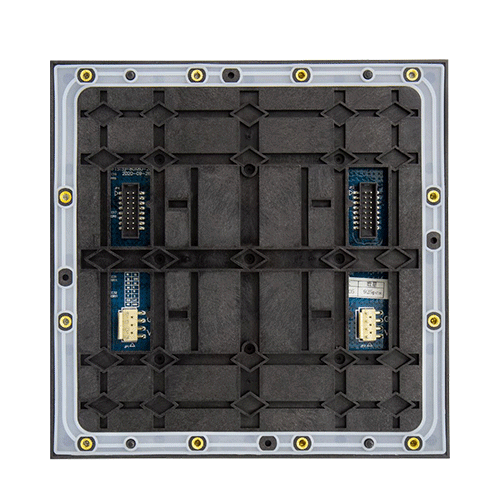

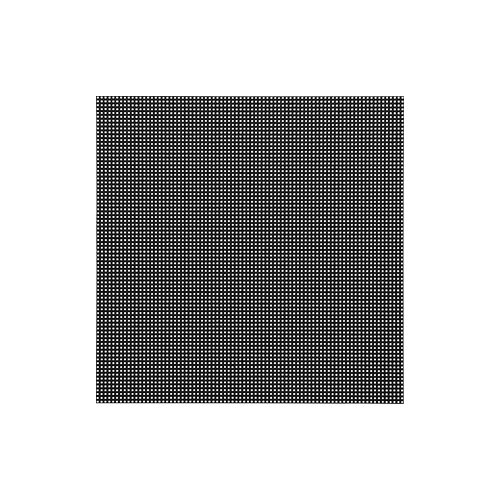

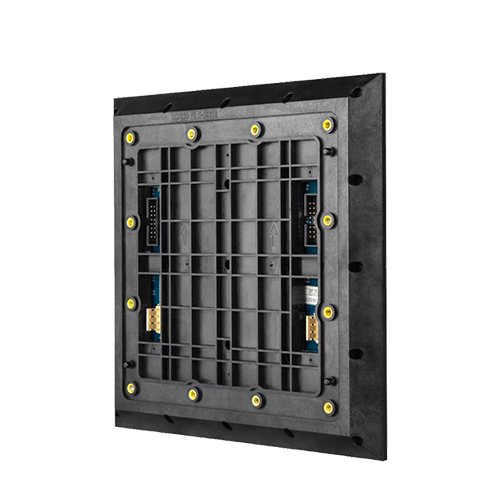

Module size:200x200mm
Compatible pitch: P2.5.

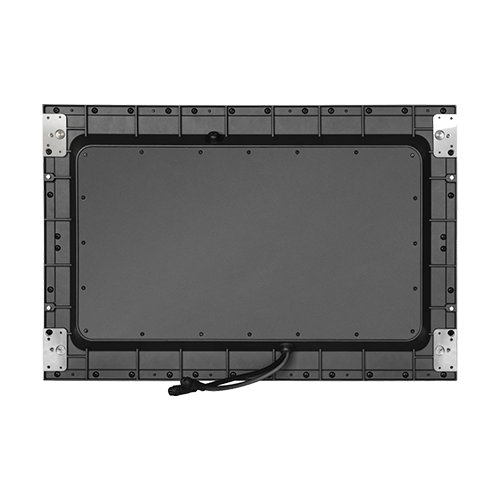

Cabinet size:200x200mm, 400x400mm, 600x600mm and 800x800mm.
Saving Space And Cost
Floating connection design between module and cabinet, module could be fine-tuned. support double backup of power supply and control system.

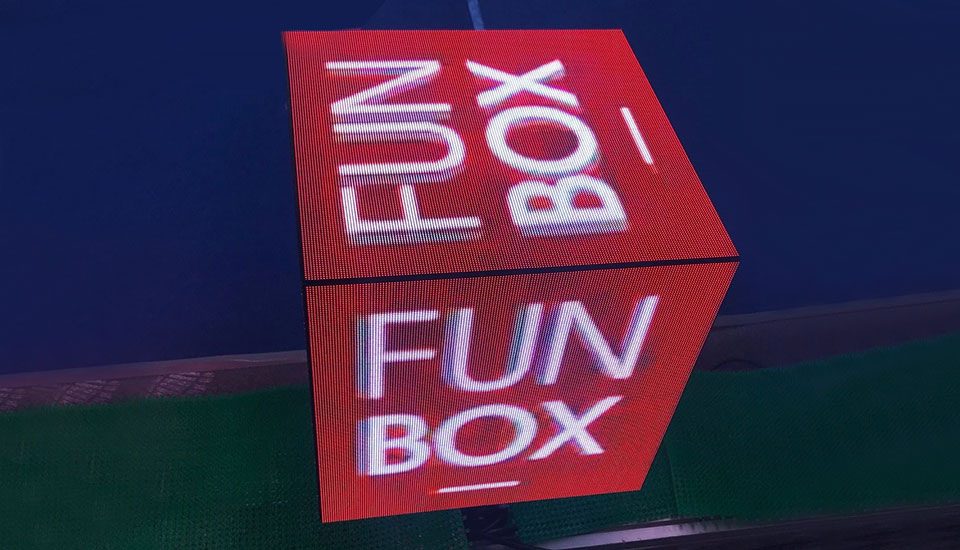

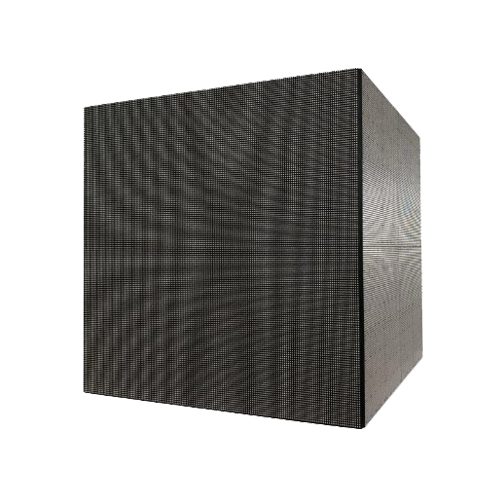

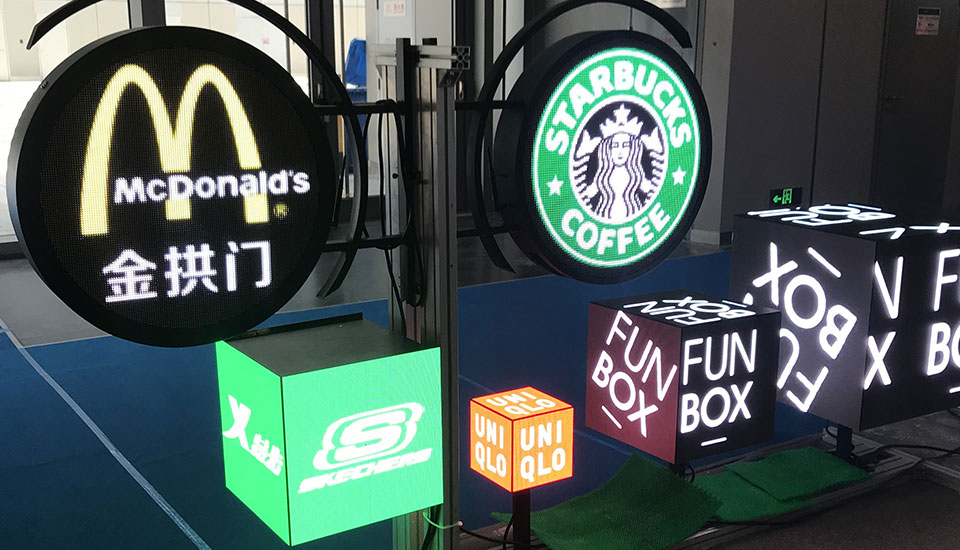

With 5 sides displaying conetnets at the same time, it provides more creative display possibilities.
Product Parameters
| Item | Parameters |
|---|---|
| Pixel pitch | 2.5mm |
| LED Type | SMD1415 |
| LED Module Size | 200 x 200mm |
| LED Module Resolution | 80 x 80 dots |
| LED Cabinet Size | 600x400x50mm |
| Cabinet Resolution | 240x160 dots |
| Signal Processing | 12 - 16 bit |
| Grey Level | 4096 - 65536 |
| Refresh Rate | > 3840Hz |
| Scan Mode | 1/20 |
| Brightness | >6500 nits |
| Viewing Distance | > 3.8m |
| Viewing Angle | 120 degree |
| Input Voltage | 100-240V/50-60Hz |
| Max Consumption | 750W/SQ.M |
| Ave Consumption | 225W/SQ.M |
| Working Temperature | -20 degree to 45 degree |
| Storage Temperature | -40 degree to 60 degree |
| IP Rate | IP65 |
| Working Humidity | 10% - 60% |
| Storage Humidity | 10% - 90% |
| Lifespan | 100,000 hours |
| Service Type | Front & Rear Service |
| LED Lamp | Nationalstar |
| IC | ICN2153 |
| Control Card | Nova / Colorlight |
