P2.5 Fine Pitch Outdoor LED

P2.5 Fine Pitch Outdoor LED

Product introduction |

Suitable for all kinds of scenarios,can be customized Suitable for all Suitable for all kinds of scenarios.

Cabinet Material: This type of outdoor fine pitch LED display is made by Nationalstar high quality LED lamp.

Application:Those LED products were widely used in both indoor and outdoor places like hall, hotel, exhibition room, public square, symbols,building and TV stage background and etc.

P2 outdoor 0 960x612.jpg

Outdoor IP67 Rated

This type of outdoor flexible LED module can be put inside of the water, and its waterproof rate is IP67.

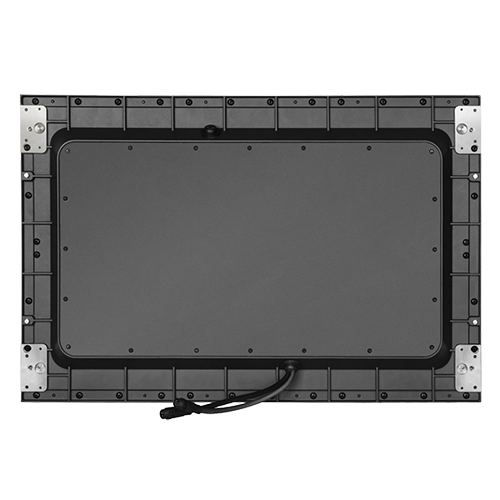

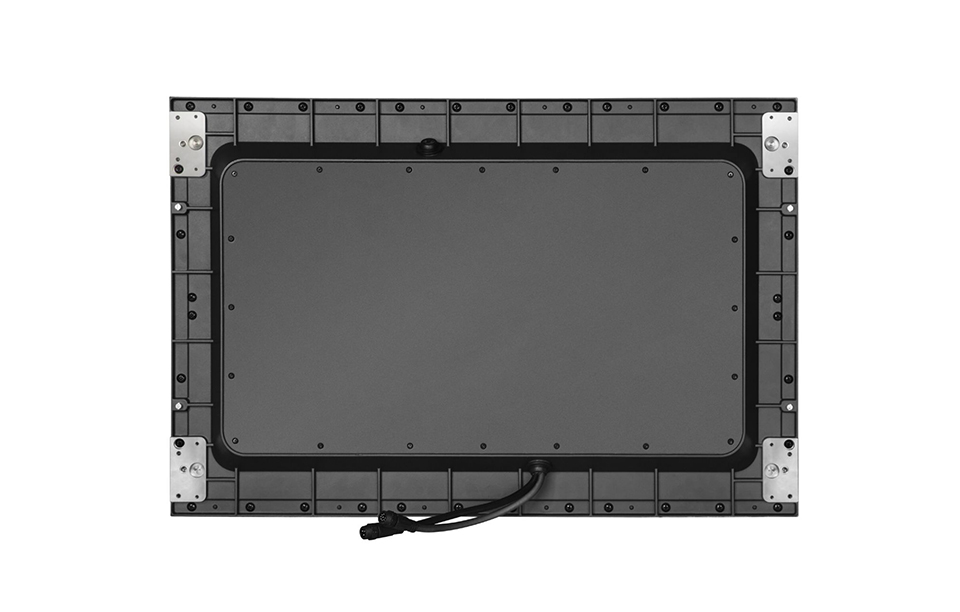

cabinet back 960x612.jpg

Ultra-thin LED Cabinet

This type of outdoor fine pitch LED display is very thin and the material is die-casting aluminum cabinet. It is pretty easy to install and maitain.

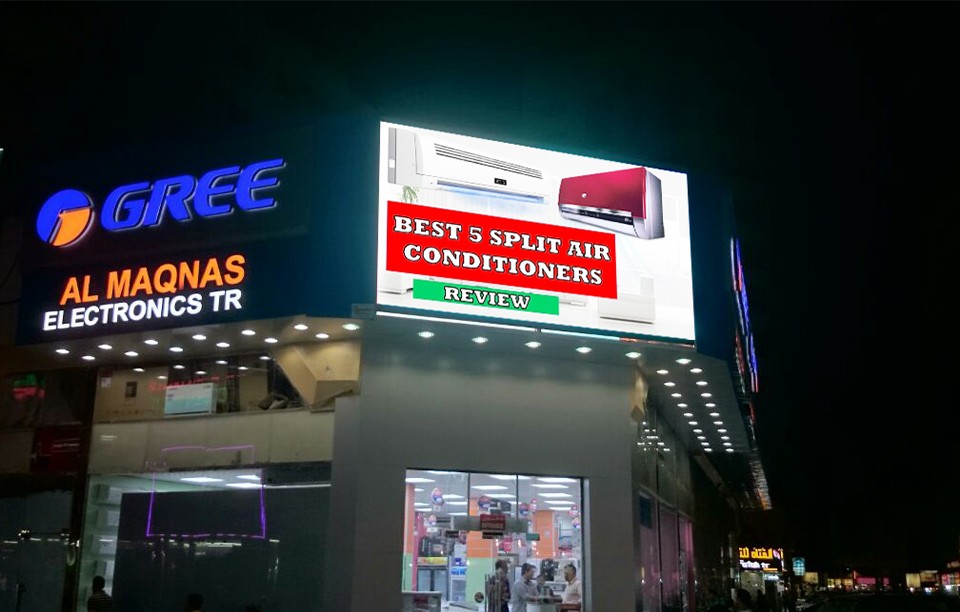

outdoor night 960x612.jpg

Ultra-high Refresh Rate > 3840Hz

It can support extremely high level of refresh rate over 3840Hz with high contrast ratio.

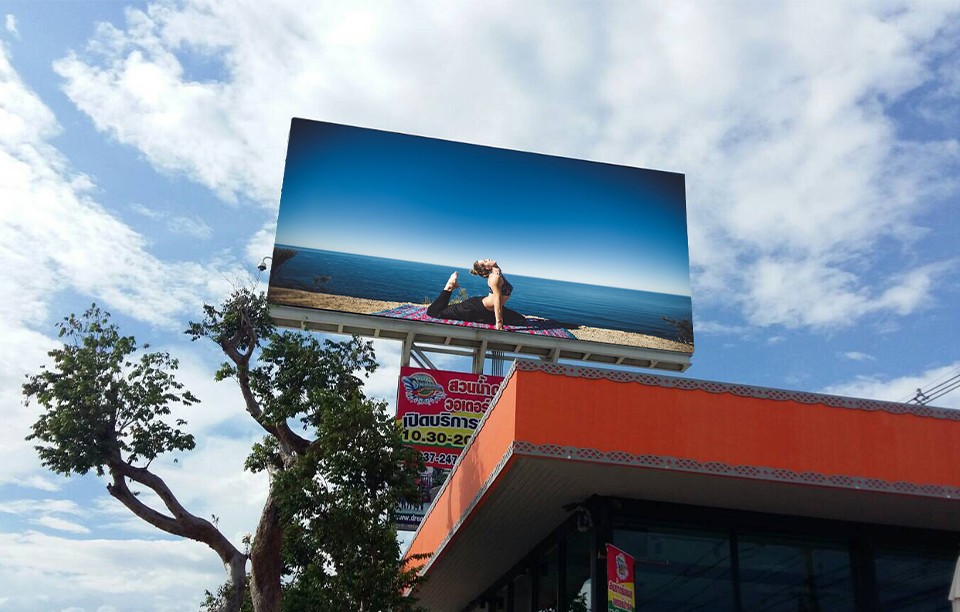

roof top 960x612.jpg

Ultra-high brightness >7,000 nits

The brightness is ultra-high over 7,000 nits with high protection and high stability. It is suitable for installation and use in a variety of environments.

Product Parameters

Pixel pitch2.5mm
LED TypeSMD1415
Pixel Density160,000 dots
LED Module Size200 x 200mm
LED Module Resolution80 x 80 dots
LED Cabinet Size600x400x50mm
Cabinet Resolution240x160 dots
Signal Processing 12 - 16 bit
Grey Level4096 - 65536
Refresh Rate> 3840Hz
Scan Mode1/20
Brightness>6,500 nits
Viewing Distance> 3.8m
Viewing Angle120 degree
Input Voltage
Max Consumption750W/SQ.M
Ave Consumption225W/SQ.M
Working Temperature-20 degree to 45 degree
Storage Temperature-40 degree to 60 degree
IP RateIP65
Working Humidity10% - 60%
Storage Humidity10% - 90%
Lifespan100,000 hours
Service TypeFront & Rear Service
LED Lamp
Control CardNova / Colorlight
Stock AvailabilityYES
Cabinet Size Option200x200mm, 400x400mm, 600x600mm, 800x800m
