Transparent LED Poster

Transparent LED Poster

Product introduction |

Transparent car back window LED display is an in-vehicle Portable LED Sign. Comparing to traditional LED screens, the transparent LED screen is more creative in displaying content. As the vehicle moving on the road, the advertising will be appreciated potentially. It won't block out light or the view on both sides. This allows the driver to see tra.

Cabinet Material:To avoid collisions from the outside environment, KENSUN designed an acrylic surface to protect the transparent car back window LED display.The energy-saving driven IC integrated to achieve lower power consumption.

Application:It is widely applied in building glass, shop windows, car showrooms, etc.

poster glass 3.jpg

High Transparency > 85%

Around 85%. The high transparency will not block out light or view on both interior and exterior sides. It will not affect the driver's observation of the traffic behind the car.

poster glass 4.jpg

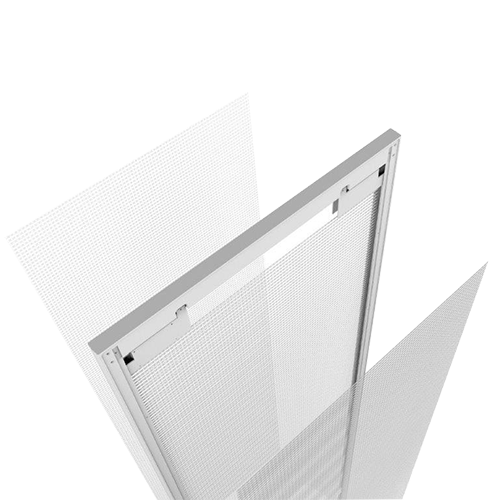

Ultra-slim frame and Ultra-lightweight

Glass wall transparent belongs to the customized LED display cabinet series, the strip length can be customized according to the building structure.

poster glass 5.jpg

High Brightness > 5,000 nits

With the high brightness up to 5000nits. The contents showing on the transparent LED screen is able to be vivid even under strong sunlight. Screen use will no longer be limited to weather conditions.

Product Parameters

Pixel pitch2.6-5.2mm
LED TypeSMD1415 1R1G1B
LED Module Size250 x 250mm
LED Module Resolution96 x 96 dots
LED Cabinet Size750x250x30mm
Cabinet Resolution144 x 96 dots
Screen Pixel13,824 dots
Signal Processing 12 - 16 bit
Grey Level4096 - 65536
Refresh Rate> 2880Hz
Scan Mode1/11
Brightness>5,000 nits
Viewing Distance> 2.6m
Viewing Angle160 degree
Input Voltage
Max Consumption750W/SQ.M
Ave Consumption225W/SQ.M
Working Temperature-20 degree to 45 degree
Storage Temperature-40 degree to 60 degree
IP RateIP43
Working Humidity10% - 60%
Storage Humidity10% - 90%
Lifespan100,000 hours
Service TypeFront & Rear Service
LED Lamp
Control CardNova TB1
Operation ApproachApp/USD/WIFI
Carton Package93x24x11cm
Total Weight7KGS
