P4 320X160 Module
P4 320X160 Outdoor Display Module
Product introduction |
This is traditional design of outdoor LED display module. It has consistently bright and uniform picture quality, and it is reliable outdoor LED signage with ongoing performance. This is dramatically cost-efficient design with convenient installation and maintenance.

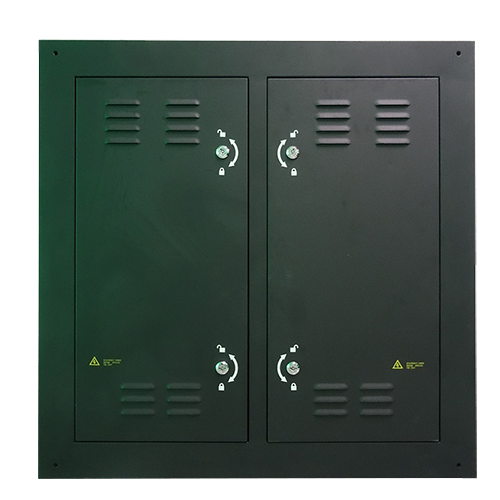

Cabinet Material：Cast Iron & Single Side Design

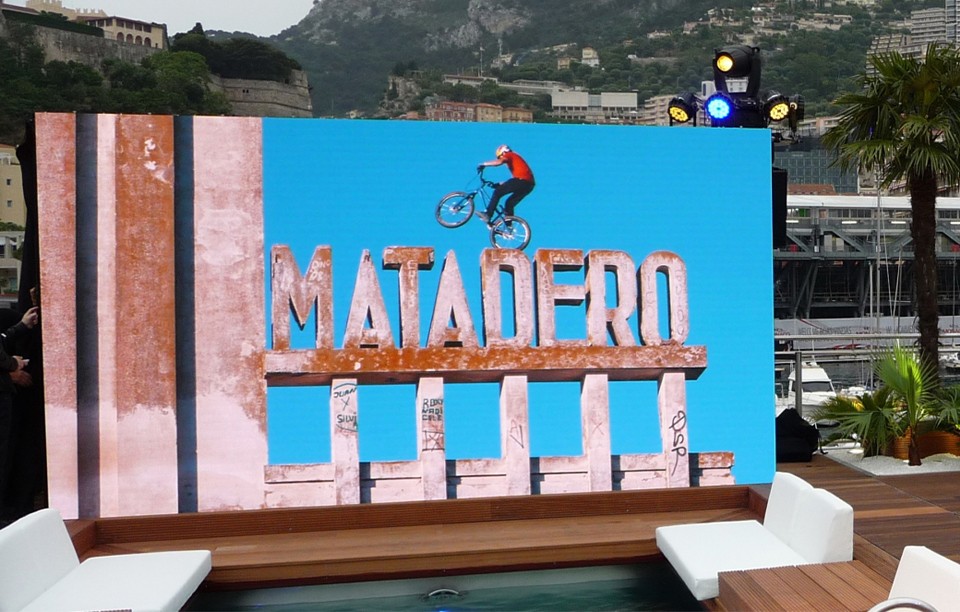

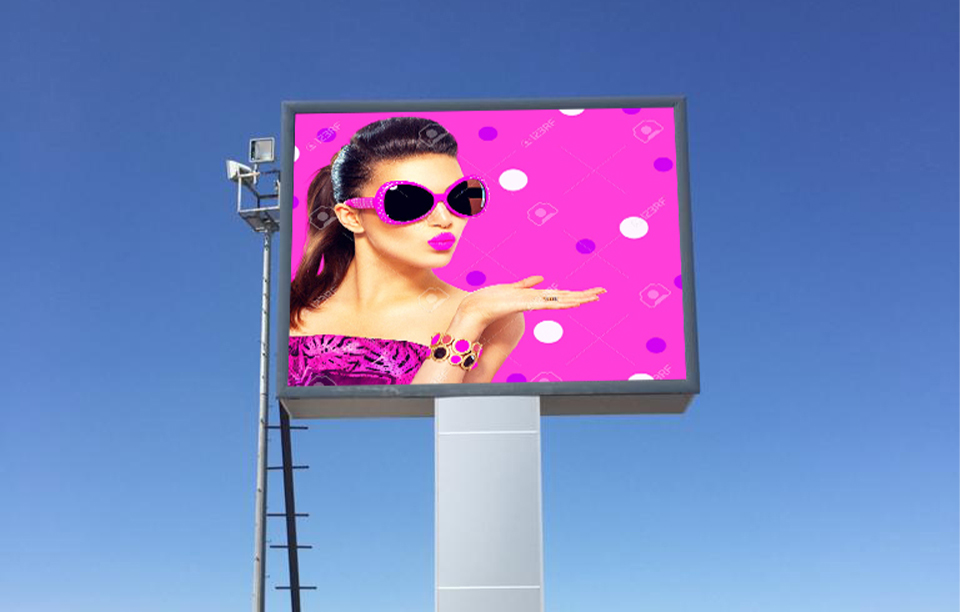

Application：The traditional outdoor LED screen is a state-of-the-art LED signage that complements any business with vibrant content presentation, along with an enhanced, outdoor-friendly design that saves cost and time during installation and operation. It is the ideal display to deliver captivating and meaningful content in any outdoor environment.
Durable, Reliable Outdoor Alternative
It is subject to environmental tests including exposure to high temperatures, a weather-enacting salt corrosion chamber and package vibration and drop testing. The display also has corrosion-proof painting and anti-UV, deformation-proof housing that extends its shelf life.
Environmental Stable Design
It undergoes strict testing to ensure ongoing performance when exposed to water, dust and outdoor elements. Ingress Protection (IP) validation confirms defense for the front IP65 and back (IP67) of the display, ensuring continuous operation regardless of the environment.
Product Parameters
| Item | P4 |
| Pixel Pitch | 4mm |
| Pixel Configuration | SMD1921 |
| Module Size | 320x160mm |
| Best viewing distance | >4m |
| Brightness | 5000nit |
| Refresh Rate | 1920Hz |
| Grey Scale | 65536 level |
| Viewing Angle(H/V) | 140/120° |
| IP Rating | 140/120° |
| Power Consumption (Max./Avg.) | 1000/350 W/sq.m. |
| Panel Dimensions (W*H*D) | 1024*1024*170mm |
| Panel Weight | 52kg |
| Input Voltage | 110~240V |
