K1 DOOH 500x500

K1 P3.91 500*500mm Outdoor LED Display

Product introduction |

For outdoor fixed installation or rental application; SMD LED Display; Weatherproof to IP65/65 standards; high resolution images and long lifetime; Easily configured for various size and aspect ratios; Wide viewing angle;

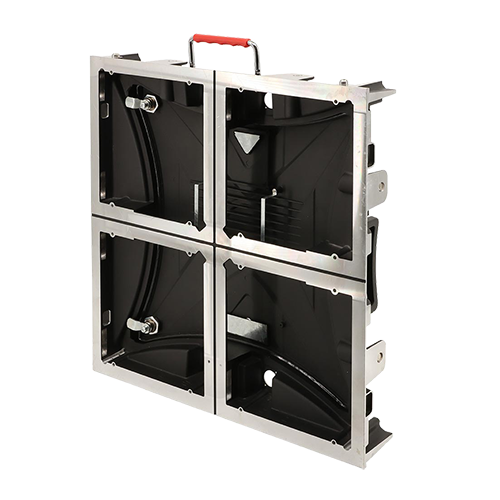

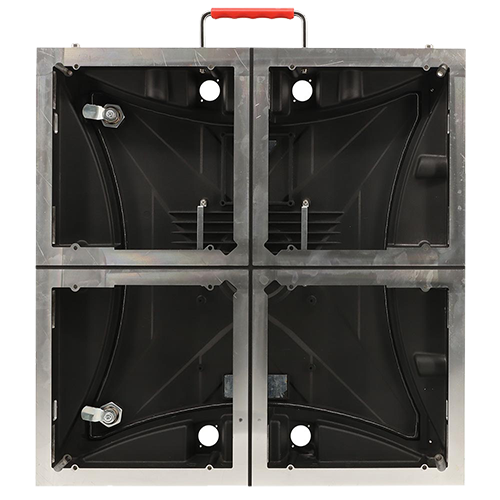

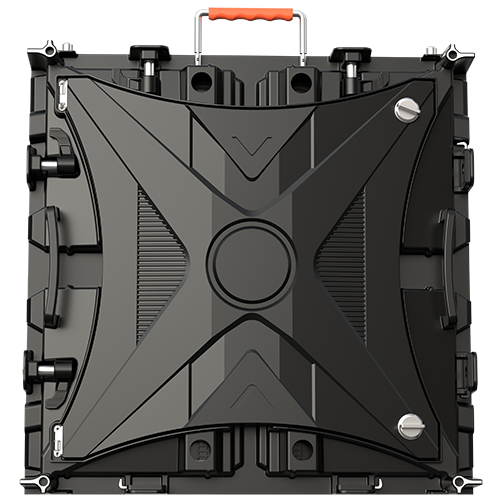

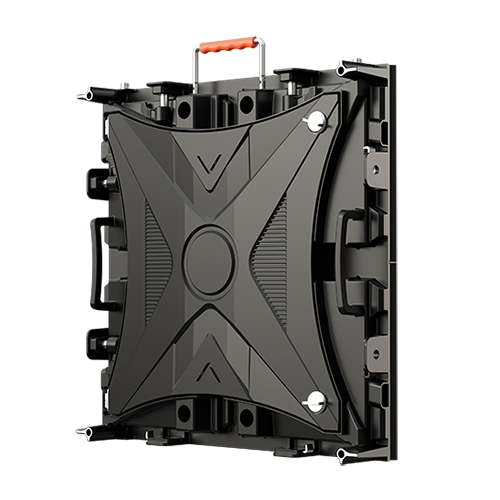

Cabinet Material:Cast Iron & Double Sided Design

Application:This type of double sided LED display can be used for advertising media on the street because it has ultra-high brightness over 7,500 nits per square meter and full waterproof protection IP67.


Product Features

Seamless splicing, could be adjusted, more easy to maintain.low noise, low consumption, ensure the long lifespan. die-casting aluminum panel of great dissipation could save your electricity cost substantially.high quality LED chip,wide viewing angle,good flatness,anti-static,high brightness, low attenuation,good stability.

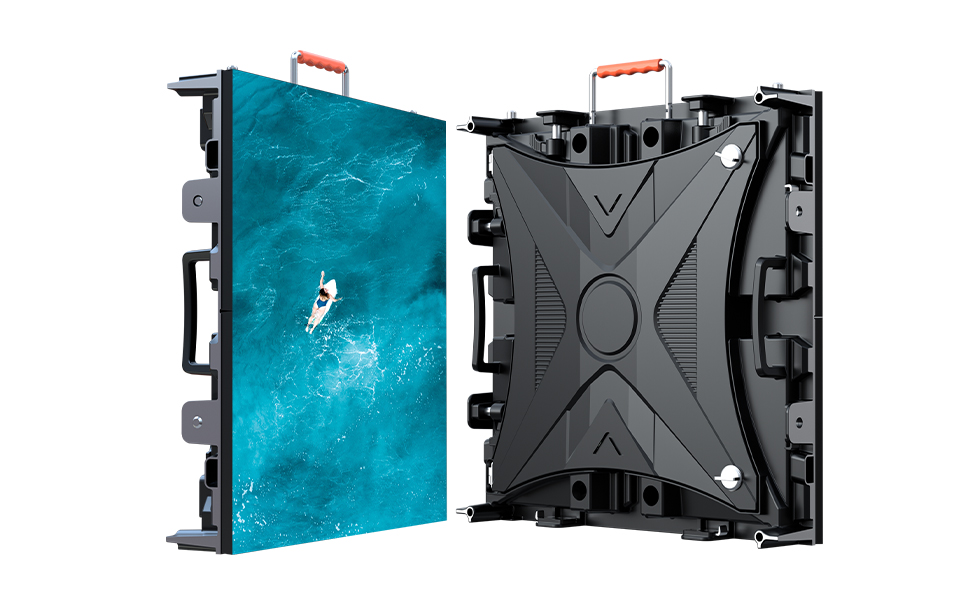

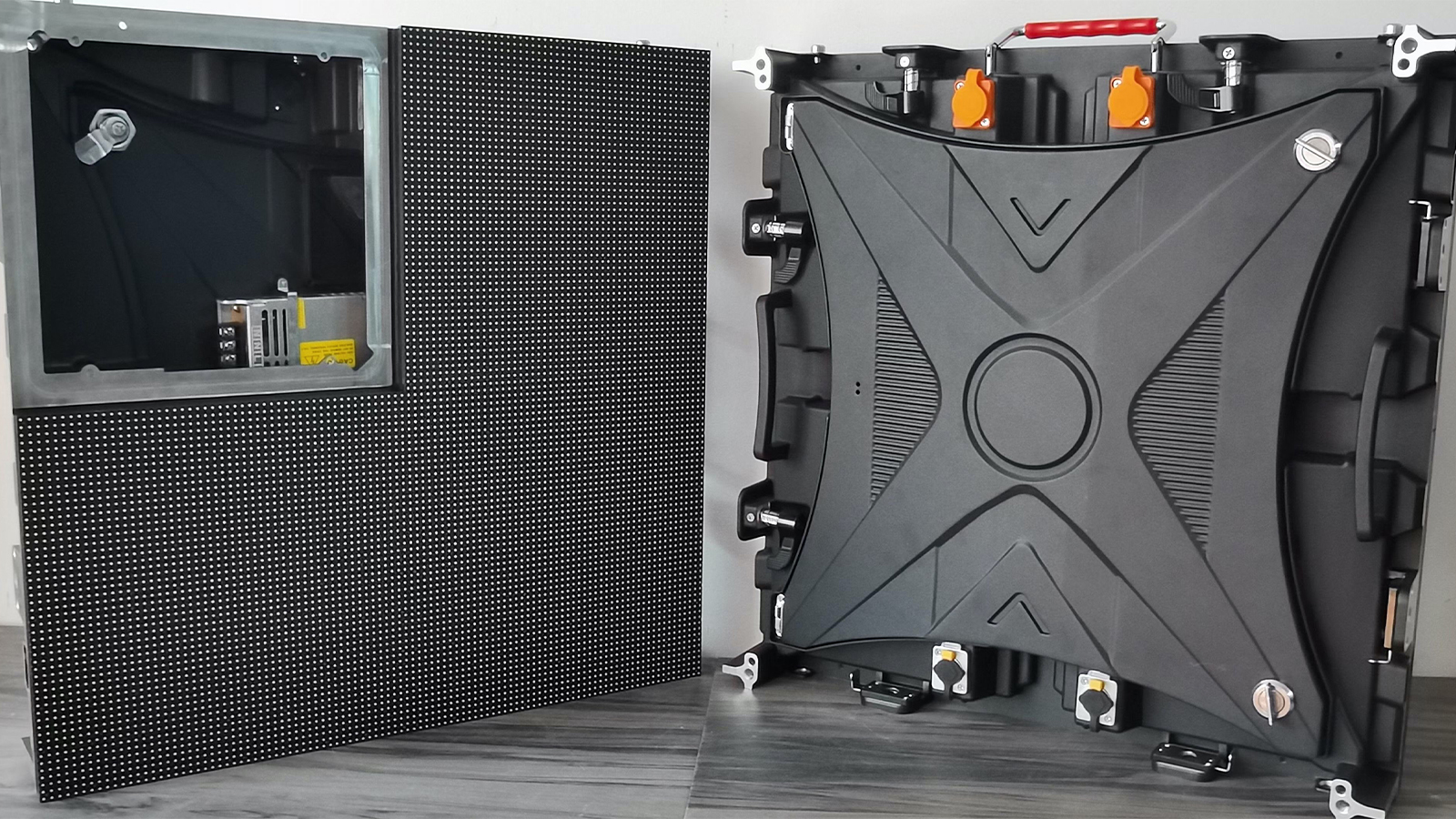

500x500 D1.jpg

Wide Viewing Angle And Easy To Operate

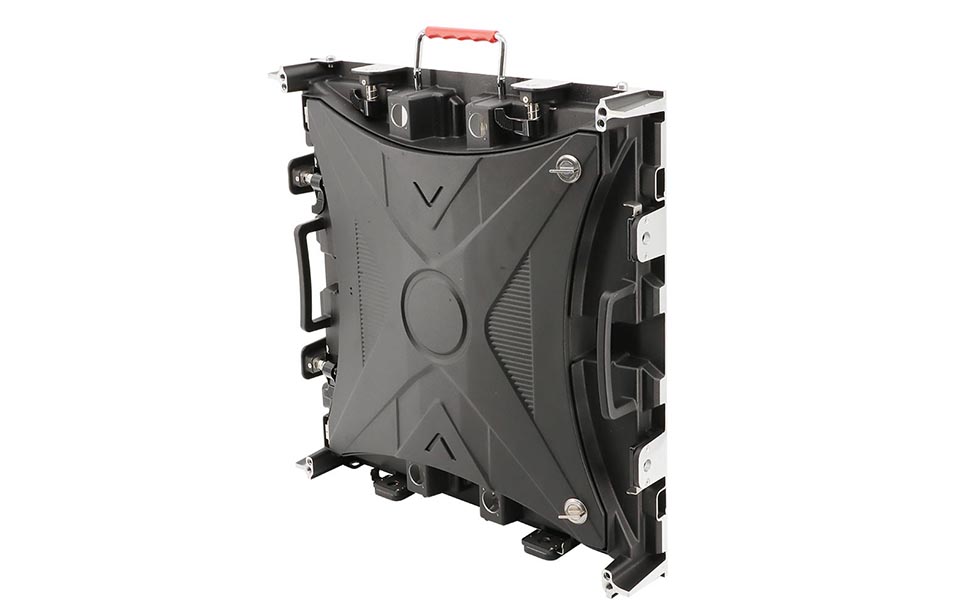

Adopts 500x500mm cabinet size,fast installation,vivid image display with wide viewing angle. Varieties of display mode, easy to operate.

standard cabinet design,to make the same cabinet size can apply to different pixel display.Therefore,it's more convenient to install and dismantle for the whole screen. Lightweight cabinet design, save transportation cost.

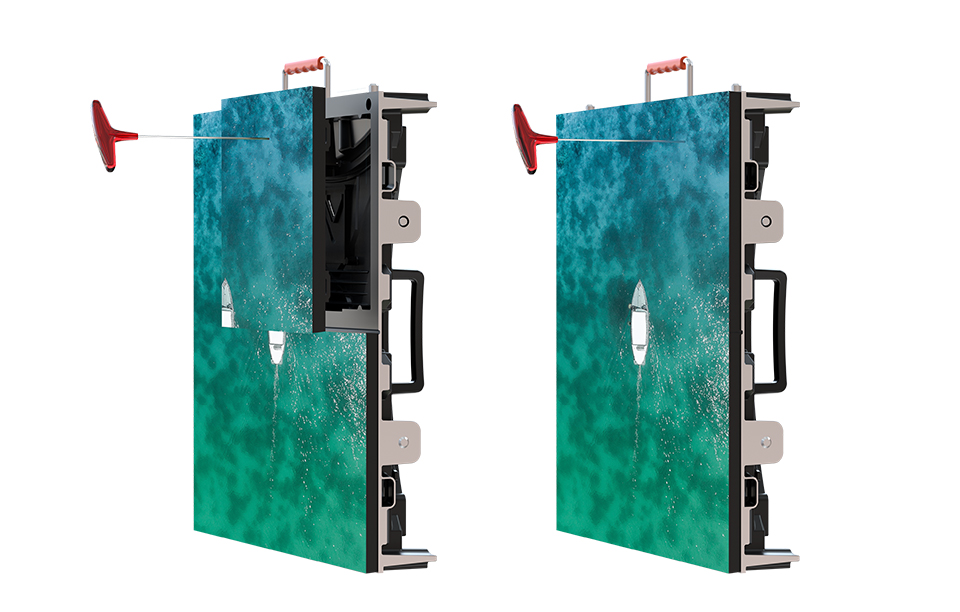

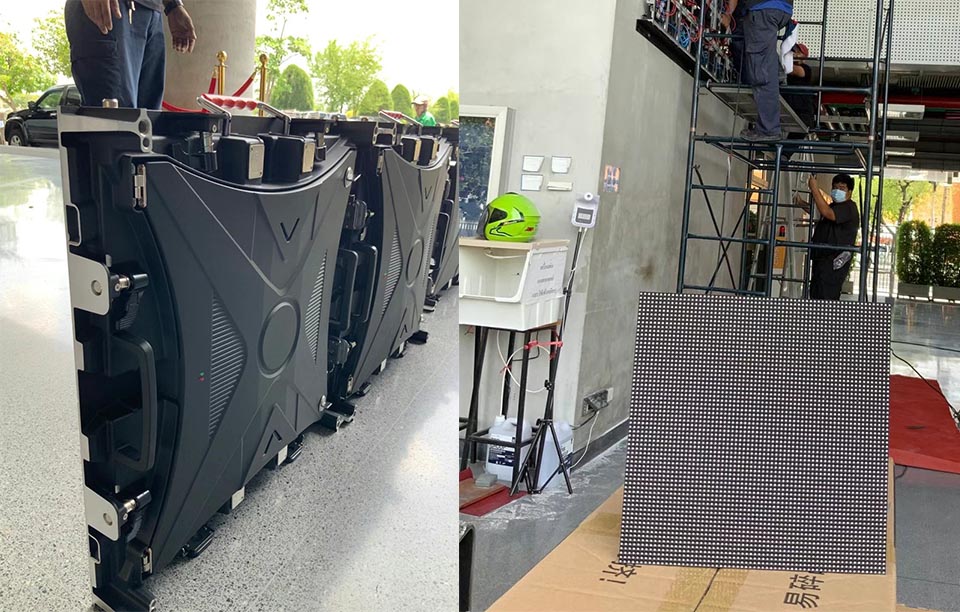

500x500 D2.jpg

Product Features

Seamless splicing, could be adjusted, more easy to maintain.low noise, low consumption, ensure the long lifespan. die-casting aluminum panel of great dissipation could save your electricity cost substantially.high quality LED chip,wide viewing angle,good flatness,anti-static,high brightness, low attenuation,good stability.

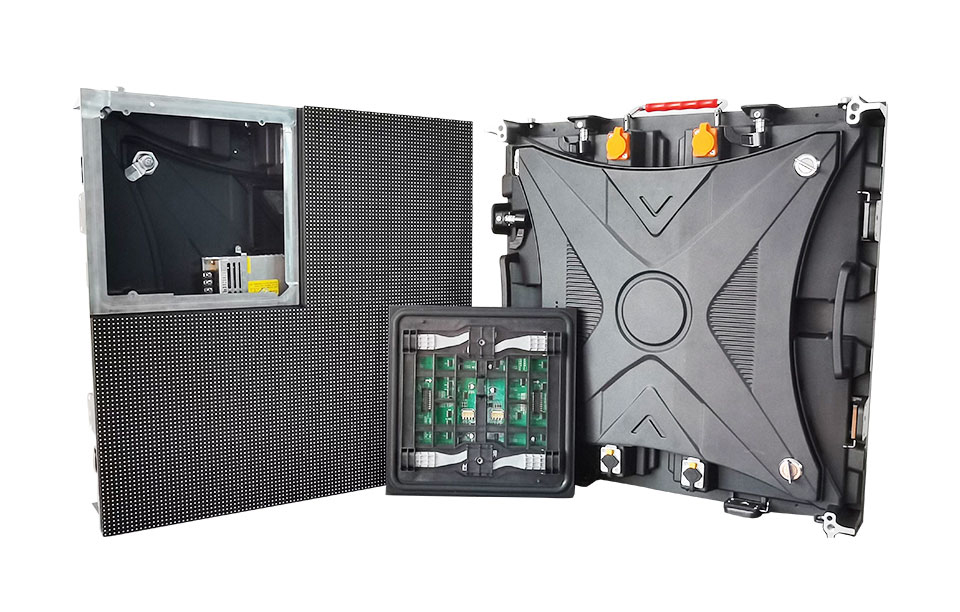

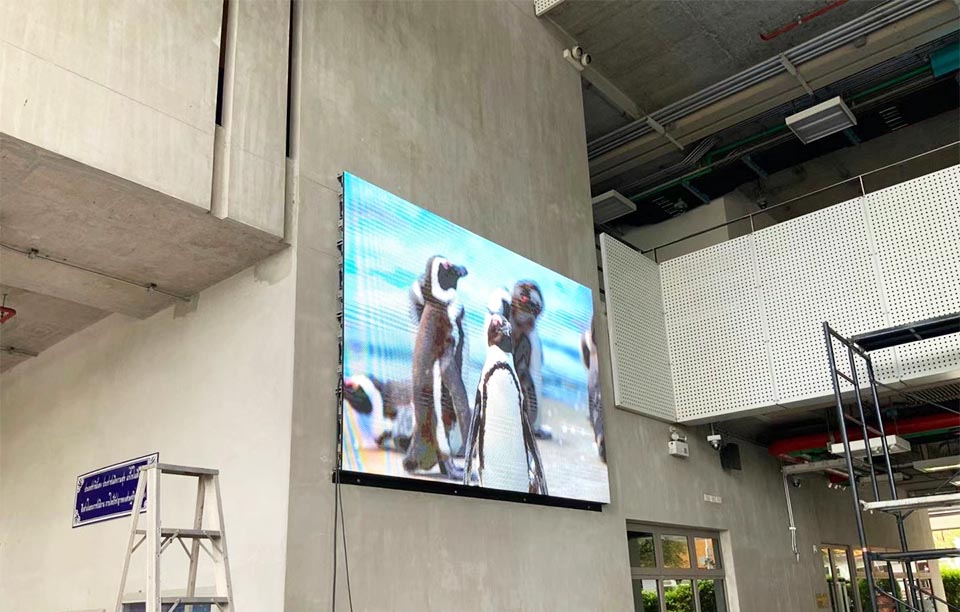

500x500 D3.jpg

Wide Viewing Angle And Easy To Operate

Adopts 500x500mm cabinet size,fast installation,vivid image display with wide viewing angle. Varieties of display mode, easy to operate.

standard cabinet design,to make the same cabinet size can apply to different pixel display.Therefore, it is more convenient to install and dismantle for the whole screen. Lightweight cabinet design, save transportation cost.


Product Parameters

ItemParameters
Pixel pitch3.91
LED TypeSMD1921
LED Module Size250x250mm
LED Module Resolution64x64 dots
Density per SQ.M65,536 dots/SQ.M
Signal Processing 16 bit
Grey Level4096 - 65536
Refresh Rate> 3840Hz
Scan Mode1/8
Brightness> 6,500 nits
Viewing Distance> 4m
Viewing Angle160 degree
Input Voltage
100-240V/50-60Hz
Max Consumption700 W/SQ.M
Ave Consumption400 W/SQ.M
Working Temperature-20 degree to 45 degree
Storage Temperature-40 degree to 60 degree
Input VoltageDC5V
IP RateIP65
Working Humidity10% - 60%
Storage Humidity10% - 90%
Lifespan > 100,000 hours
MTBF> 10,000 hours

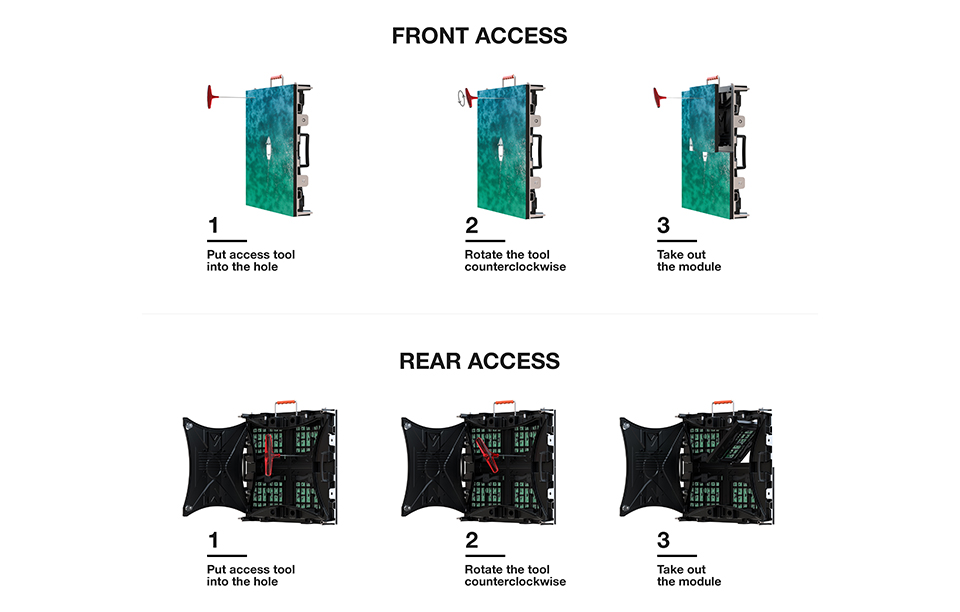

Service TypeFront Service
LED Lamp
Nationalstar
ICICN2038s/2153
Control CardNova / Colorlight / LINSN / Huidu
