P5 Front Service Module

P5 Full Front Service Module

Product introduction |

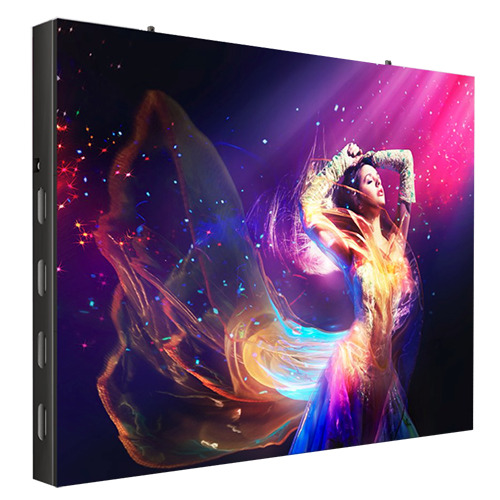

This is new design of full front service LED modules for outdoor application. It is popular these two years worldwidely.

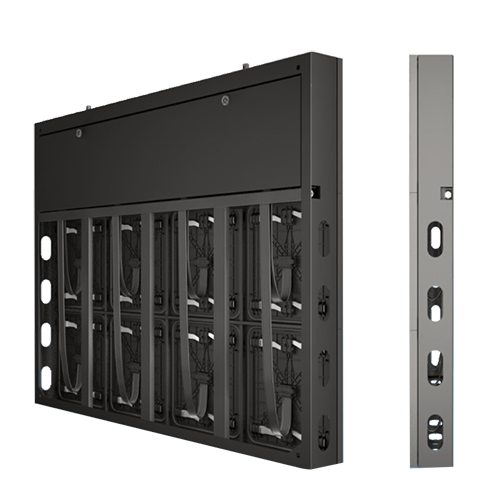

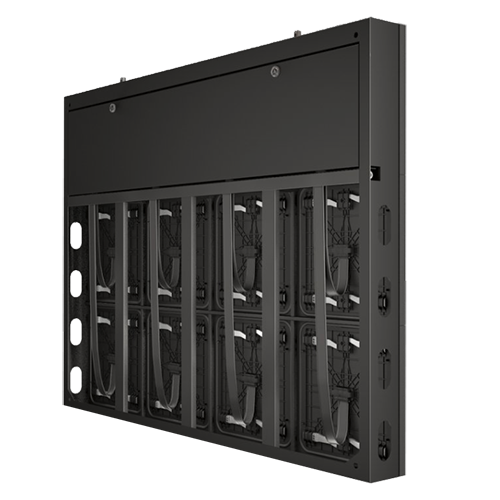

Cabinet Material:Cast Iron & Single Side Design

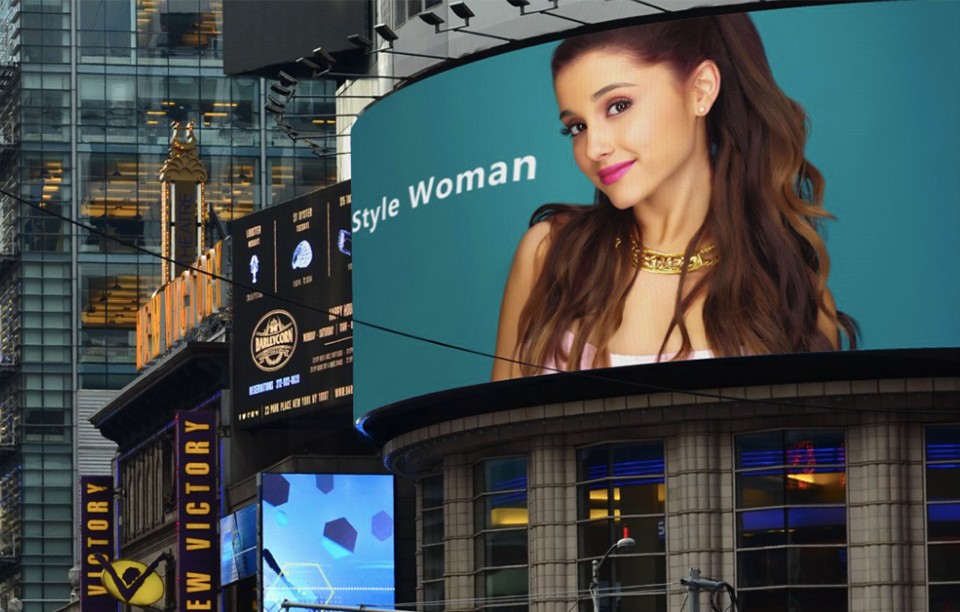

Application:It is applicable for commercial center, airport, big conference, city's landmark plaza, exhibition center and other outdoor advertising walls..

P5.71 960x612.jpg

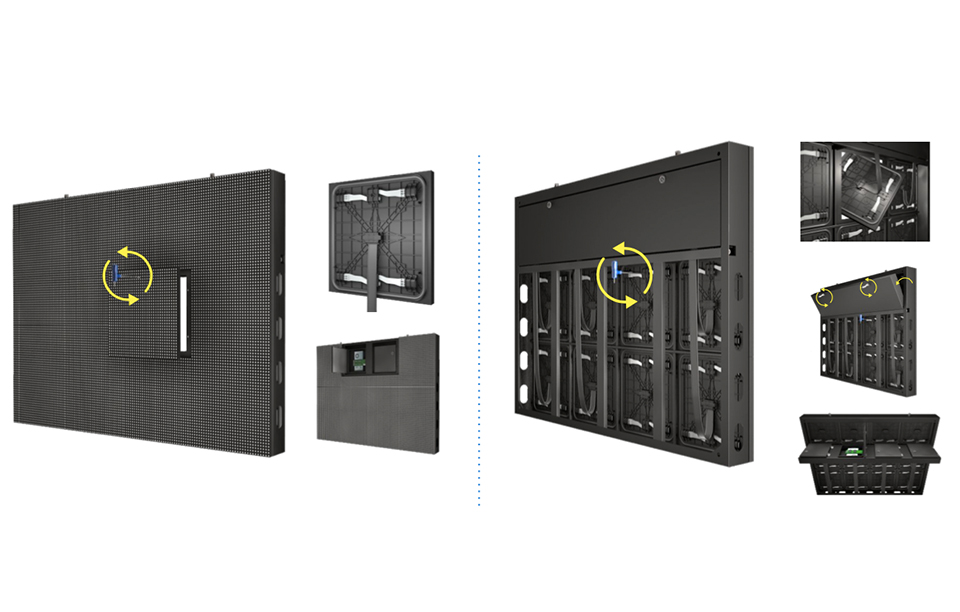

Support Both Front and Rear Service

This LED display adopts full sealed cast iron cabinet to protect its inner componets and make the display body to withstand extremely high and low temperature. It can work whole day in outdoor environment. It also support full front service and rear service.

P5.71  1960x612.jpg

Energy-saving and Super High Brightness

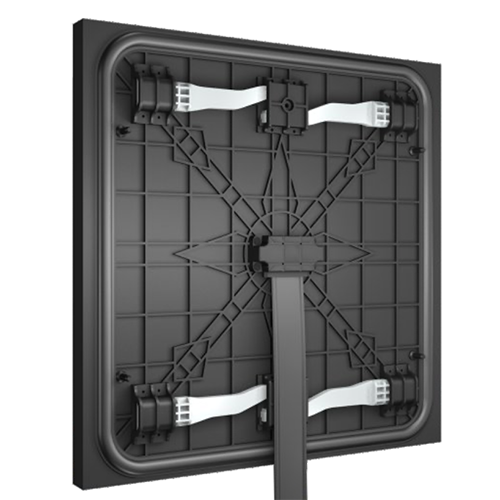

This cabinet is designed to be slim and light weight, which is only 28.5kgs per cabinet 960x960mm. The common cathode aluminum LED module is designed to meet the requirement of outdoor big wall for full front service purpose. Its brightness can reach over 8,000 nits and the maximum power consumption is less than 375 Watts.

P5.71 2 960x612.jpg

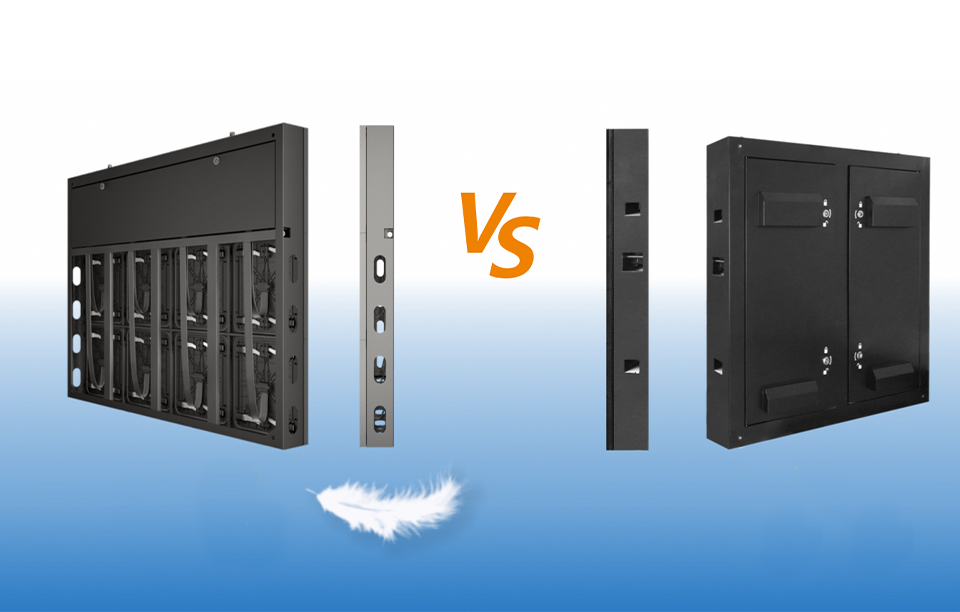

Ultra-light weight and thinner

This cabinet is less weight than standard outdoor LED cabinet. Usually, standard outdoor LED cabinet 960x960mm is over 54KGS per square meter, while this new design of slim cabinet is only 30KGS per square meter. In addition, the deepth is thin less than 11cm, but the standard outdoor cabinet is about 14cm deep.

P5.71 3 960x612.jpg

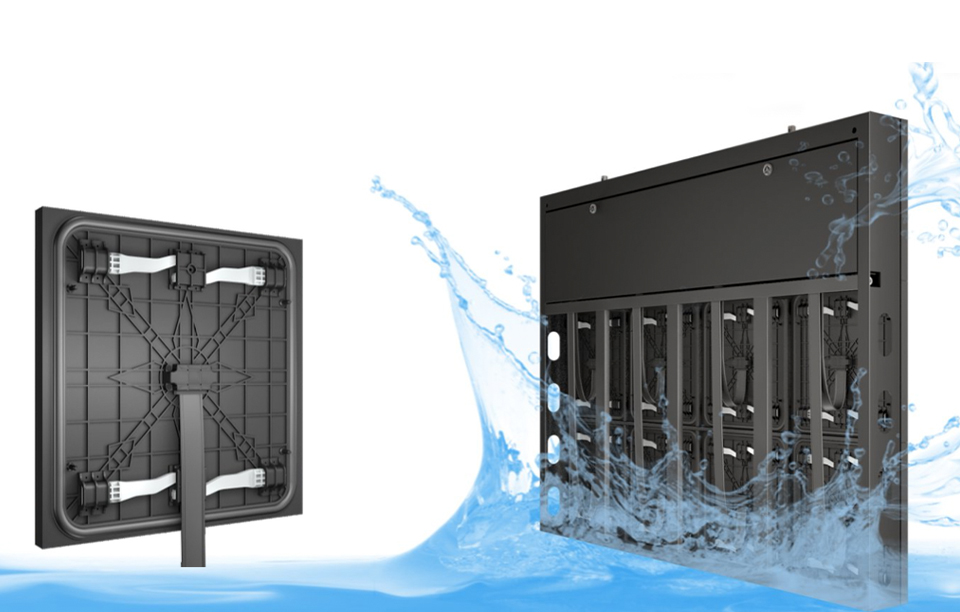

Full Waterproof IP65

This cabinet is designed to be seamless on both front side and rear side. Its IP rate is IP65. It can effectively protect the dust and water. It also can unti-UV and anti-erosion. This cabinet can be used in all types of the harsh environment.

Product Parameters

ValueP5
Pixel Pitch(mm)5.71
Pixel Matrix Per Sq.m30,674
Pixel ConfigurationSMD2727
Brightness (nits)6000
Scan1/6
Module Dimension320x320mm / 1.05x1.05ft
Cabinet Dimension960x960mm / 3.15x3.15ft
Cabinet Resolution168x168
Module Weight1.4kg
Cabinet Weight28.5kg ( Iron)
Power Con. (Max / Avg)810 / 270 w/sq.m
Service AccessFront
Refresh Rate (HZ)≥1920
Grey Scale (bit)16
Viewing Angle (H/V)140 / 140
IP RateIP65
Input Voltage (AC)100V-240V
Lifespan100,000 hours
